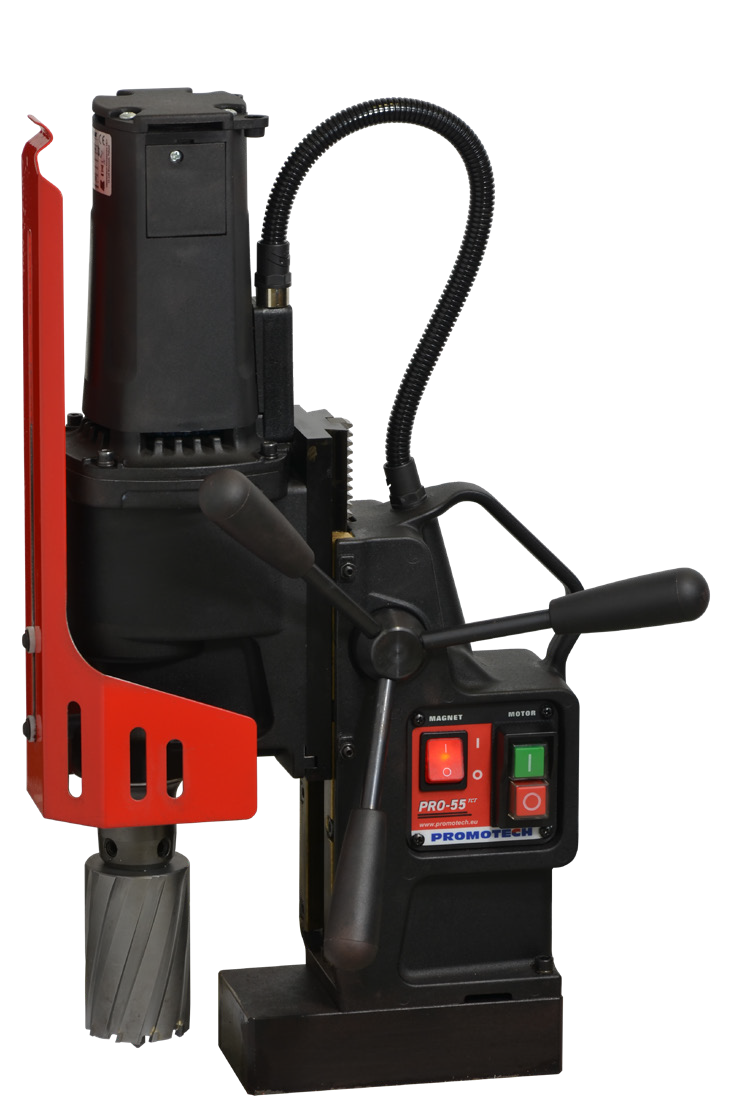

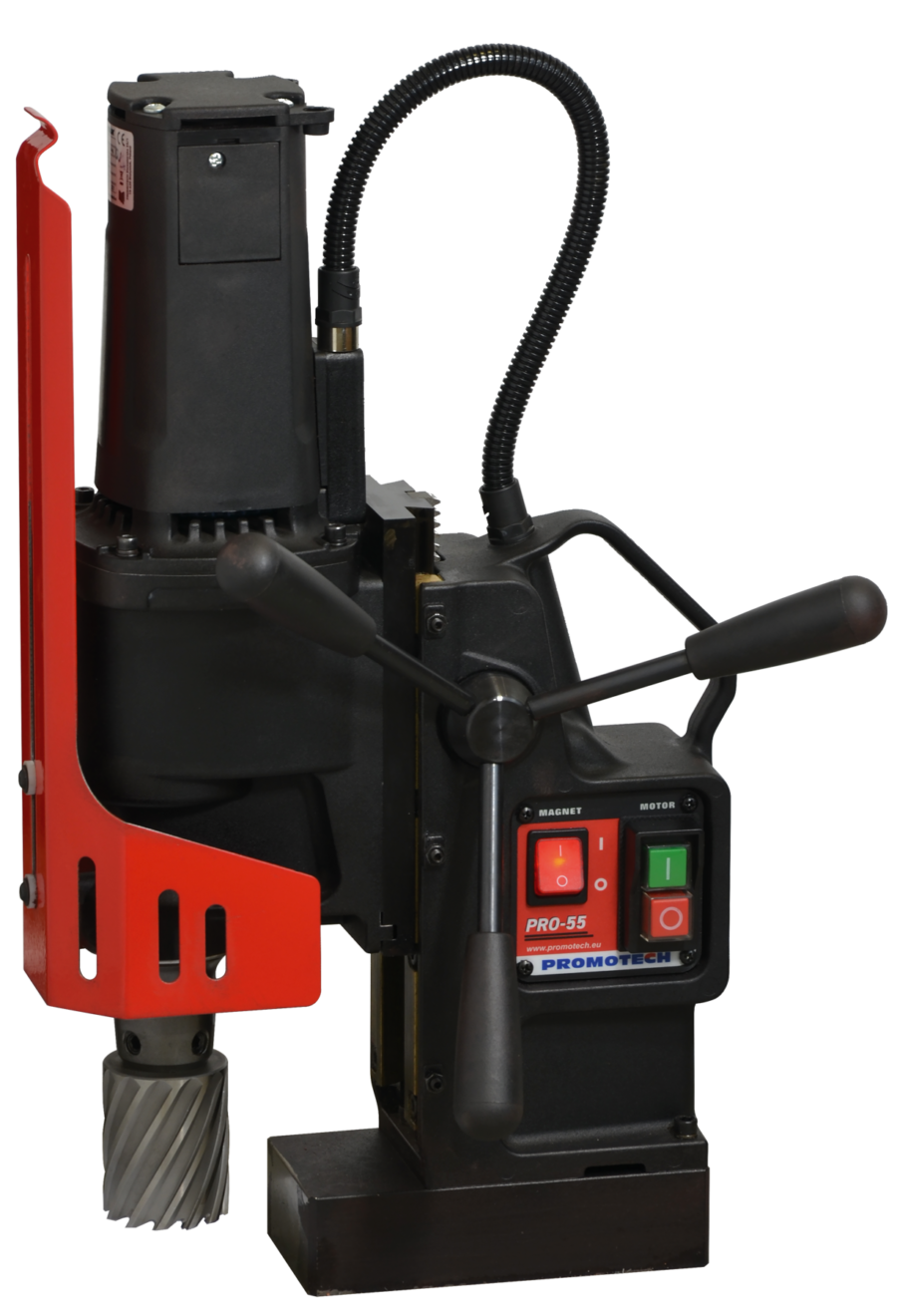

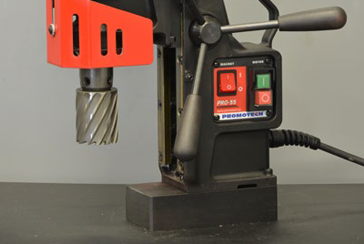

PRO-55 | Annular Cutter Drilling Machine

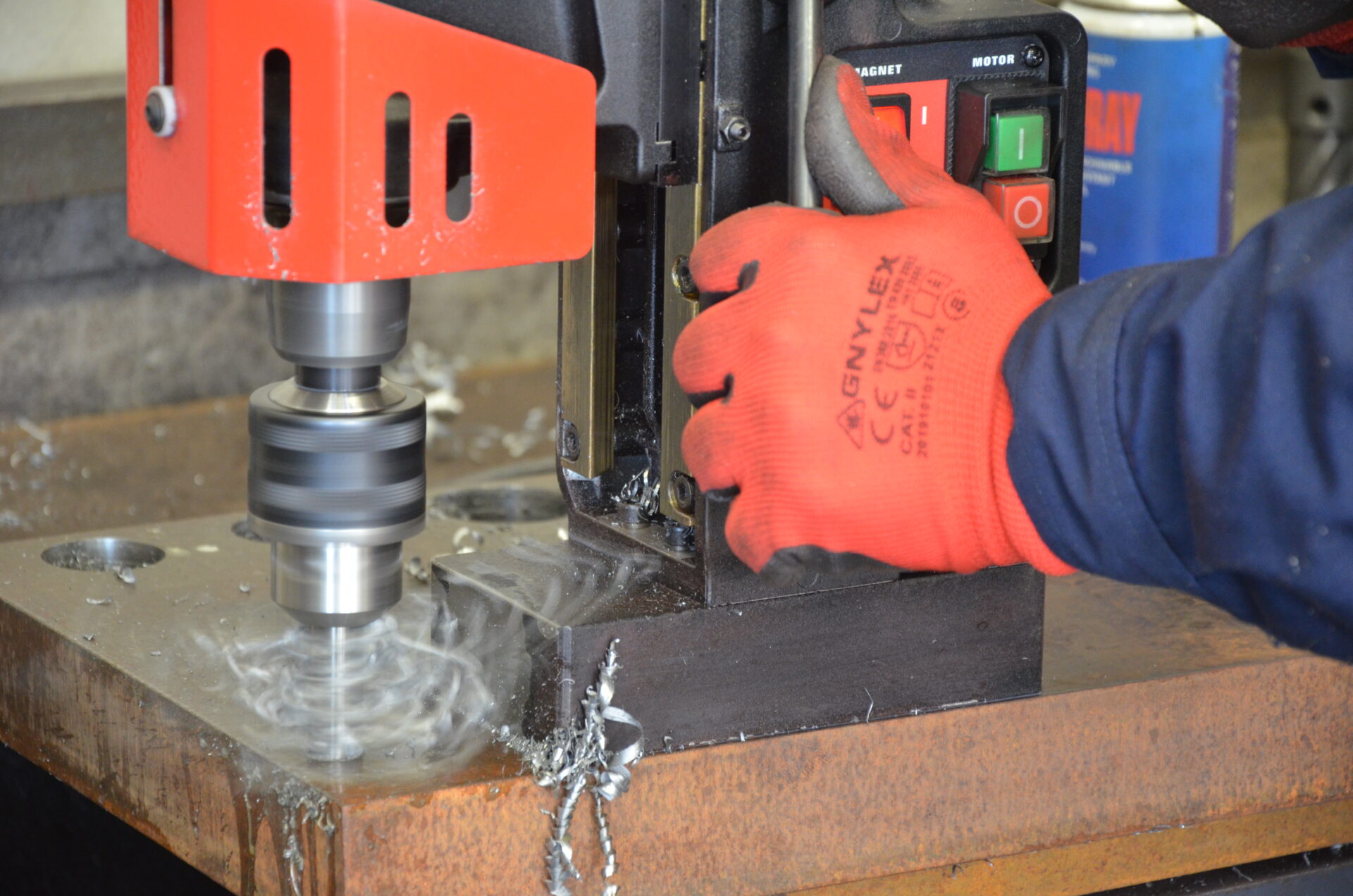

PRO-55 featuring a purpose-designed motor and 2-speed gearbox 200/400 rpm is optimized to provide appropriate speed for work with HSS cutters up to ­ 50 mm and twist drills up to ­ 16 mm. Rigid construction, optimized by means of FEA (finite element analysis) software, extends tool life and enables the depth of cut up to 75 mm. Compact design along with an innovative smart magnet with reduced weight makes it a lightweight machine

  • Compact design with excellent ratio weight/power
  • Rigid casting designed to withstand downward drilling force, prolonging the tool’s life
  • Large stroke enables the use of long tools
  • Innovative smart magnet with reduced weight
  • Energy Saving Base (ESB) uses only 50% of its power when the motor is not running
  • Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
  • Magnetic Power Adhesion Control (MPAC) detects the adhesive force of the electromagnetic base and protects both the machine and the operator from working on too thin workpiece
  • 2 years of warranty
PRO-55 | Annular Cutter Drilling Machine

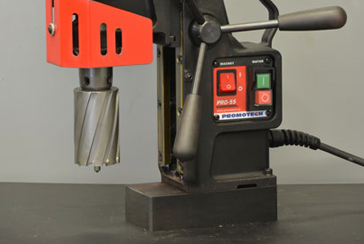

Core drill

max 55 mm

Twist drill

max 16 mm

Depth of cut

75 mm

Stroke

160 mm

HSS cutters up to Ф 50 mm

TCT cutters up to Ф 55 mm

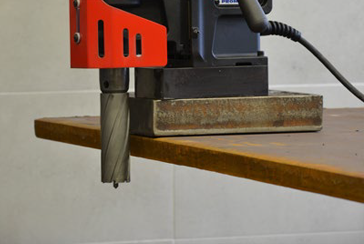

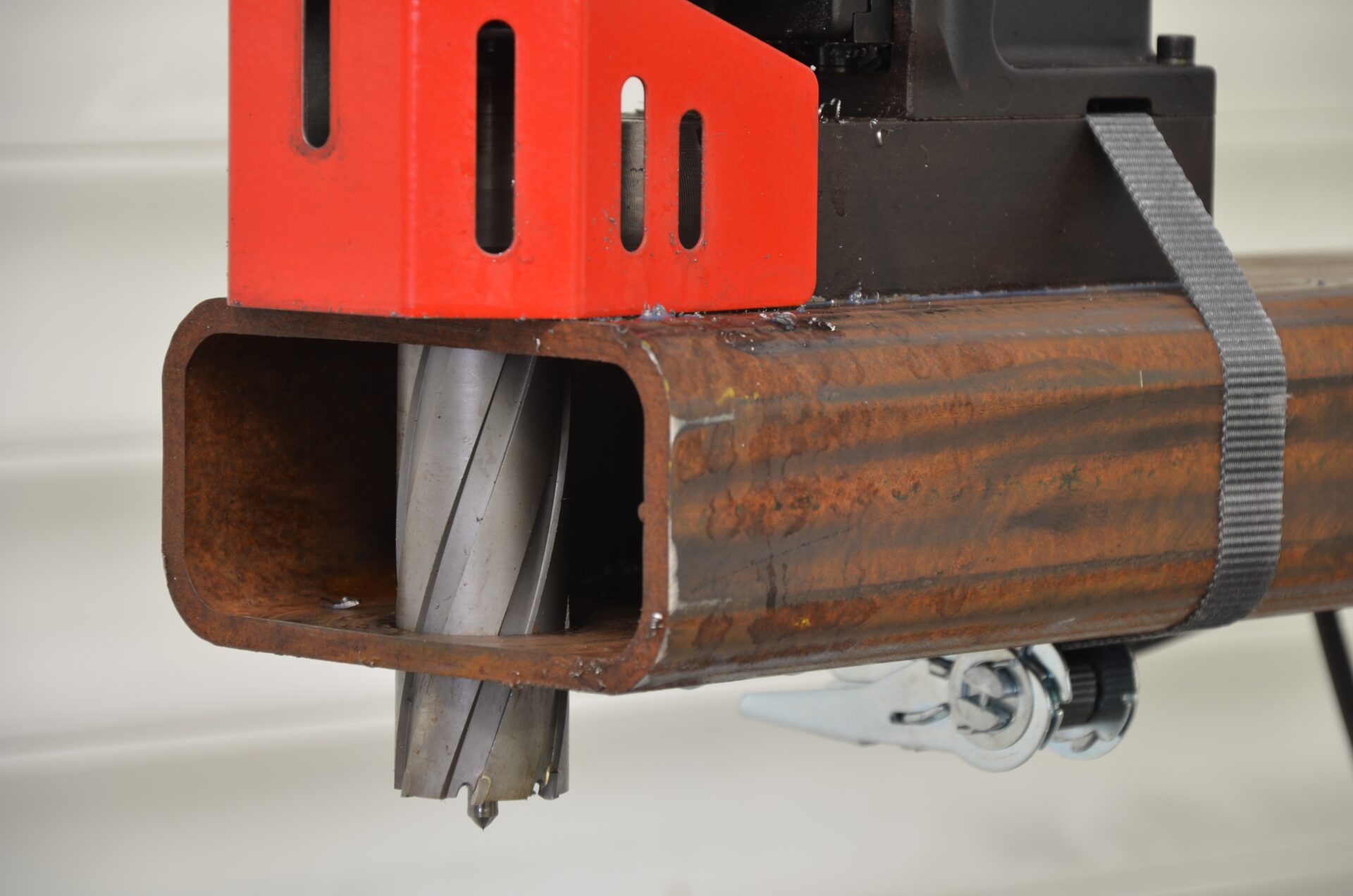

Starting point of drilling up to 50 mm below level of a drill base with 100 mm long cutter

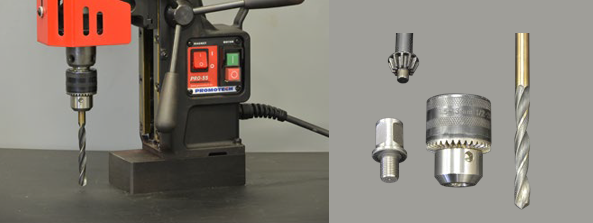

Adapter 3/4” x 1/2” 20 UNF, Drilling chuck 1/2” 20 UNF Twist drills up Ф 11.8 mm (DIN 338)

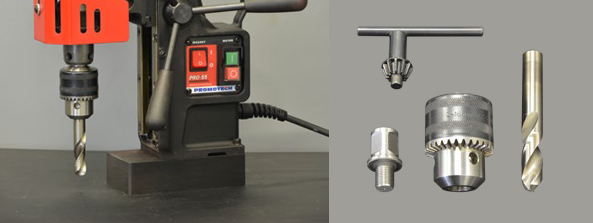

Adapter 3/4” x 1/2” 20 UNF, Drilling chuck 1/2” 20 UNF Twist drills up to Ф 16.0 mm (DIN 1897)

Specification

Motor Speeds (under load)200/400 rpm
Power1100 W
Weight15 kg (33.1 lbs)
Max milling capacity TCT/HSS55/50 mm (2.17”/1.97”)
Max drilling capacity16 mm (0.63")
Stroke160 mm (6.3")
Max depth of cut75 mm (2.95")
Voltage1~ 220–240 V, 50–60 Hz
1~ 110–120 V, 50–60 Hz
MFSC (Magnetic Field Shape Control)yes
MPAC (Magnetic Power Adhesion Control)yes
ESB (Energy Saving Base)yes
Magnetic clamping force1009 kgf (9900 N)
Magnet base dimensions84 × 168 × 41.5 (mm)
3.3 × 6.6 × 1.6 (")
Min. work piece thickness6 mm (1/4")
Spindle19 mm (3/4") Weldon
Tool holder19 mm (3/4") Weldon
Product Code 220–240 V, 50–60 HzWRT-0741-10-20-00-0
Product Code 110–120 V, 50–60 HzWRT-0741-10-10-00-0
