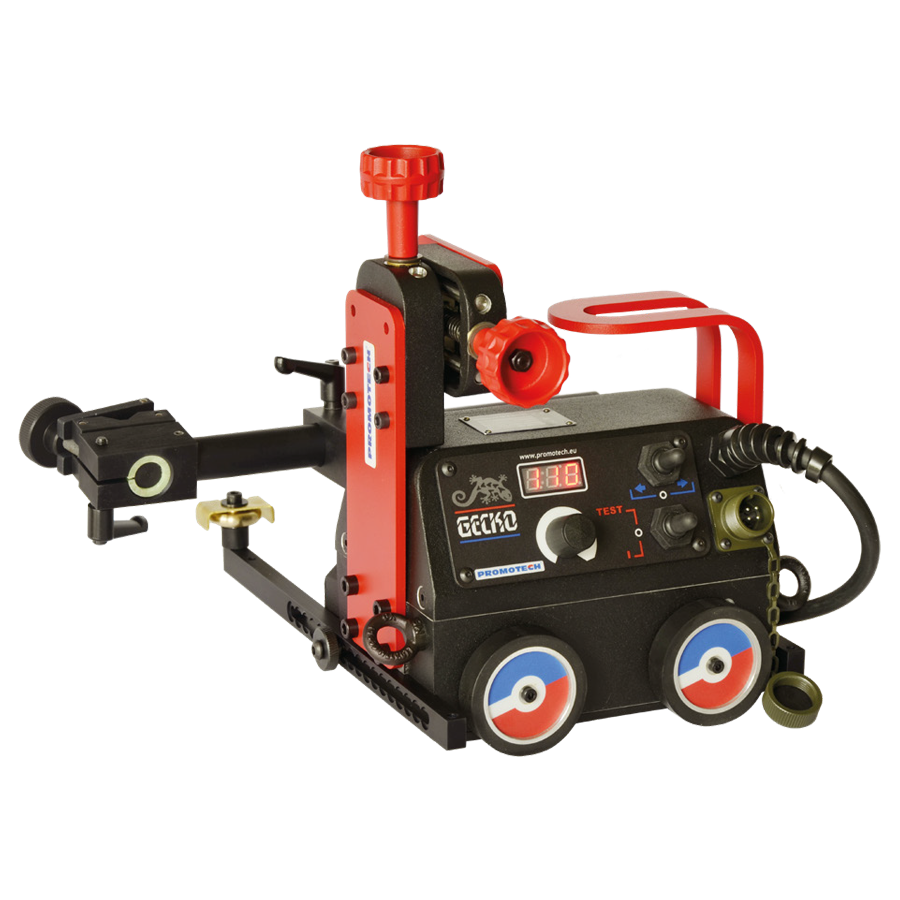

Gecko | Compact Welding Carriage

Gecko is a portable trackless welding tractor that features a 4-wheel drive system with magnetic traction and a control loop feedback mechanism that provides speed stabilization in all welding positions. Constant, continuous, and repeatable travel speed enables weld bead geometry that is exact to the required specifications, thus reducing costly over welding and decreasing filler metal usage, substantially.
Users can select arc ignition time (up to 5 seconds) at the start and the end of the tractor travel path to create a preferred weld fill at both ends. A wide range of accessories makes Gecko suitable for a variety of positions and applications. A compact design tractor weighing 8 kg can be carried anywhere.

  • The closed-loop speed control system stabilizes travel speed, enabling uniform heat input to produce consistently high-quality welds
  • Multifunctional LED display to present travel speed, units, and diagnostic messages
  • 4-wheel drive magnetic traction permits out-of-position use
  • Possibility of pre-setting the torch activation time before and after the tractor travel for better filling of the weld seam at both ends
  • Convenient Power Supply 115–230 V, 50–60 Hz or 42 V, 50–60 Hz
  • Gecko produces consistently high-quality welds and cuts in a fraction of the time required by manual operations
  • Reduce wasted filler metal – eliminates over-welding
Gecko | Compact Welding Carriage

Continuous welding

Vertical speed
0–100 cm/min

Horizontal speed
0–110 cm/min

Dual Torch Welding

Dual Arc Ignition

Multifunctional led display

Multi surface guides

Dual torch welding

Continous welding

Precise torch adjustment

Welding in vertical positions

Users can now select arc ignition times of up to 5 seconds at the start and end of the GECKO travel to create a preferred weld fill at both ends.

Specification

GECKOGECKO HS
Voltage1~ 115–230 V, 50–60 Hz
42 V, 50–60 Hz
1~ 115–230 V, 50–60 Hz
42 V, 50–60 Hz
Power20 W20 W
Welding position (according to EN ISO 6947 and AWS/
ASME)
PA / 1F / 1G
PB / 2F
PC / 2G
PD / 4F
PE / 4G
PG / 3F / 3G (contact dealer)
PA / 1F / 1G
PB / 2F
PC / 2G
PD / 4F
PE / 4G
Torch diameter16–22 mm (0.63–0.87’’);
up to 35 mm (1.38”) option
16–22 mm (0.63–0.87’’);
up to 35 mm (1.38”) option
Minimum radius of curved workpiece surfaceOD 1000 mm (39.4”)
ID 1250 mm (49.2”)
OD 1000 mm (39.4”)
ID 1250 mm (49.2”)
Minimum workpiece thickness4 mm (0.16’’4 mm (0.16’’)
Ground clearance4 mm (0.16’’4 mm (0.16’’
Horizontal pulling force150 N150 N
Vertical pulling force100 NN/A
Cross slide adjustment range0–35 mm (0–1.38’’) up down, left-right0–35 mm (0–1.38’’) up down, left-right
Horizontal speed0–110 cm/min (0–43.3 in/min)5–220 cm/min (1.5–86.6 in/min)
Vertical speed0–100 cm/min (0–39.4 in/min)N/A
Weight8 kg (18 lbs)8 kg (18 lbs
Welding settings storage1 (last used)1 (last used)
Product Code (115–230 V, 50–60 Hz, plug EU)WOZ-0466-10-20-00-0WOZ-0528-10-20-00-0
Product Code (115–230 V, 50–60 Hz, plug UK)WOZ-0466-10-10-00-0WOZ-0528-10-10-00-0
Product Code (42 V, 50–60 HzWOZ-0621-10-04-00-0WOZ-0622-10-04-00-0

2084Gecko | Compact Welding Carriage

Guide arms assembly with brass roller wheels

Gecko Accessories Welding Carriage Accessories

PRW-0466-67-00-00-0

2404Gecko | Compact Welding Carriage

Power cord 230 V (European plug)

PWD-0466-18-00-00-0

339Gecko | Compact Welding Carriage

Dual arc ignition cable 6.5 m (21 ft)

KBL-0466-17-00-00-0

2380Gecko | Compact Welding Carriage

Torch Extension Arm

Gecko Accessories Lizard Accessories

PRD-0466-43-00-00-0

2123Gecko | Compact Welding Carriage

Display shield

Gecko Accessories Welding Carriage Accessories

OSL-0466-29-00-00-0

2397Gecko | Compact Welding Carriage

Fall arester

Gecko Accessories Lizard Accessories

URZ-000001

2110Gecko | Compact Welding Carriage

Stainless steel driving wheel

Gecko Accessories Welding Carriage Accessories

KOL-0466-72-00-00-0

514Gecko | Compact Welding Carriage

22-35 mm Torch Clamp

ZRZ-0466-19-00-00-0

2098Gecko | Compact Welding Carriage

Magnet blocks (front)

Gecko Accessories Welding Carriage Accessories

BLO-0466-44-01-00-0

2100Gecko | Compact Welding Carriage

Magnet blocks (back)

Gecko Accessories Welding Carriage Accessories

BLO-0466-45-01-00-0

2102Gecko | Compact Welding Carriage

Magnet blocks (front) with increased power

Gecko Accessories Welding Carriage Accessories

BLO-0466-47-01-00-0

2104Gecko | Compact Welding Carriage

Magnet blocks (back) with increased power

Gecko Accessories Welding Carriage Accessories

BLO-0466-48-01-00-0

2092Gecko | Compact Welding Carriage

Low guide arms

Gecko Accessories Welding Carriage Accessories

PRW-0466-65-00-00-1

2094Gecko | Compact Welding Carriage

High guide arms

Gecko Accessories Welding Carriage Accessories

PRW-0466-66-00-00-1

2086Gecko | Compact Welding Carriage

Edge Following Guide Arms

Gecko Accessories Welding Carriage Accessories

PRW-0466-41-00-00-1

2088Gecko | Compact Welding Carriage

Adjustable Guide Arms

Gecko Accessories Welding Carriage Accessories

PRW-0466-42-00-00-1

2090Gecko | Compact Welding Carriage

Magnet guide arms

Gecko Accessories Welding Carriage Accessories

PRW-0466-52-00-00-1

2068Gecko | Compact Welding Carriage

Follower Guide Arms for Flexible track

Gecko Accessories Welding Carriage Accessories

PRW-0466-50-02-00-1

2066Gecko | Compact Welding Carriage

Guide adjustment tool

Gecko Accessories Lizard Accessories Welding Carriage Accessories

UST-0466-53-00-00-0
