PRO-36 Battery | Cordless Drilling Machine

The PRO-36 Battery makes holes up to 36 mm in diameter by using annular cutters. The machine can also drill holes up to 12 mm in diameter twist drill bits. A cordless drill is equipped with an LED monitoring system that generates signals in green and red colors to indicate the current condition of the drill and give safety information. The control panel is equipped with so-called “vandal resistant” illuminated start/stop switches (green/red)

  • Cordless, compact, and lightweight – ideal for site work
  • Dual bars guide system ensures extraordinary stiffness and adjustment-free operation
  • LED Monitoring System flashes green when inadequate adhesion is detected due to e.g. gap or thin workpiece
  • Overload protection prevents misuse of the machine
  • Tilt sensor – to stop the motor if the machine breaks away from the surface whilst in operation
  • Energy Saving Base (ESB) uses only 50% of its power when the motor is not running
  • Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
PRO-36 Battery | Cordless Drilling Machine

Core drill

max 36 mm

Twist drill / with Weldon Shank

max 12 mm / 19mm

Depth of cut

max 50 mm

Stroke

70 mm

Motor Speed

260 rpm

Milling capacity up to 36 mm (1 7/16″)
Max depth of cut up to 50 mm (1.97″)

Out-of-position and outdoor applications

Lightweight and compact design

Ergonomic handle for easy transportation

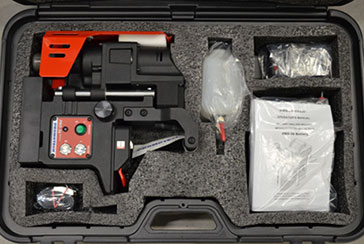

Handy plastic box

Specification

Motor Speed (under load)260 rpm
Power450 W
Weight with 4.0 Ah battery11.5 kg (25.35 lbs)
Max milling capacity36 mm (1 7/16”)
Max drilling capacity12 mm (0.47”)
Stroke70 mm (2.76”)
Max depth of cut50 mm (1.97”)
Voltage18 V DC
MFSC (Magnetic Field Shape Control)Yes
ESB (Energy Saving Base)Yes
Magnetic clamping force (surface with the thickness
of 25 mm and roughness Ra = 1.25)
765 kgf (7 500 N)
Magnet Base Dimensions80 mm × 160 mm × 38 mm
(3.15” × 6.3” × 1.5”)
Min. Workpiece Thickness6 mm (0.24”)
Spindle/ Tool holder19 mm (3/4”) Weldon
Product CodeWRT-0688-10-00-00-0

LED Monitoring System

LED interface generates signals in green and red colors to indicate current condition of the drill and give safety information. It provides quick exchange of information between the drill and the operator in the event of an emergency.

Condition Of The DrillStrong surface. Ready to Operate.
(Solid Green)
Emergency stop. Machine tilt or vibrations.
(4 Red Flashes between Green)
Motor doesn’t turn on. Replace discharged battery. Solid Red
Safety InformationWeak surface. Low clamping force.
(Flashing Green)
