The GECKO BATTERY is a battery-powered trackless welding tractor designed to produce continuous butt and fillet welds using MIG/MAG torches. CAS LiHD battery delivers enough power for handling even the toughest applications with no cables. A 4-wheel drive system with magnetic traction and a feedback loop provide speed stabilization in various welding positions. Constant, continuous, and repeatable travel speed enables weld bead geometry that is exact to the required specifications, thus reducing costly over welding and substantially decreasing filler metal usage.

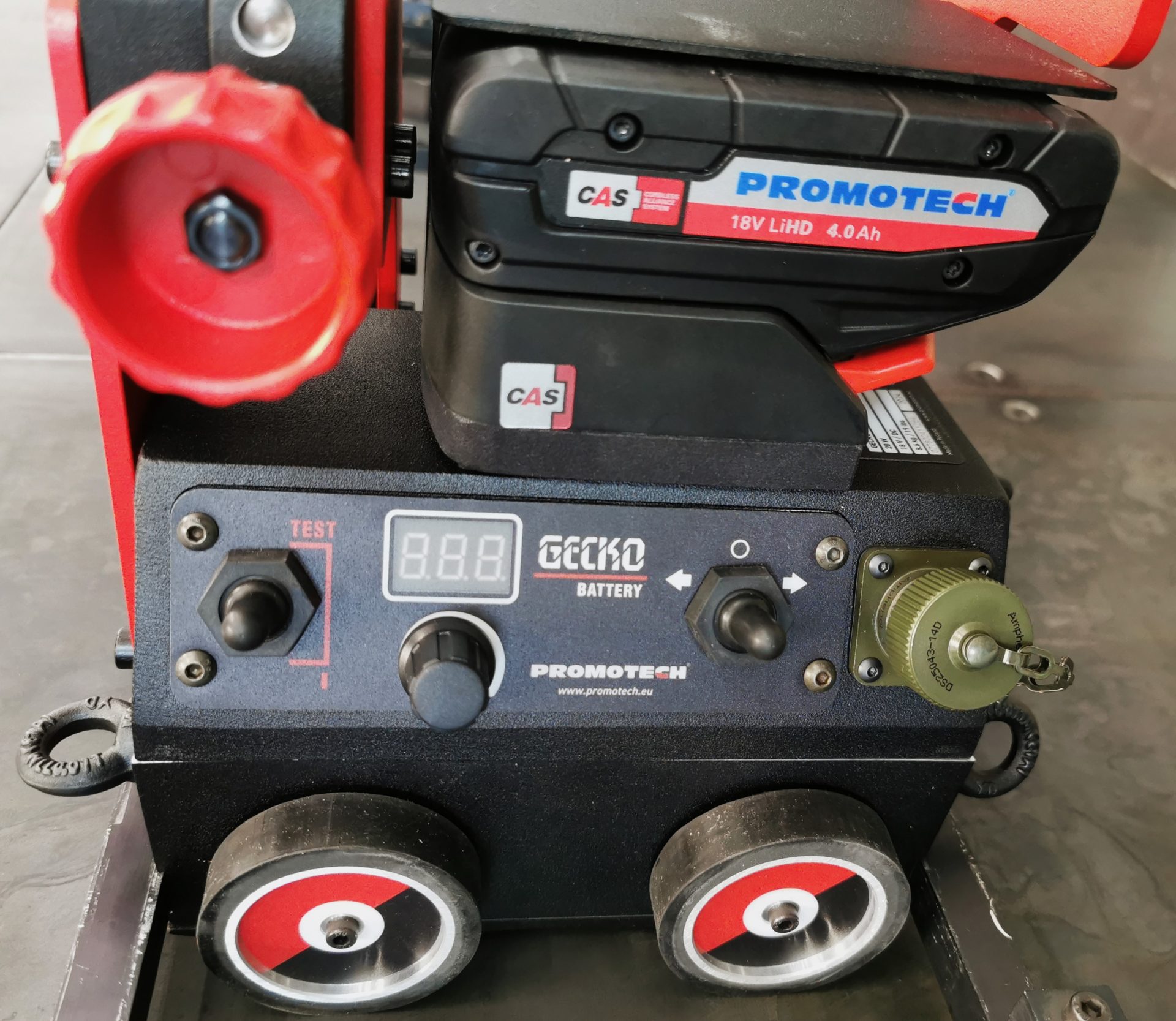

  • Convenient 18 V DC battery supply (the same battery for both Mini Spider and Gecko Battery)
  • LiHD battery ensures maximum power availability for an extremely long time
  • Intelligent battery management for long-lasting battery
  • Digital speed control and stabilization for high quality welds
  • Multifunctional LED display to present travel speed, units and diagnostic messages
  • Compact, lightweight design with durable aluminum cast housing
  • Optional accessories make Gecko Battery fit for various applications with carbon steel, stainless steel and aluminum
Gecko Battery | Battery Powered Welding Carriage

Continuous welding

Horizontal speed
0–110 cm/min

Dual torch welding

Dual Arc Ignition

Min. path convex radius 600 mm (23-5/8”)

Continous welding

Dual torch welding

Multi-surface guiding

Closed loop speed control system stabilizes travel speed to reduce weld defects

Precise torch adjustment with screw drive cross slide

Welding and cutting on concave and convex surfaces

Welding in vertical positions

Specification

Voltage
Power
Welding position (according to EN ISO 6947 and AWS/ASME)HorizontalPA / 1F / 1G
PB / 2F
PC / 2G
PD / 4F
PE / 4G
VerticalPF / 3G (ask dealer)
Minimum path curve radiusOuter600 mm (23-5/8”)
Inner800 mm (31-1/2”)
Torch diameter16–22 mm (5/8”–55/64”)
Minimum workpiece thickness4 mm (0.16”)
Ground clearance4 mm (0.16”)
Horizontal pulling force150 N
Cross slide adjustment range0–35 mm (0–1.38”)
up‑down, left-right
Horizontal speed*0–110 cm/min
(0–43.3 in/min)
Weight8 kg (18 lbs)
Welding settings storage1 (last used)
Product CodeWOZ-0776-10-00-00-0

2084Gecko Battery | Battery Powered Welding Carriage

Guide arms assembly with brass roller wheels

Gecko Accessories Welding Carriage Accessories

PRW-0466-67-00-00-0

2404Gecko Battery | Battery Powered Welding Carriage

Power cord 230 V (European plug)

PWD-0466-18-00-00-0

339Gecko Battery | Battery Powered Welding Carriage

Dual arc ignition cable 6.5 m (21 ft)

KBL-0466-17-00-00-0

2380Gecko Battery | Battery Powered Welding Carriage

Torch Extension Arm

Gecko Accessories Lizard Accessories

PRD-0466-43-00-00-0

2123Gecko Battery | Battery Powered Welding Carriage

Display shield

Gecko Accessories Welding Carriage Accessories

OSL-0466-29-00-00-0

2110Gecko Battery | Battery Powered Welding Carriage

Stainless steel driving wheel

Gecko Accessories Welding Carriage Accessories

KOL-0466-72-00-00-0

2397Gecko Battery | Battery Powered Welding Carriage

Fall arester

Gecko Accessories Lizard Accessories

URZ-000001

514Gecko Battery | Battery Powered Welding Carriage

22-35 mm Torch Clamp

ZRZ-0466-19-00-00-0

2098Gecko Battery | Battery Powered Welding Carriage

Magnet blocks (front)

Gecko Accessories Welding Carriage Accessories

BLO-0466-44-01-00-0

2100Gecko Battery | Battery Powered Welding Carriage

Magnet blocks (back)

Gecko Accessories Welding Carriage Accessories

BLO-0466-45-01-00-0

2102Gecko Battery | Battery Powered Welding Carriage

Magnet blocks (front) with increased power

Gecko Accessories Welding Carriage Accessories

BLO-0466-47-01-00-0

2104Gecko Battery | Battery Powered Welding Carriage

Magnet blocks (back) with increased power

Gecko Accessories Welding Carriage Accessories

BLO-0466-48-01-00-0

2066Gecko Battery | Battery Powered Welding Carriage

Guide adjustment tool

Gecko Accessories Lizard Accessories Welding Carriage Accessories

UST-0466-53-00-00-0

4299Gecko Battery | Battery Powered Welding Carriage

PRW-0752-10-00-00-0-Adjustable-guide-arms-(set-of-2-pcs)

Welding Carriage Accessories

4301Gecko Battery | Battery Powered Welding Carriage

PRW-0752-11-00-00-0-Magnet-guide-arms-(set-of-2-pcs)

Welding Carriage Accessories

4303Gecko Battery | Battery Powered Welding Carriage

PRW-0752-12-00-00-0-Low-guide-arms-(set-of-2-pcs)

Welding Carriage Accessories

4305Gecko Battery | Battery Powered Welding Carriage

PRW-0752-13-00-00-0-High-guide-arms-(set-of-2-pcs)

Welding Carriage Accessories

4307Gecko Battery | Battery Powered Welding Carriage

PRW-0752-14-00-00-0-Track-following-guide-arms-(set-of-2-pcs)

Welding Carriage Accessories
