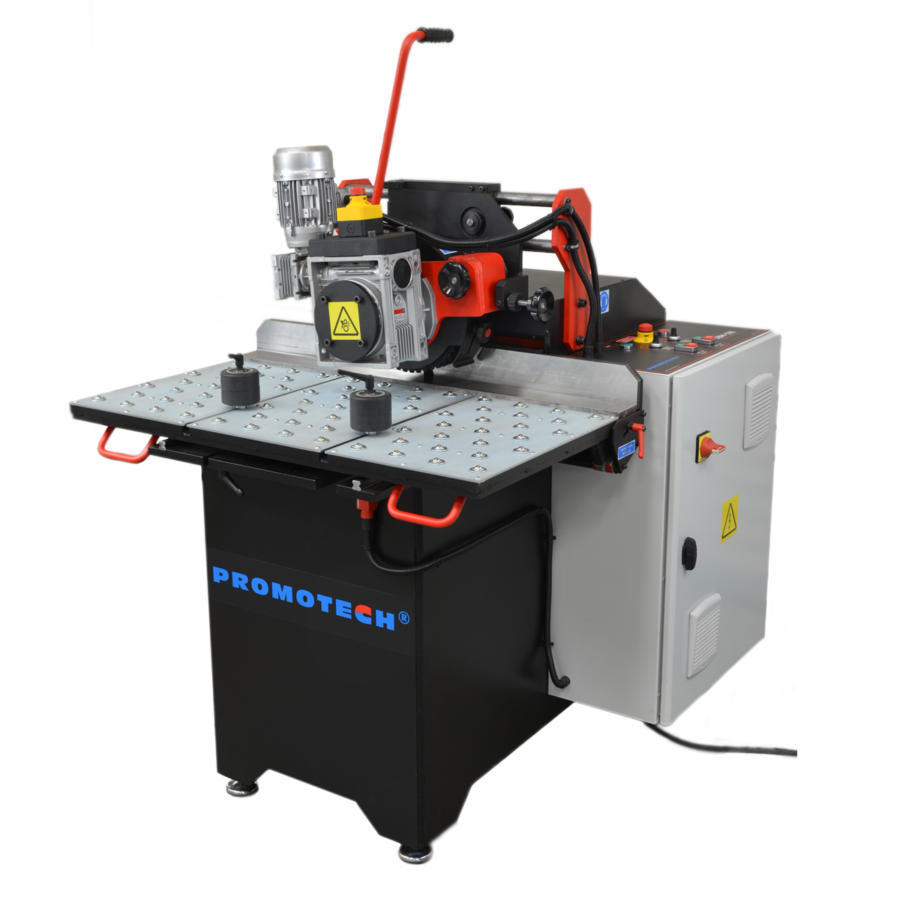

SBM-500 | Stationary Bevelling Machine

Equipped with a powerful 7.500-watt motor, the stationary beveling machine is a robust and efficient solution for beveling up to 30 mm wide on different-sized workpieces up to 100 mm thick and small pipes from 50 to 150 mm in diameter. The SBM500 features a high-speed rotary milling head that produces a clean, milled surface without thermal distortion or a heat-affected zone. Continuous adjustment of spindle speed and auto-feed rate makes it suitable for different types of steel and aluminum. Optional accessories expand the possible applications of the SBM-500 to deal with long workpieces, pipes 50-150 mm OD, and narrow workpieces with a minimum width of 30 mm.

  • Precise setting of bevel angle from 15 up to 60 degrees and bevel width up to 30 mm
  • 3D contact wheel control ensures proper workpiece alignment in relation to high-speed rotary milling head
  • variable auto-feed to bevel both ferrous and non-ferrous materials
  • cutting inserts dedicated for optimal performance on different materials
  • easy access to milling head and cutting inserts
  • overload protection to prevent motor damage
  • SBM-500 streamlines workflow to maximize your production efficiency
SBM-500 | Stationary Bevelling Machine

Bevelling Angle

15 - 60° with continuous
angle adjustment

Bevelling Width

up to 30 mm

Workpiece height

from 3 mm up to 100 mm

Min. workpiece width
Min. workpiece length

50 mm (30 mm option) / 150 mm

Pipe OD beveling

from 50 mm up to 150 mm (option)

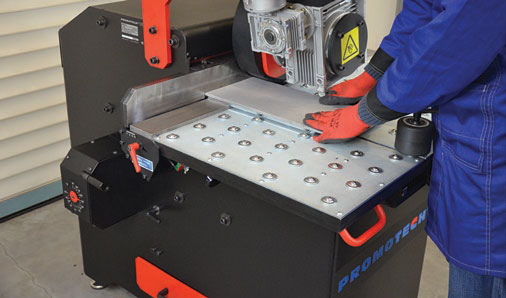

Convenient ball roller bench

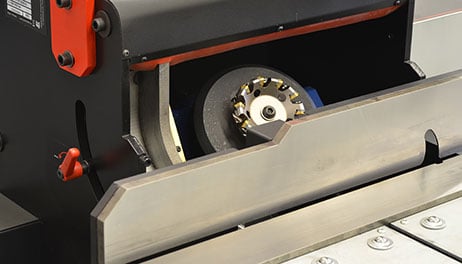

High-speed rotary milling head equipped with 10 inserts

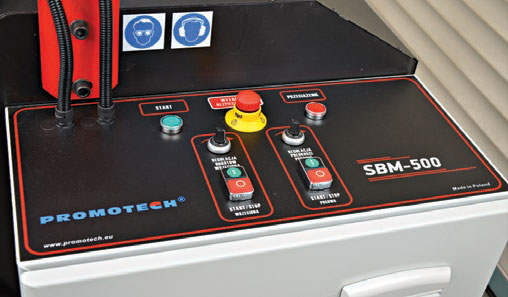

User-friendly control panel

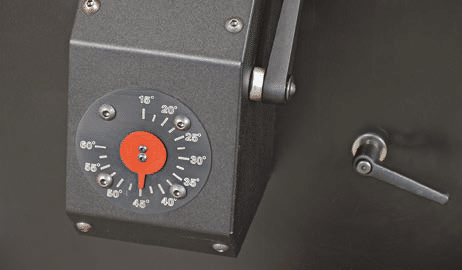

Precise bevel angle adjustment

Simple setting of bevel width

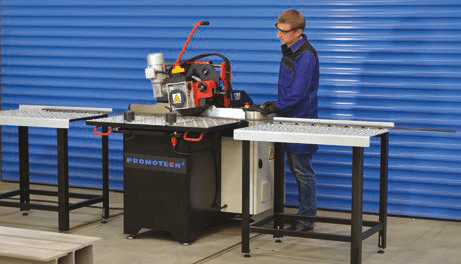

Auxiliary tables to accommodate long workpieces

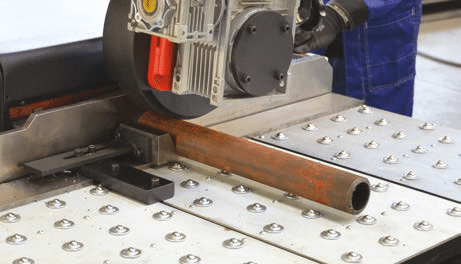

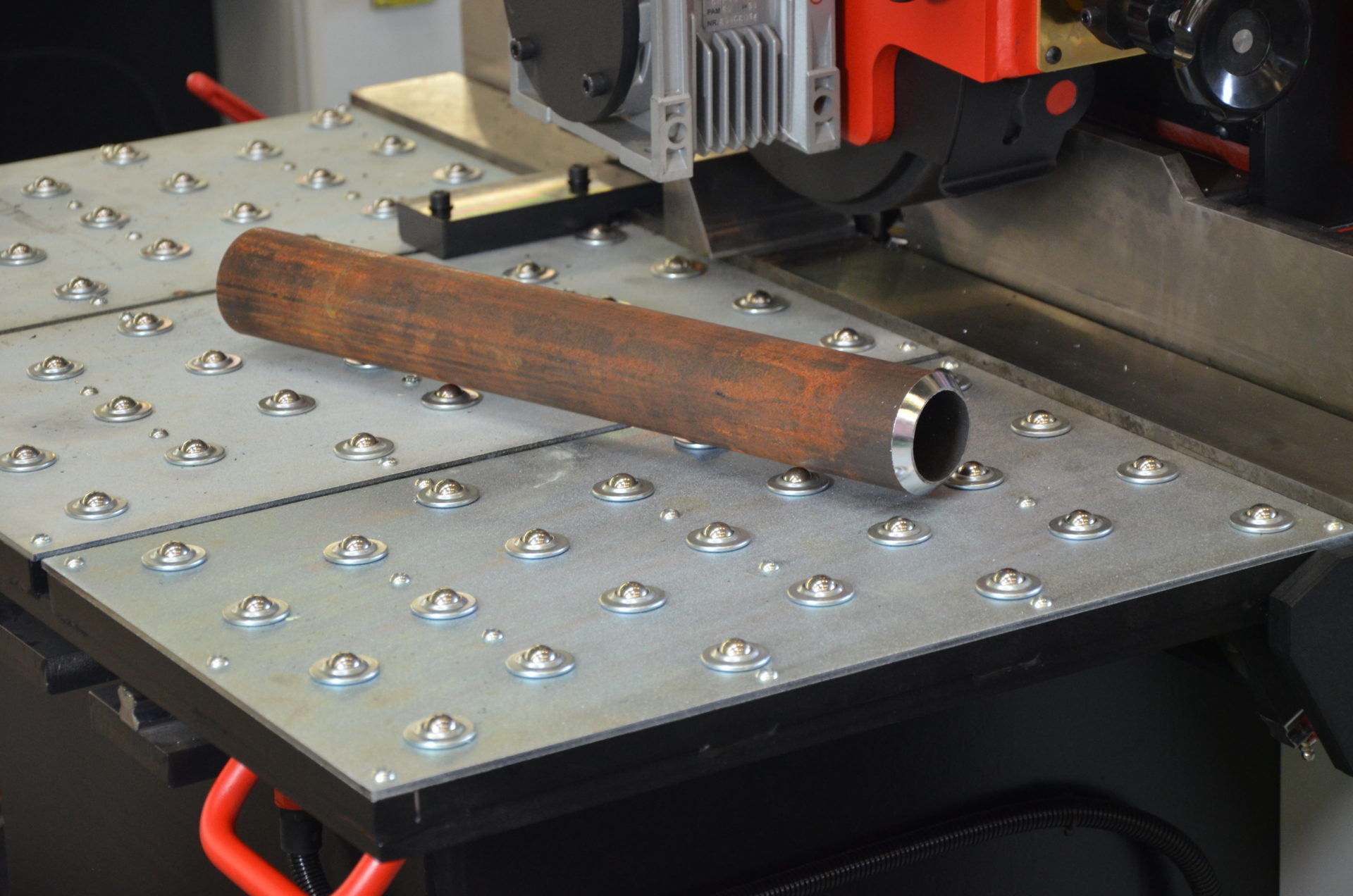

Possibility of pipe OD beveling

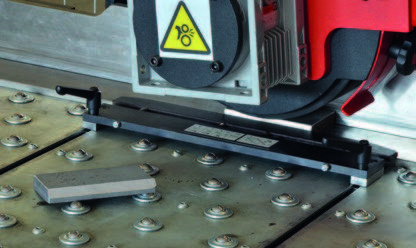

Attachment for narrow workpieces

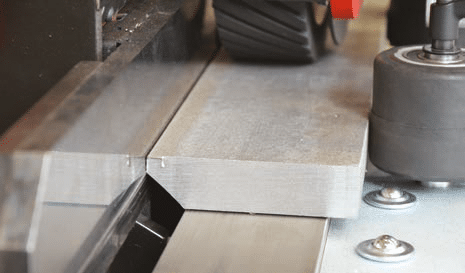

Suitable for various materials incl. different types of steel and aluminum

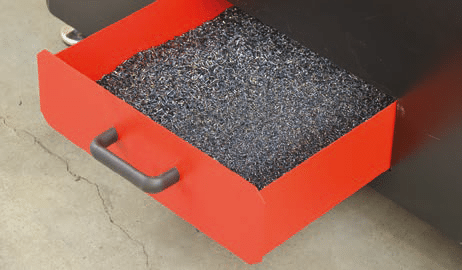

Capacious swarf drawer

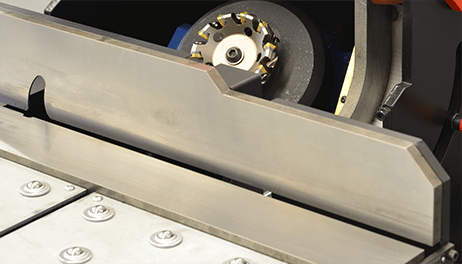

Easy access to milling head and inserts

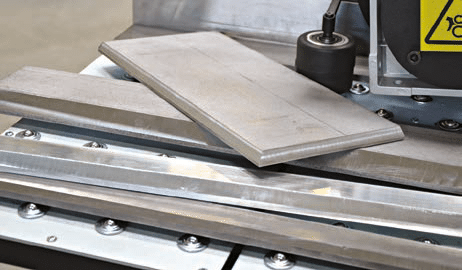

Very high surface quality


Voltage3~ 400 VAC + N+PE, 50/60 Hz
Power7500 W
Spindle speed (no load)500 - 2920 rpm
Feed rateup to 3.3 m/min
Feed by contact wheelYES
Bevel angle range15 - 60° with continuous angle adjustment
Bevel widthup to 30 mm
Milling head with 10 insertsYES
Min. dimensions of a bar50x150x3 mm
Max. workpiece heightup to 100 mm
Weight850 kg
Product Code:UKS-0573-10-00-00-0

3976SBM-500 | Stationary Bevelling Machine

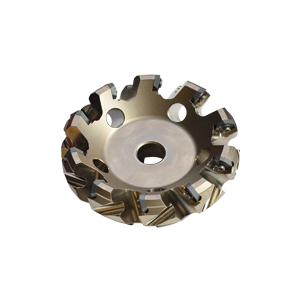

GLW-000030 Milling head

Bevelling Accessories

3985SBM-500 | Stationary Bevelling Machine

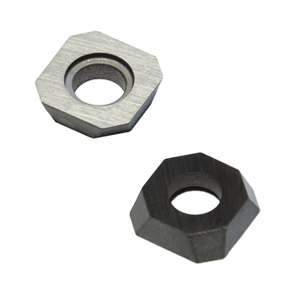

PLY-000396 Cutting insert for steel (10pcs required)

Bevelling Accessories

3987SBM-500 | Stationary Bevelling Machine

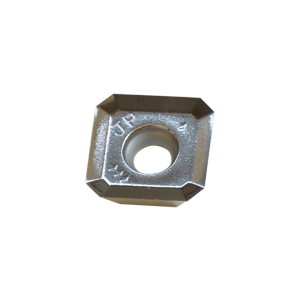

PLY-000408 Cutting insert for aluminum (10pcs required)

Bevelling Accessories

3989SBM-500 | Stationary Bevelling Machine

PLY-000439 Shim

Bevelling Accessories

3992SBM-500 | Stationary Bevelling Machine

PLY-000692 Cutting insert for stainless steel

Bevelling Accessories

3994SBM-500 | Stationary Bevelling Machine

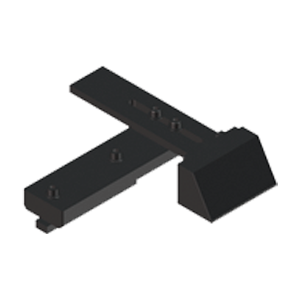

PRK-0573-36-00-00-0 Pipe beveling attachment for pipes 50-150 mm (2-6”)

Bevelling Accessories

3996SBM-500 | Stationary Bevelling Machine

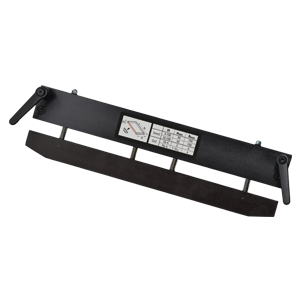

PRK-0573-38-00-00-0 Narrow-plate-attachment

Bevelling Accessories

3998SBM-500 | Stationary Bevelling Machine

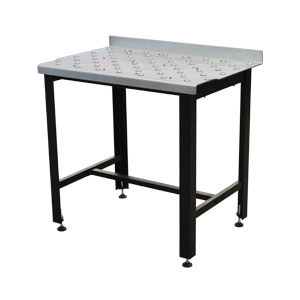

STL-0573-37-00-00-0 Auxiliary table for long workpieces

Bevelling Accessories
