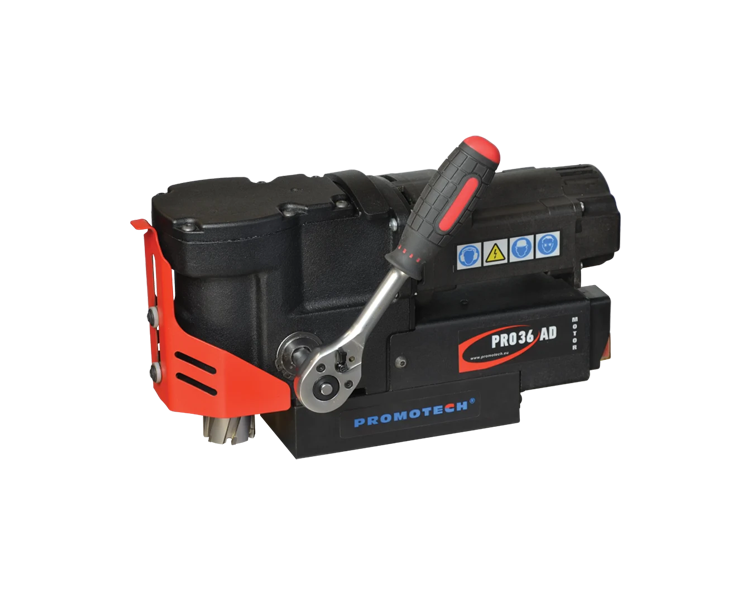

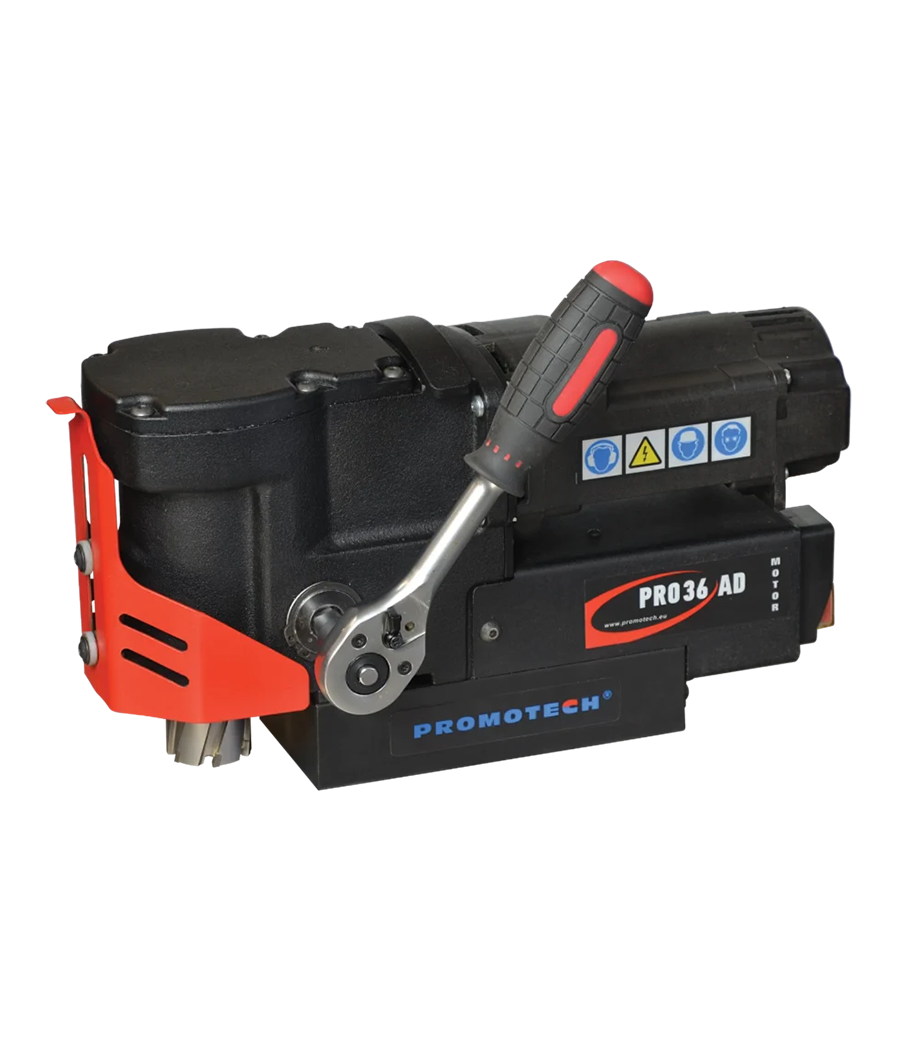

PRO-36 AD | Low Profile Mag Drill

The PRO-36 AD is an ultra-low profile mag drill, that fits in the tightest of spots. Perfect solution for any applications in confined spaces, where typical mag drills are too large. A powerful motor and strong electromagnetic base enable the drilling of holes up to 36 mm in diameter to a depth of up to 30 mm (1-3/16″).

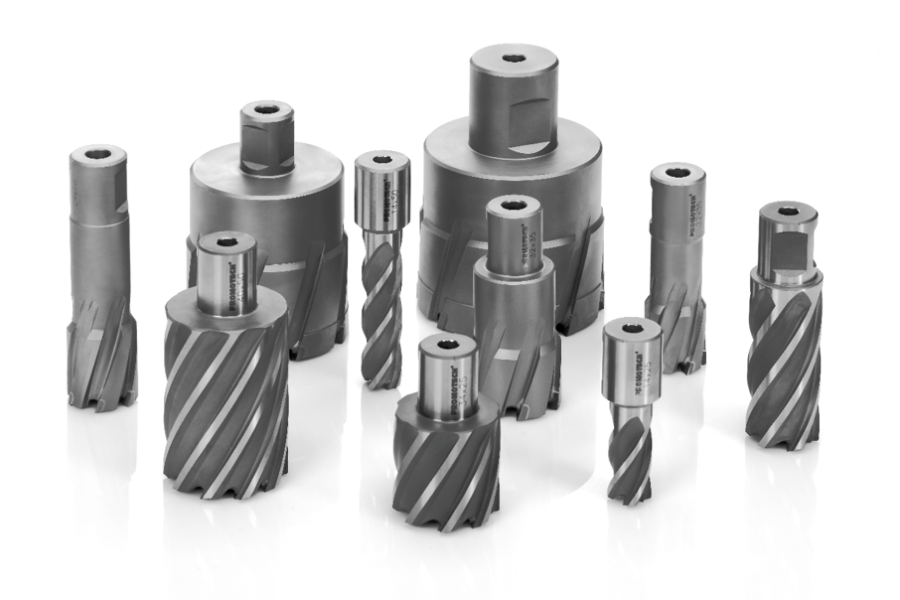

PRO-36 AD accepts both TCT and HSS cutters as well as a twist drill, and drills with 19.05 mm (3/4″) Weldon shank.

  • The ultra-low design is perfectly suited to space-restricted areas – only 176 mm high
  • 39 mm stroke enables up to 30 mm depth of cut
  • Also accepts twist drills with 19.05 mm (3/4″) Weldon shank
  • Cooling with a bottle to facilitate hole making

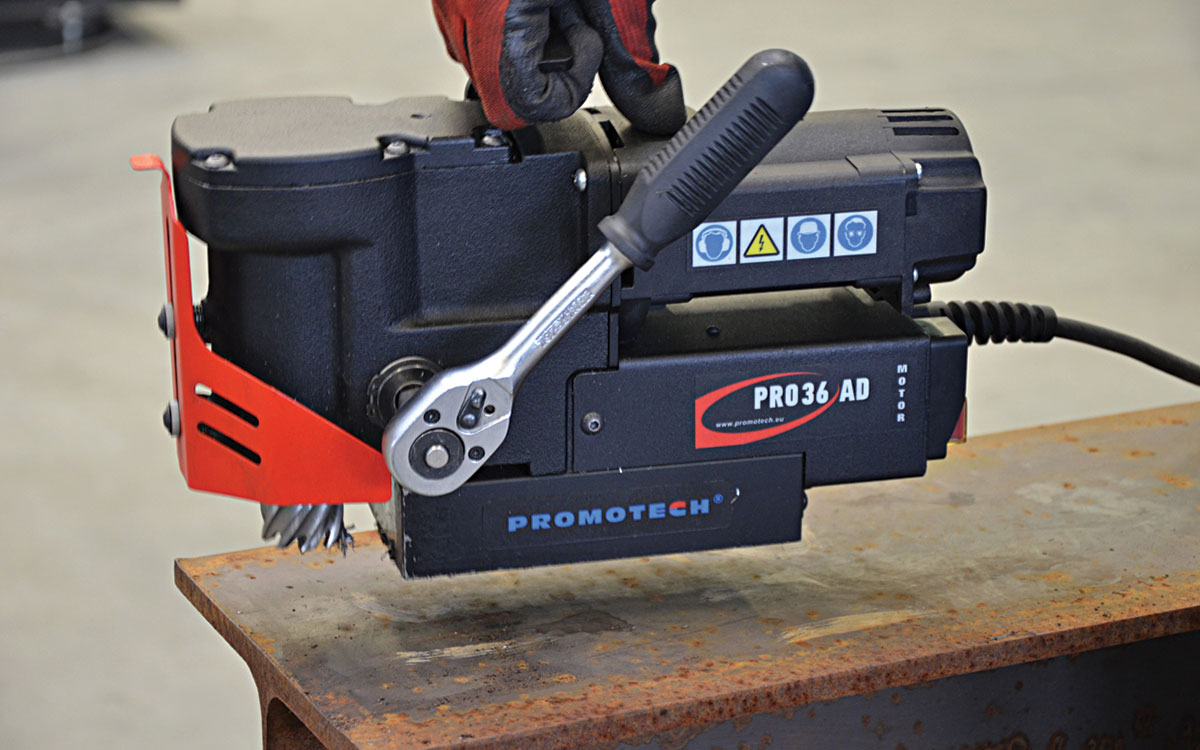

  • The detachable feed ratchet handle can be fixed from either the left or right side
  • Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
  • The extremely low weight of just 9.5 kg (21 lbs)
PRO-36 AD | Low Profile Mag Drill

Core drill

max 36 mm

Twist drill / with Weldon Shank

max 12/19mm

Depth of cut

up to 30 mm


39 mm (1-1/2’’)

Motor Speed

370 rpm

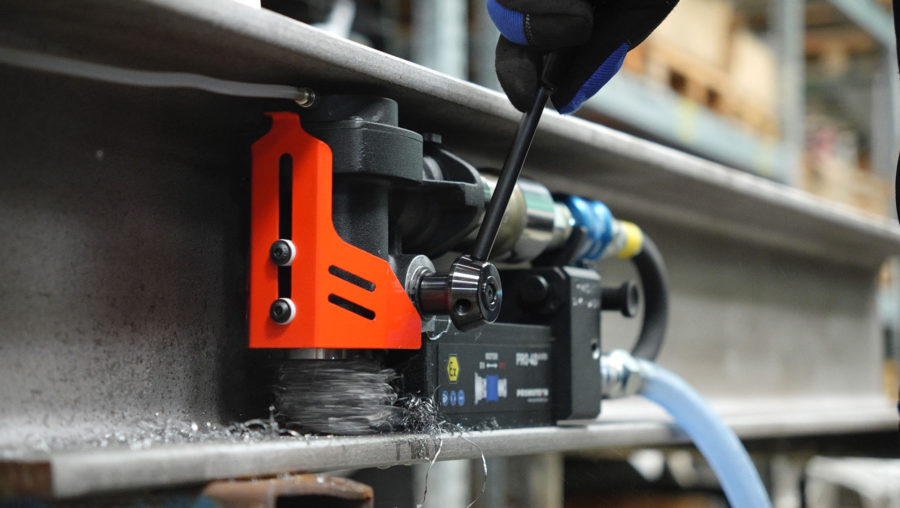

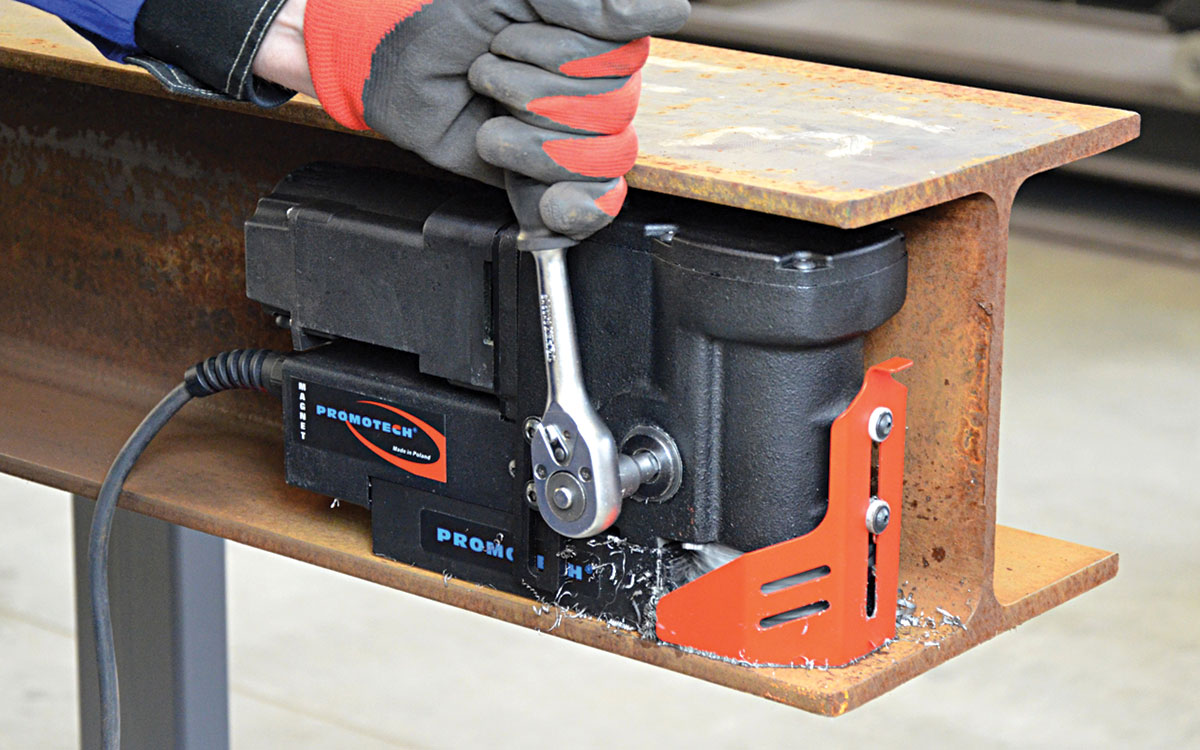

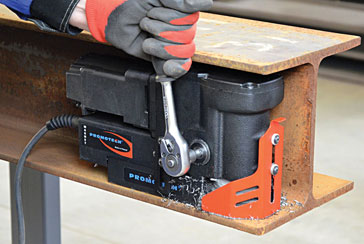

Compact design for height-restricted areas.

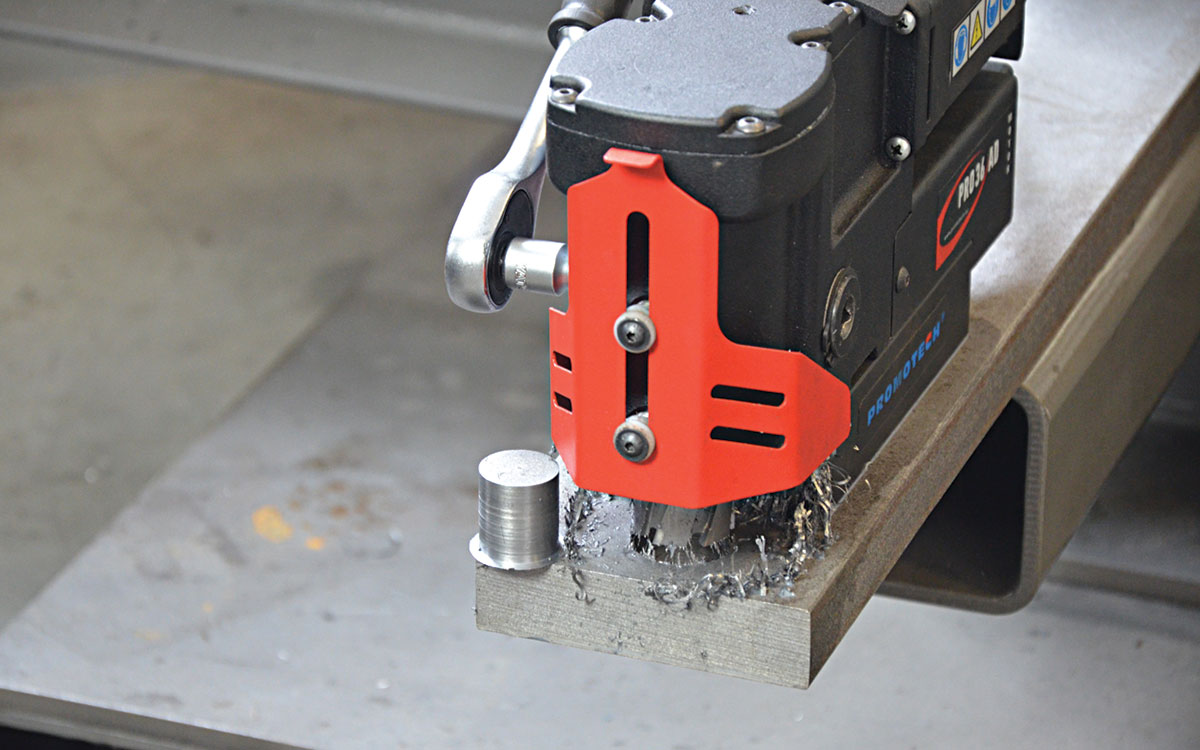

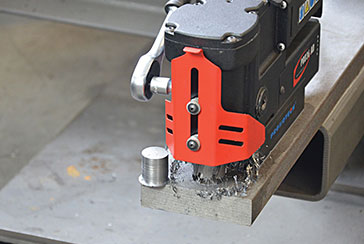

Max milling capacity up 36 mm (1-7/16”).

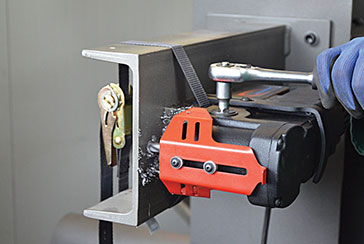

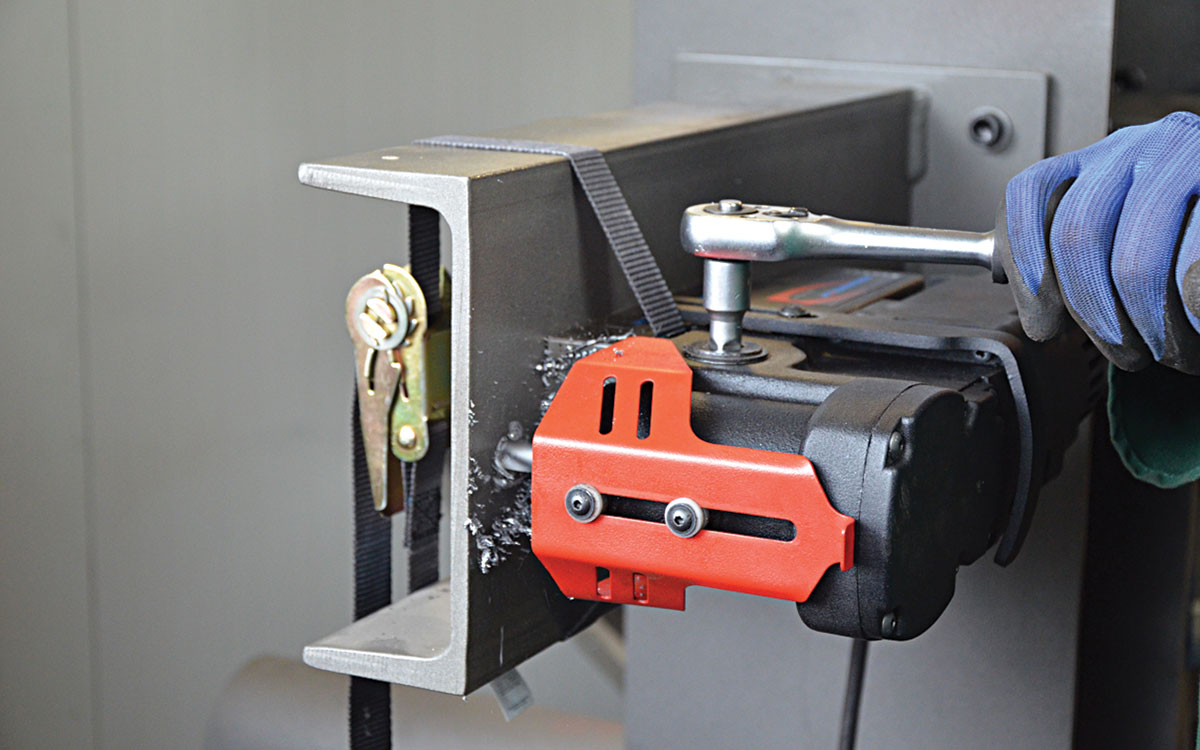

Working in out of positions

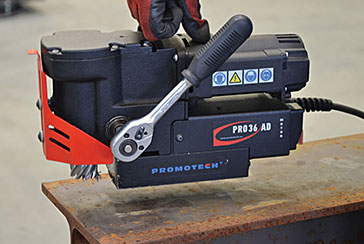

Lifting handle for easy transportation.


Motor Speed (under load)370 rpm (for 230 V);
350 rpm (for 115 V)
Power920 W
Max milling capacity36 mm (1 7/16”)
Max drilling capacity12 mm (1/2’’)
Max countersinkingØ 40 mm (1 9/16”)
Stroke39 mm (1-1/2’’
Max depth of cut30 mm (1-3/16’’) with TCT cutters
20 mm (13/16’’) with HSS cutters *
Voltage1~ 110–120 V, 50–60 Hz
1~ 220–240 V, 50–60 Hz
MFSC (Magnetic Field Shape Control)yes
Magnetic clamping force908 kgf (8900 N) /25mm, Ra=1,25/
Magnet Base Dimensions90 x 180 x 38,5 mm;

3-9 / 16 x 7-1 / 16 x 1-1 / 2 (")
Min. Workpiece Thickness6 mm (1/4”)
Tool holder19 mm (3/4”) Weldon
Product Code 220–240 V, 50–60 HzWRT-0521-10-20-01-0
Product Code 110–120 V, 50–60 HzWRT-0521-10-10-01-0
