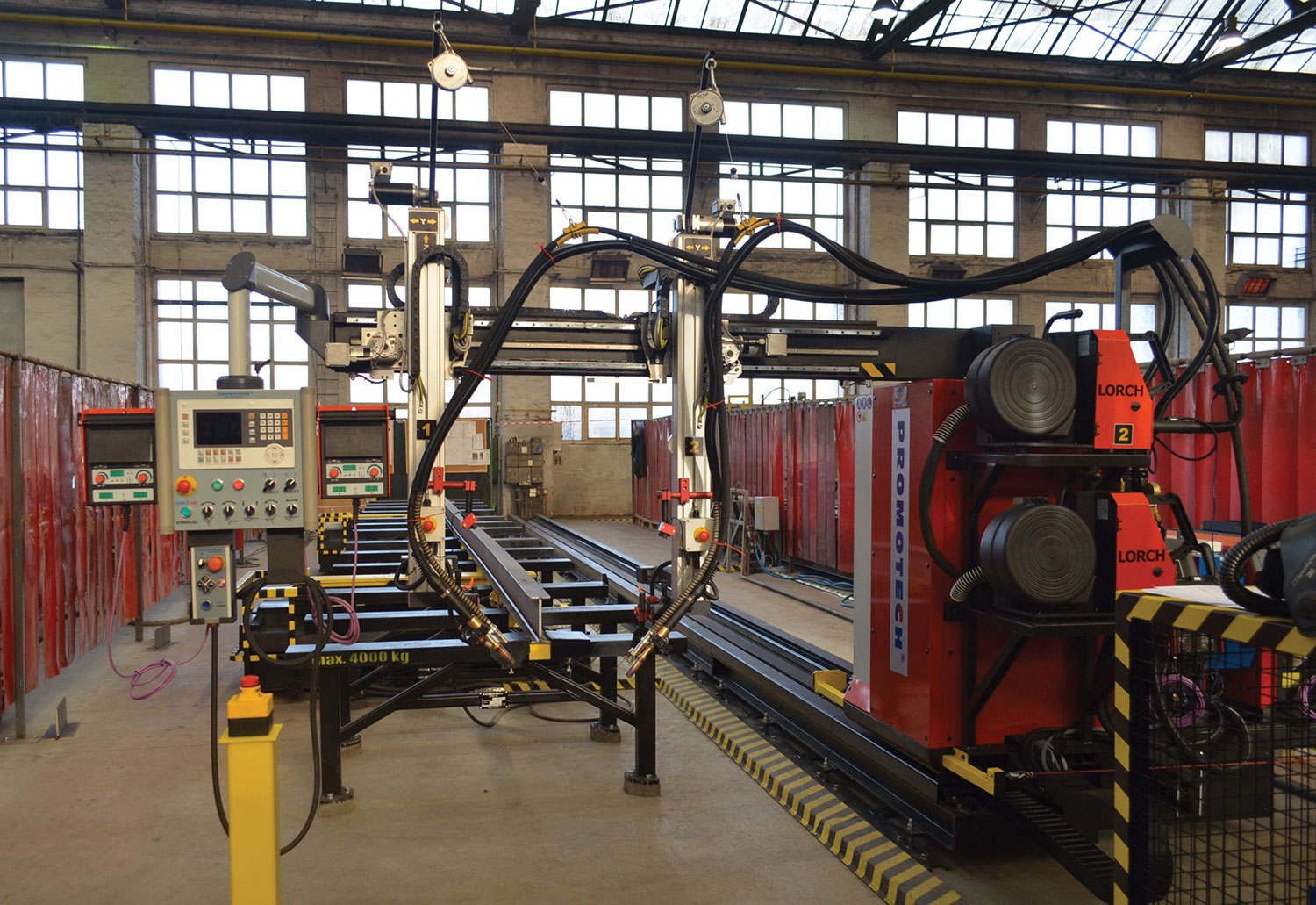

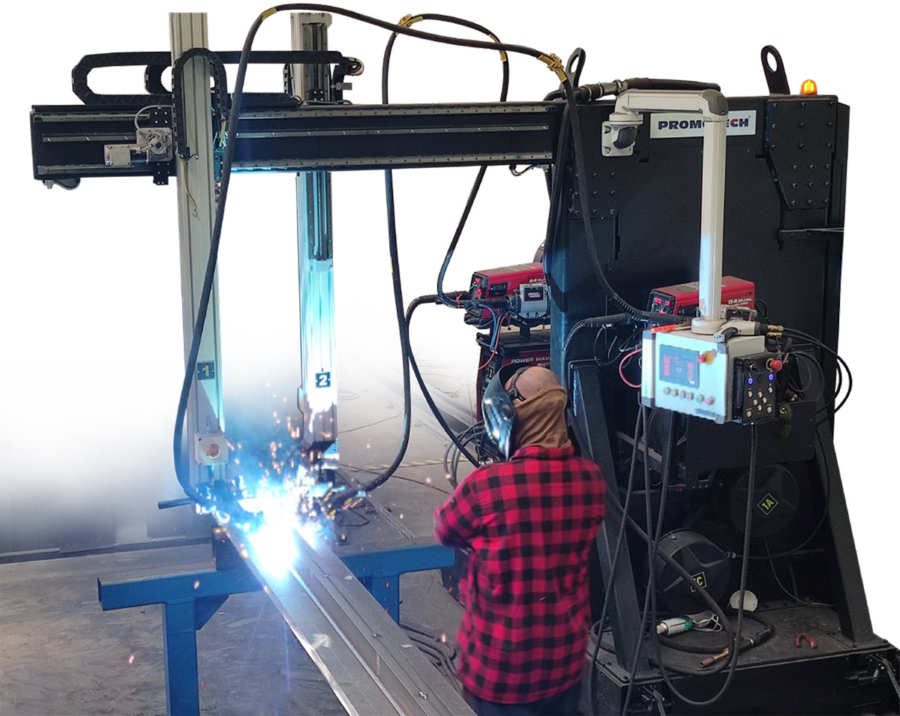

Half gantry welding system WA 1500 HD / WA 2000 HD

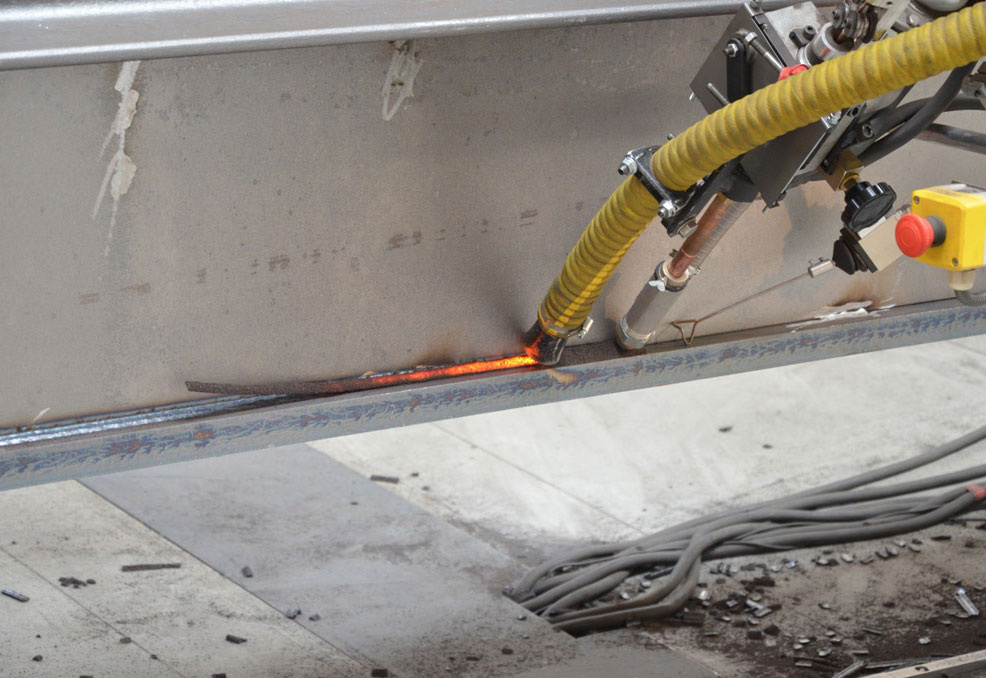

Automatic longitudinal top quality MIG-MAG or SAW welding of long structural Box beams and H, I, T, HKS, HSQ also automotive chassis for long truck/train beams. Single or multipass automatic fillet/butt welding with an electromechanical joint tracking system. Minimized welding defects and reduced non-productive time and it’s one-man operation!

  • Automatic fillet and butt welding with joint tracking
  • Multipass welding
  • One-man operation
  • Reduction of costly over-welding and decrease in filler metal usage
  • User-friendly interface – multiple languages
  • Accepts most of MIG-MAG and SAW welding power sources
Half gantry welding system WA 1500 HD / WA 2000 HD

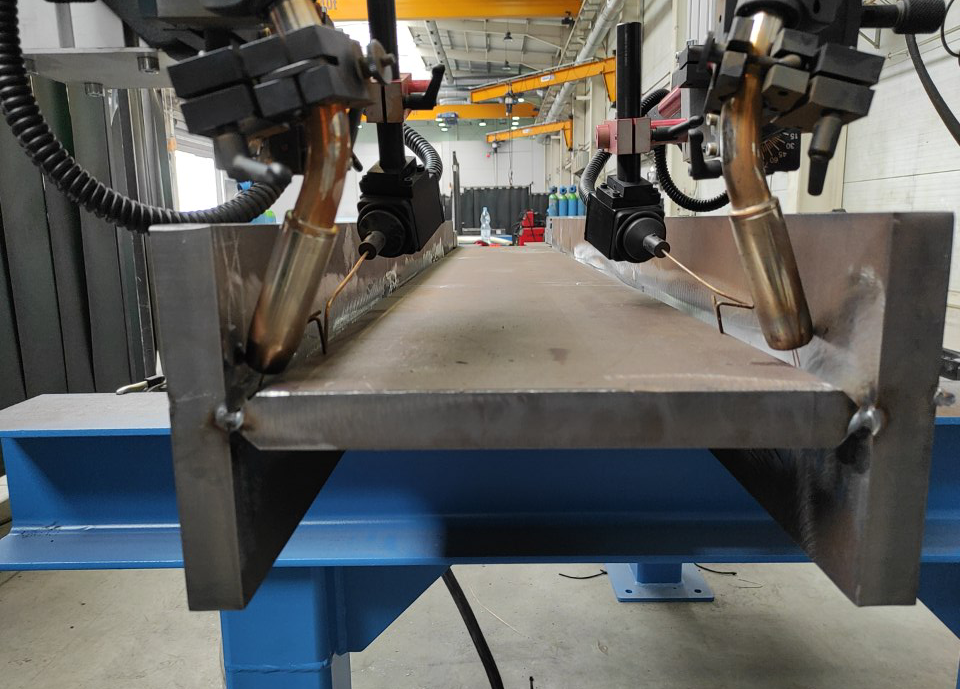

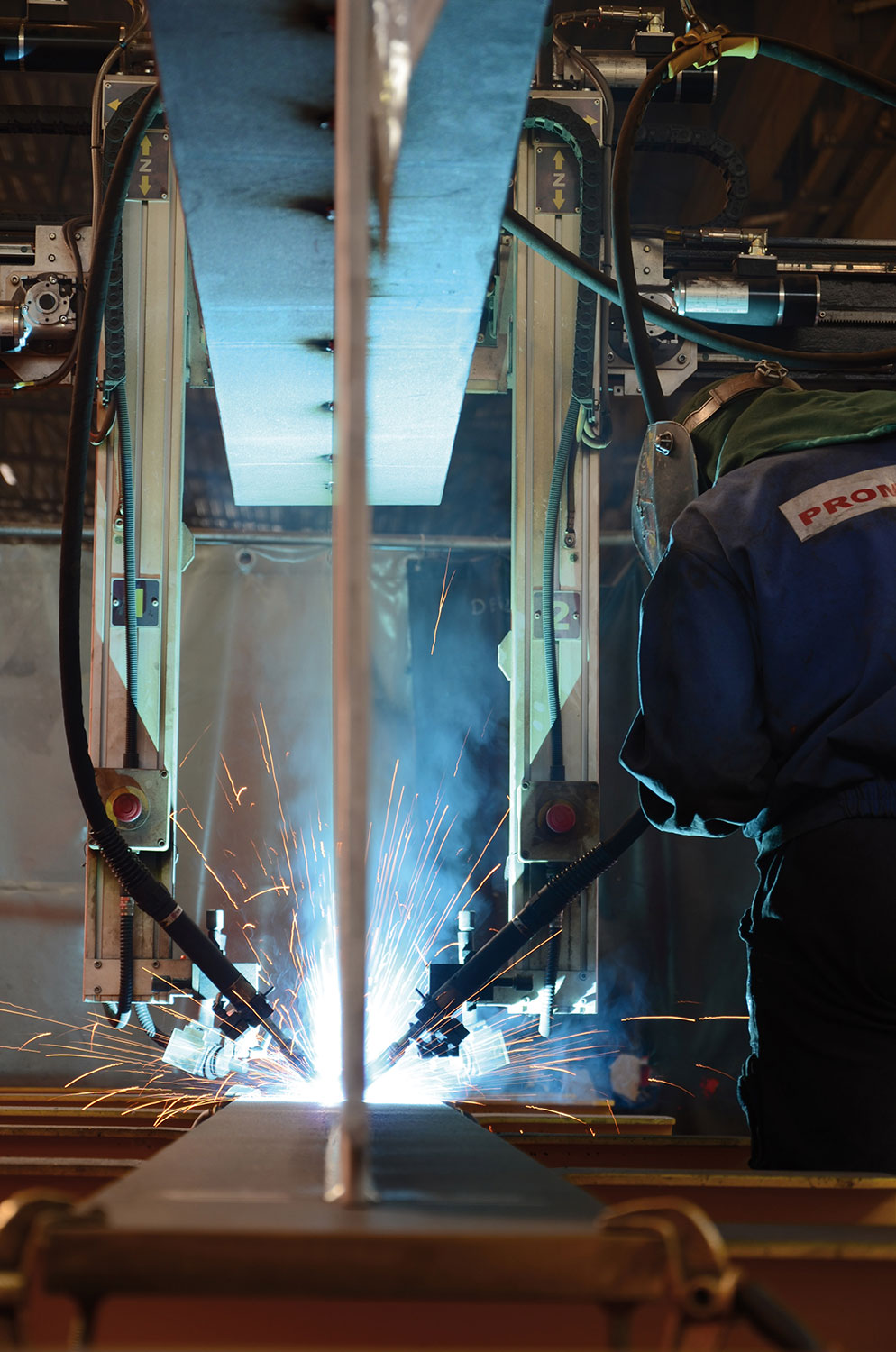

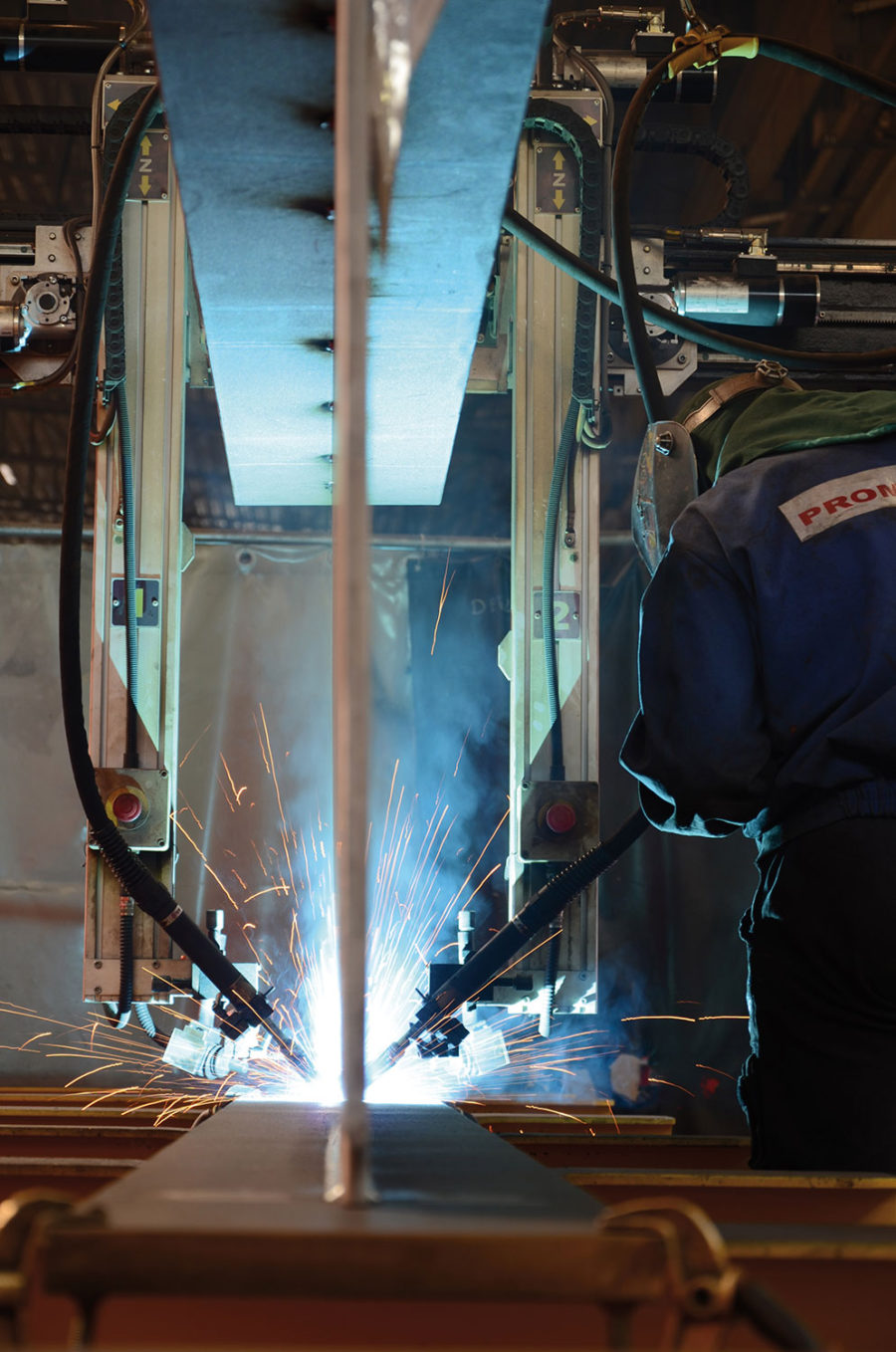

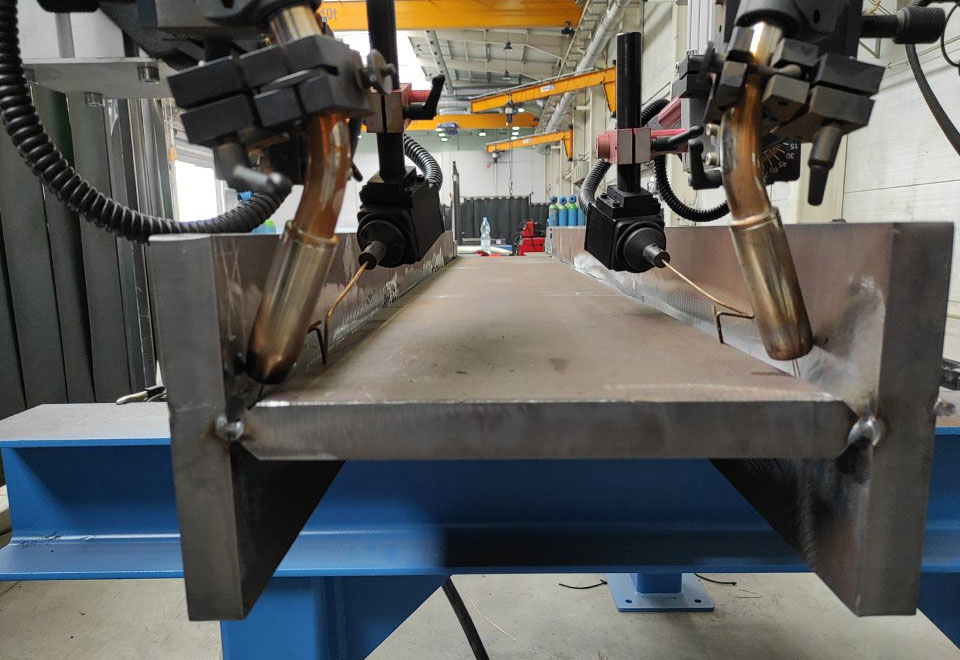

Single or multipass automatic fillet/butt welding with an electromechanical joint tracking system.

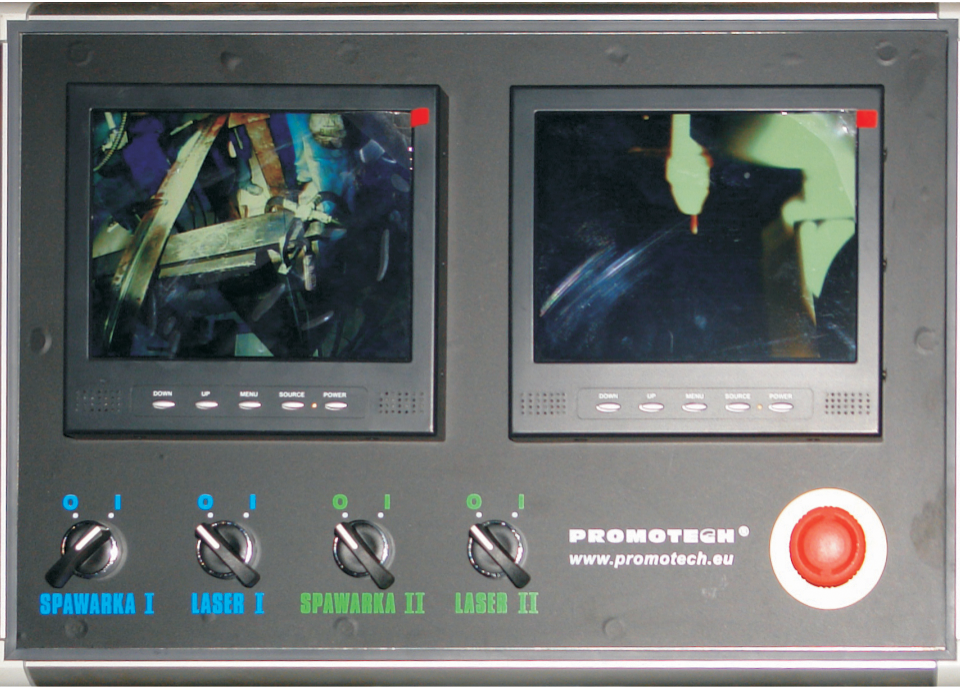

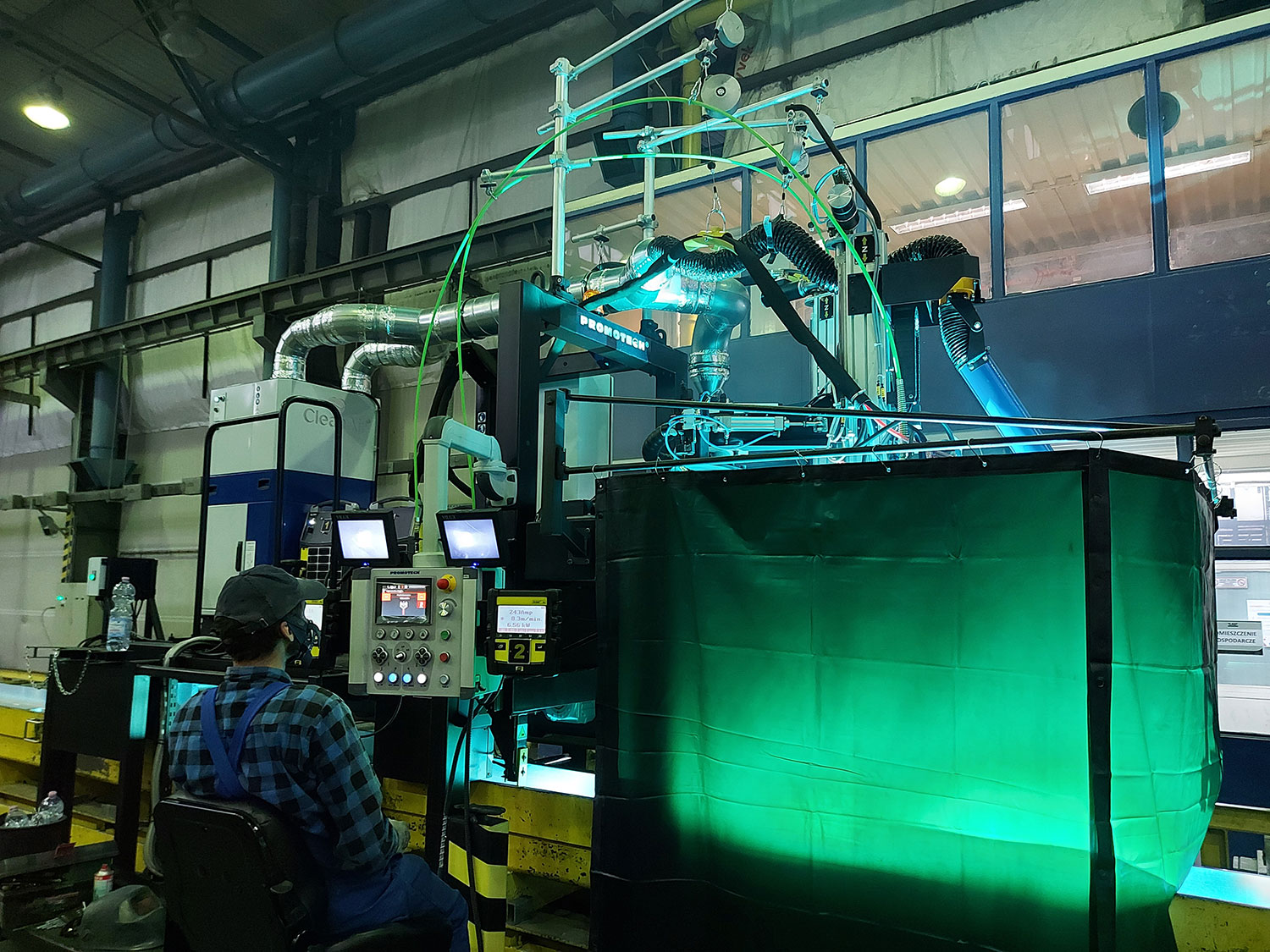

All GWS WA HD workstations are equipped with cameras to ensure an operator and welding process safety!

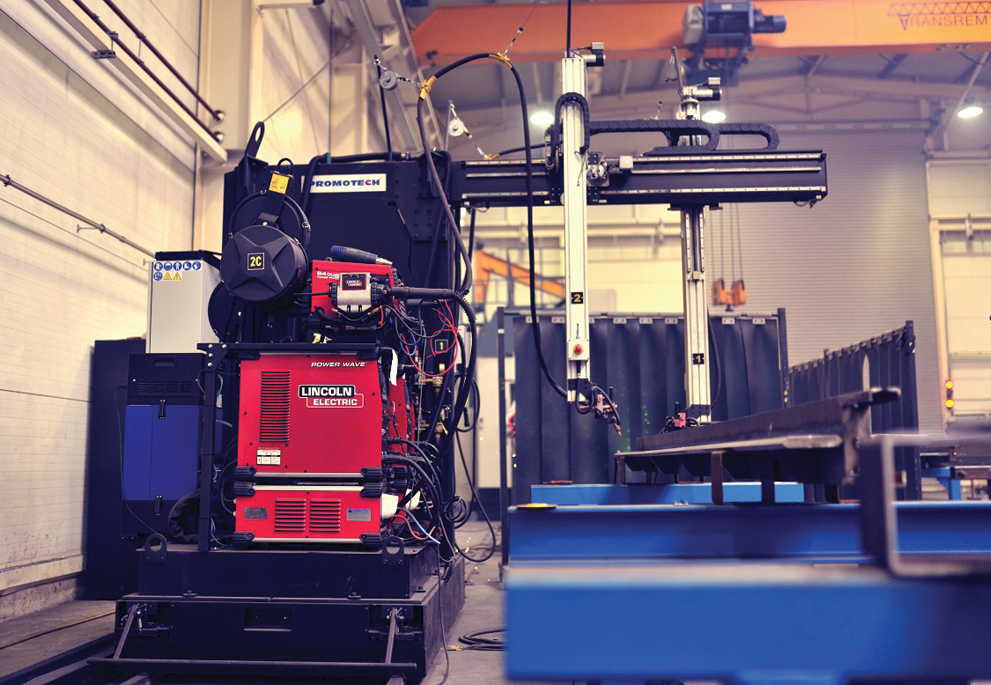

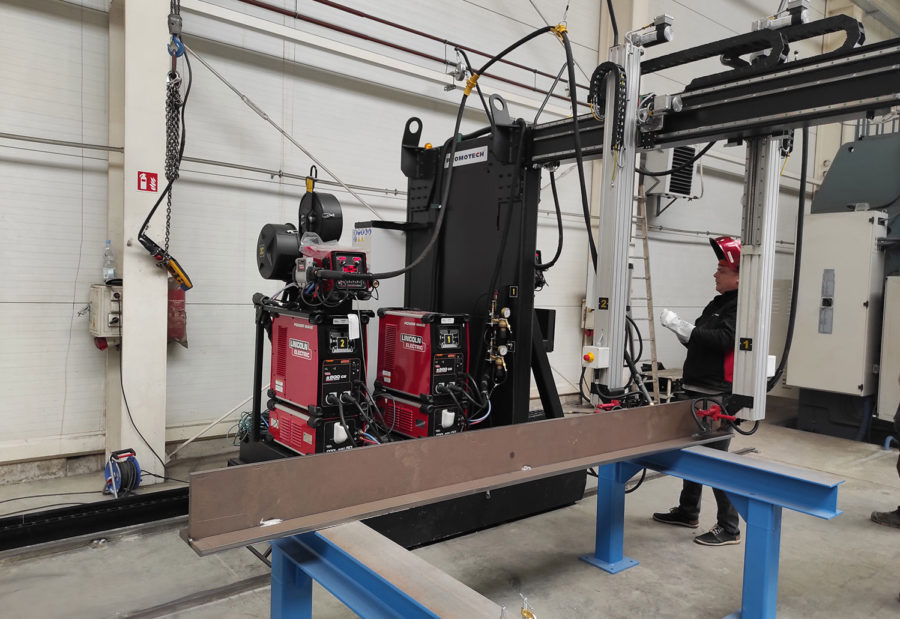

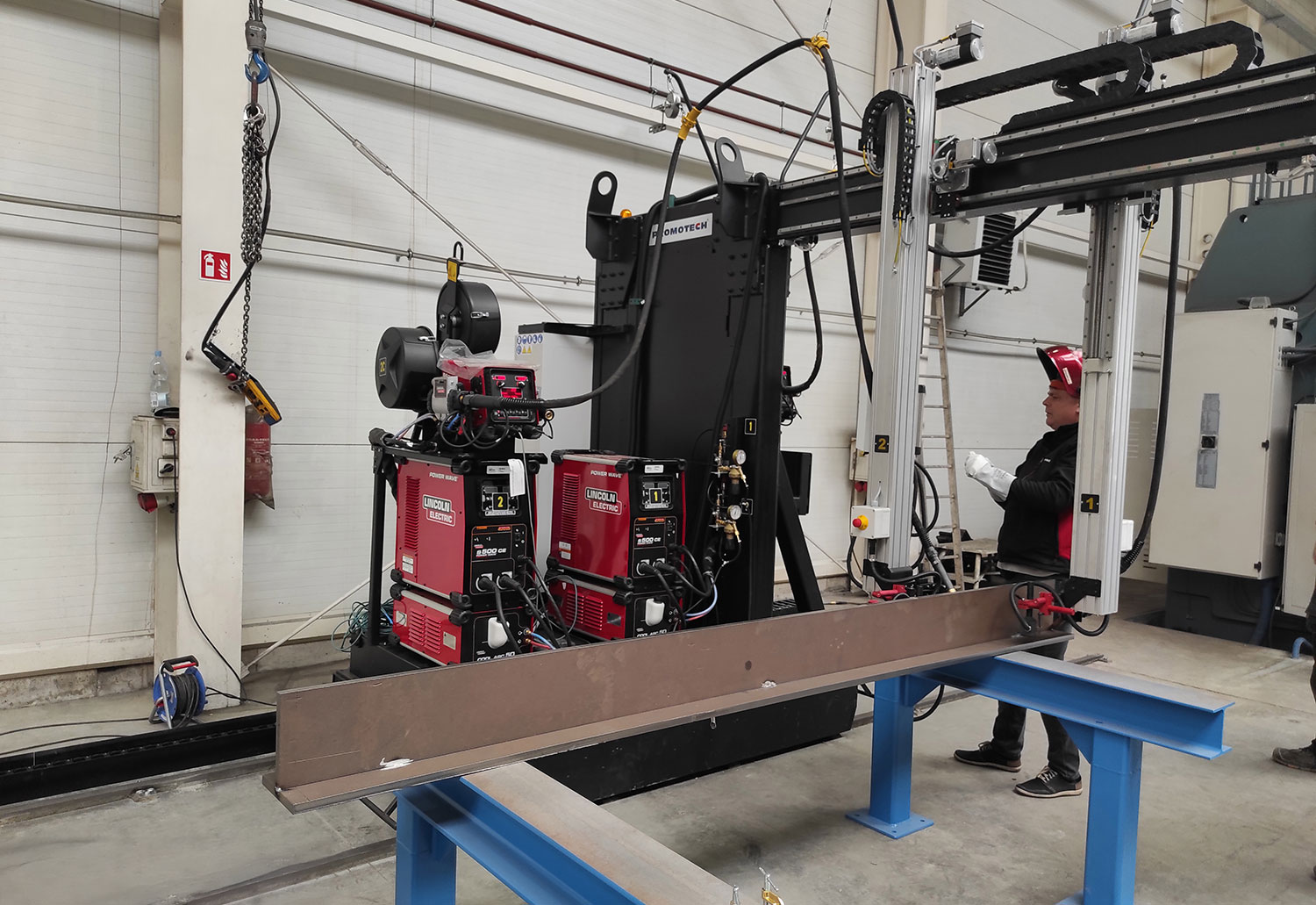

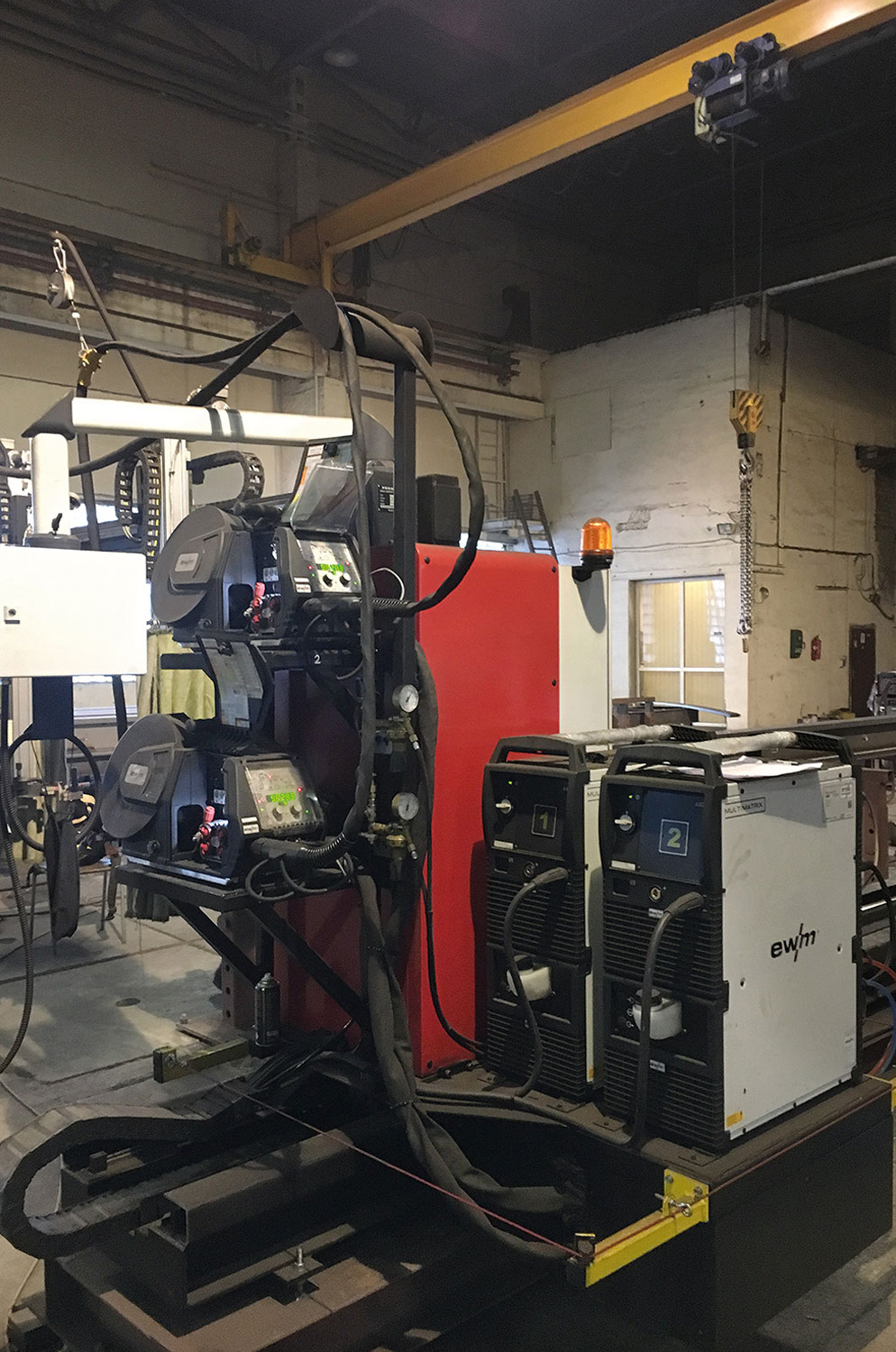

GWS WA work-stations accepts most of the welding MIG-MAG and SAW power sources available in the market.

Specification

Length of track / welding13 m / 10 m
Customized length upon request
Max workpiece height1.5 m (60”)
Max welding speedUp to 1 m / min.
Possibility to implement additional functionality e.g. welding length, intermittent weldsYES
Max. welding current700 A
Possibility of changing welding parameters during welding process “on the fly”Option
Basic flux recovery systemYes
Advanced flux recovery systemUpon request
