RAIL TITAN 2 | Modular TIG / MIG-MAG Rail Tractor

RAIL TITAN 2 is fully modular mechanized tractor that can be custom configured for TIG-MIG-MAG welding, oxy-fuel or plasma cutting and gouging applications on flat or curved plate, tube and pipe.
Linear torch oscillator produces straight, triangle, trapezoid and square weld paths.

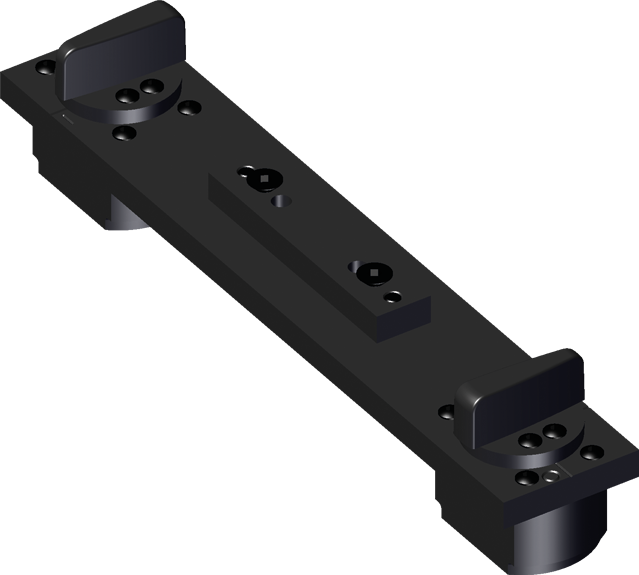

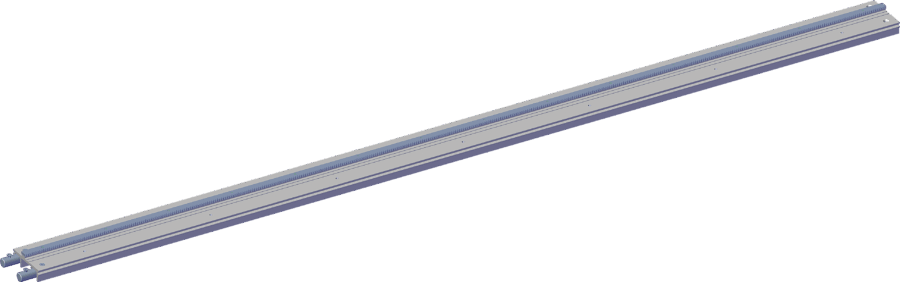

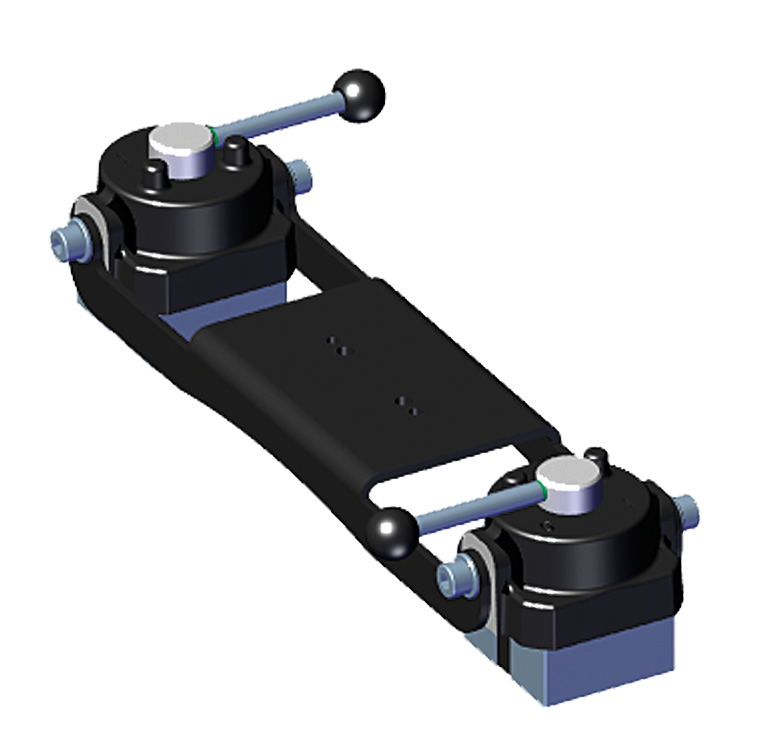

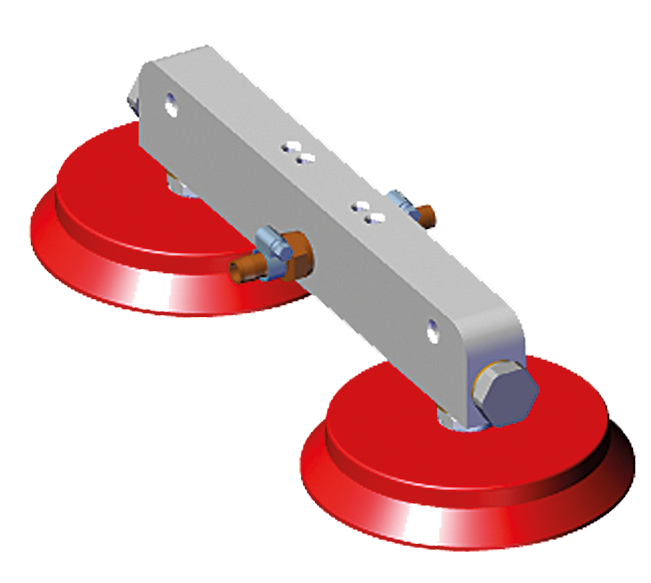

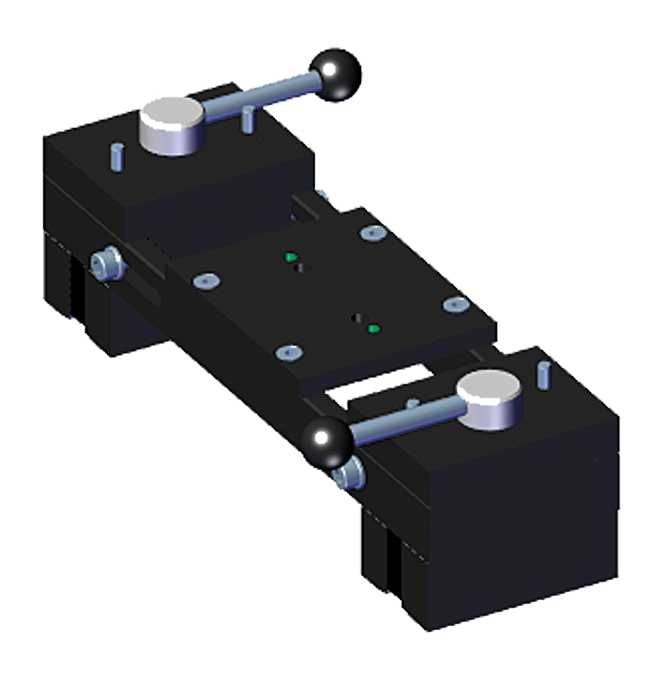

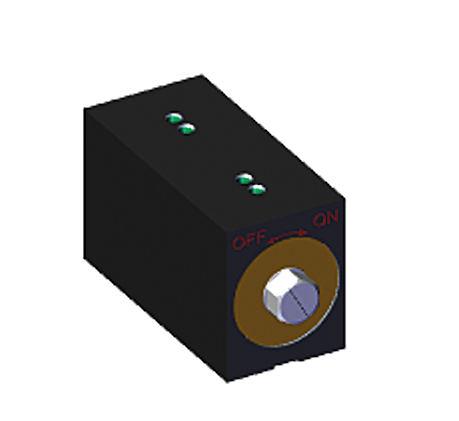

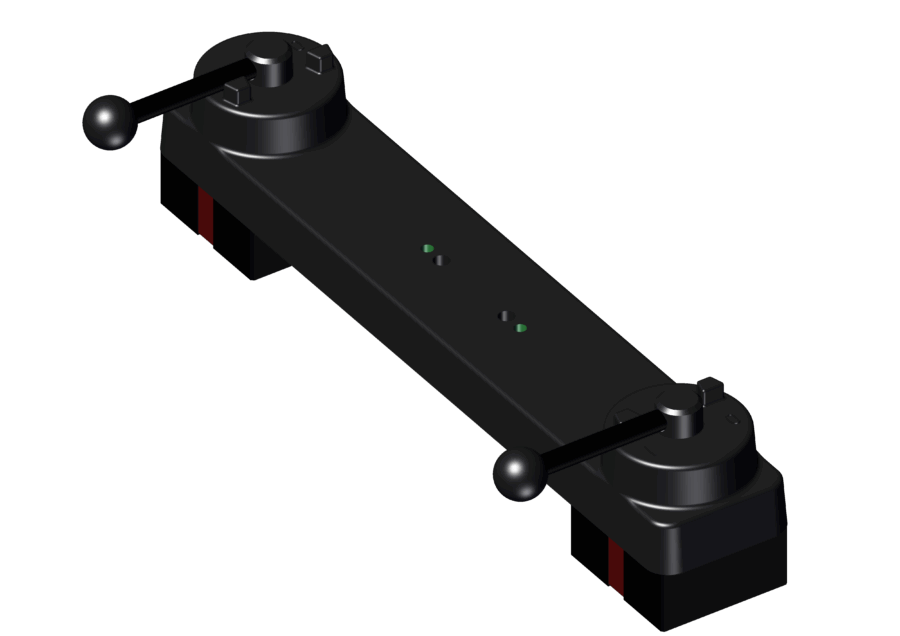

Rail Titan 2 can travel on hi-flex, semi-flexible, rigid or ring tracks that can be clamped to ferrous materials with magnetic units and to non-ferrous materials by means of vacuum track system incl. vacuum pump and vacuum units.

• Suitable for TIG welding (HF resistant)
• Mirror Switch function
• Robust design with die-cast aluminum housing

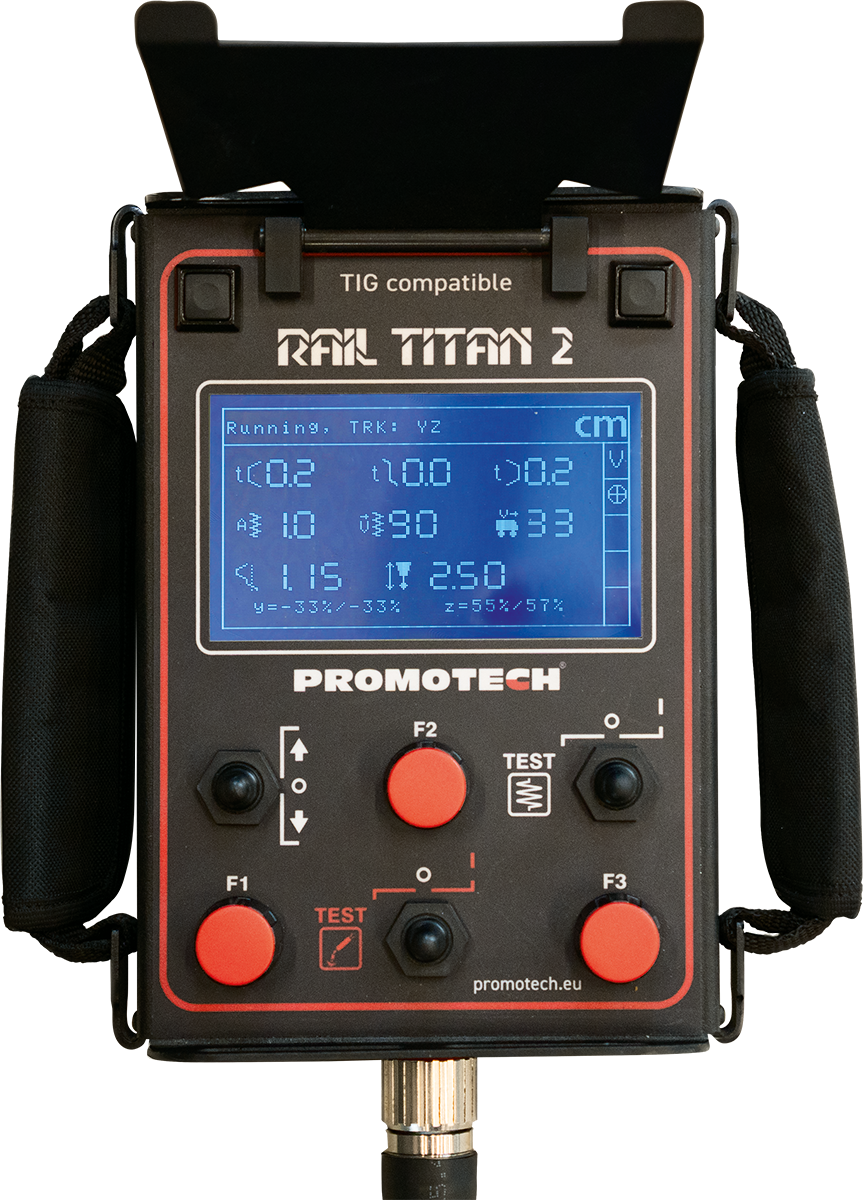

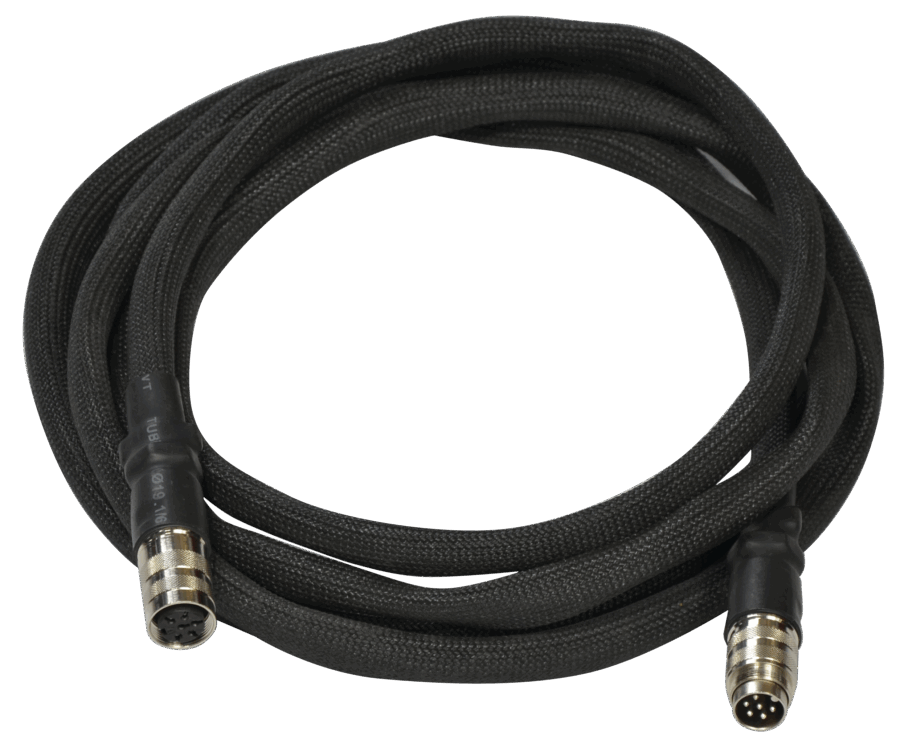

• Ergonomic remote control pendant with simple and easy-to-find control knobs makes adjustments possible without lifting the operator’s welding hood
• Programmable path of stitch welds
• Suitable for a variety of circumferential and irregular surface applications down to min. radius of 100 mm (4”)

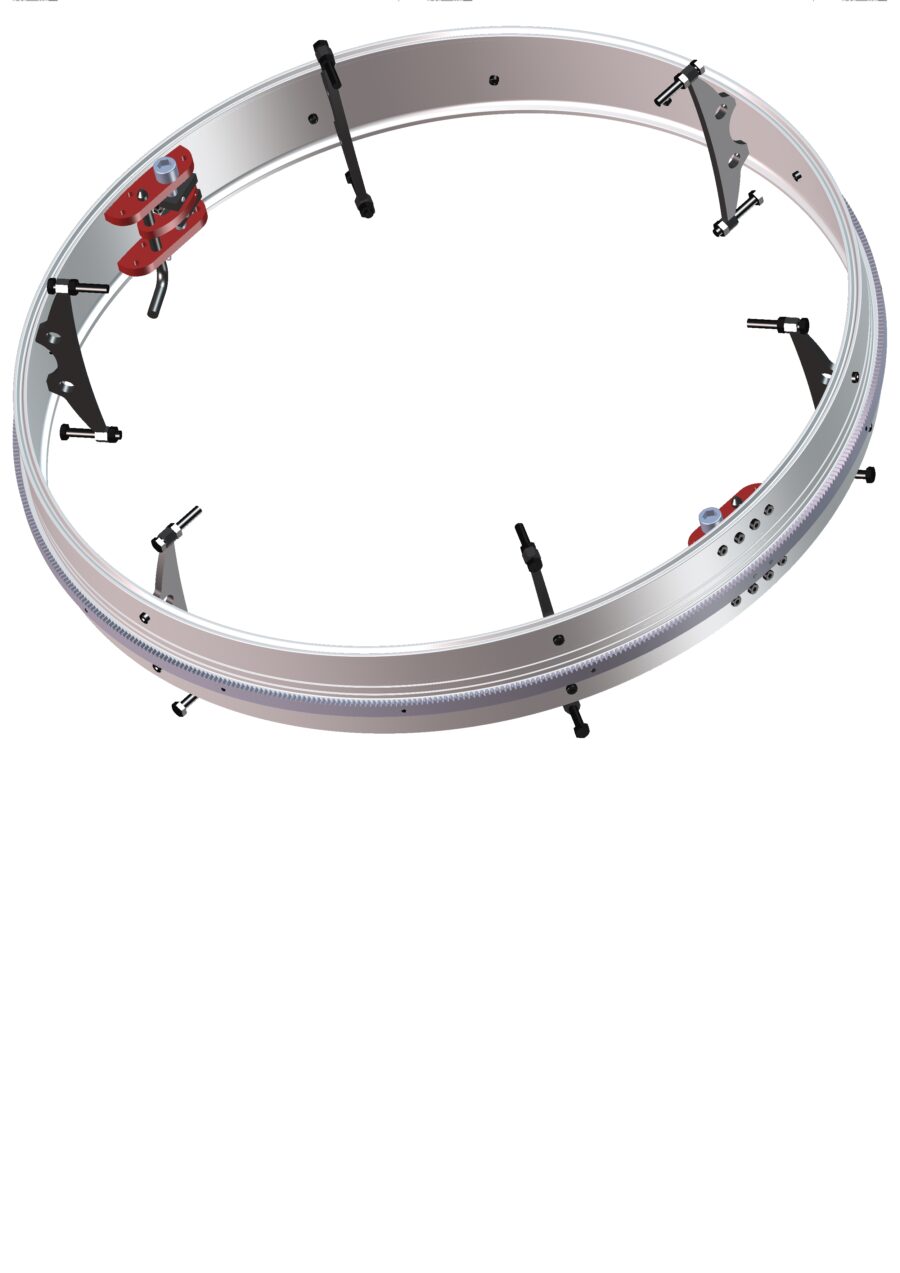

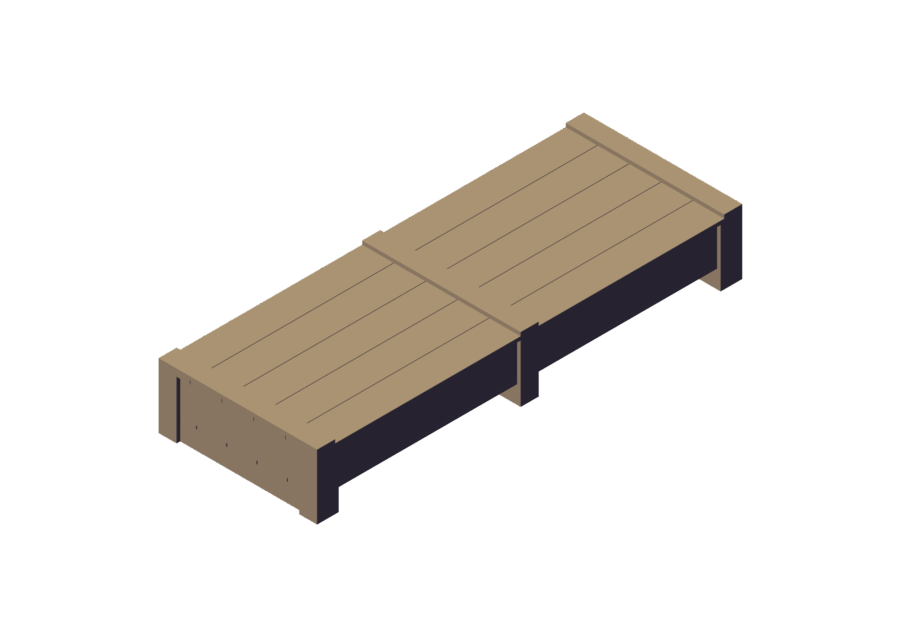

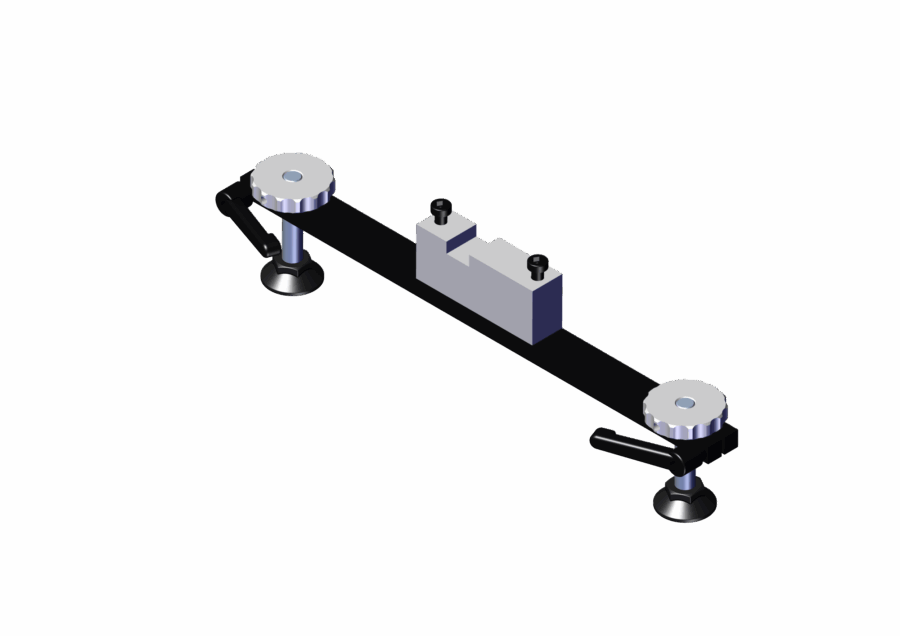

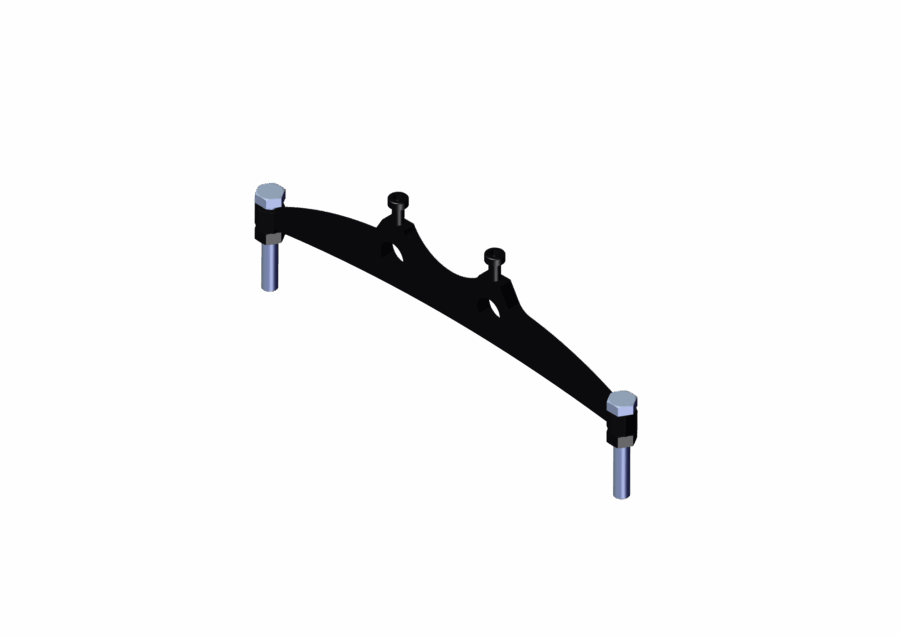

  • Ring tracks on diameters from 200 mm (8”) OD up to 3 m (10 ft) OD

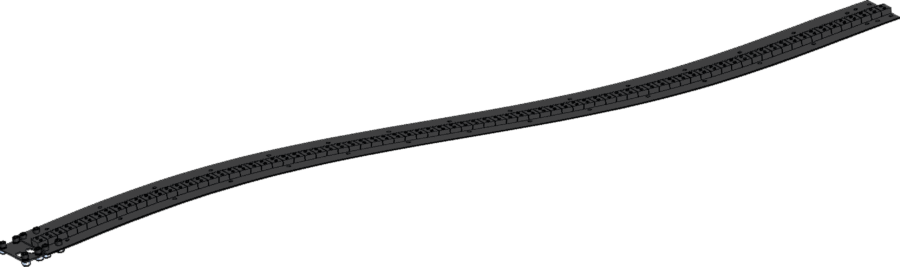

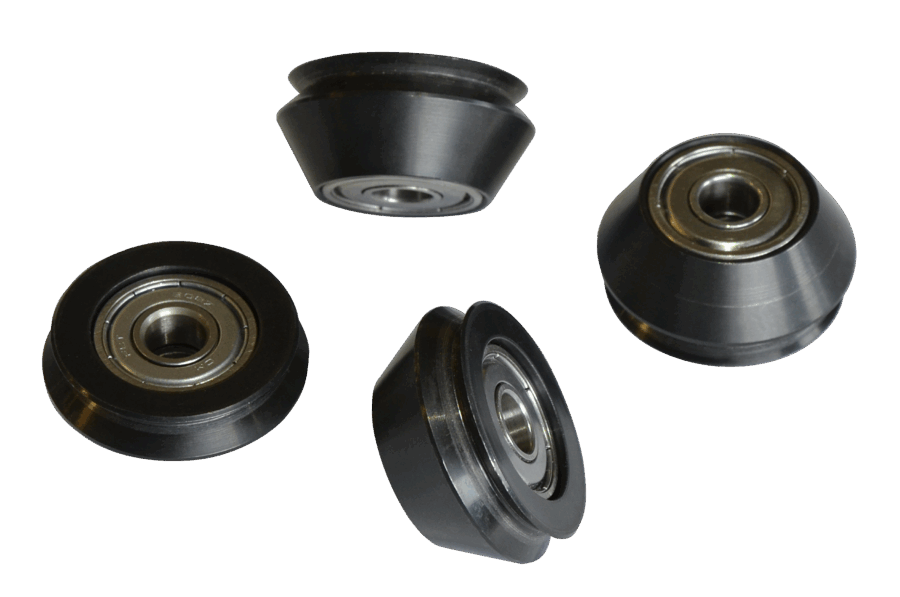

  • Hi-Flex tracks on diameters from 1500 mm (59”) OD upwards

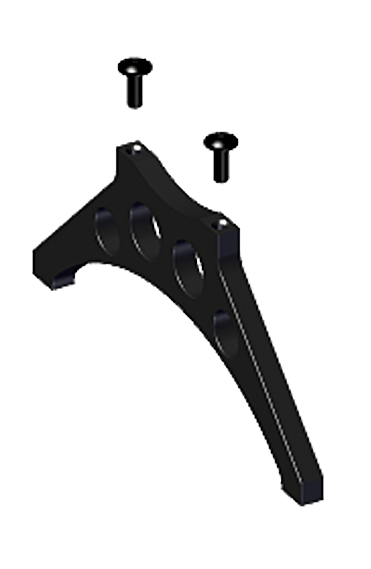

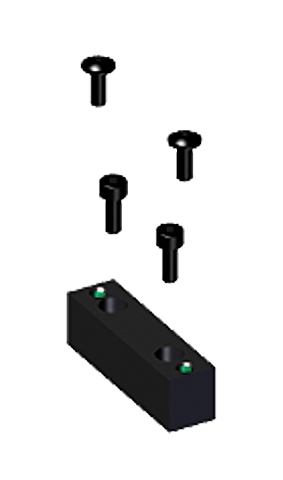

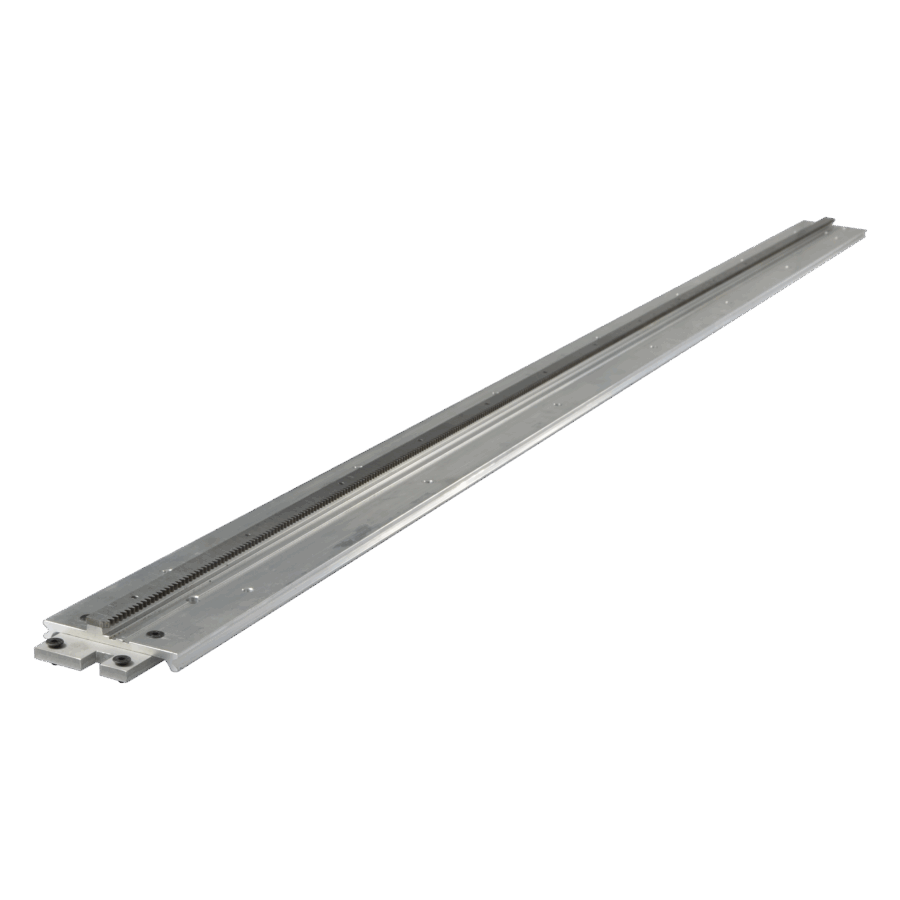

  • Semi-flexible tracks can be flexed to a minimum radius of 5 m (16 ft) without permanent deformation
• 3 years of warranty
