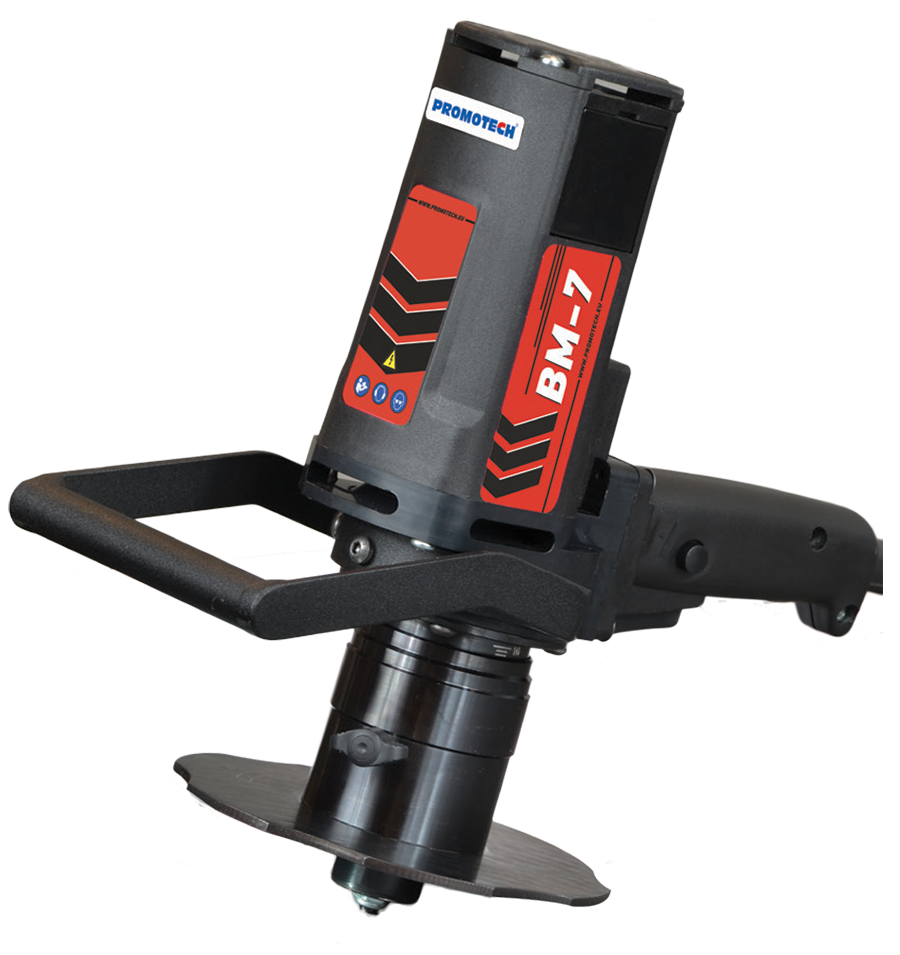

BM-7 | COMPACT PLATE AND PIPE BEVELLER

Small and lightweight beveling machine for milling plates, pipes, and contour profiles. Perfect solution for radius edge applying to steel sections before painting, to prevent rust build up on sharp edges. Quick, simple-to-use beveller that creates a perfect radius (R2, R3, R4 or R5) in just one pass, saving time and money over conventional grinding methods.

  • Lightweight and compact design
  • Small overall dimensions
  • Excellent for limited access
  • Continuous bevel width adjustments
  • Ideal for radius edge beveling
  • One single 45 degrees milling head for both radius and V bevels
Watch video Play Download PDF Download Send Enquiry Email
BM-7 | COMPACT PLATE AND PIPE BEVELLER

Bevel angles

45°, 30° (option)

Bevelling Width

up to 7 mm

Min plate thickness

1.5 mm

Countersinking

Min. ID 40 mm

Bevel radius

R2, R3, R4 or R5

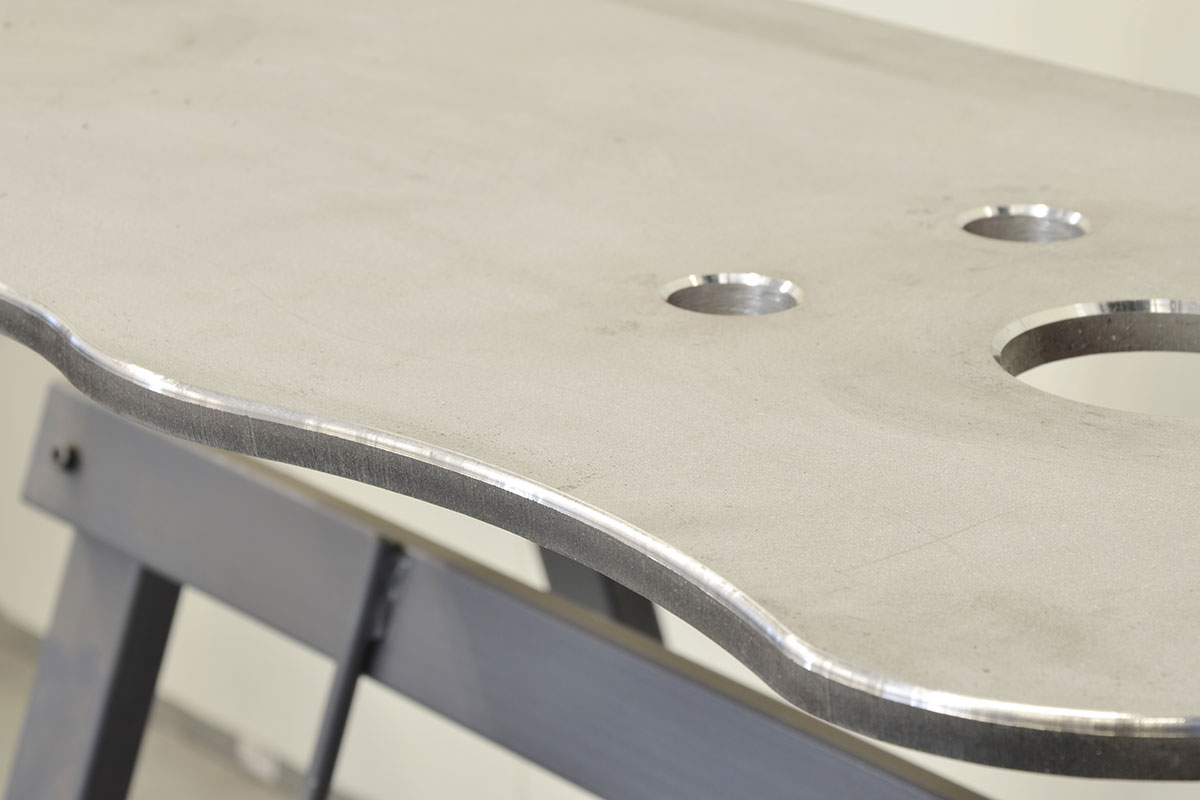

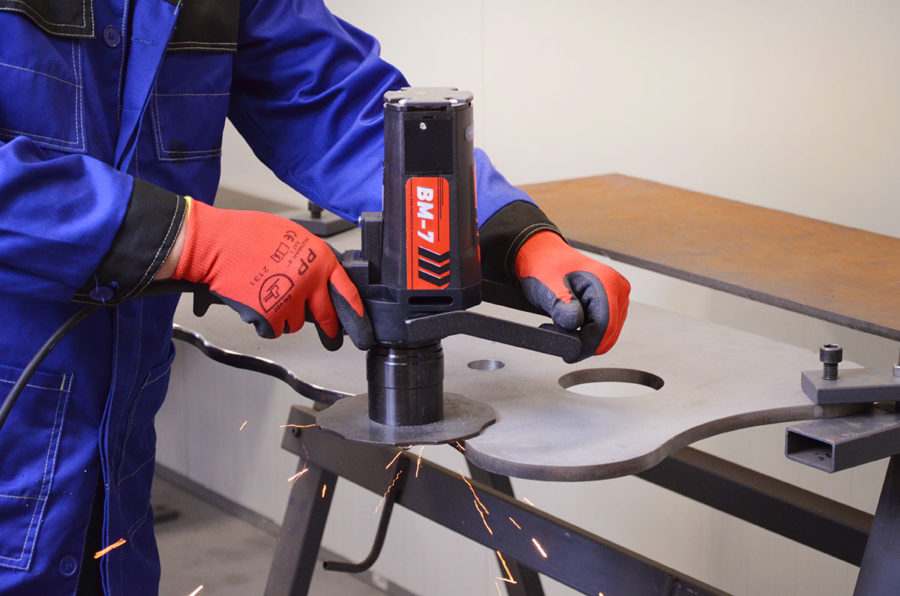

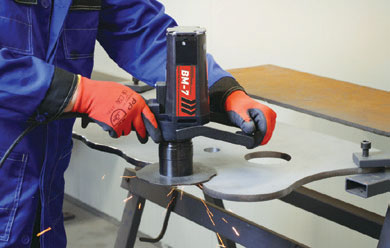

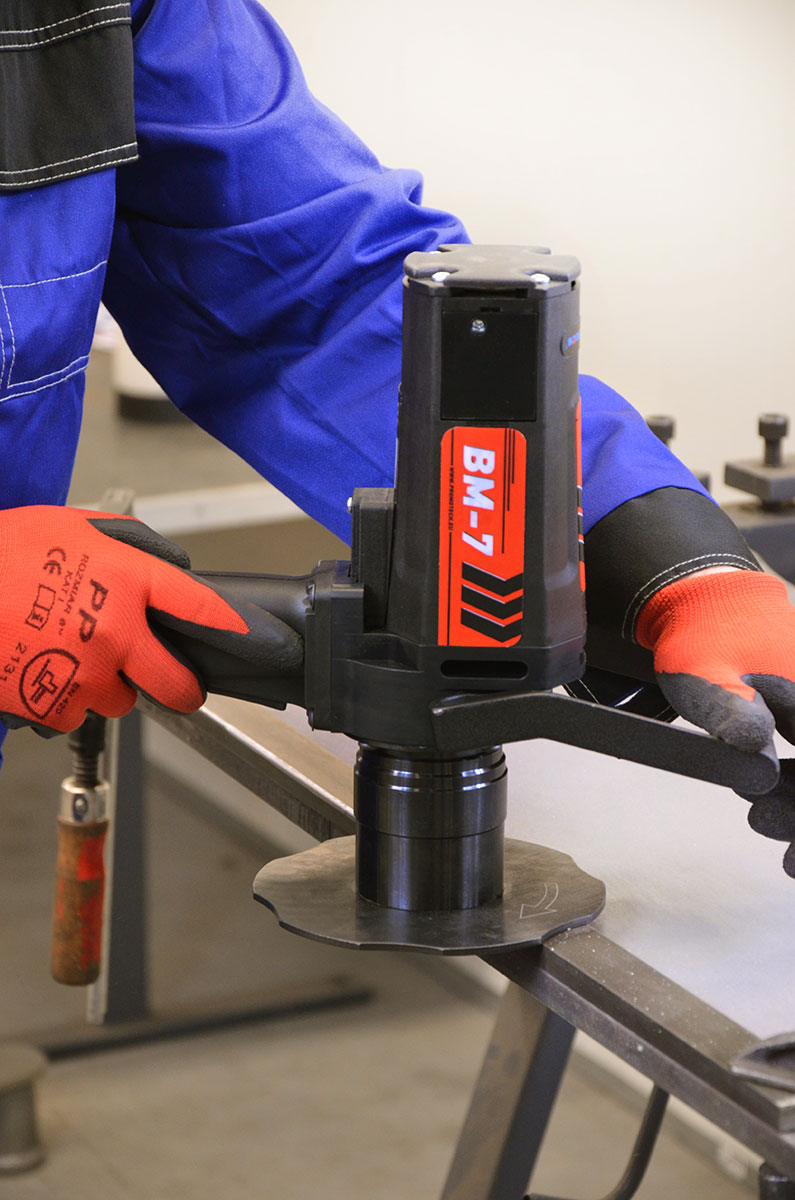

Arched edge beveling with radius

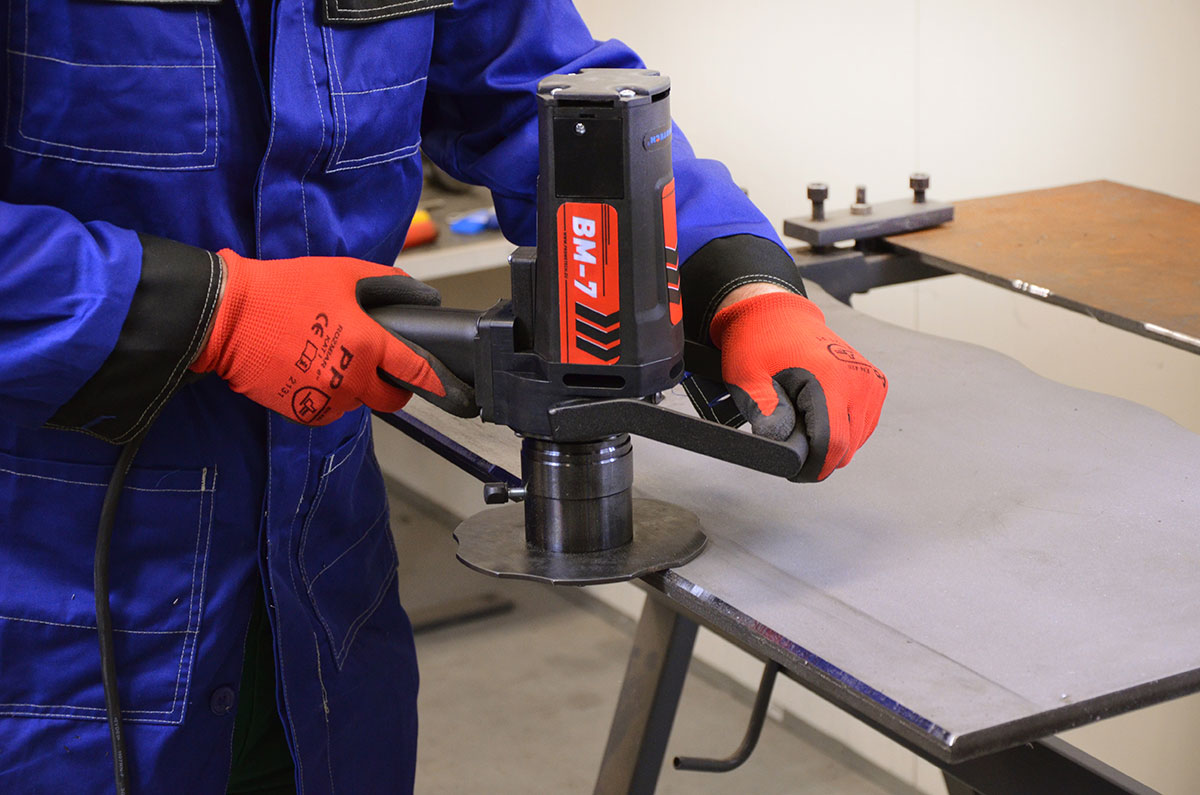

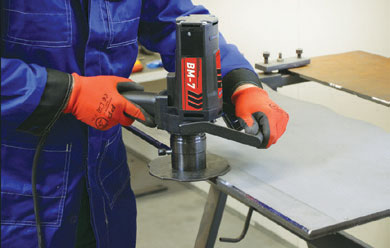

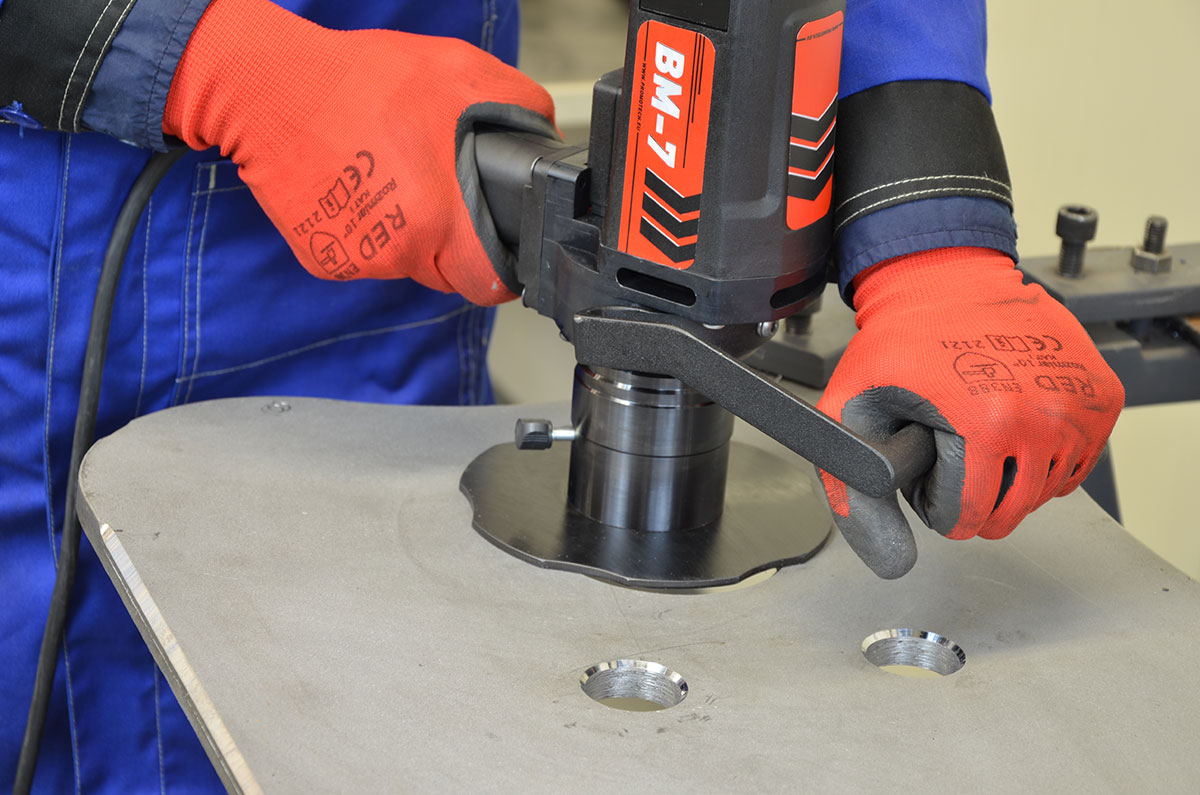

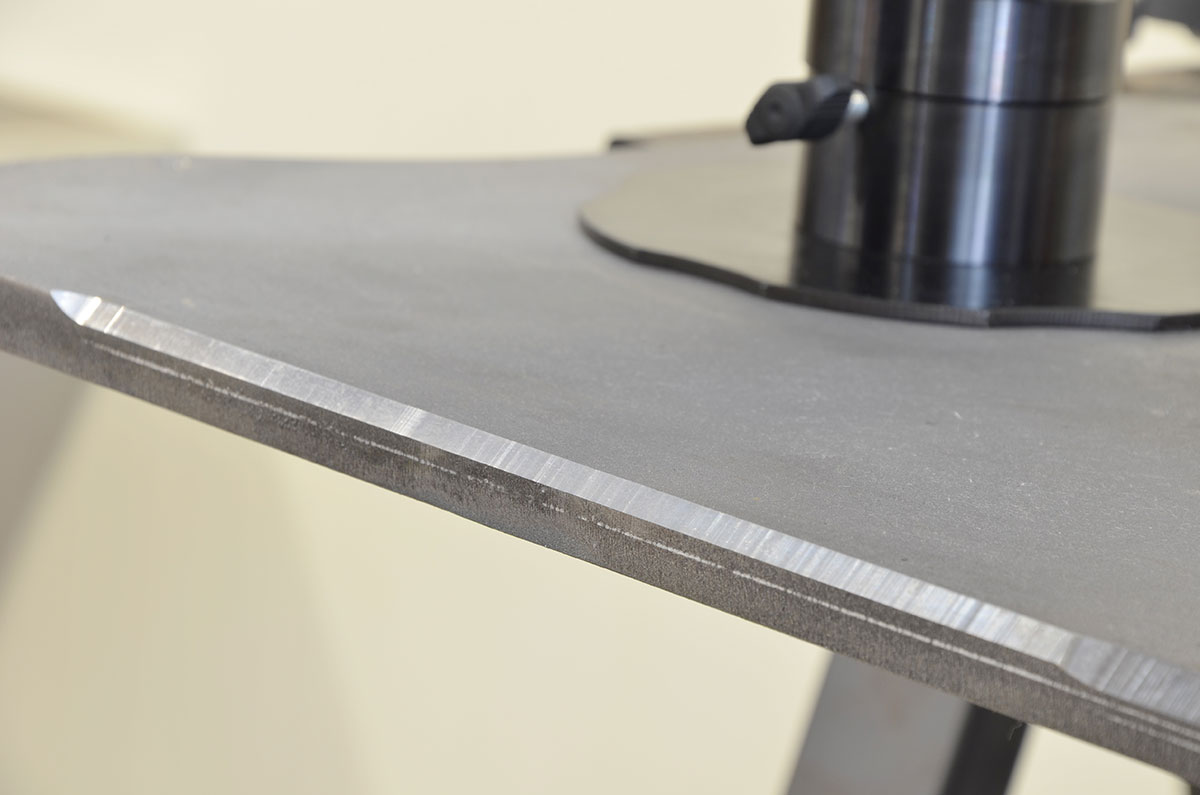

Plate beveling

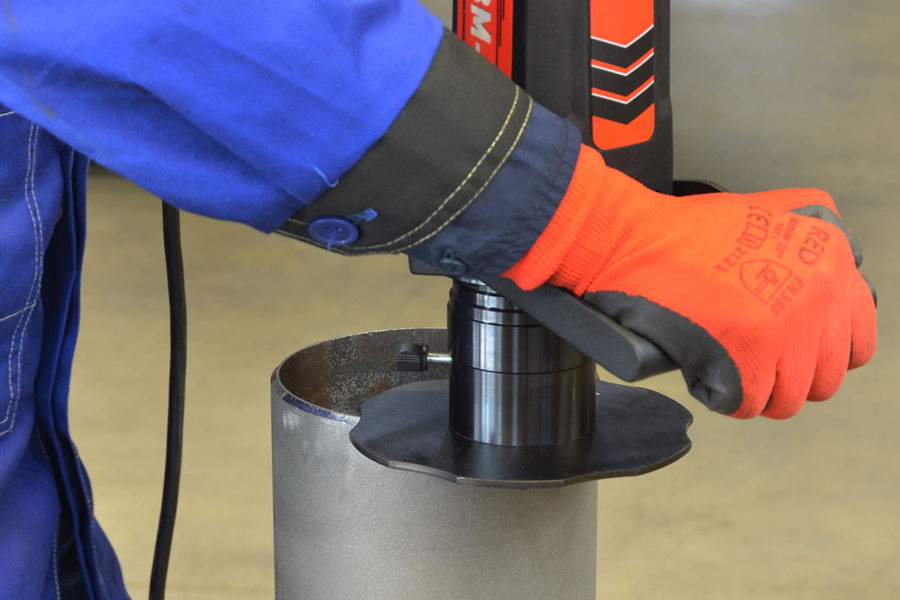

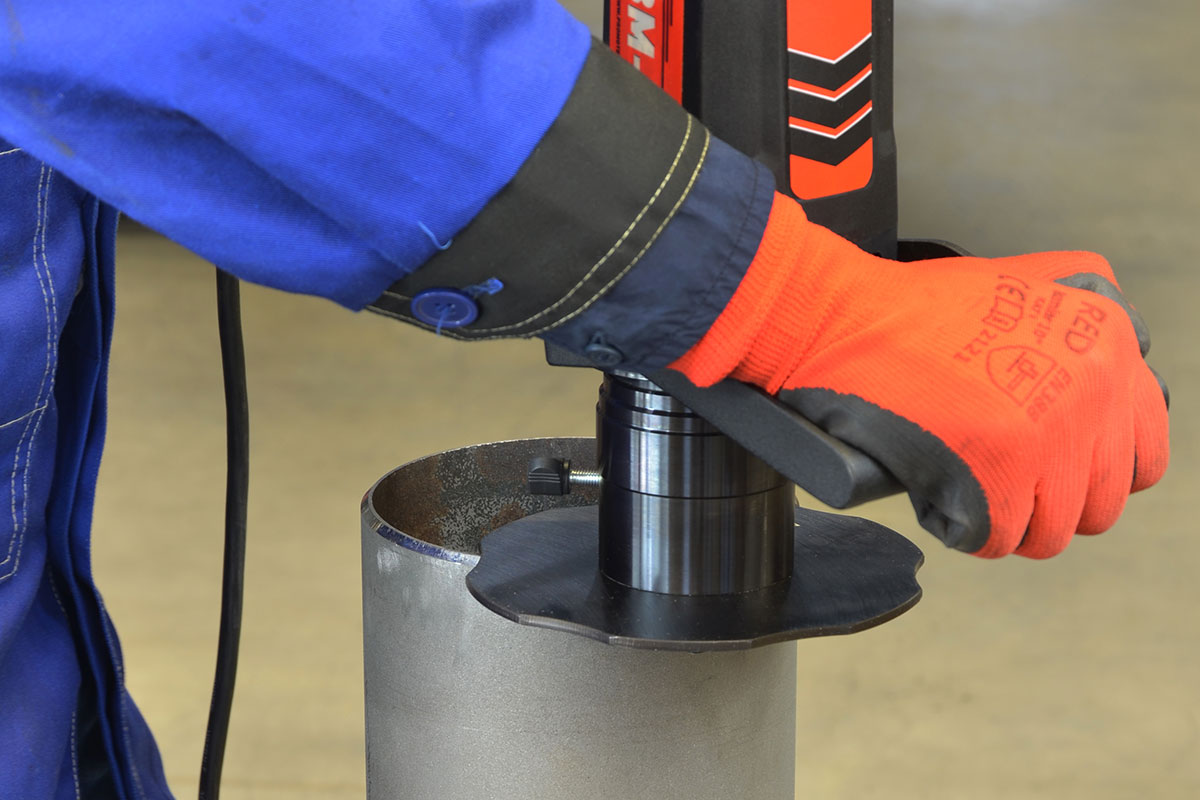

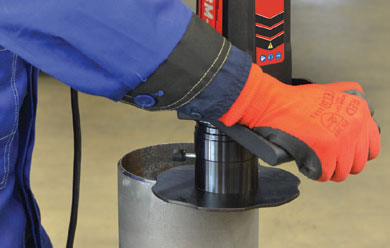

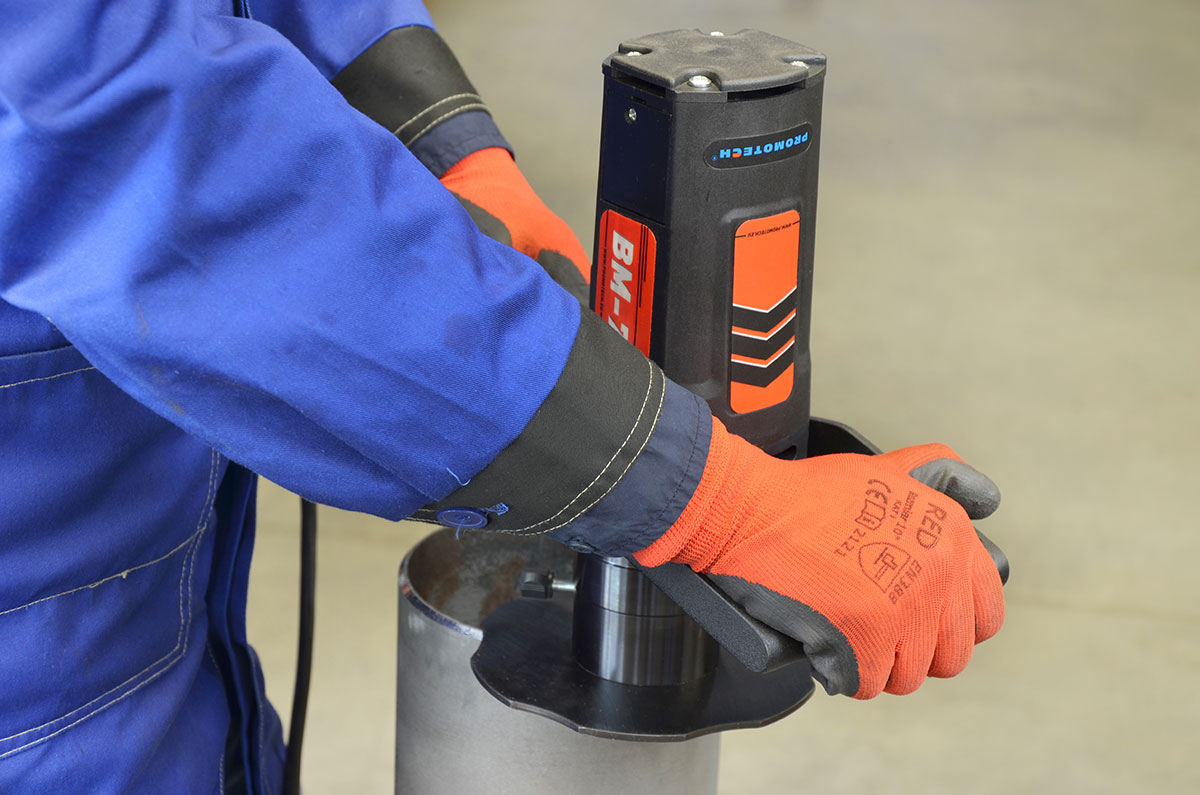

Pipe beveling

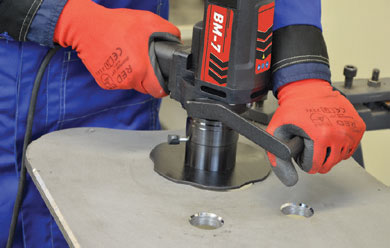

Countersinking

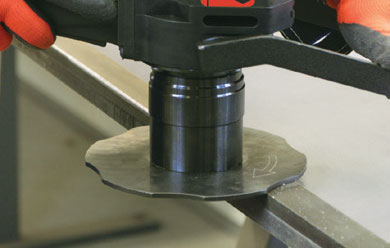

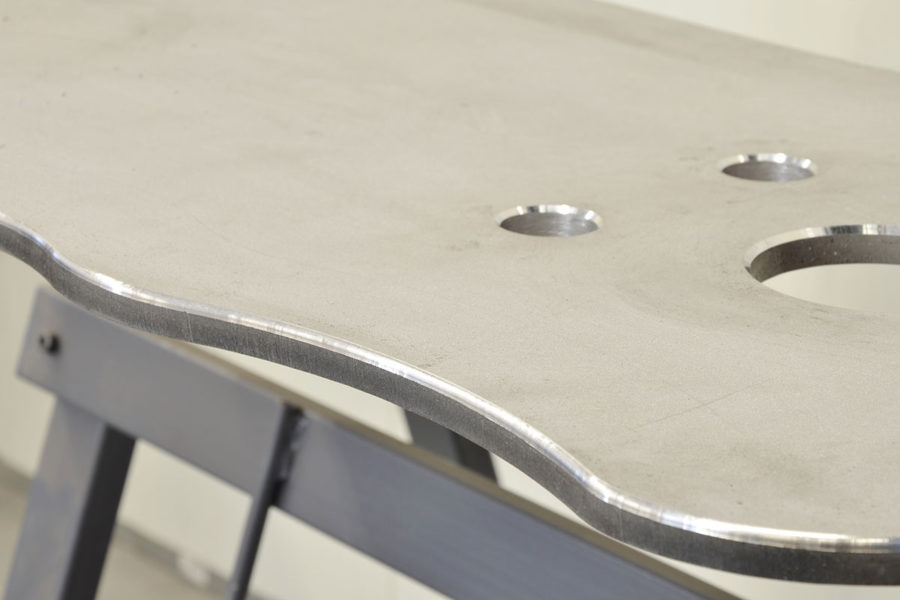

Straight edge beveling with radius

Specification

Power supply1~110-120 V, 50-60 Hz
1~220-240 V, 50-60 Hz
Motor1080 W
Spindle speed (without load)6200 rpm
Maximum bevel width (b)7 mm (0.28”); Fig.1
Bevel angle (β, depending on milling head)45°; 30° (option); Fig.1
Minimal diameter of countersinkingca 40 mm (1.6’’)
Rounding edgesR2, R3, R4, R5; Fig. 2
Dimensions ( L x W x H)339 mm (13.3”) x 135 mm (5.3”) x 320 mm (12,6”)
Weight (without milling head)6.1 kg (13.45 lbs)
Product code (220-240 VAC)UKS-0717-10-20-00-0
Product code (110-120 VAC)UKS-0717-10-10-00-0

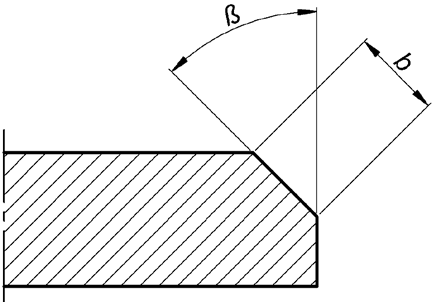

Fig 1

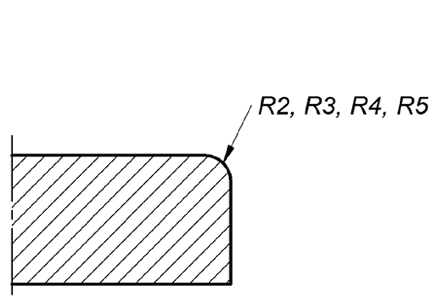

Fig 2

3917BM-7 | COMPACT PLATE AND PIPE BEVELLER

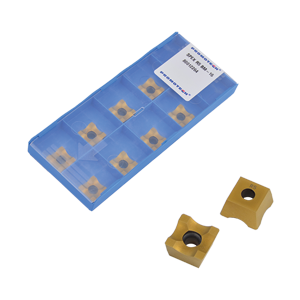

PLY-000740 Cutting insert R5 (sold 10 pcs/box)

Bevelling Accessories

3915BM-7 | COMPACT PLATE AND PIPE BEVELLER

PLY-000739 Cutting insert R4 (sold 10 pcs/box)

Bevelling Accessories

3913BM-7 | COMPACT PLATE AND PIPE BEVELLER

PLY-000738 Cutting insert R3 (sold 10 pcs/box)

Bevelling Accessories

3911BM-7 | COMPACT PLATE AND PIPE BEVELLER

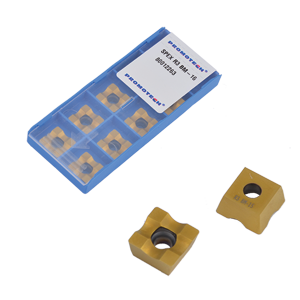

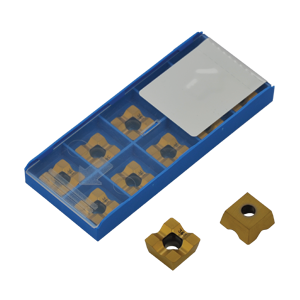

PLY-000737 Cutting insert R2 (sold 10 pcs/box)

Bevelling Accessories

3921BM-7 | COMPACT PLATE AND PIPE BEVELLER

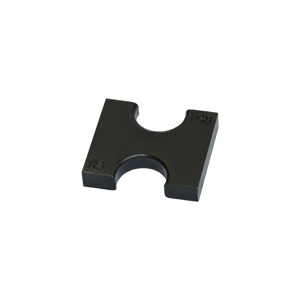

UST-0509-16-00-00-0 Radius insert positioner

Bevelling Accessories

BM-7 | Compact Plate And Pipe Beveller

1.22 MB
Download PDF
