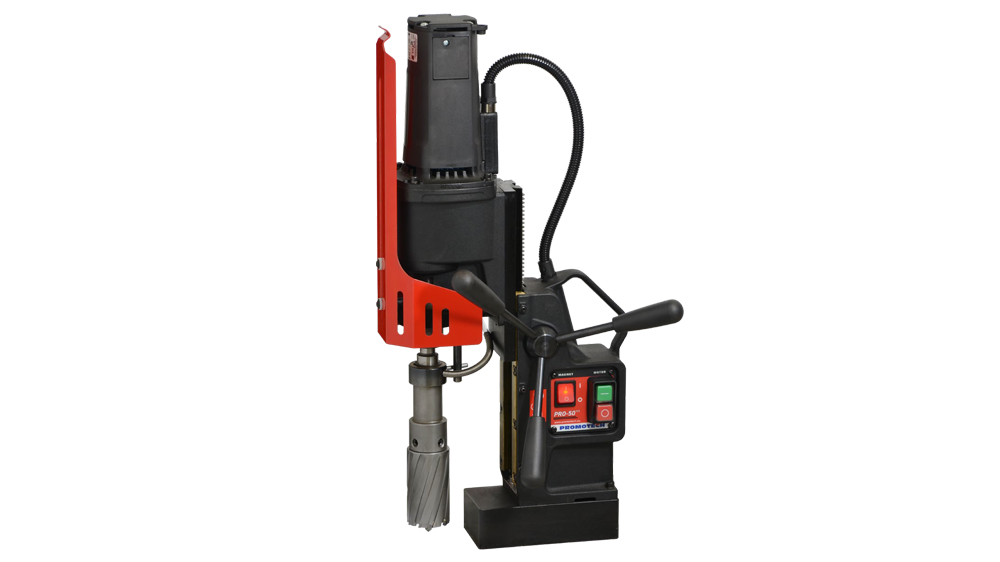

PRO-50 TCT 2-Speed Drilling Machine

PRO-50 TCT featuring purpose designed motor and 2-speed gearbox 320/640 rpm is optimized to provide appropriate speed for work with TCT cutters up to Ф 45 mm and twist drills up to Ф 18 mm. Rigid construction, optimized by means of FEA (finite element analysis) software, extends tool life and enables the depth of cut up to 75 mm. The compact design along with an innovative smart magnet with reduced weight makes it a lightweight machine.

  • Compact design with excellent ratio weight/power
  • Rigid casting designed to withstand downward drilling force, prolonging the tool’s life
  • Large stroke enables the use of long tools
  • Innovative smart magnet with reduced weight
  • Energy Saving Base (ESB) uses only 50% of its power when the motor is not running
  • Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
  • Magnetic Power Adhesion Control (MPAC) detects the adhesive force of the electromagnetic base and protects both the machine and the operator from working on too thin workpiece
PRO-50 TCT 2-Speed Drilling Machine

Core drill

max 45 mm

Twist drill

max 18 mm

Depth of cut

max 75 mm

Stroke

160 mm

Motor Speeds

320 / 640 rpm

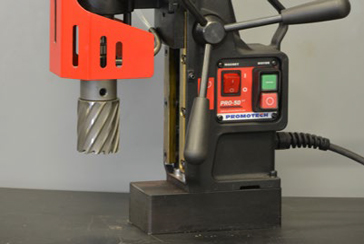

HSS cutters up to Ф 40 mm

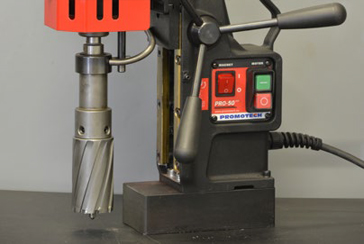

TCT cutters up to Ф 45 mm with AMT2-C19/2-3 arbor D.O.C. up to 75 mm

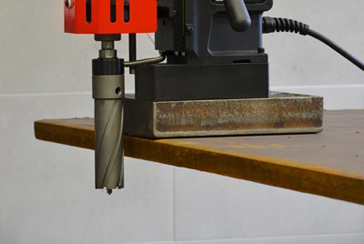

Starting point of drilling up to 50 mm below level of a drill base with 100 mm long cutter

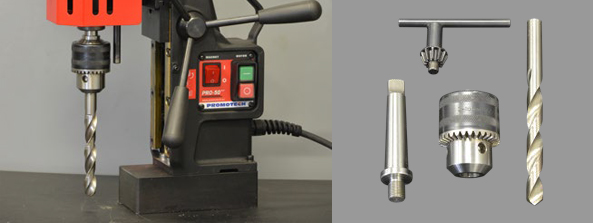

Adapter MT2 x 1/2” 20 UNF, Drilling chuck 1/2” 20 UNF Twist drills up to Ф 16.0 mm (DIN 338)

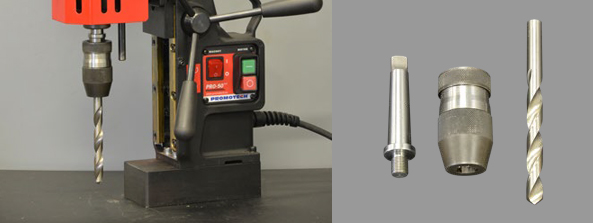

Adapter MT2 x 1/2” 20 UNF, Quick change drilling chuck 1/2” 20 UNF Twist drills up to Ф 16.0 mm (DIN 338)

Specification

Motor Speeds (under load)320/640 rpm
Power1150 W
Weight15,5 kg (34.17 lbs)
Max milling capacity TCT/HSS45/40 mm (1.77"/1.57")
Max drilling capacity18 mm (0.71")
Stroke160 mm (6.3")
Max depth of cut50 mm (2”)
75 mm (2.95") option
Voltage1~ 220–240 V, 50–60 Hz
1~ 110–120 V, 50–60 Hz
MFSC (Magnetic Field Shape Control)yes
MPAC (Magnetic Power Adhesion Control)yes
ESB (Energy Saving Base)yes
Magnetic clamping force1009 kgf (9900 N)
Magnet base dimensions84 mm × 168 mm × 48 mm
(3.3" × 6.6" × 1.9")
Min. work piece thickness6 mm (1/4")
SpindleMT2
Tool holder19 mm (3/4") Weldon
Product Code 220–240 V, 50–60 HzWRT-0742-10-20-00-0
Product Code 110–120 V, 50–60 HzWRT-0742-10-10-00-0
