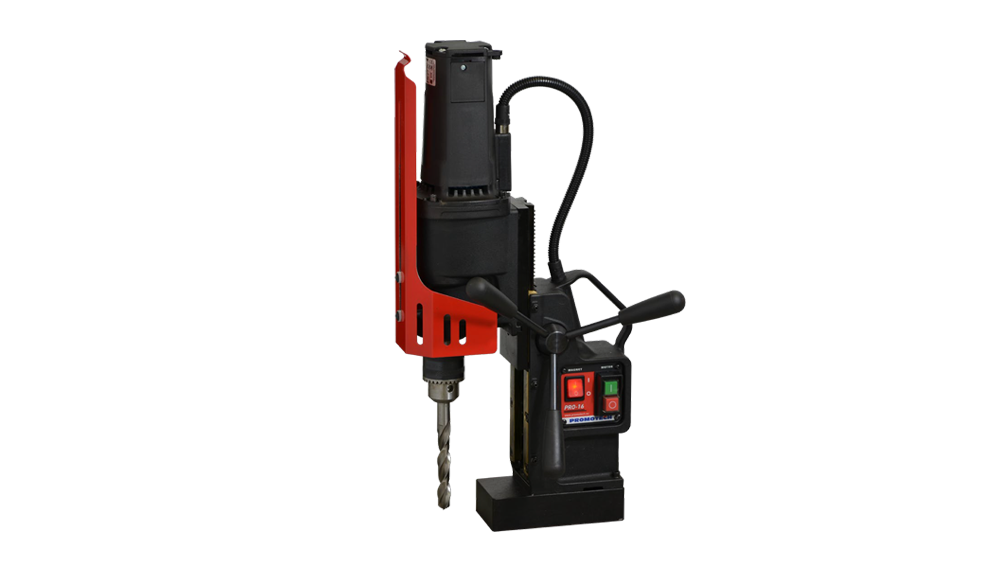

PRO-16 featuring purpose designed motor and 2-speed gear box 390/780 rpm is optimized to provide appropriate speed for work with cylindrical twist drills up to Ф 16 mm. Rigid construction, optimized by means of FEA (finite element analysis) software, extends tool life. Compact design along with innovative smart magnet with reduced weight make it a lightweight machine
PRO-16 provides maximum holding power on thin materials thanks to Magnetic Field Shape Control (MFSC). The drill protects both the machine and the operator from work on too thin workpiece by means of Magnetic Power Adhesion Control (MPAC). PRO-16 is also equipped with Energy Saving Base (ESB) that uses only 50% of its power when motor is not running.
Adapter 3/4” x 1/2” 20 UNF, Drilling chuck 1/2” 20 UNF, Twist drills up Ф 11.8 mm (DIN 338)
Adapter 3/4” x 1/2” 20 UNF, Drilling chuck 1/2” 20 UNF, Twist drills up to Ф 16.0 mm (DIN 1897)
Make sure you are familiar with Promotech PRO-16 | 2-speed Drilling Machine brochure, including technical data and detailed information about this product. Should you have any further questions, we encourage you to send us an inquiry.
| Motor Speeds (under load) | 390/780 rpm |
| Power | 1100 W |
| Weight | 14 kg (31 lbs) |
| Max milling capacity TCT/HSS | - |
| Max drilling capacity | 16 mm (0.63") |
| Stroke | 160 mm (6.3") |
| Max depth of cut | 50 mm (2") |
| Voltage | 1~ 220–240 V, 50–60 Hz 1~ 110–120 V, 50–60 Hz |
| MFSC (Magnetic Field Shape Control) | yes |
| MPAC (Magnetic Power Adhesion Control) | yes |
| ESB (Energy Saving Base) | yes |
| Magnetic clamping force | 1009 kgf (9900 N) |
| Magnet base dimensions | 84 × 168 × 41.5 (mm) 3.3 × 6.6 × 1.6 (") |
| Min. work piece thickness | 6 mm (1/4") |
| Spindle | Thread 1/2" |
| Tool holder | as spindle |
| Product Code 220–240 V, 50–60 Hz | WRT-0740-10-20-00-0 |
| Product Code 110–120 V, 50–60 Hz | WRT-0740-10-10-00-0 |
Standard shipping set:
Selected additional accessories:
