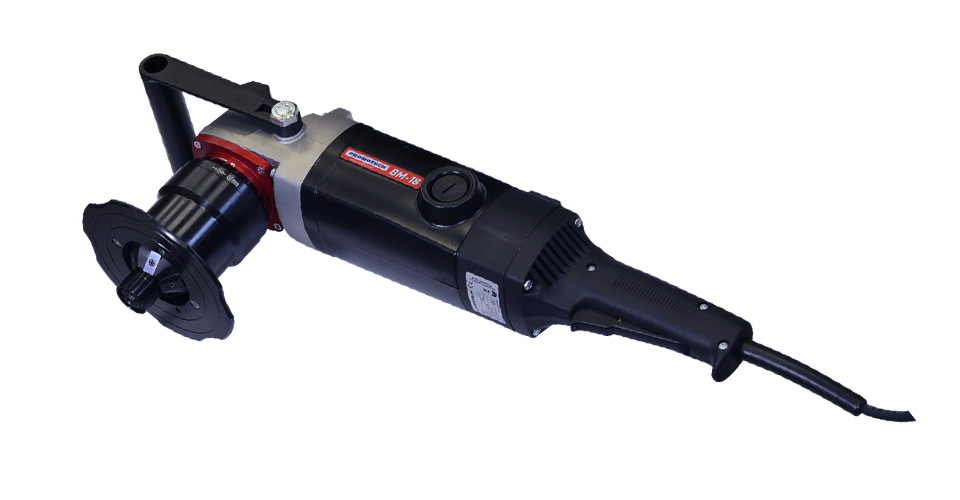

BM-18 | Multitask Plate and Pipe Beveller


The BM-18 is a new generation portable multitask plate and pipe beveller driven by a powerful electric motor.


Max bevel
width 18 mm
Top beveling
Bevel angles 22.5°, 30°, 37.5°, 45°, 50°, 55°, 60°
Countersinking Min. ID 40 mm
Min plate thickness
2 mm
Rounding edges (option)
R2, R3, R4 or R5
Arched edge beveling
Pipe ID beveling Min. ID 40 mm
Pipe OD beveling

Key Features

BM-18 enables milling straight edges up to 18 mm bevel width, contours, holes from 40 mm in diameter and rounding off steel construction before painting or
coating with radius R2, R3, R4 or R5. New hexagonal fixing of milling heads increases beveller durability and makes replacement of the heads more convenient and user-friendly. Variable spindle speed enables optimizing cutting conditions depending on sort of material grade incl. stainless steel, alloys, aluminum, brass or plastic.

  • Powerful electric motor
  • Maximum 18 mm bevel width (more than one pass could be required)
  • Continuous bevel width adjustment
  • New more durable milling heads with hexagonal fixing for easy replacement
  • Electronic speed control between 1800–5850 rpm for use on a variety of materials
  • Overload protection
  • Beveling milling head is equipped with 5 pcs of 2-sided indexable cutting inserts
  • Milling head for rounding is equipped with 4 pcs of 4-sided indexable inserts up to R5

New design of milling heads with hexagonal fixing

  • increases durability
  • more convenient assembly and disassembly of the milling head
  • guiding roller is integrated with each milling head
  • the clearance between milling head and guiding roller is precisely factory calibrated, thus requires no adjustment by the operator

Beveling milling head

Milling head for rounding

Aluminum beveling


Rounding off curved edges

Pipe beveling

Machining small workpieces

Lightweight and durable plastic box for convenient storage and transportation

Radius insert positioner for BM-18
Useful device for easy and precise setting of radius R2, R3, R4 and R5.
Product code: UST-0509-16-00-00-0

Pipe attachment for BM-18
Allows external beveling of pipes with a diameter of at least 150 mm (5.9’’) and internal beveling of pipes with a diameter of at least 110 mm (4.3’’).
Product code: PRW-0509-07-00-00-0

Worktable fixture for BM-18
Handy and convenient tool for machining small workpieces with cross section of at least 15×25 mm (0.6×1’’) and length of at least 400 mm (16’’).
The width of the workpiece can be up to 100 mm (4’’), and height up to 65 mm (2.5’’). The maximum bevel width is 14 mm (0.55’’).
Product Code: ZBD-0509-12-00-00-0


Make sure you are familiar with Promotech BM-18 plate and pipe beveler brochure including technical data and detailed information about this product. Should you have any further questions we encourage you to send us an enquiry.

BM-18 | Technical Specification

Power supply1~ 220-240 V, 50-60 Hz
1~ 110-120 V, 50-60 Hz
Power2200 W
Spindle speed (without load)1800–5850 rpm
Maximum bevel widthb=18 mm (0.71’’, Fig. 1)
Bevel angle (depending on milling head)22.5°, 30°, 37.5°, 45°, 50°, 55°, 60° (Fig. 1)
Minimum workpiece thickness2 mm (0.08”)
Minimal diameter of countersinkingca 40 mm (1.57’’)
Rounding edgesR2, R3, R4, R5 (Fig. 2)
Dimensioni (L x W x H)585 mm (23.0’’) × 156 mm (6.1’’) × 238 mm (9.4’’)
Weight (without milling head)10 kg (22 lbs)
Product code 220-240 V, 50-60 HzUKS-0670-10-20-00-0
Product code 110-120 V, 50-60 HzUKS-0670-10-10-00-0
