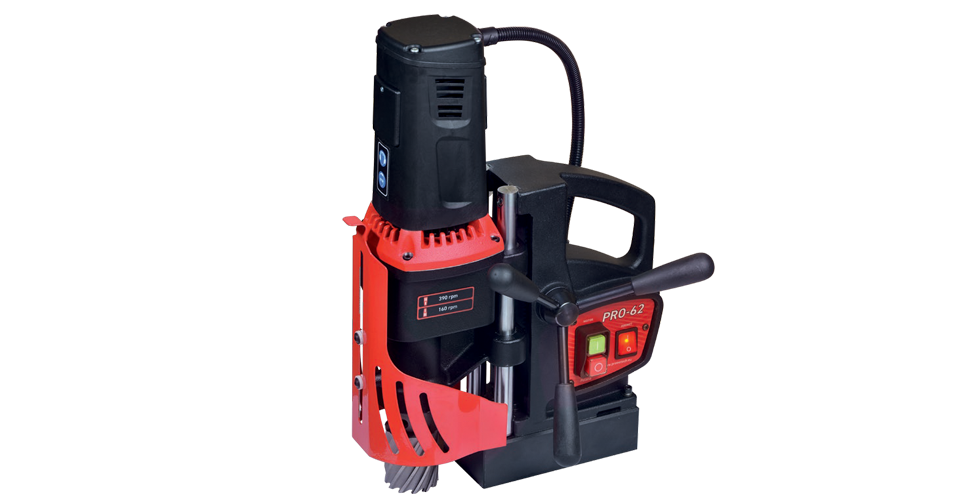

PRO-62 | Annular Cutter Drilling Machine

PRO-62

The PRO-62 drill equipped with 19 mm (3/4”) Weldon tool holder uses TCT and HSS annular cutters that cut only a groove at the periphery of the hole, leaving a solid core or slug at the center.



Weldon shank 19 mm
Motor Power 1600 W
Speed 160 rpm / 390 rpm
Weight 17 kg 37 (lbs)
Core drill max 65 mm
Depth of cut 75 mm
Stroke 95 mm

PRO-62 | Annular Cutter Drilling Machine

Strong 1600 W motor enables cutting capacity up to 65 mm (2-9/16”) and depth of cut up to 75 mm (3”). Dual guide bars design empowers maintenance free rail guide system.

Standard shipping set:

  • Drilling machine
  • Plastic box
  • Cooling system
  • Handle (3 pcs)
  • Safety strap
  • 4 mm hex wrench with a handle
  • Operator’s Manual
  • 1600 W powerful motor with heavy duty 2-speed gearbox
  • maintenance free rail guide system thanks to dual guide bars
  • innovative smart magnet with reduced weight
  • rigid design extends tool life
  • milling with TCT or HSS cutters
  • drilling with twist drills feat. Weldon shank
  • large coolant container

Key features

Milling capacity up to 65 mm (2-9/16”)

Max depth of cut up to 75 mm (3”)

Brochures

Make sure you are familiar with Promotech PRO-62 | Annular Cutter Drilling Machine brochure including technical data and detailed information about this product. Should you have any further questions we encourage you to send us an enquiry.

Drilling & Punching Machines

Size: 3.7 MB Type: PDF

Technical specification

Motor Speeds (under load)160 rpm (gear I) 390 rpm (gear II)
Motor Power1600 W
Weight17 kg (37 lbs)
Max milling capacity65 mm (2-9/16”)
Stroke95 mm (3-3/4”)
Max depth of cut75 mm (3”)
Voltage1~ 220–240 V, 50–60 Hz 1~ 110–120 V, 50–60 Hz
Magnetic clamping force (surface with the thickness of 25 mm and roughness Ra = 1.25)1122 kG (11 000 N)
Magnet Base Dimensions90 mm × 180 mm × 48 mm
3-9/16" x 7" x 1-7/8"
Min. Workpiece Thickness 8 mm (5/16)
Tool holder 19 mm (3/4”) Weldon
Product Code 220–240 V, 50–60 HzWRT-0630-10-20-00-0
Product Code 110–120 V, 50–60 HzWRT-0630-10-10-00-0
Product Code 110–120 V, 50–60 HzWRT-0630-10-10-00-0
