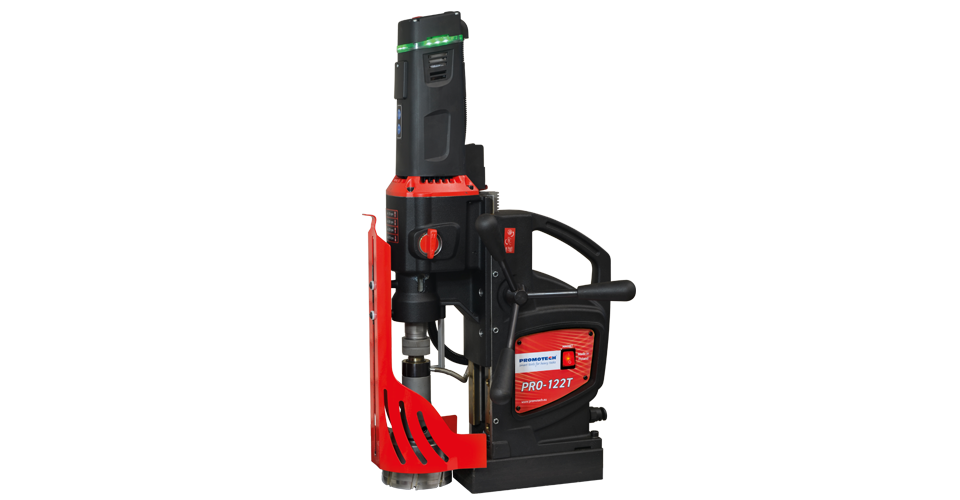

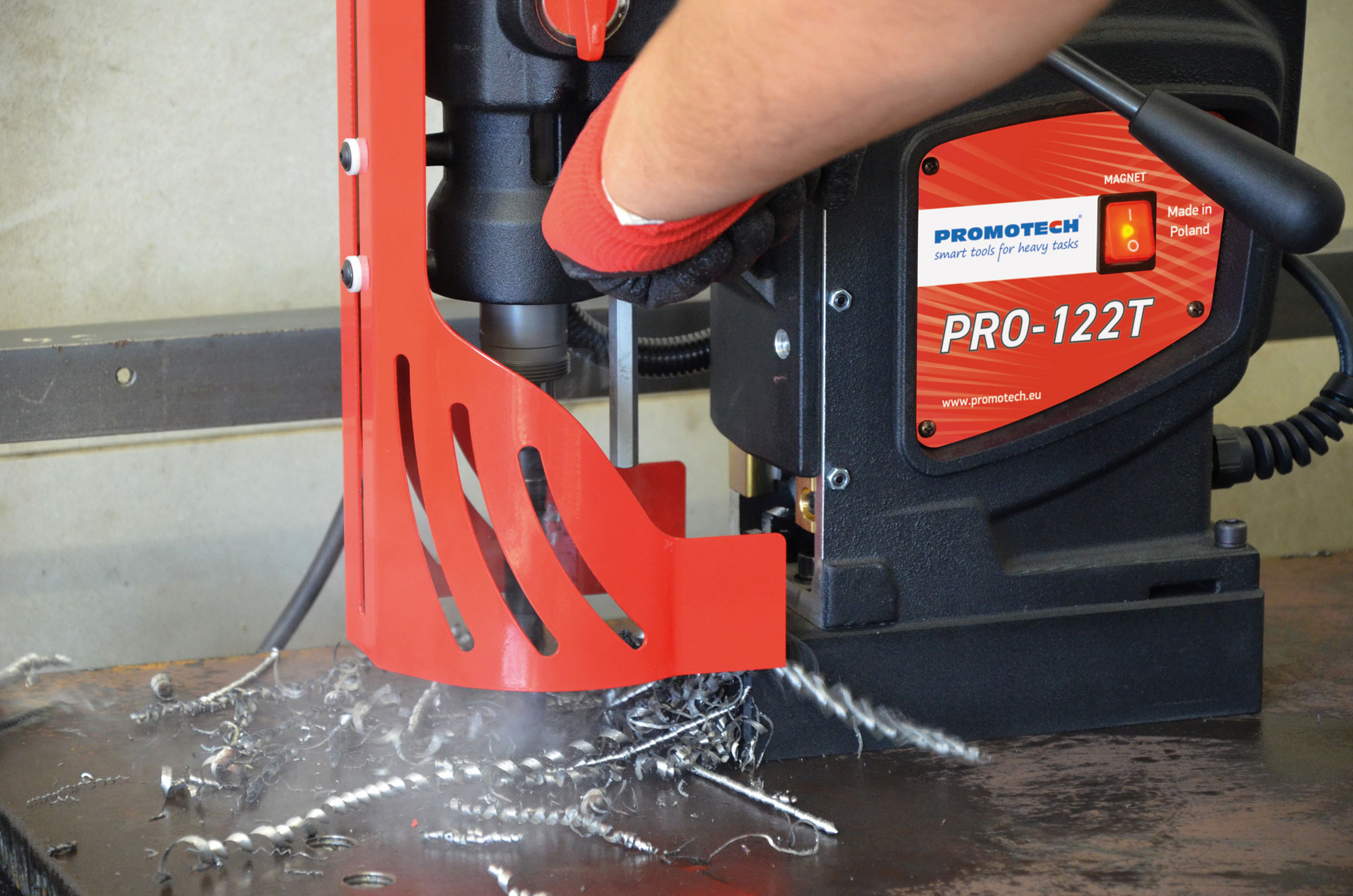

PRO-122T | Industrial Tapping and Drilling Machine

PRO-122T

The PRO-122T machine is designed for industrial hole making and tapping applications. Powerful variable speed motor enables milling capacity up to 120 mm (4-3/4”) and drilling capacity up to 31.75 mm (1-1/4”).



Core drill
max 120 mm (4-3/4”)
Twist drill max
31.75 mm
(1-1/4")
Spindle
MT3
Depth of cut 100 mm (4")
Stroke
225 mm (9”)
Speed
75-110 rpm 135-200 rpm 220-320 rpm 390–570 rpm
Power
2300 W
Weight
25 kg (55 lbs)
Thread cutting
M30 (1-1/4")
Worn brushes indicator
Thermal /overheat protection
Overload protection
Magnet detachment safeguard

PRO-122T | Industrial Tapping and Drilling Machine

The PRO-122T machine is designed for industrial hole making and tapping applications. Powerful variable speed motor enables milling capacity up to 120 mm (4-3/4”) and drilling capacity up to 31.75 mm (1-1/4”). Machine’s forward & reverse work modes allow thread cutting up to M30 with Promotech’s new tapping system. Four speed gearbox with continuous speed adjustment allows to set the optimal speed depending on diameter, steel grade or tool quality. Intelligent speed control system maintains constant motor speed regardless of changing loads. Innovative 360-degree LED indicator facilitates proper machine operation and increases work safety.

  • The most powerful motor in its class (among MT3 drills) with heavy duty 4-speed gearbox
  • Electronic Speed Stabilization System (ESSS) maintains stable speed regardless of load changes
  • tapping of through and blind holes
  • milling with TCT or HSS cutters or drilling
  • electronic clutch
  • both overload and overheat protection
  • rigid design extends tool life
  • tilt sensor stops the motor if machine breaks away
  • 360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes
  • innovative smart magnet with reduced weight
  • Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
  • Energy Saving Base(ESB) uses only 50% of its power when motor is not running
  • Semi-automatic gib adjustment enables simple, fast, correct and repeatable slide backlash settings without any expert knowledge or experience
  • intuitive control panel at top of the drill
  • large coolant container

Key features

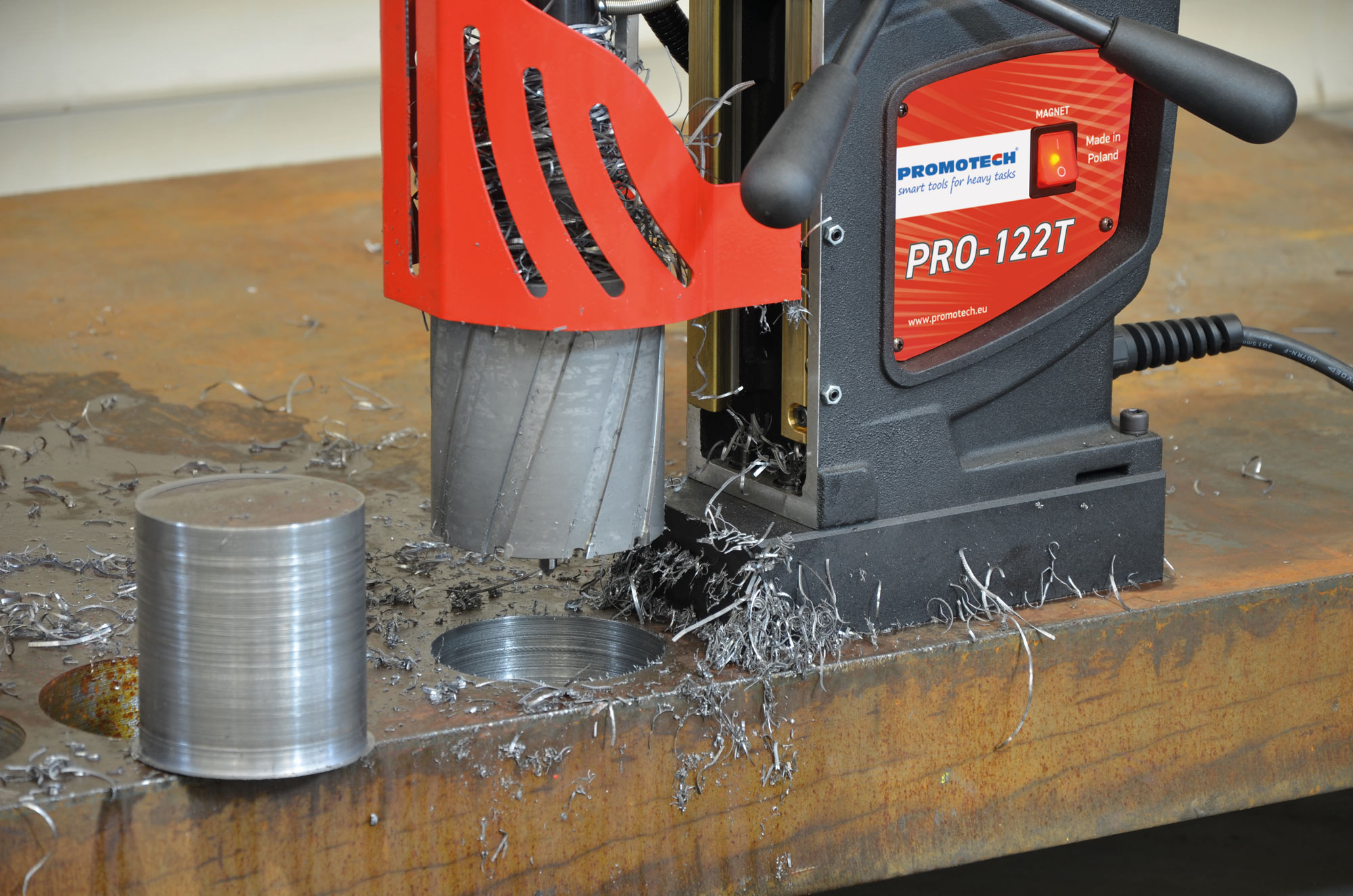

Milling capacity up to 120 mm (4-3/4”)

Depth of cut up to 100 mm (4”)

Drilling capacity up to 31.75 mm (1-1/4”)
Stroke up to 225 mm (9”)

Intuitive control panel at top of the drill

Counterclockwise (CCW) rotation. User-friendly control of tapping tool release

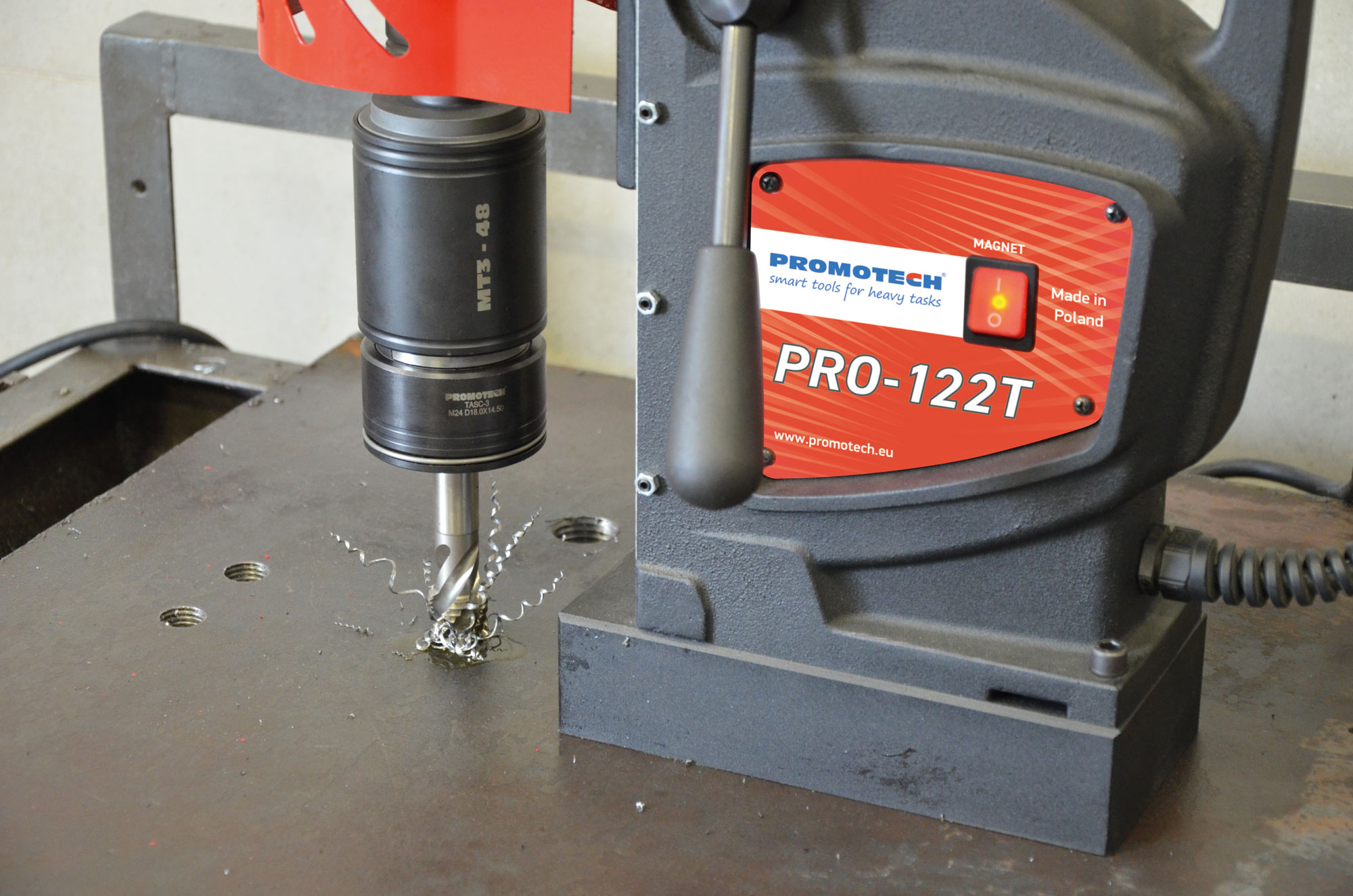

Tapping chuck feat. securing nut

Through hole tapping up to M30

Blind hole tapping up to M30

Brochures

Make sure you are familiar with Promotech PRO-122T | Industrial Tapping and Drilling Machine brochure including technical data and detailed information about this product. Should you have any further questions we encourage you to send us an enquiry.

Demo video

Join our channels


Technical specification

Motor Speeds (under load)75–110 rpm (gear I)
135–200 rpm (gear II)
220–320 rpm (gear III)
390–570 rpm (gear IV)
Power2300 W
Weight25 kg (55 lbs)
Max milling capacity120 mm (4-3/4”)*
Max drilling capacity31.75 mm (1-1/4")
Max Tap sizeM30 (1-1/4")
Stroke225 mm (9")
Max depth of cut100 mm (4")
Voltage1~ 220–240 V, 50–60 Hz
1~ 110–120 V, 50–60 Hz
Overload protectionyes
Overheat protectionyes
Continuous Speed Adjustmentyes
ESSS (Electronic Speed Stabilization Systemyes
Semi-automatic gib adjustmentyes
MFSC (Magnetic Field Shape Control)yes
ESB – Energy Saving Baseyes
Magnet detachment safeguard yes
Magnetic clamping force (surface with the thickness of 25 mm and roughness Ra = 1.25)1835 kgf (18 000 N)
Magnet Base Dimensions110 mm × 220 mm × 50 mm
4.3” × 8.7” × 2”
Min. Workpiece Thickness10 mm (3/8")
SpindleMT3
Tool holder19 mm (3/4") or 32 mm (1-1/4") Weldon
Product Code 220–240 V, 50–60 HzWRT-0563-10-20-01-0
Product Code 110–120 V, 50–60 HzWRT-0563-10-10-01-0

*If more than 60 mm (2.36”), use an MT3 arbor with 32 mm Weldon tool holder (UCW-0563-22-00-00-0).
