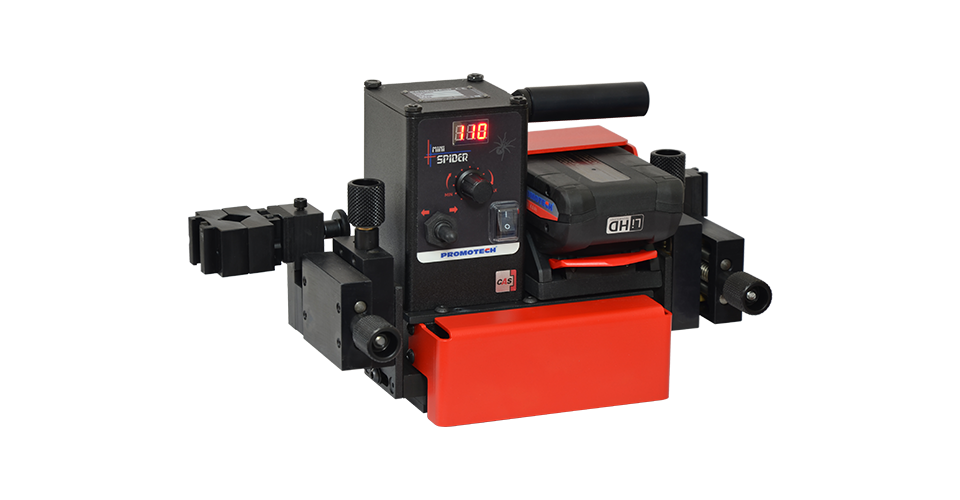

Mini Spider

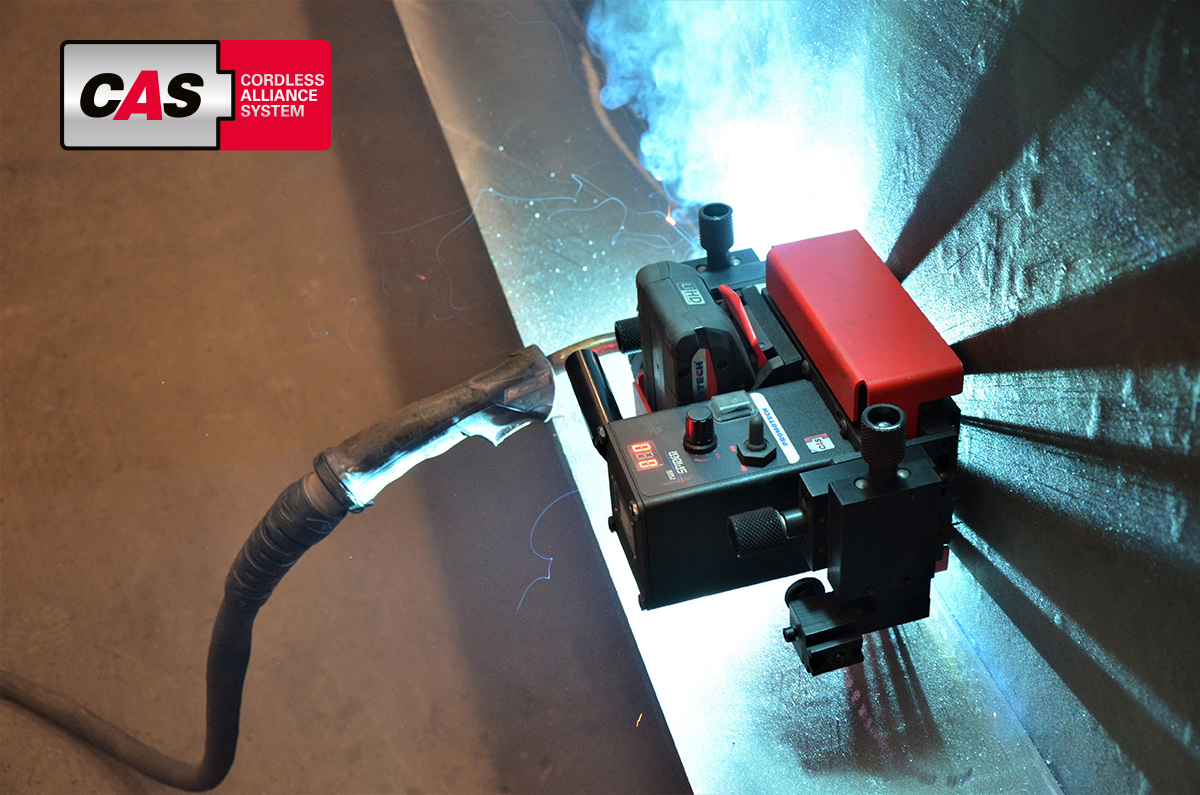

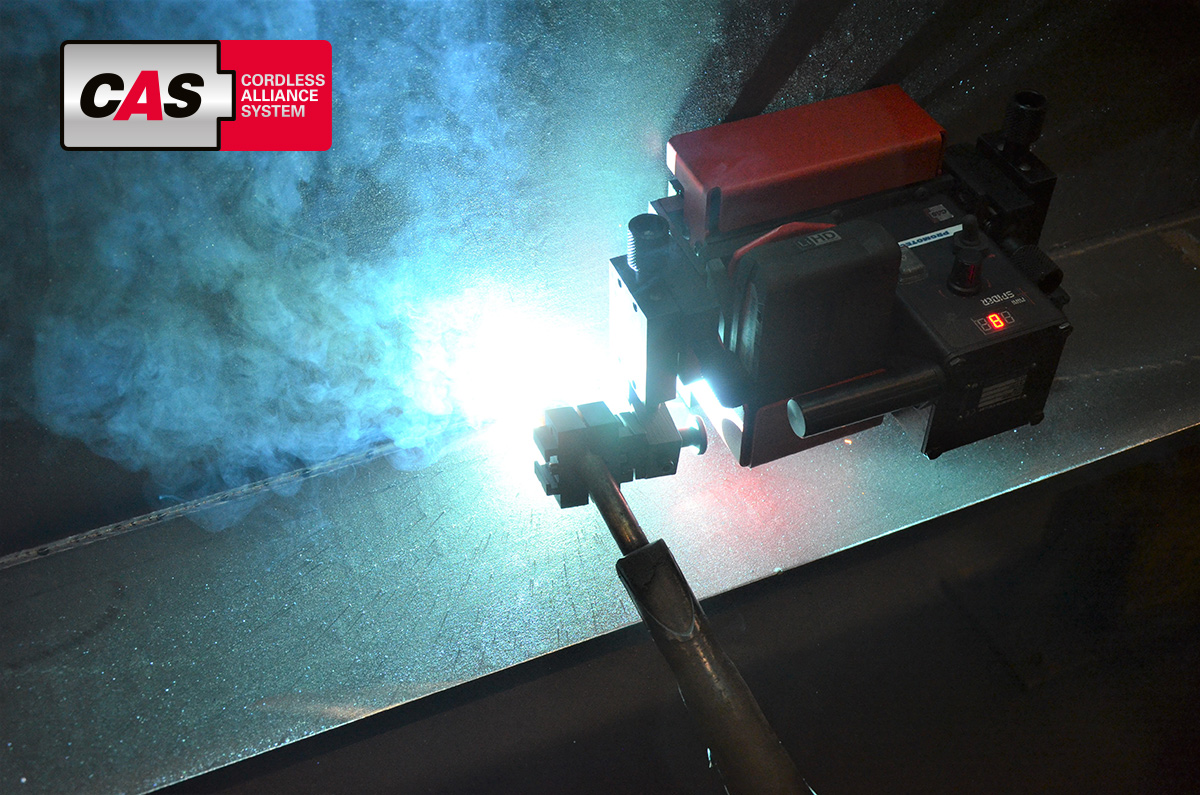

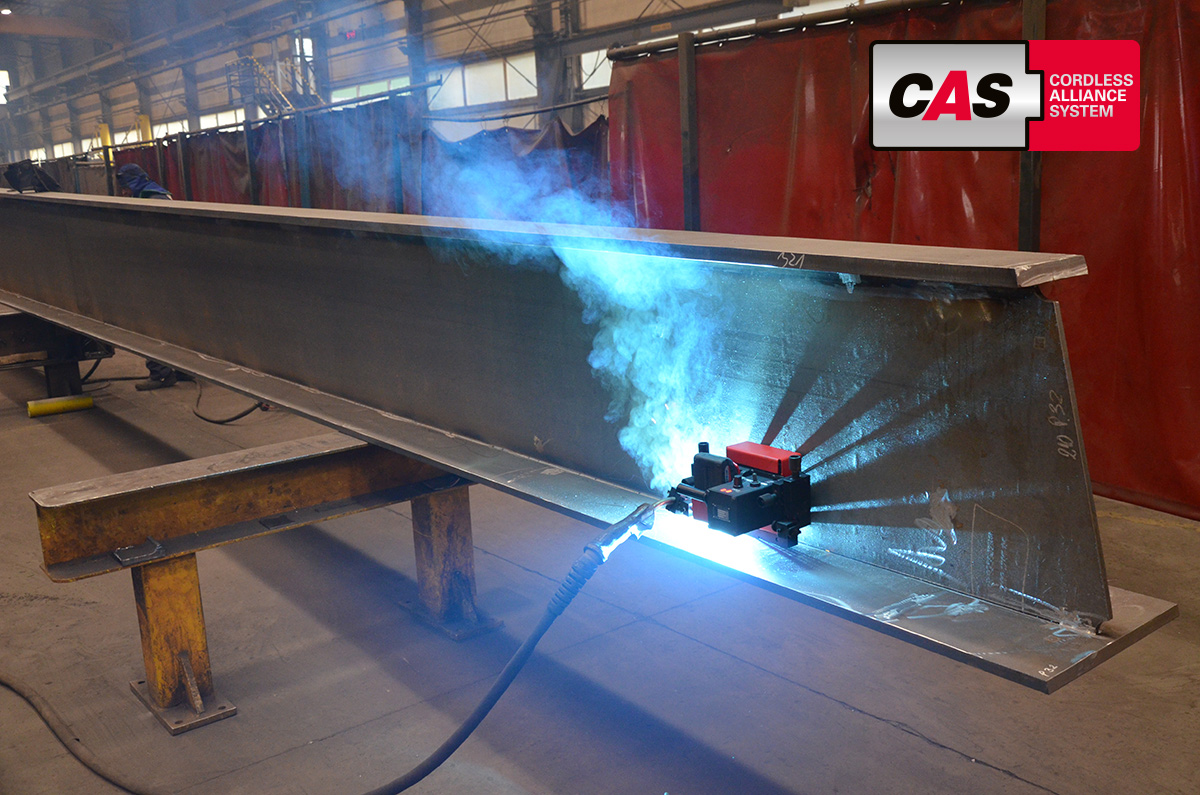

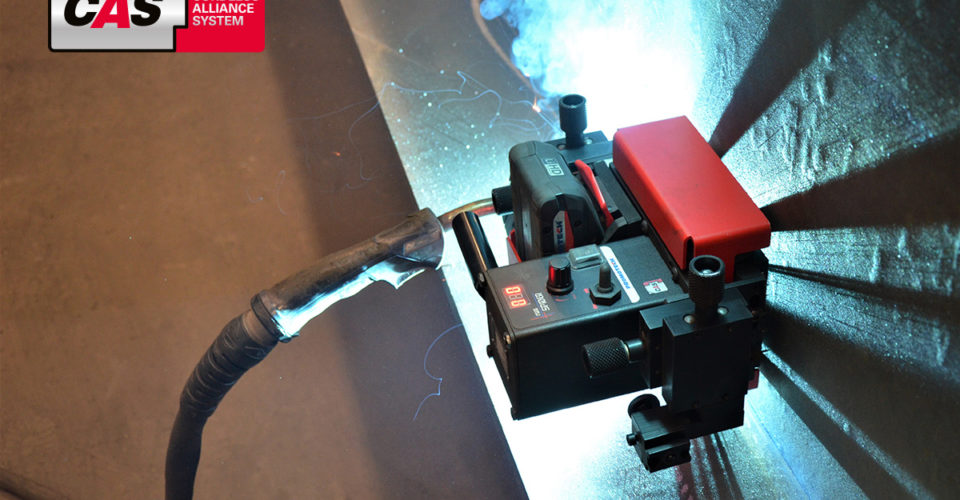

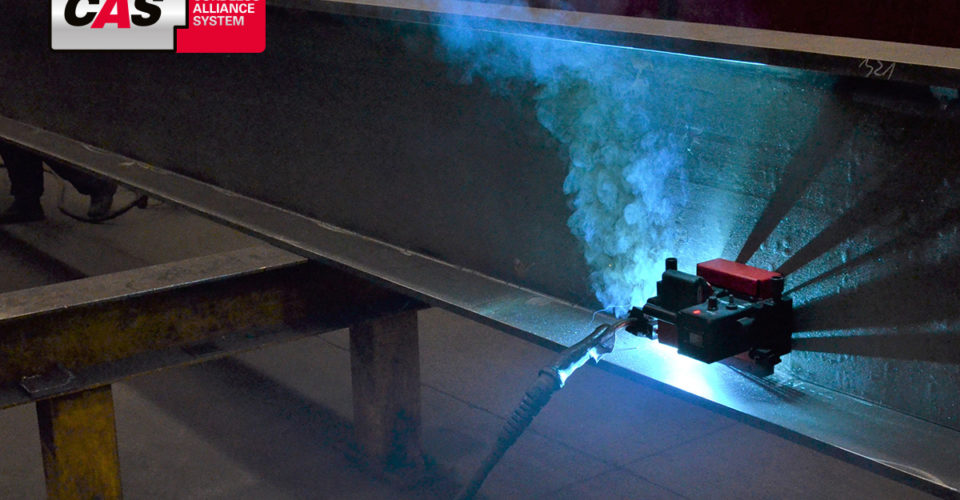

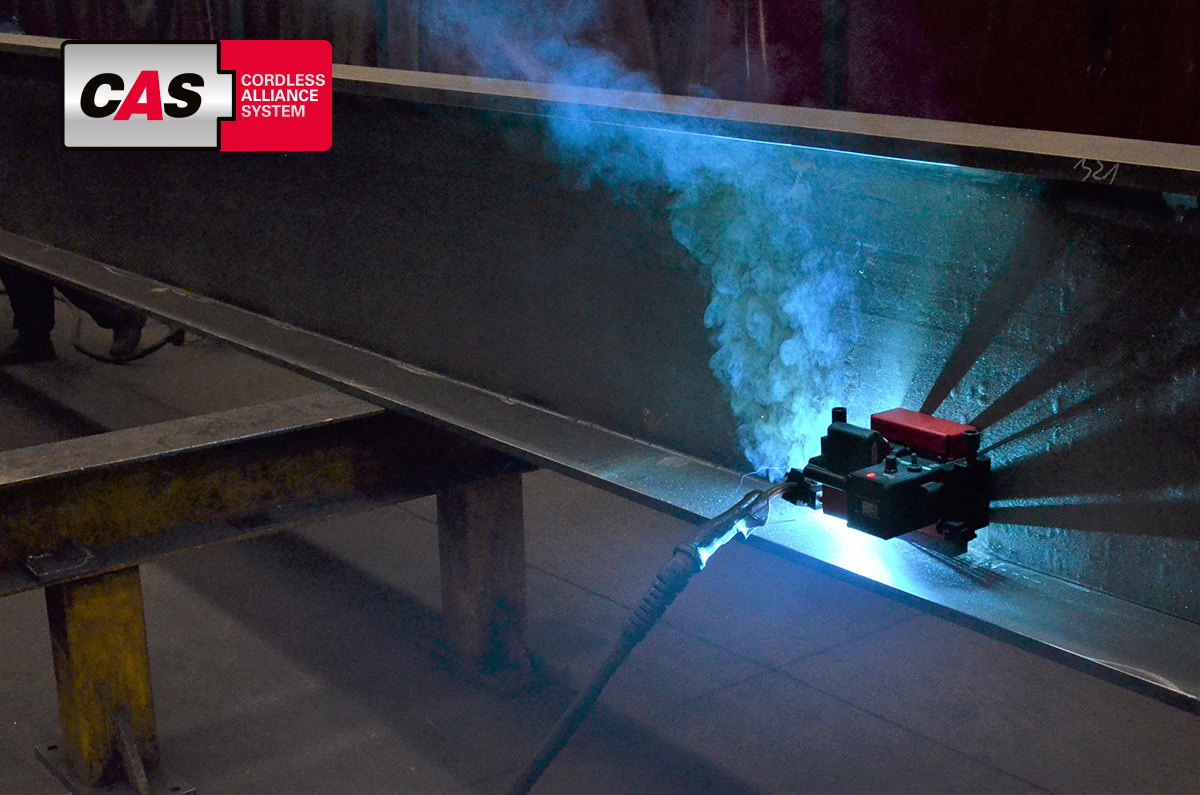

The Mini Spider is a battery-powered welding tractor designed to produce continuous fillet welds using MIG/MAG torches. The torch can be easily swapped from one side of Mini Spider to another.



Send an enquiry
Watch video
Brochure
Continuous
welding
Horizontal speed
0–120 cm/min
Vertical speed
0–110 cm/min
Torch placement
on either side
Welding in
narrow spaces
Weight 7,6 kg

Discover cordless freedom - now cross-manufacturer!

Cordless Alliance System (CAS) is a cross-manufacturer battery pack system of leading power tool brands. This permits now a number of professional applications also with battery packs – from standard to special tasks. Get more info here.

Key features

4-wheel drive system with magnetic traction and a feedback loop provides highly efficient speed stabilization.

Constant, continuous and repeatable travel speed enables weld bead geometry that is exact to the required specifications, thus reducing costly over welding and substantially decreasing filler metal usage.

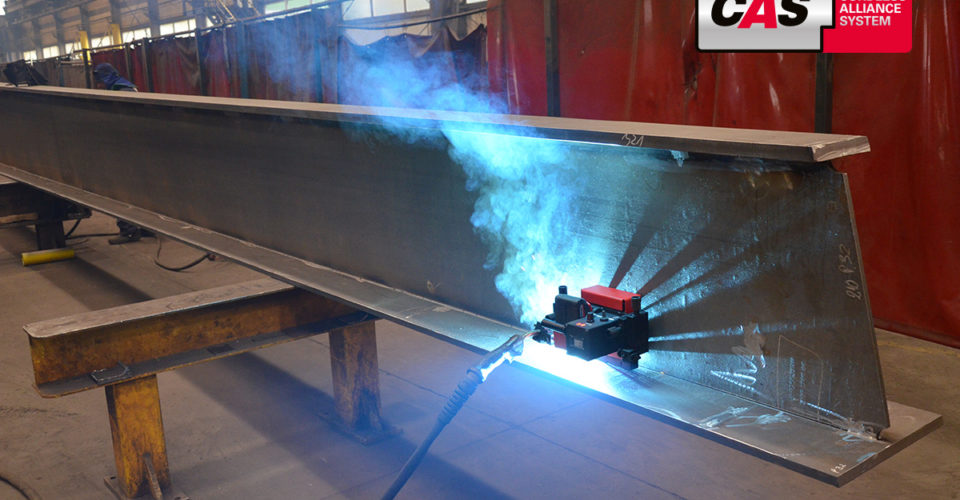

  • Compact and lightweight design to weld in narrow spaces
  • Convenient 18 V DC battery supply (the same battery for both Mini Spider and Gecko Battery)

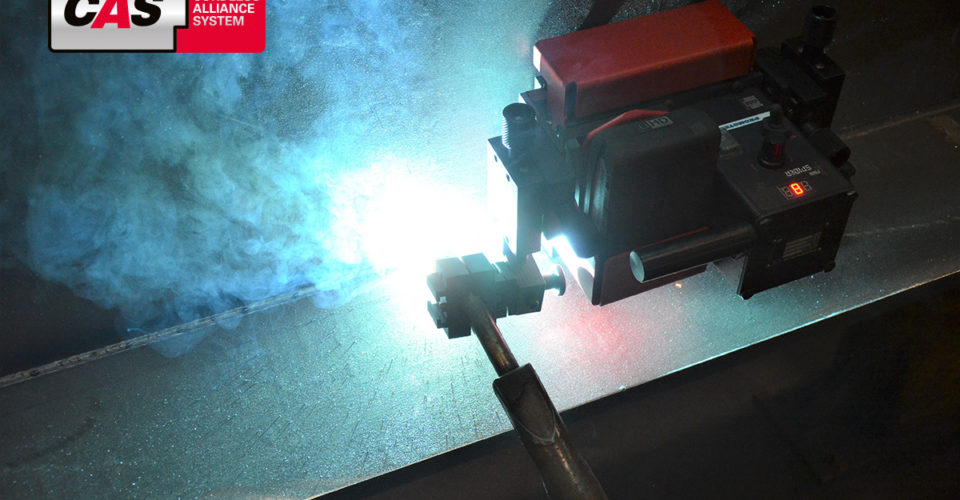

  • Torch placement on either side
  • Welding edge to edge
  • Closed-loop speed control system based on electric motor with encoder – ensures increased speed accuracy
  • Consistent heat input reduces distortion
  • Reduces wasted filler metal – eliminates over welding
  • Digital LED display for presetting of travel speed and diagnostic messages
  • Low-battery indicator
  • Built-in guide rollers

Torch placement on either side

Welding edge to edge

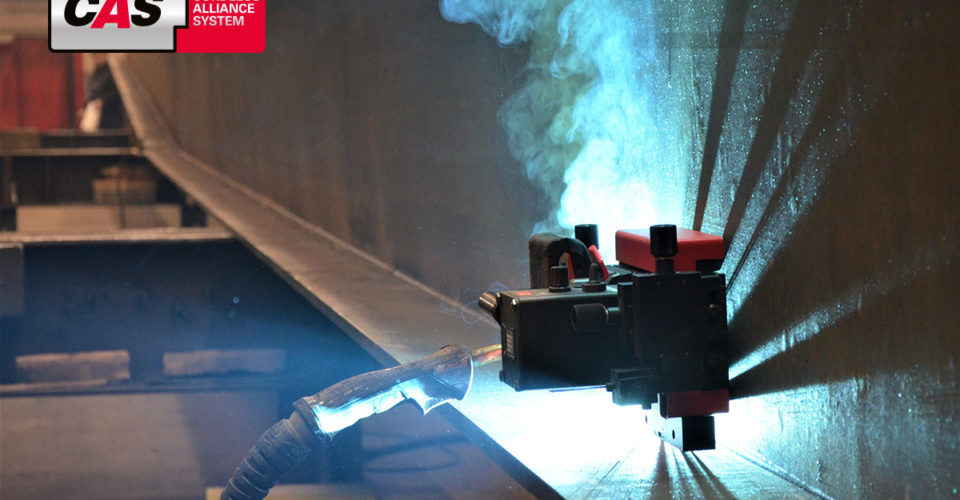

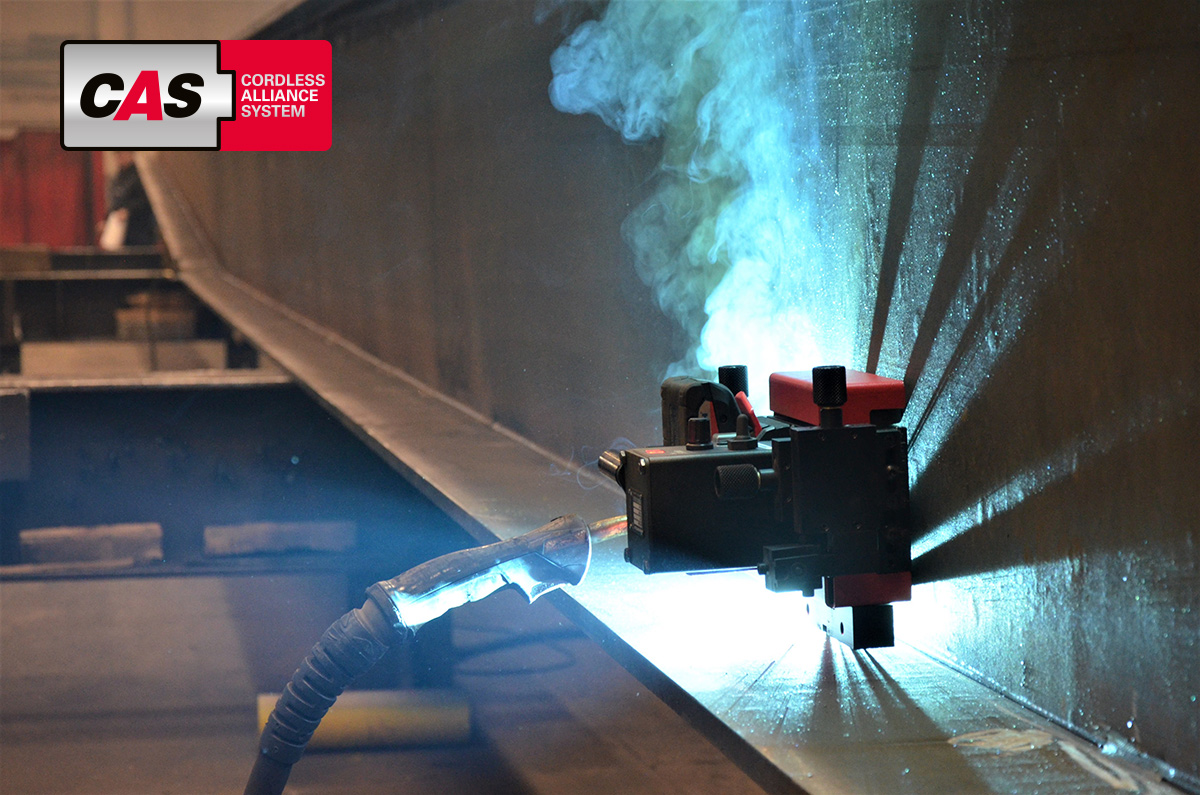

Welding in narrow spaces

Product Video

Brochures

Make sure you are familiar with Promotech Mini Spider | Fillet Welding Tractor brochure including technical data and detailed information about this product. Should you have any further questions we encourage you to send us an enquiry.

Mini Spider | Fillet Welding Tractor

Size: 2.1 MB Type: PDF

Welding & Cutting Tractors

Size: 3.7 MB Type: PDF

Mini Spider | Kompakter Schweisstraktor

Size: 3.7 MB Type: PDF

Schweiß- und Schneidtraktoren

Size: 3.7 MB Type: PDF

Mini Spider | Carrello per Saldatura D’angolo

Size: 3.7 MB Type: PDF

Carrelli per Saldatura e Taglio

Size: 3.7 MB Type: PDF

Mini-Spider | Chariot-Soudage-D’angle

Size: 3.7 MB Type: PDF

Chariots de Soudage & Coupage

Size: 3.7 MB Type: PDF

Mini Spider | Compacte Laswagen

Size: 3.7 MB Type: PDF

Mini Spider | Traktor pro Koutové Svary

Size: 3.7 MB Type: PDF

Mini Spider | Заваръчен Трактор С Батерия

Size: 3.7 MB Type: PDF

Mini Spider | Hitsauskuljetin

Size: 3.7 MB Type: PDF

Technical specification

Voltage18 V DC, 4.0 Ah
Power25 W
Welding position
(according to EN ISO 6947 and AWS/ASME)		PB / 2F
PD / 4F
Torch diameter16–22 mm
(0.63–0.87’’)
Min. workpiece thickness4 mm (0.16”)
Ground clearance4 mm (0.16”)
Horizontal pulling force150 N
Vertical pulling force100 N
Horizontal speed *0–110 cm/min
(0–43.3 in/min)
Vertical speed *0–100 cm/min
(0–39.4 in/min)
Weight (w/o battery)7.6 kg (22 lbs)
Product codeWOZ-0735-10-00-00-0
* With battery fully charged

New control system of battery pack

Detection and supervised parameters:

  • too low and too high voltage
  • too low and too high temperature
  • failure of the temperature sensor
  • internal battery failure

Benefits:

  • over discharge protection
  • extended battery life
  • high level of safety for both tractor and operator

Optional accessories

Torch holder
ZCS-0270-42-00-00-0

Battery 4.0 Ah
AKM-0738-10-00-01-0

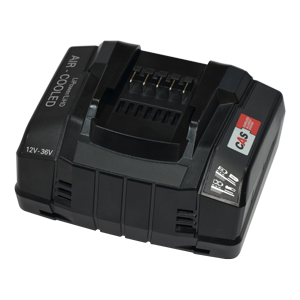

Charger
LDW-0738-10-00-30-0 (EU)
LDW-0738-06-00-30-0 (AUS/NZ)
LDW-0738-04-00-30-0 (UK)

Cable anchor
UCW-0655-08-00-00-0

Power cord 3 m (10 ft)
PWD-0466-18-00-00-0 (230 V CEE)
PWD-0466-16-00-00-0 (115 V USA)
PWD-0466-23-00-00-0 (115 V UK)
