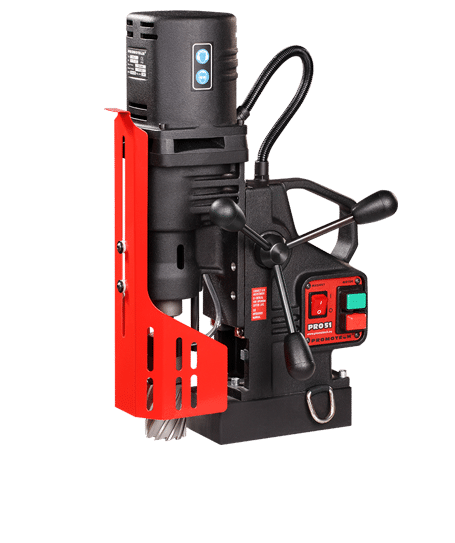

PRO-51 | Universal Mag Drill

PRO-51

PRO-51 is a new generation mag base drill with Morse Taper No. 2. Unique semi-automatic gib adjustment system enables simple and fast fine tuning without any expert knowledge or experience. Replaceable spline at the end of armature shaft eliminates laborious and expensive maintenance.



Motor power
1260 W
Motor speed
(under load)
200 or 400 rpm
Weight
16,5 kg
Core drill
max Ø 51 mm
Twist drill
max Ø 23 mm
Countersinking
max Ø 51 mm
Depth of cut
up to 51 mm
Stroke
153 mm

Superior features of PRO 51 include

PRO 51 is a new generation magnetic drilling machine with Morse Taper No. 2

  • compact design
  • gear box and slide system made as one piece
  • excellent ratio weight / power
  • maintenance friendly design
  • purpose designed motor with heavy duty gear box
  • maintenance friendly rail guide system

PRO 51 is equipped with the latest generation of electromagnetic energy saving base (ESB) with magnetic field shape control system (MFSC) and magnetic power adhesion control module (MPAC), which detects adhesive force of electromagnetic base and protects both the machine and the operator from work on too thin workpieces

Brochures

PRO-51 | Universal Mag Drill

Size: 2.2 MB Type: PDF

Drilling & Punching Machines

Size: 3.7 MB Type: PDF

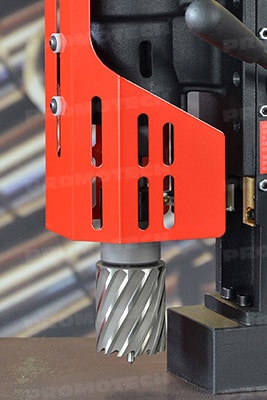

HSS cutters
Standard Arbor with 19mm Weldon shank

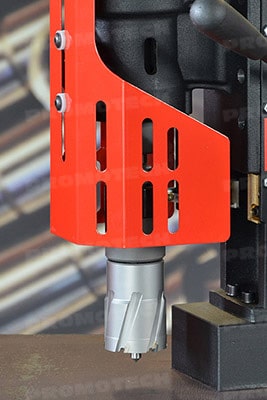

TCT cutters
Standard Arbor with 19mm Weldon shank

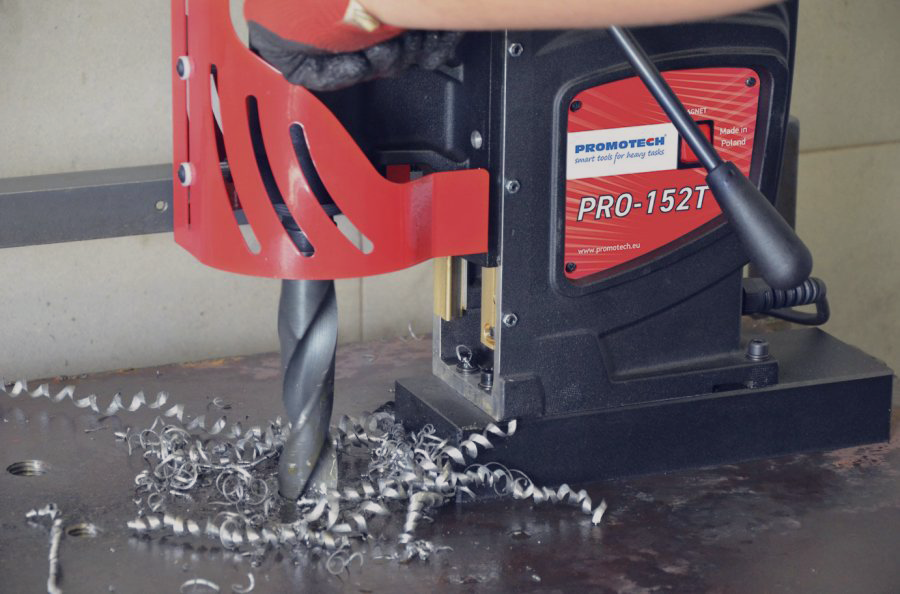

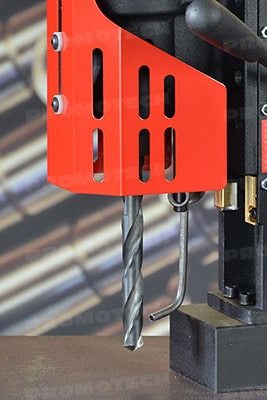

Twist Drills
Morse Taper No. 2

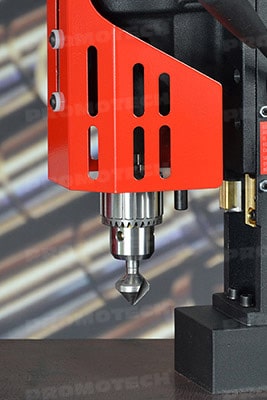

Countersinks
Drilling Chuck with 19mm Weldon shank attachment

Brochures

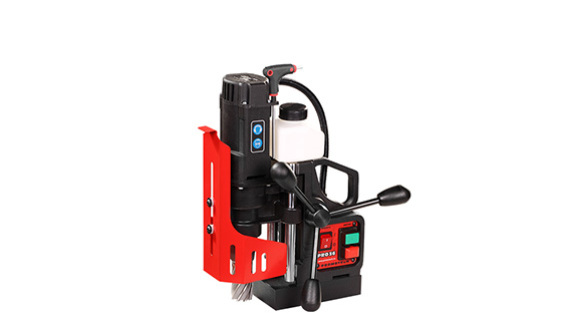

Make sure you are familiar with Promotech PRO 36 Compact Mag Drill brochure including technical data and detailed information about this product. Should you have any further questions we encourage you to send us an enquiry.

Drilling & Punching Machines

Size: 3.7 MB Type: PDF

Technical specification

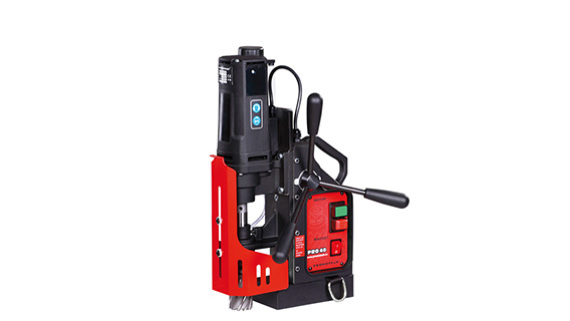

  • PRO-40

    Practical Mag Drill

    Motor speed (under load):
    400 rpm
    Continuous speed adjustment:
    Motor power:
    1000 W
    Weight:
    12,7 kg
    Tool holder:
    19 mm (3/4") Weldon
    Spindle:
    Min. workpiece thickness:
    6 mm (1/4")
    Max milling capacity:
    Ø 40 mm (1-9/16")
    Max drilling capacity:
    Ø 16 mm (10/16")
    Max countersinking:
    Ø 40 mm (1-9/16")
    Max depth of cut:
    51 mm (2")
    Max tap size:
    Stroke:
    124 mm (4-7/16")
    Swivel base:
    Power supply:
    115V/60Hz or 230V 50/60Hz
    Power consumption:
    1100 W
    Overload protection:
    Magnetic clamping force:
    999 KG (9800 N) /25mm, Ra=1,25/
    Magnet base dimensions:
    84 x 168 x 41,5 mm
    3 5/16 x 6 5/8 x 1 5/8 (")
    MPAC (Magnetic Power Adhesion Control):
    YES
    MFSC (Magnetic Field Shape Control):
    YES
    ESB (Energy Saving Base):
    YES
    ESSS (Electronic Speed Stabilization System):
    Semi-automatic gib backlash adjustment:

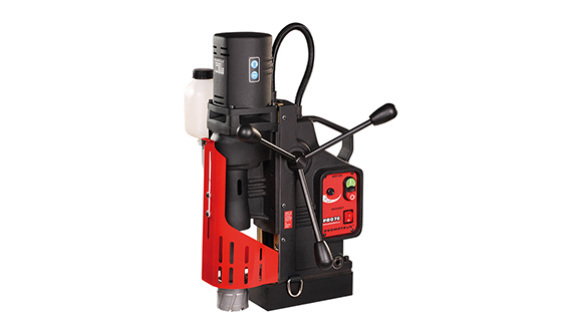

  • PRO-76

    Industrial Mag Drill

    Motor speed (under load):
    80÷160 / 210÷420 rpm
    Continuous speed adjustment:
    YES
    Motor power:
    1650 W
    Weight:
    27 kg
    Tool holder:
    19 mm (3/4") or
    32mm (1-1/4”) Weldon
    Spindle:
    MT3
    Min. workpiece thickness:
    10 mm (3/8")
    Max milling capacity:
    Ø 76 mm (3")
    Max drilling capacity:
    Ø 32 mm (1-1/4")
    Max countersinking:
    Ø 63 mm (2-1/2")
    Max depth of cut:
    76 mm (3")
    Max tap size:
    M24 (tapping attachment required)
    Stroke:
    225 mm (8-7/8")
    Swivel base:
    +/- 15° and +/- 15mm (+/- 9/16”)
    Power supply:
    115V/60Hz or 230V 50/60Hz
    Power consumption:
    1800 W
    Overload protection:
    YES
    Magnetic clamping force:
    1988 KG (19500 N) /25mm, Ra=1,25/
    Magnet base dimensions:
    110 x 220 x 56 mm
    4-5/16 x 8-11/16 x 2-3/16 (")
    MPAC (Magnetic Power Adhesion Control):
    YES
    MFSC (Magnetic Field Shape Control):
    YES
    ESB (Energy Saving Base):
    ESSS (Electronic Speed Stabilization System):
    YES
    Semi-automatic gib backlash adjustment:
    YES

Optional accessories

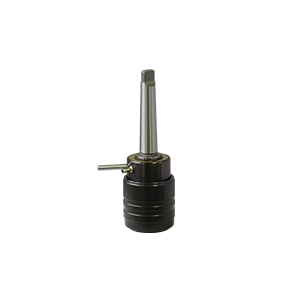

UCW-0285-03-00-00-0
Quick Change AMTE2-C19/2-2 Continuous Cooling Arbor with Ring

PDS-0111-03-00-01-0

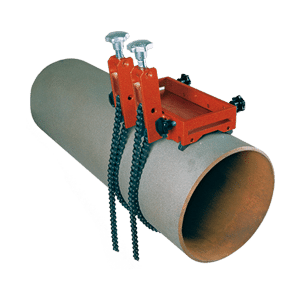

DMP0501 Pipe Attachment

PDS-0110-03-00-01-0

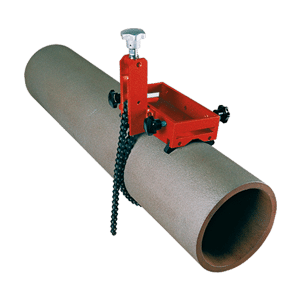

DMP0251 Pipe Attachment

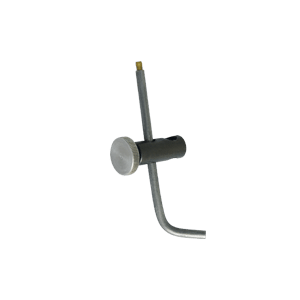

KNC-0399-09-00-00-0
Cooling attachment for twist drilling

ZSP-0587-11-00-00-0
Compressed air ejector

PDS-0587-00-00-00-0

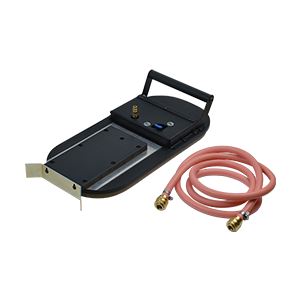

Vacuum pad
