PRO-5 PB | Compact Pipe Beveler

PRO-5 PB

PRO-5 PB is a portable, compact machine suitable for milling edges of pipes made of carbon and stainless steels, aluminum alloys and copper-nickels.



Max wall thickness
12 mm (0.47”)
up to OD 114 mm
(4.49”)
ID 32-107 mm (1.26 - 4.21”)
25-32 mm (1” – 1.25”) /option/
107-133 mm (4.21 – 5.24”) /option/
Facing off
Pipe OD beveling
114 mm (4.49”) up to 140 mm
(5.51”) /option/
J-groove beveling

Key features and benefits

It can be used efficiently by a single operator. Self-centering expandable mandrels provide quick and proper alignment to a pipe or a tube prior to machining operations. Depending on the tool bits in use PRO-5 PB can perform external beveling, J-beveling, internal calibration and facing pipes from inside diameters of 32 mm (1.26’’) to outside diameters of 114 mm (4.49’’) or up to 140 mm (5.51”) as option. All these weld prep operations are made fast and easy. Up to three tool bits can be mounted and work, simultaneously. According to users preferences and depending on site conditions PRO-5 PB machine can be operated with a high quality powerful pneumatic motor, top quality high torque electric motor or battery drive. Optional small spindle disc and ratchet wrench enable pipe machining in difficult to access and space restricted areas.

  • Handy and lightweight portable beveller designed to create a perfect weld prep edge prior to joining
  • PRO-5 PB can simultaneously mill the OD Bevel, root face and ID counterbore to create consistent wall thickness around the joint and ensure complete weld penetration
  • Machine covers a range of diameters from 32mm ID to 140mm OD
  • Self-centering expandable mandrels provide quick and proper alignment to a pipe or a tube prior to machining operations
  • Available with pneumatic, electric or battery drive
  • Standard and custom made tool bits available for creating various bevel angles for V and J-grove preparation for high welding efficiency on thicker walled pipe
  • Suitable for space restricted areas

Other applications

Pipe OD & ID bevelling

Facing-off pipes

Stainless steel machining

Optional small spindle disc and ratchet wrench enable pipe machining in difficult to access and space restricted areas

Special tool bits

Both powerful pneumatic motor or high torque electric motor available

Available as option – battery drive incl. 2 batteries

Available as option – Small mandrel ID 25 – 32 mm (1” – 1-1/4”)

Brochures

Make sure you are familiar with Promotech PRO-5 PB brochure including technical data and detailed information about this product. Should you have any further questions we encourage you to send us an enquiry.

PRO-5 PB | Compact Pipe Beveller

Size: 3.6 MB Type: PDF

Plate & Pipe Bevelling Machines

Size: 2.7 MB Type: PDF

Machines à Chanfreiner

Size: 3.6 MB Type: PDF

Technical specification

 PRO-5 PB

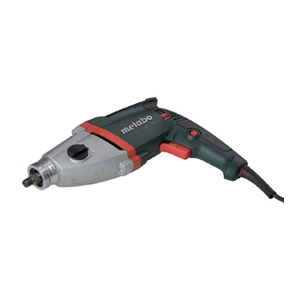

with electric motor
PRO-5 PB
with pneumatic motor

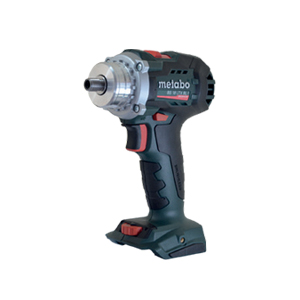

PRO 5-PB with battery motor
Electric motor
1.100 W--
Supply
110-120 V / 50-60 Hz
220-240 V / 50-60 Hz
-18 V DC, 5.2 Ah
Rotational speed (nominal)
gear 1 – 0 to 113 rpm
gear 2 – 0 to 318 rpm
90 rpm-
Pneumatic drive
-800 W -
Air requirement
-0,6 MPa (87 PSI)-
Air consumption
-1600 l/min (49.4 CFM)-
Pipe diameter
32 mm ID to 114 mm OD (1.26-4.49’’)
ID 25-32 mm (1”-1.25”) /option/ID
107-133 mm (4.21”-5.24”) /option/
32 mm ID to 114 mm OD (1.26-4.49’’)
ID 25-32 mm (1”-1.25”) /option/
ID 107-133 mm (4.21”-5.24”) /option/
32 mm ID to 114 mm OD (1.26-4.49’’)
ID 25-32 mm (1”-1.25”) /option/
ID 107-133 mm (4.21”-5.24”) /option/
Maximum pipe wall thickness for outside diameter
OD up to 114 mm | 12 mm (0.47’’)
114–124 mm* | 10 mm (0.39’’)
124–132 mm* | 8 mm (0.31’’)
132–140 mm* | 6 mm (0.24’’)
* available with the optional 140 mm spindle disk set
OD up to 114 mm | 12 mm (0.47’’)
114–124 mm* | 10 mm (0.39’’)
124–132 mm* | 8 mm (0.31’’)
132–140 mm* | 6 mm (0.24’’)
* available with the optional 140 mm spindle disk set
OD up to 114 mm | 12 mm (0.47’’)
114–124 mm* | 10 mm (0.39’’)
124–132 mm* | 8 mm (0.31’’)
132–140 mm* | 6 mm (0.24’’)
* available with the optional 140 mm spindle disk set
Weight (incl. motor)11 kg (24 lbs)10 kg (22 lbs)10 kg (22 lbs) includes battery

Demo video

PRO-5 PB | Compact Pipe Beveler

Join our channels


Standard PRO - 5 PB parts and accessories

Basic set:

  • PRO 5 PB (without motor, tool bits)
  • Metal box
  • Standard self-centering expandable mandrel
  • for pipe ID Ø 32 – 107mm (1.26 – 4.21”)
  • 118mm spindle disc
  • Jaw blocks (1,2,3,4,5,6) – 3 sets
  • Set of tools
  • Coolant container
  • Operator’s manual

Additional accessories

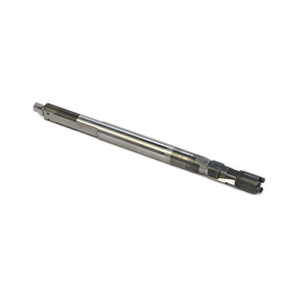

  • TRZ-0472-21-00-00-0 – Small mandrel ID 25 – 32 mm (1” – 1 ¼ ”)

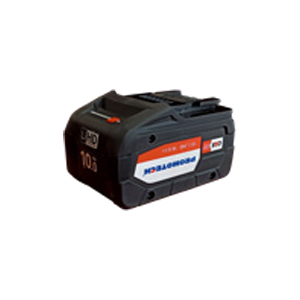

  • AKM-000087 – Battery 18 V, 5.2 Ah

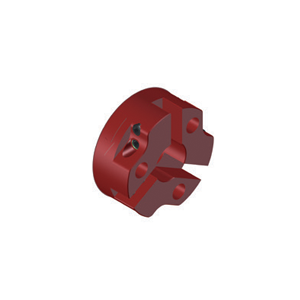

  • TRC-0472-12-00-00-0 – 75 mm spindle disc
  • ZST-0472-15-00-00-0 – Extension set for OD Ø up to 140mm (5.51”) including 140 mm spindle disc and jaw blocks (7, 8, 9) – 3 sets
  • TRZ-0472-21-00-00-0 – Small mandrel ID 25 – 32 mm (1” – 1 ¼ ”)
  • AKM-000087 – Battery 18 V, 5.2 Ah

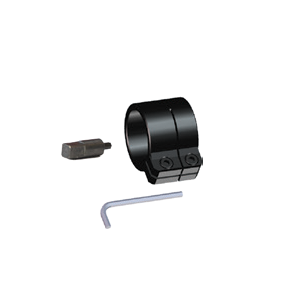

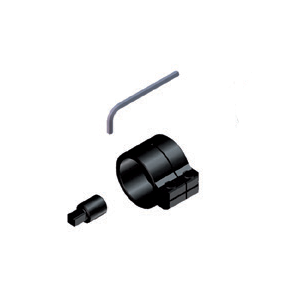

  • KLC-000045 – Ratchet wrench
  • OLJ-000004 – Cutting fluid 0.5 kg (1.1 lbs)
  • ZST-000021 – Air preparation set
  • OLJ-000004 – Cutting fluid 0.5 kg (1.1 lbs)

Battery charger 18 V

  • LDW-000008 – Product Code for Europe:
  • LDW-000009 – Product Code for USA
  • LDW-0000010 – Product Code for UK
  • LDW-0000011 – Product Code for Australia:

Tool bits

  • NOZ-000031 F0-30 0° facing tool bit
  • NOZ-000052 IC15-40 15° internal calibration tool bit
  • NOZ-000053 IC15-40 15° internal calibration tool bit (for diameters over 56 mm)
  • NOZ-000058 J10-R6 10° J-bevelling tool bit
  • NOZ-000057 J15-R2 15° J-bevelling tool bit
  • NOZ-000059 J20-R8 20° J-bevelling tool bit
  • NOZ-000032 B30 30° bevelling tool bit*
  • NOZ-000033 B30d 30° bevelling tool bit**
  • NOZ-000036 B375 37.5° bevelling tool bit*
  • NOZ-000037 B375d 37.5° bevelling tool bit**
  • NOZ-000040 B45 45° bevelling tool bit*
  • NOZ-000041 B45d 45° bevelling tool bit**

* for diameters over 56 mm, if works together with 0° facing tool bit
** for diameters under 83mm, if works together with 0° facing tool bit
