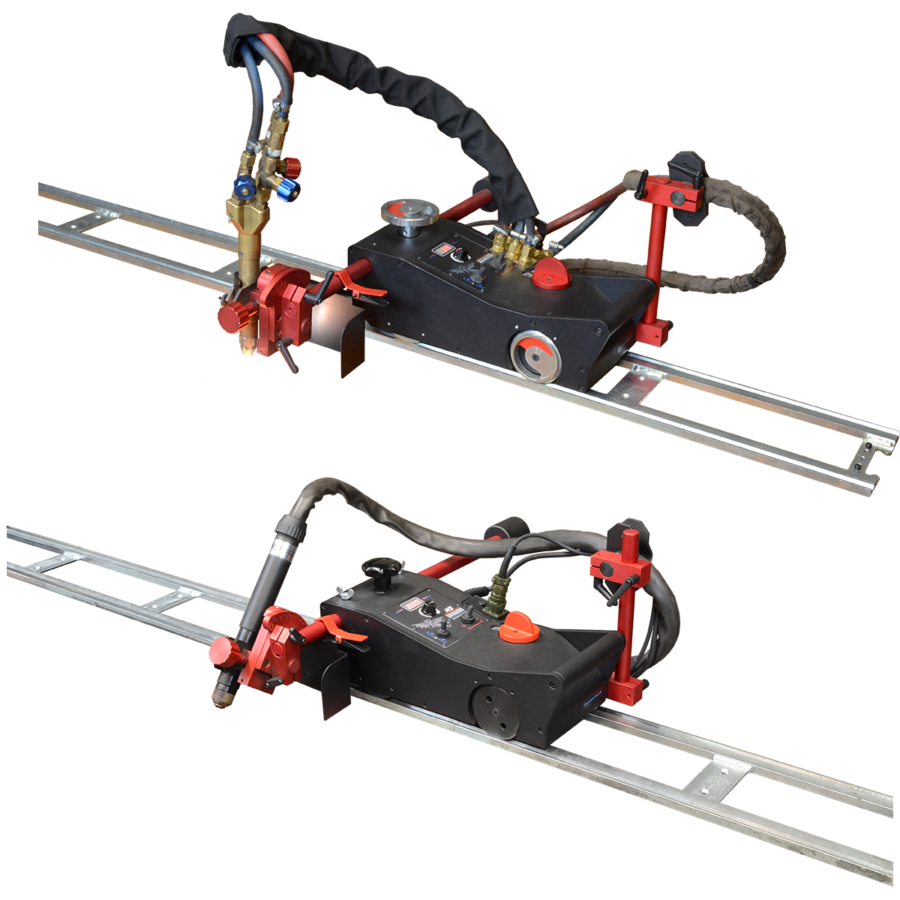

Dragon / Dragon HS | Cutting & Bevelling Track Carriage

Dragon is a flame-cutting tractor featuring a precise, stable travel speed that produces accurate cuts and bevels. The machine can be used on any standard 6˝ V-grooved track. A wide assortment of optional accessories like machine barrel torch holders, manifolds, and circle-cutting attachments make it useful for a variety of applications. High-speed plasma cutting and beveling are available with Dragon HS.

  • Digital speed control and stabilization for high-quality cuts
  • Cutting and beveling up to 45° (also parallel, by means of 2 torches)
  • LED display with a readout of actual and set speed, and report messages
  • Quick drive release switch for easy re-positioning
  • Runs on a rail or directly on a workpiece
  • Convenient Power Supply 115–230 V, 50–60 Hz
  • The 42V AC version is also available
  • 3 years of warranty
Dragon / Dragon HS | Cutting & Bevelling Track Carriage

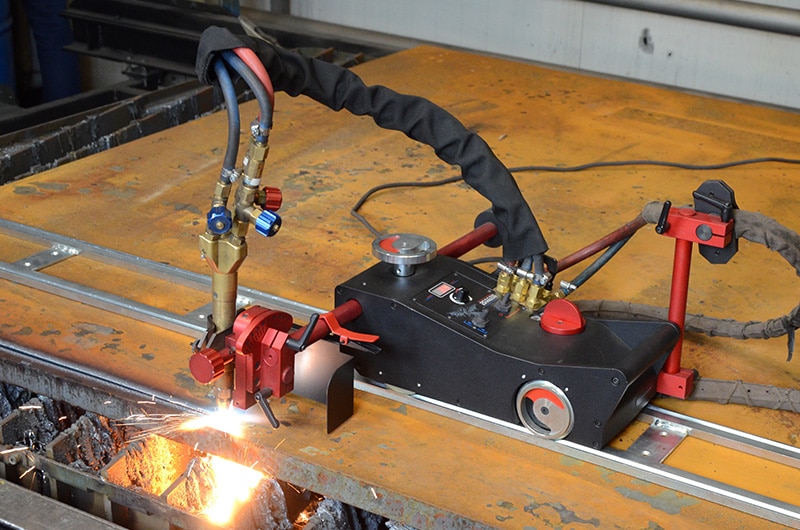

Straight cutting

Diagonal cutting
(bevelling)

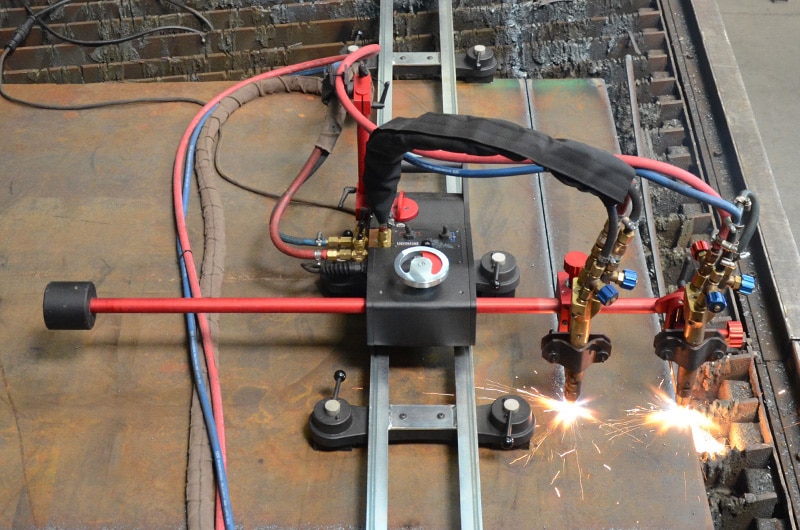

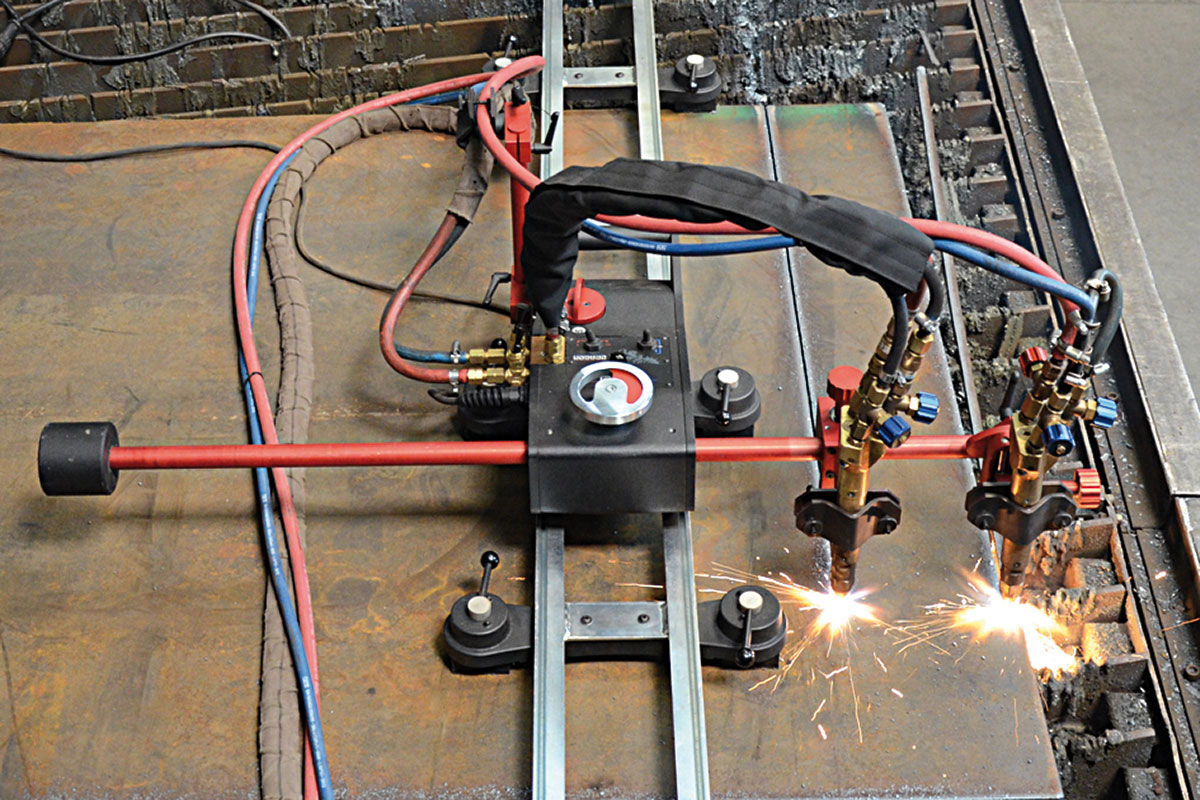

Strips cutting

K-bevel cutting

Double diagonal cutting
(bevelling)

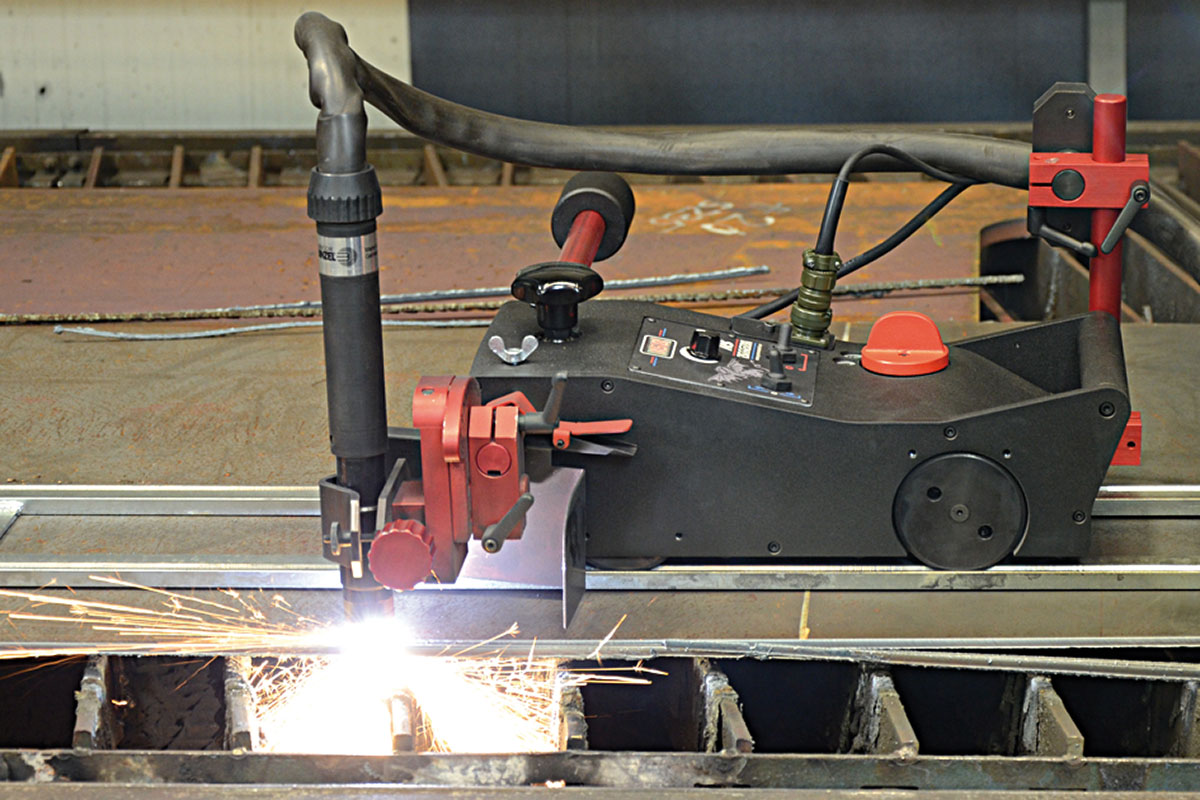

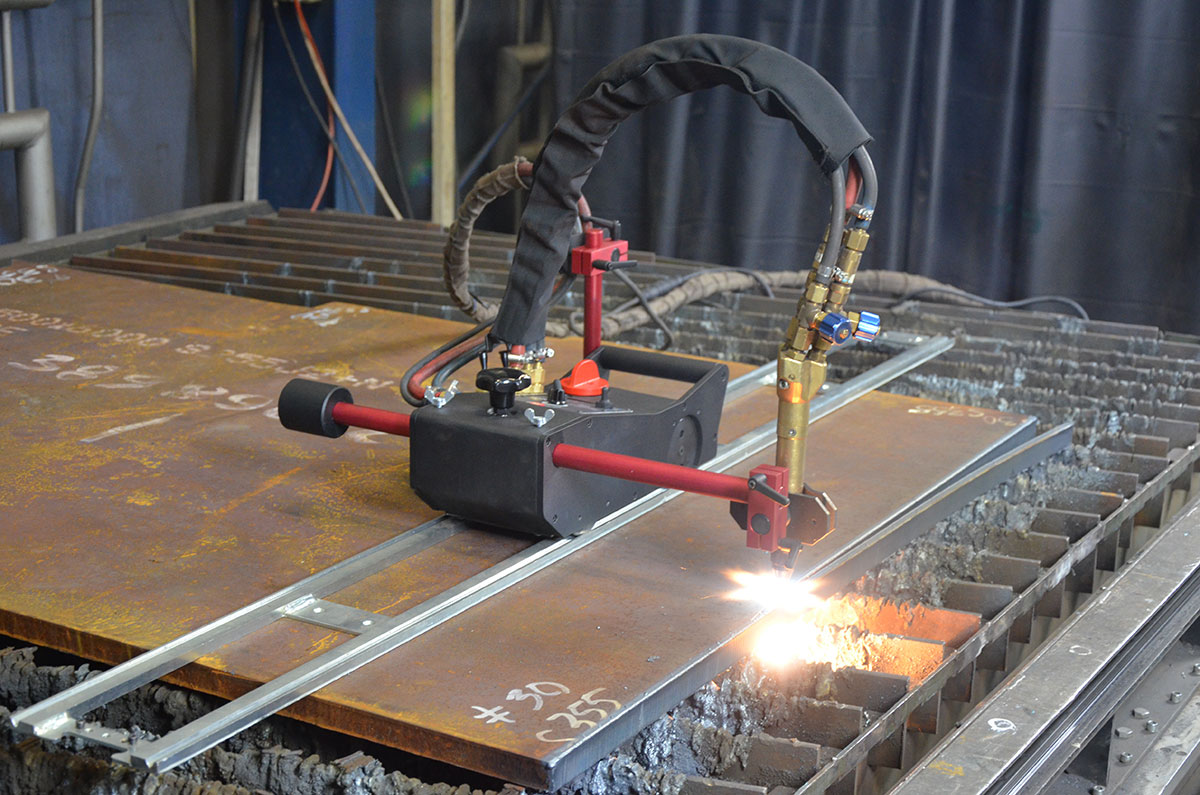

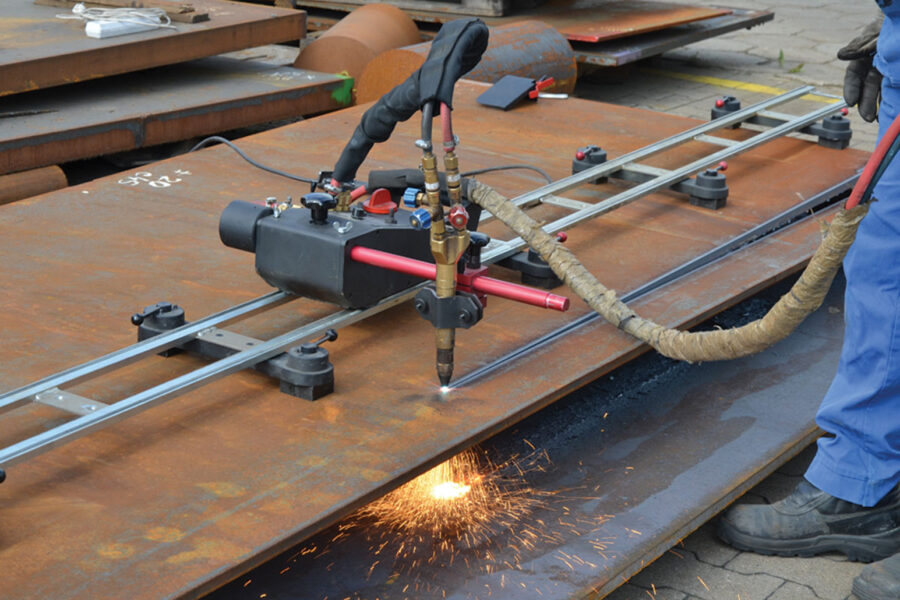

Straight cutting

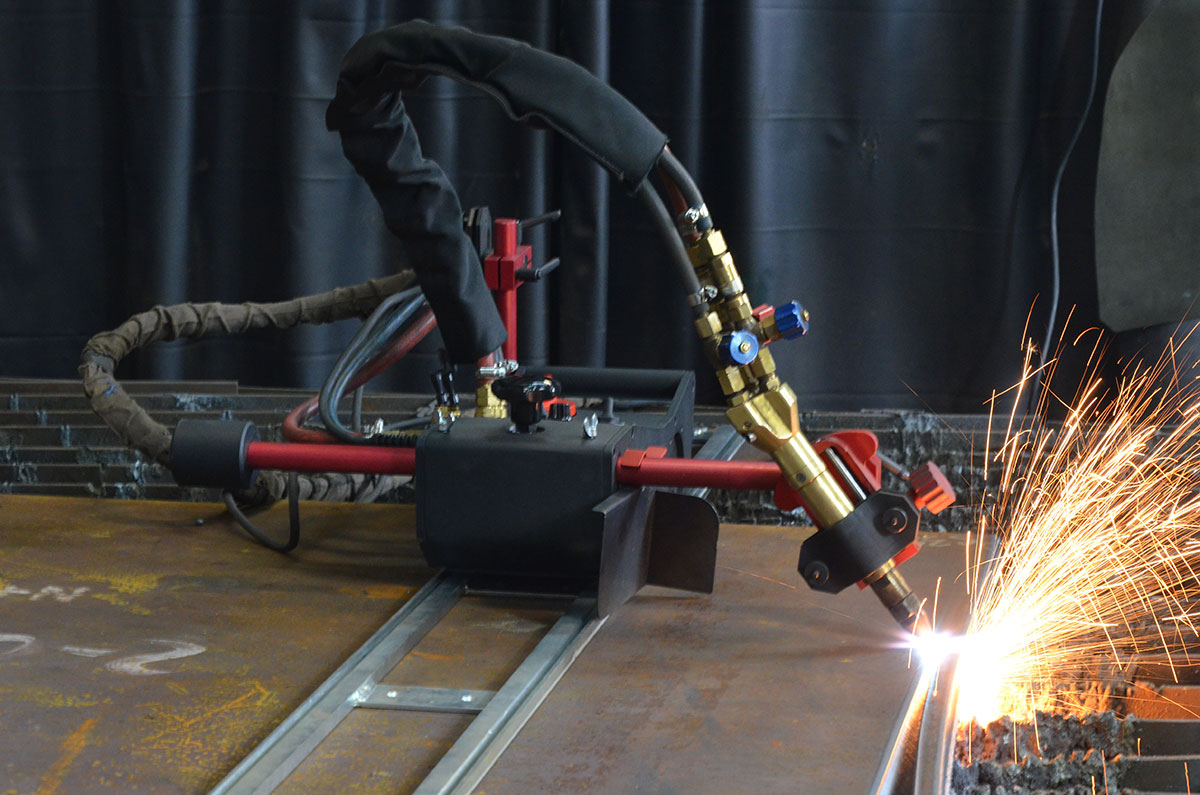

The tractor enables beveling at desired angle

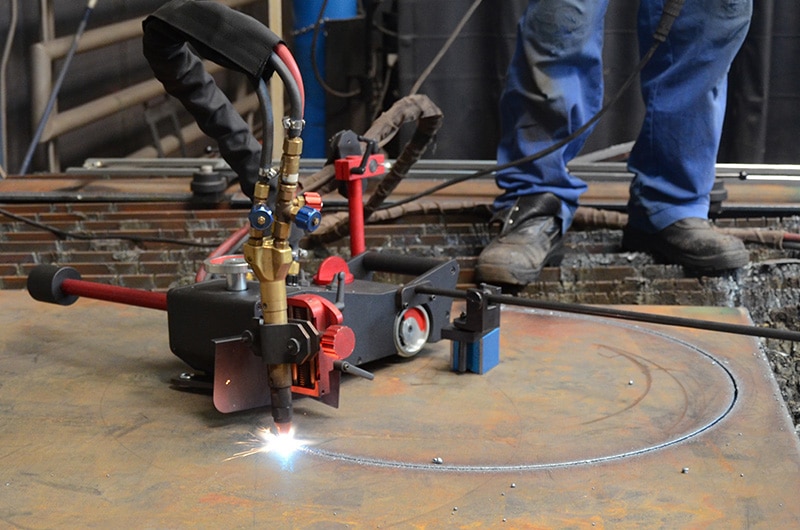

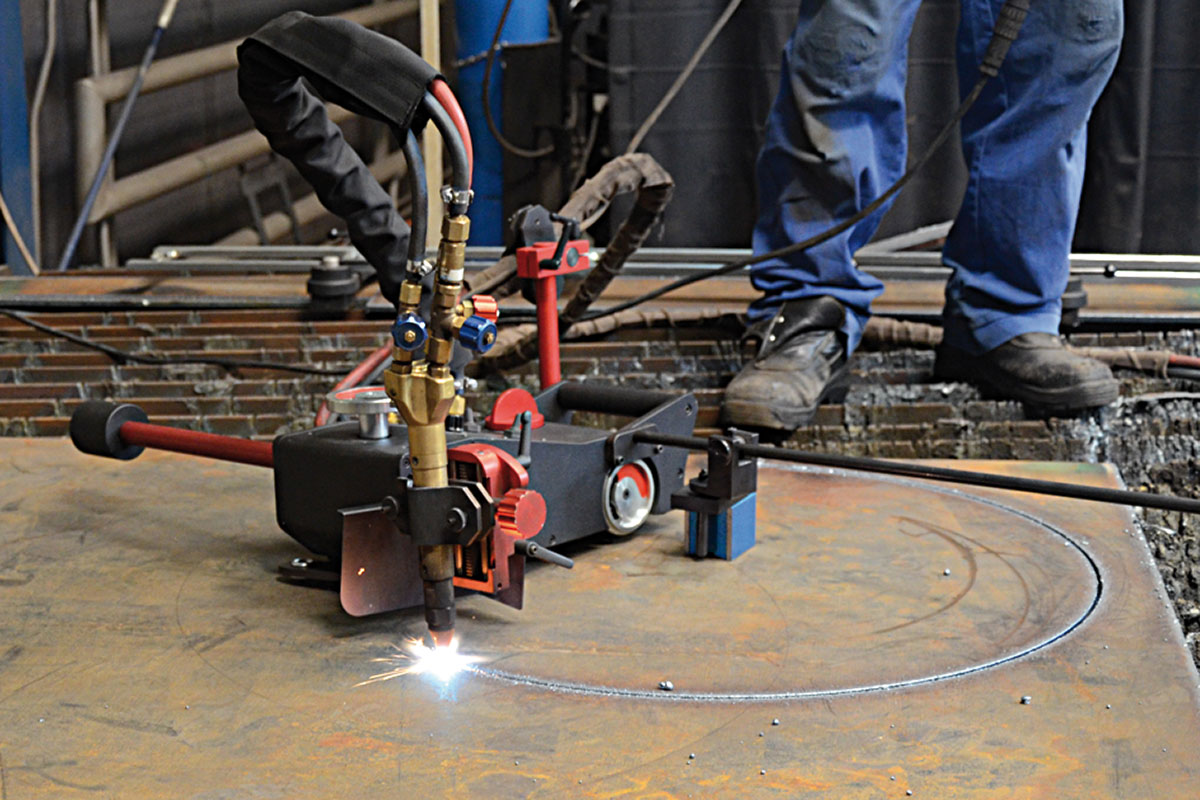

Circle cutting

Strips cutting

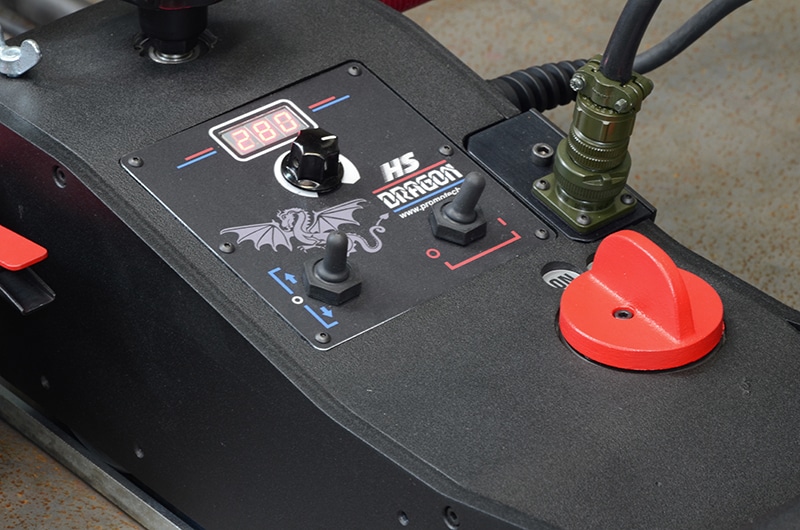

LED display with a readout of actual and set speed, and report messages

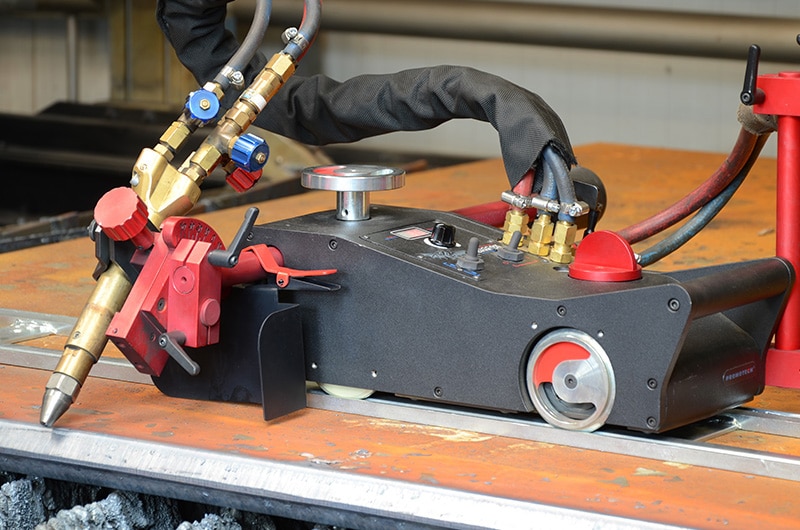

Quality cuts and bevels reduce fit-up and grinding time and lay the foundation for a high quality weld

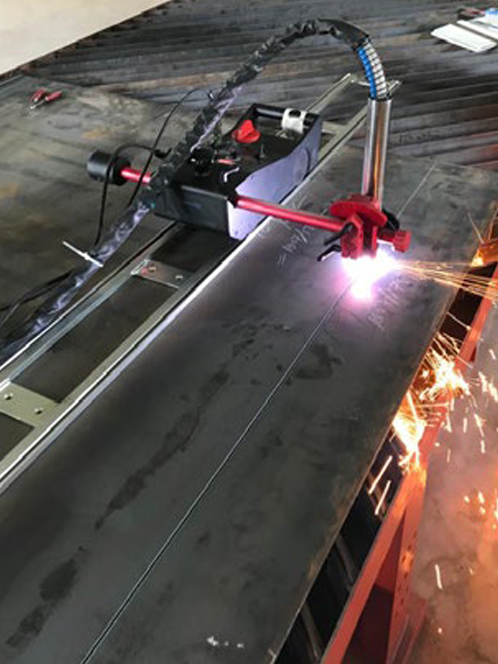

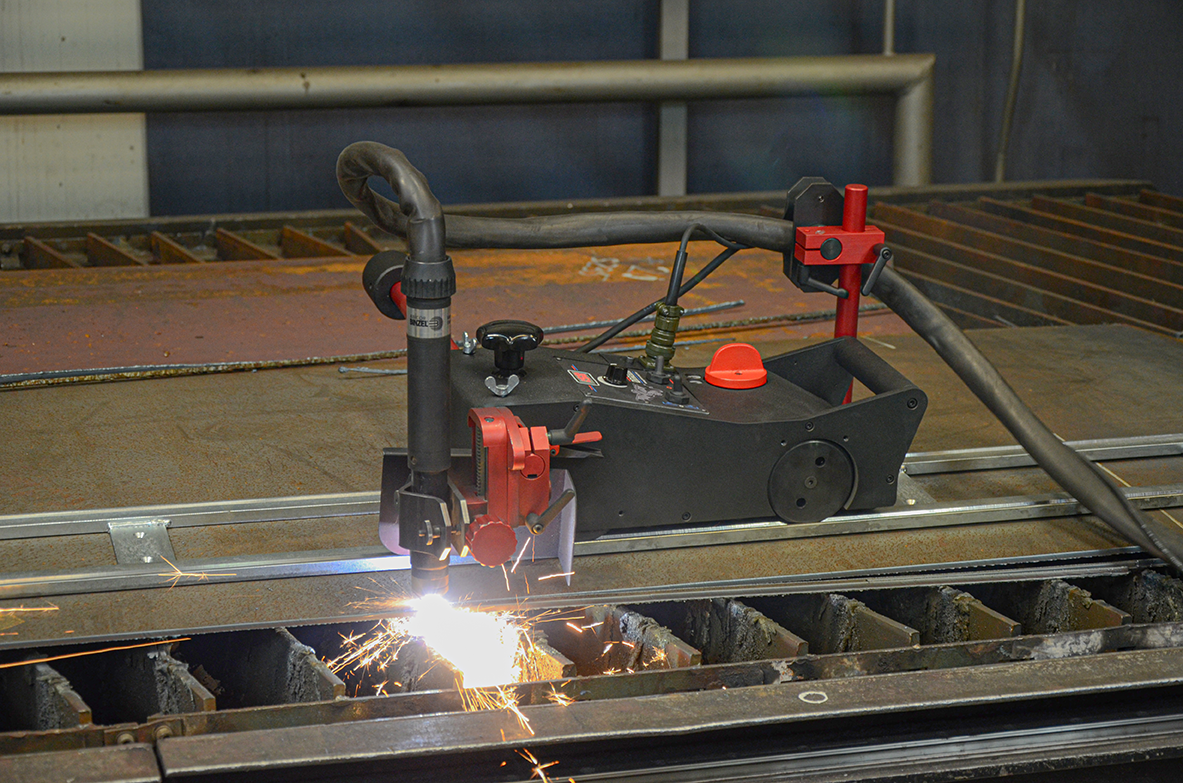

Plasma cutting

Specification

DragonDragon HS
Voltage~ 115–230 V, 50–60 Hz ~
42 V, 50–60 Hz
~ 115–230 V, 50–60 Hz
Power20 W20 W
Operating positionhorizontalhorizontal
Torch diameter 28–35 mm (1.10–1.38’’)28–35 mm (1.10–1.38’’)
Ground clearance8 mm (0.31’’)8 mm (0.31’’)
Speed0–150 cm/min
(0–59 in/min)
10–300 cm/min
(4–118 in/min)
Weight16.8 kg (37.0 lbs)16.8 kg (37.0 lbs

340Dragon / Dragon HS | Cutting & Bevelling Track Carriage

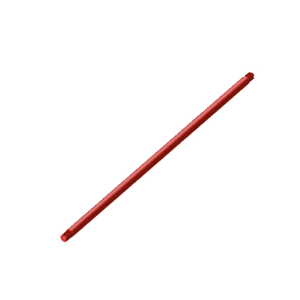

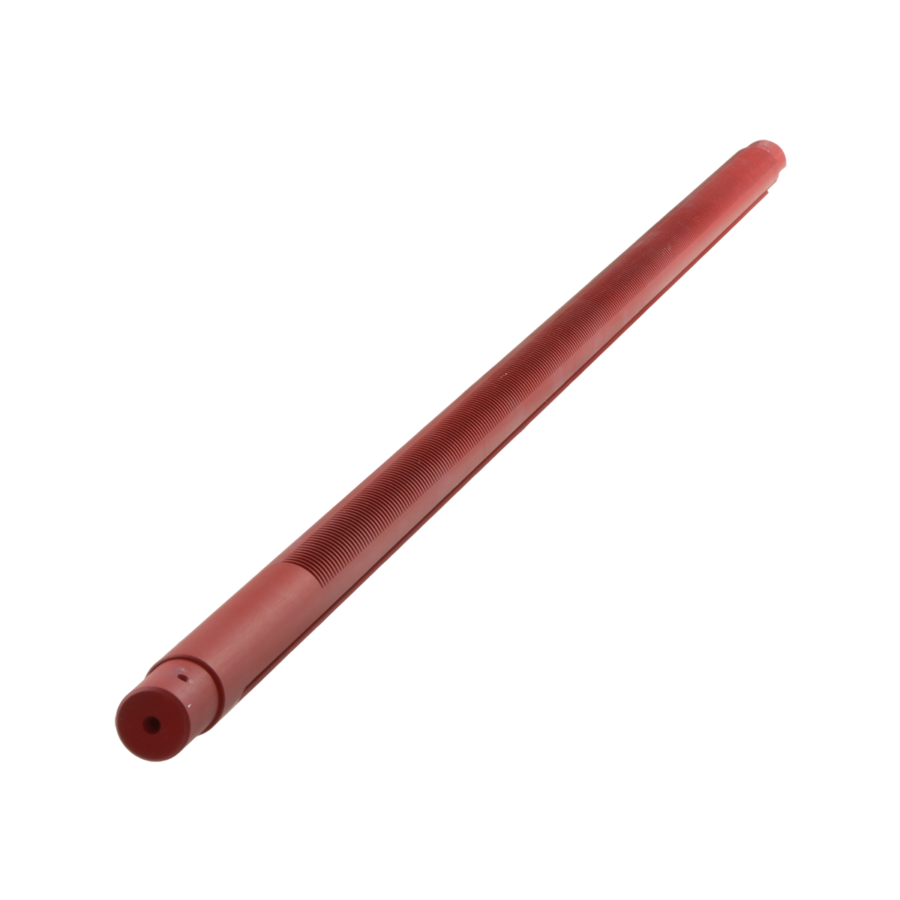

540 mm (21″) Geared Rack

RAM-0525-07-00-00-0

505Dragon / Dragon HS | Cutting & Bevelling Track Carriage

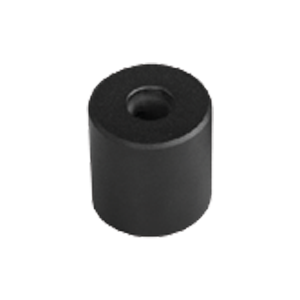

Counterweight 1.3 kg (2.9 lbs)

PWG-0475-09-00-00-0

516Dragon / Dragon HS | Cutting & Bevelling Track Carriage

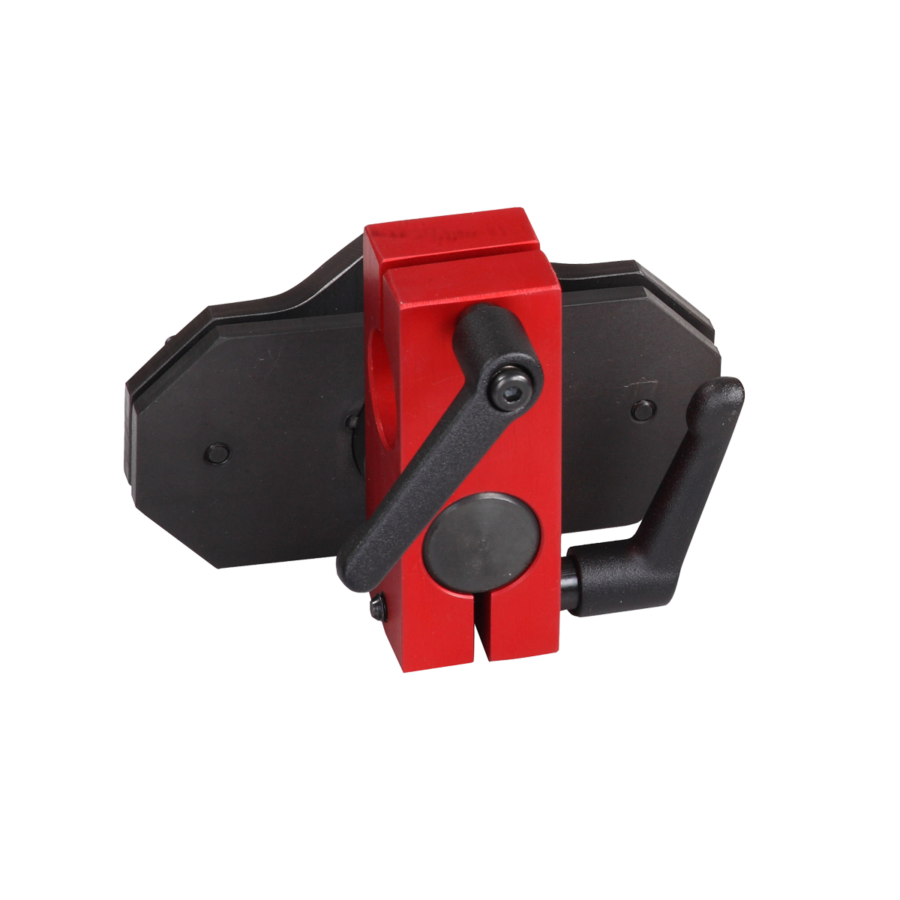

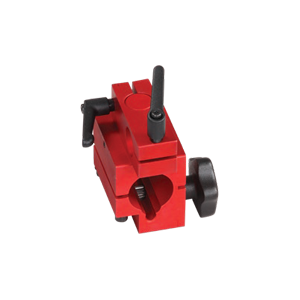

Standard Torch Holder 28–35 mm (1.10–1.38’’)

ZCS-0475-28-10-00-0

2183Dragon / Dragon HS | Cutting & Bevelling Track Carriage

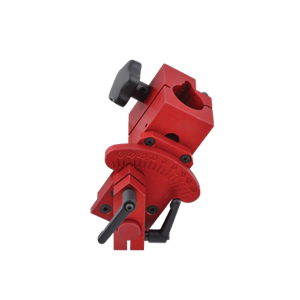

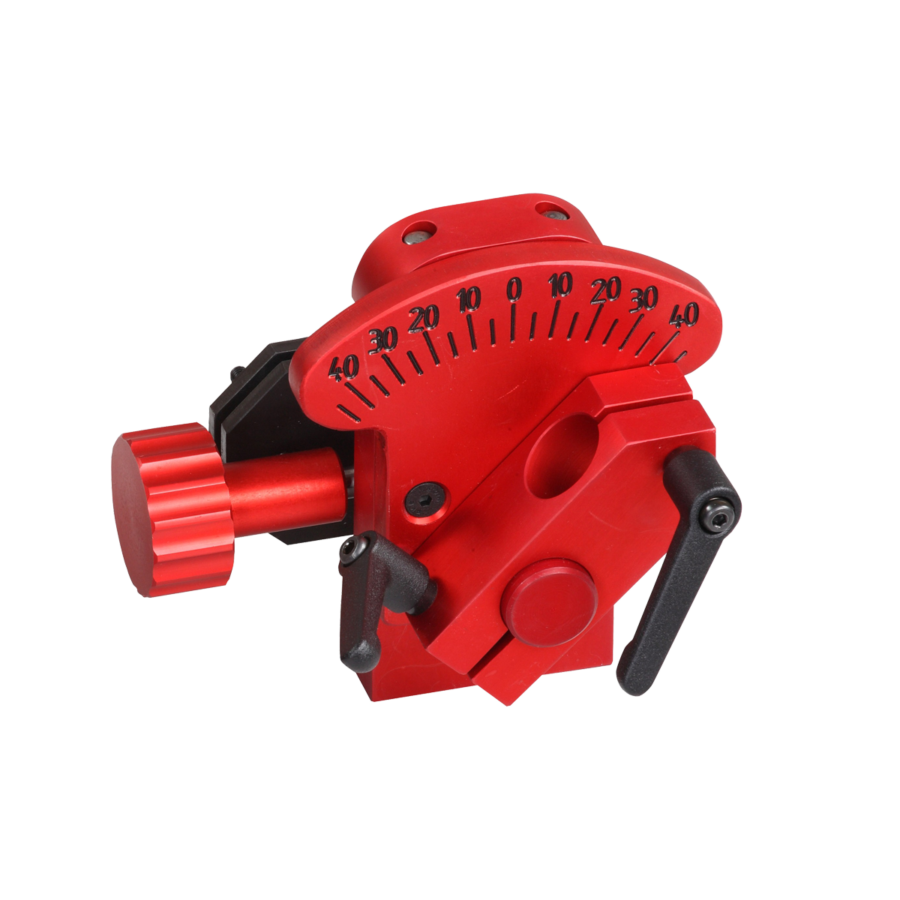

Precise Torch Holder with angle and height adjustment

Dragon Accessories Rail Titan Accessories Rail Tug Accessories

UCW-0475-08-00-00-0

509Dragon / Dragon HS | Cutting & Bevelling Track Carriage

Large Counterweight 2,6 kg (5,7lbs)

PWG-0475-10-00-00-0

2174Dragon / Dragon HS | Cutting & Bevelling Track Carriage

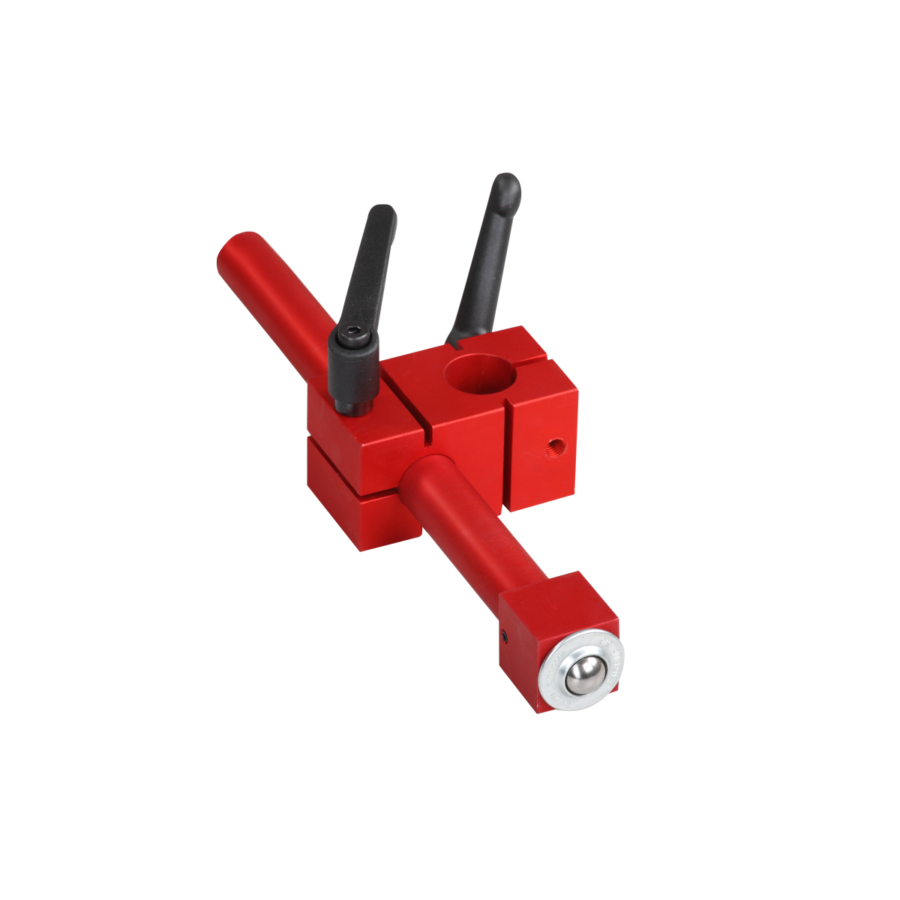

Roller supporter

Dragon Accessories Rail Tug Accessories

PDT-0475-26-00-00-0

2193Dragon / Dragon HS | Cutting & Bevelling Track Carriage

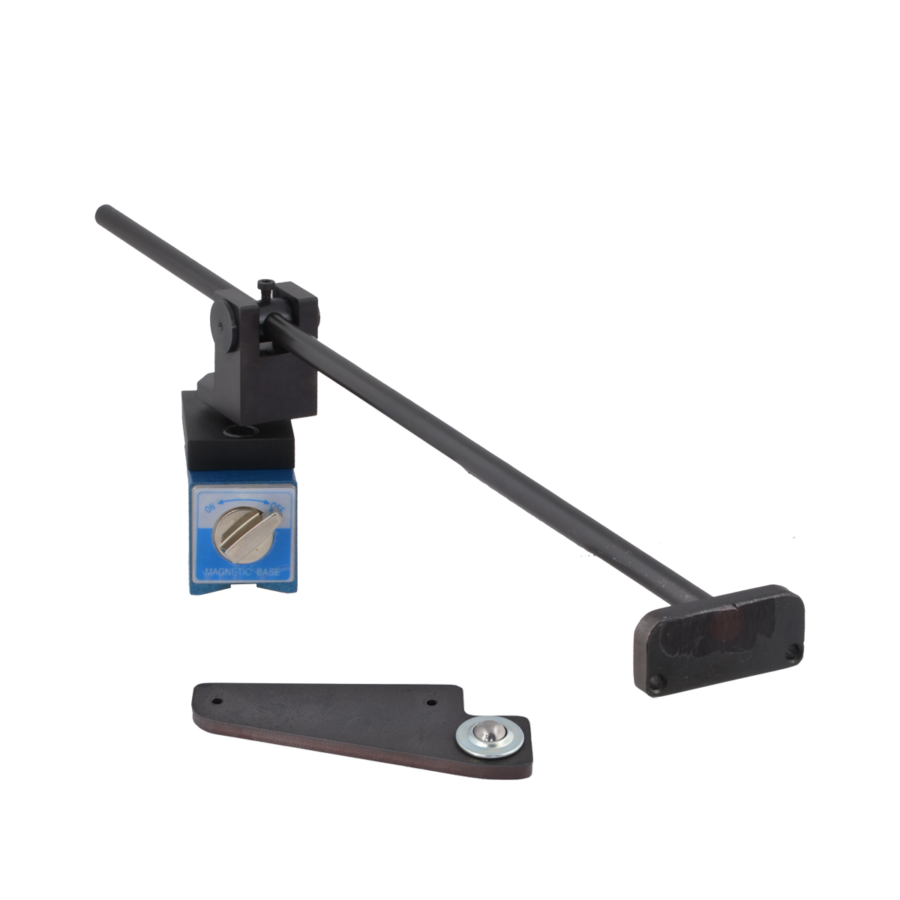

Circle Cutting Attachment

Dragon Accessories

CYR-0475-22-00-00-0

2228Dragon / Dragon HS | Cutting & Bevelling Track Carriage

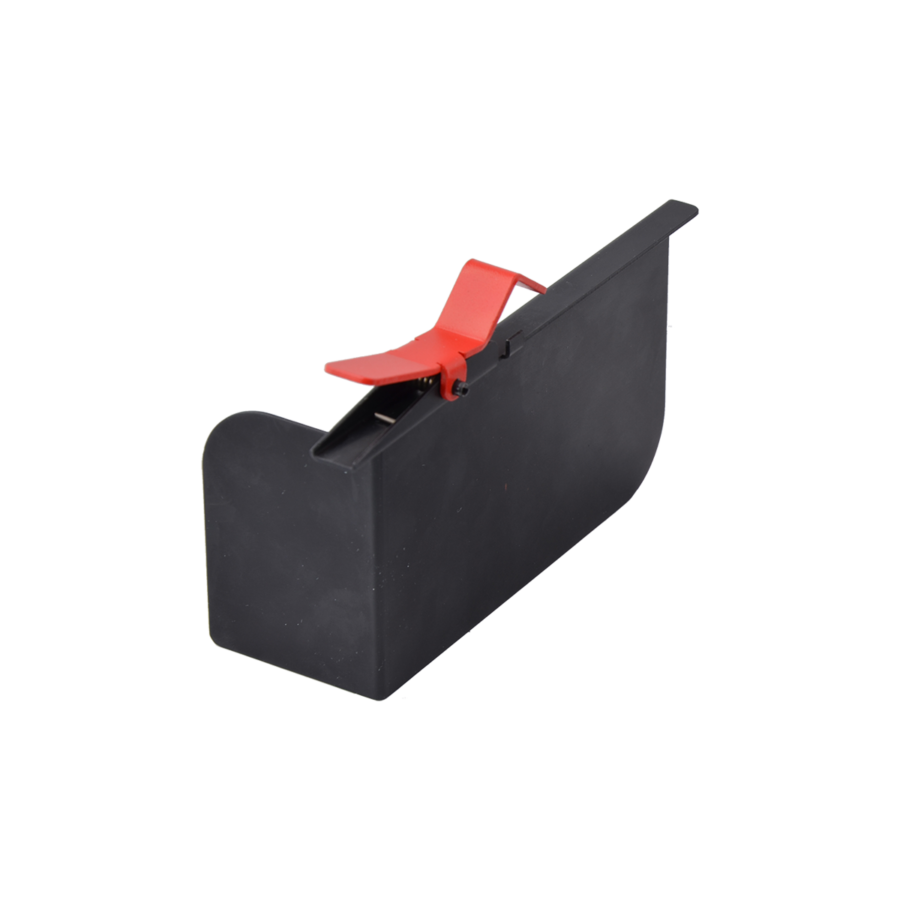

Heat protection shield (left)

Dragon Accessories Rail Tug Accessories Welding Carriage Accessories

OSL-0475-54-00-00-0

2230Dragon / Dragon HS | Cutting & Bevelling Track Carriage

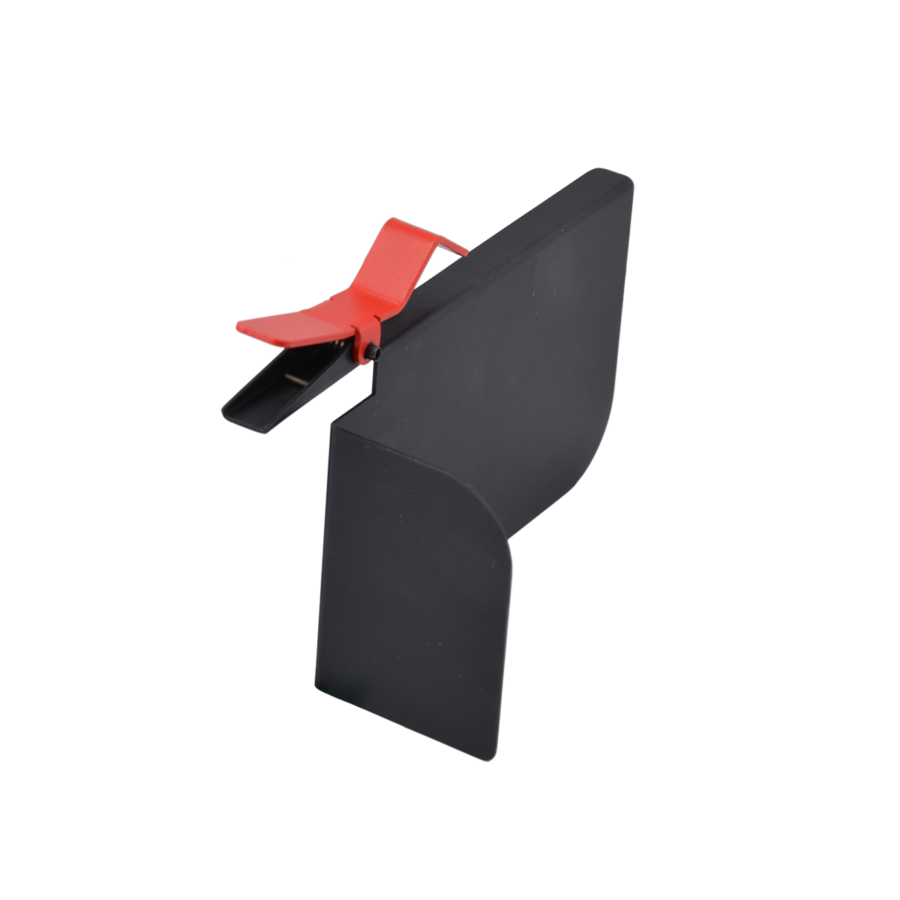

Heat protection shield (right)

Dragon Accessories Rail Tug Accessories Welding Carriage Accessories

OSL-0475-55-00-00-0

2232Dragon / Dragon HS | Cutting & Bevelling Track Carriage

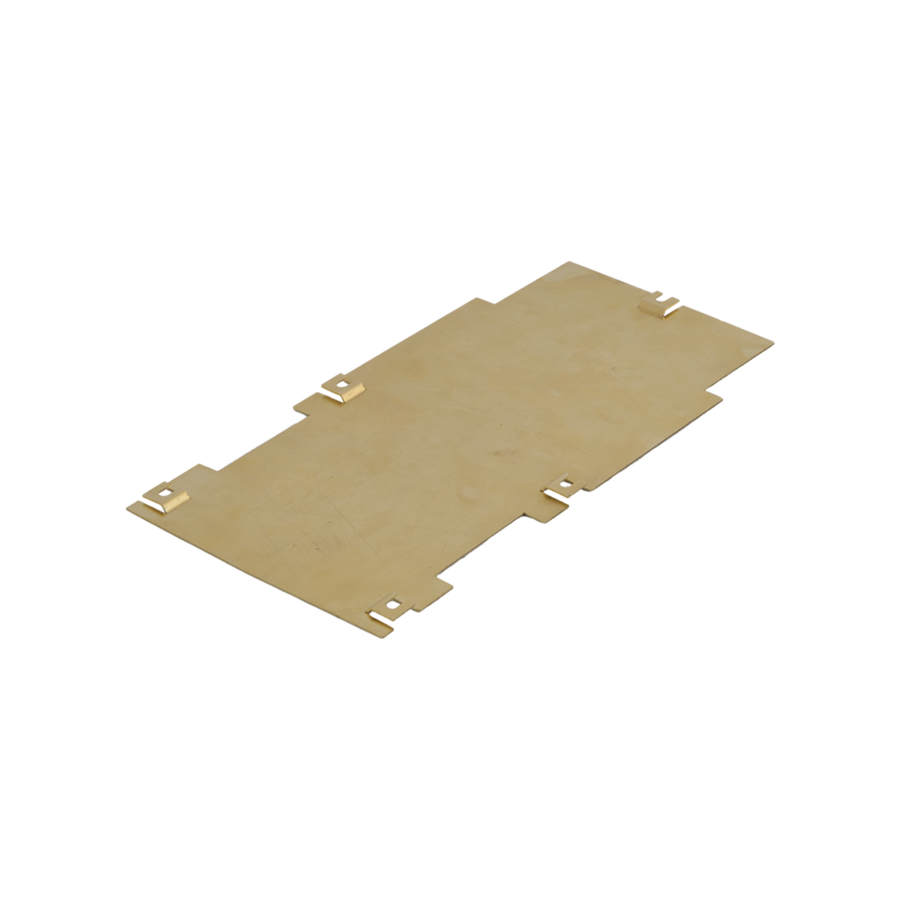

Heat protection shield (bottom)

Dragon Accessories Welding Carriage Accessories

OSL-0475-53-00-00-0

524Dragon / Dragon HS | Cutting & Bevelling Track Carriage

Machine Barrel Torch Holder Ø 30 mm (1.18”)

UCW-0475-61-00-00-0

526Dragon / Dragon HS | Cutting & Bevelling Track Carriage

Machine Barrel Torch Holder Ø 35 mm (1.38’’)

UCW-0475-29-00-00-1

527Dragon / Dragon HS | Cutting & Bevelling Track Carriage

Precise Machine Torch Holder Ø 30 mm (1.18”)

UCW-0475-59-00-00-0

529Dragon / Dragon HS | Cutting & Bevelling Track Carriage

Precise Machine Torch Holder Ø 35 mm (1.38”)

UCW-0475-42-00-00-1

2197Dragon / Dragon HS | Cutting & Bevelling Track Carriage

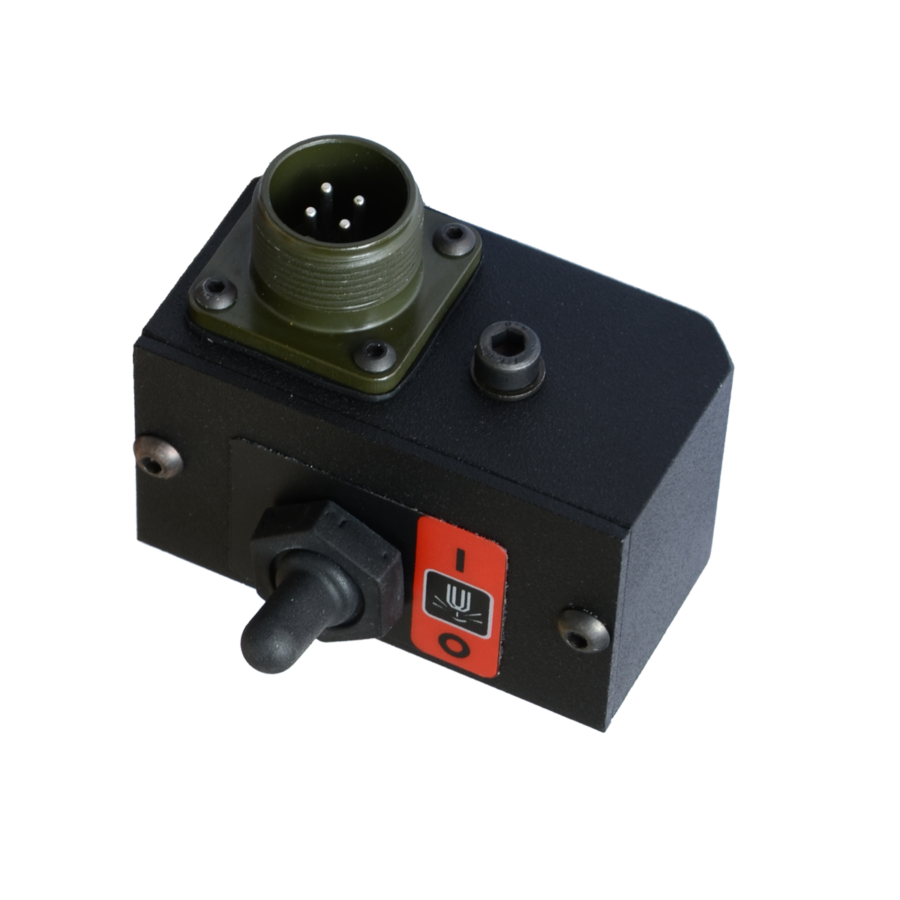

Plasma Arc Ignition

Dragon Accessories Welding Carriage Accessories

ZSP-0475-58-00-00-0

2199Dragon / Dragon HS | Cutting & Bevelling Track Carriage

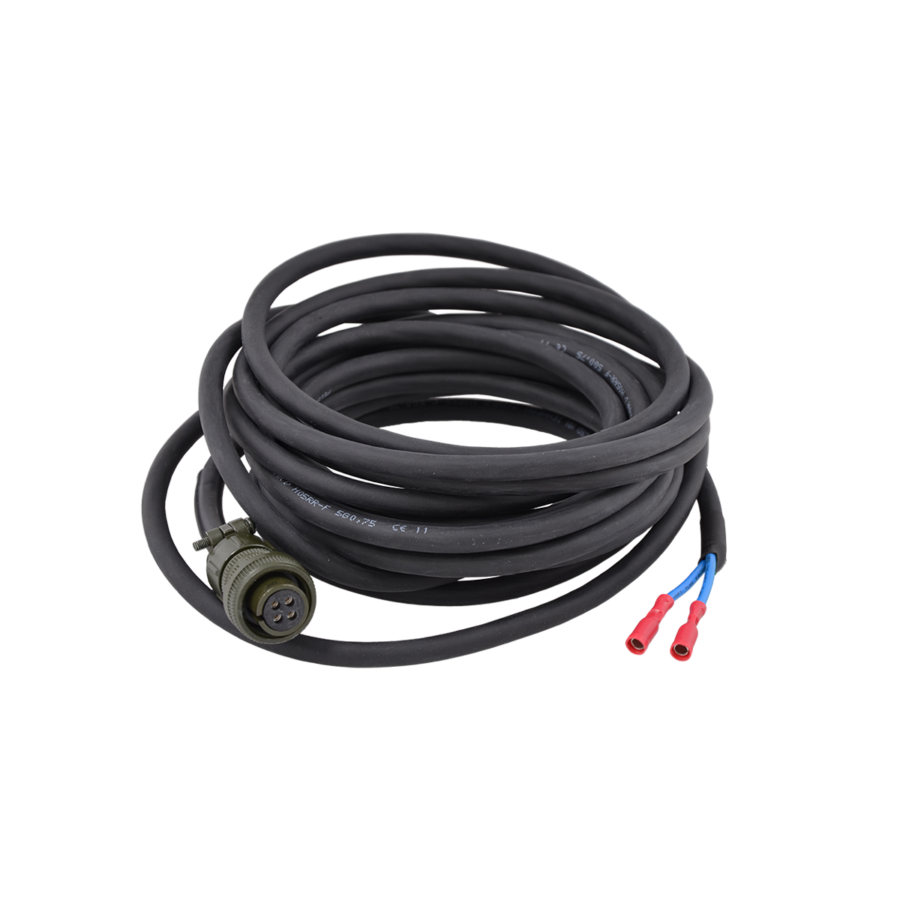

Arc ignition cable

Dragon Accessories Welding Carriage Accessories

KBL-0475-58-05-00-0
