BM-18A | Pneumatic Plate Beveller

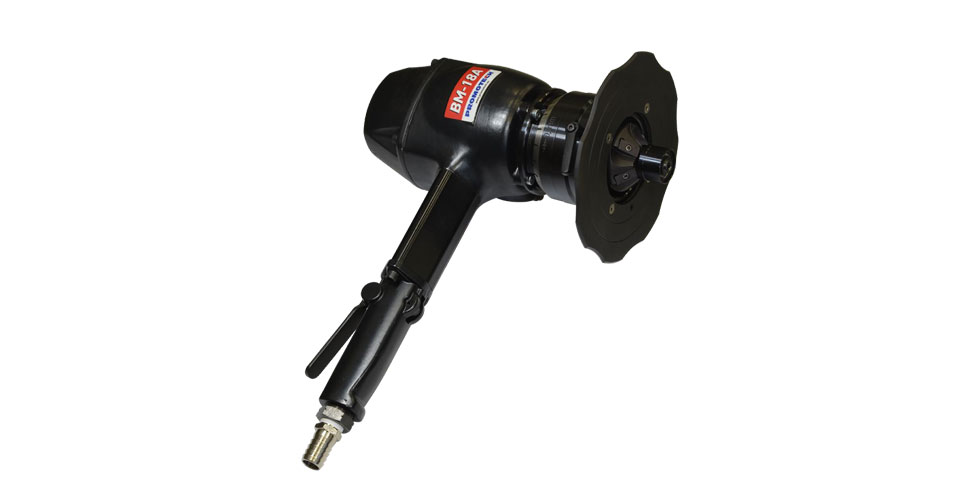

The BM-18A is a plate beveller driven by a powerful pneumatic motor. It enables milling straight edges up to 18 mm bevel width, contours, holes from 40 mm in diameter and rounding radius R2, R3, R4 and R5. New hexagonal fixing of milling heads increases beveller durability and makes replacement of the heads more convenient and user-friendly.

Powerful pneumatic motor
Maximum 18 mm bevel width (more than one pass could be required)
New more durable milling heads with hexagonal fixing for easy replacement
Continuous milling depth adjustment to fully control the bevelling process
Rounding radius R2, R3, R4, R5 on both straight and curved edges

Watch video

Download PDF

Send Enquiry

Max. bevel width

18 mm

Bevel angles

22.5°, 30°, 37.5°, 45°, 50°, 55°, 60°

Top beveling

Countersinking

min. ID 40 mm

Rounding edges

(option) R2, R3, R4 or R5

Top bevelling

Rounding R2, R3, R4, R5

Creating a perfect radius on straight edges

Creating a perfect radius on curved edges

Aluminum bevelling

Bevel on holes from 40 mm in diameter

Specification

Spindle speed (without load)	6.000 rpm
Maximum bevel width	b=18 mm (Fig.1)
Bevel angle (depending on milling head in use)	ß = 22.5°, 30°, 37.5°, 45°, 50°, 55°, 60° (Fig. 1)
Minimal diameter of countersinking	ca 40 mm (1.57’’)
Rounding edges (option)	R2, R3, R4, R5 (Fig. 2)
Minimal plate thickness	2 mm
Air requirement	6 bar (0,6MPa) (87 PSI)
Air consumption	1800 L/min , (64 CFM)
Pneumatic drive	2.800 W
Minimum required diameter of supply hose	19 mm (3/4”)
Weight (without milling head)	9,3 kg
Product Code	UKS-0640-10-00-00-0

BM-18A | Pneumatic Plate Beveller

Max. bevel width

Bevel angles

Top beveling

Countersinking

Rounding edges

Specification

GLW-0640-30-01-00-0 Beveling milling head 22.5° (5 cutting inserts required)

GLW-0640-30-02-00-0 Beveling milling head 30° (5 cutting inserts required)

GLW-0640-30-03-00-0 Beveling milling head 37.5° (5 cutting inserts required)

GLW-0640-30-04-00-0 Beveling milling head 45° (5 cutting inserts required)

GLW-0640-30-05-00-0 Beveling milling head 50° (5 cutting inserts required)

GLW-0640-30-06-00-0Beveling milling head 55° (5 cutting inserts required)

GLW-0640-30-07-00-0Beveling milling head 60° (5 cutting inserts required)

PLY-000395 Cutting insert for steel (sold 10 pcs/box)

PLY-000195 Cutting insert for aluminum (sold 10 pcs/box)

GLW-0640-30-34-00-0 Milling head for rounding (4 cutting inserts required)

PLY-000737 Cutting insert R2 (sold 10 pcs/box)

PLY-000738 Cutting insert R3 (sold 10 pcs/box)

PLY-000739 Cutting insert R4 (sold 10 pcs/box)

PLY-000740 Cutting insert R5 (sold 10 pcs/box)

UST-0509-16-00-00-0 Radius insert positioner

Air preparation set
