GECKO Battery 2 Cordless Welding Tractor

The GECKO Battery 2 is a battery-powered trackless welding tractor designed to produce continuous butt and fillet welds using MIG/MAG torches. LiHD CAS battery delivers enough power for handling even the toughest applications with no cables. 4-wheel drive system with magnetic traction and a feedback loop provides speed stabilization in various welding positions. Constant, continuous and repeatable travel speed enables weld bead geometry that is exact to the required specifications, thus reducing costly over-welding and substantially decreasing filler metal usage. Users can select arc ignition times of up to 5 seconds at the start and end of tractor travel to create a preferred weld fill at both ends. GECKO Battery 2 is ready to be configured with an external OSC-8 PRO pendulum oscillator, which can be powered from the built-in oscillator socket.

  • Powered by an 18-volt DC battery – the same CAS battery as used in other cordless PROMOTECH machines
  • LiHD battery ensures extended power availability even for the whole shift
  • Intelligent battery management for a long-lasting battery
  • Digital speed control and stabilization for high-quality welds
  • Multifunctional LED display to present travel speed, units, and diagnostic messages
  • Compact, lightweight design with durable aluminum cast housing
  • Optional accessories make Gecko Battery 2 fit for various applications with carbon steel, stainless steel, and aluminum
  • Possibility of pre-setting the torch activation time before and after the tractor travel for better filling of the weld seam at both ends
  • Built-in oscillator socket for direct powering of the external OSC-8 PRO pendulum oscillator
  • 3 years of warranty

Play Watch video Download PDF Send Enquiry
welding-position-all battery updated
gecko battery 2

To get the most of this product, explore our new >>

Welding & cutting accessories
continuous-welding

Continuous welding

dual-torch-welding

Dual torch welding

horizontal-speed

Horizontal speed

0 - 110 cm/min (0 - 43.3 in/min)

pre-post

Pre-post

dual-arc-ignition

Dual arc ignition

path-concave-radius

Path concave radius

800 mm (31-1/2”)

warranty-tractors

Continous welding

Dual torch welding

Multi-surface guiding

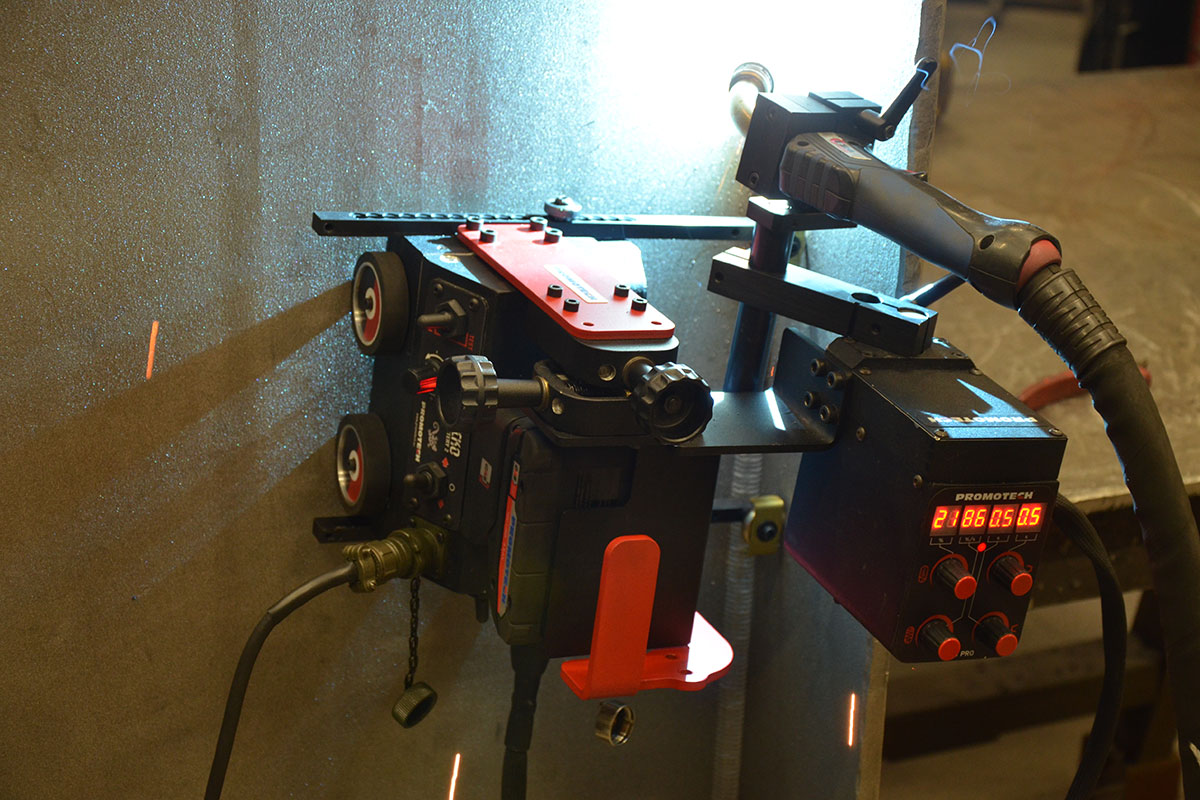

Welding in vertical positions

Precise torch adjustment with screw drive cross slide

Welding and cutting on concave and convex surfaces

GECKO Battery 2 Specification
Voltage 18 V DC, 4.0 Ah
Power 20 W
Welding position (according to EN ISO 6947 and AWS/ASME) Horizontal PA / 1F / 1G PA / 1F / 1G PB / 2F PC / 2G PD / 4F PE / 4G
Vertical PF / 3G
Minimum path curve radius Outer 600 mm (23-5/8”)
Inner 800 mm (31-1/2”)
Torch type MIG/MAG
Torch diameter 16–22 mm (5/8”–55/64”)
Minimum workpiece thickness 4 mm (5/32”)
Ground clearance 4 mm (5/32”)
Horizontal pulling force 250 N
Vertical pulling force 175 N
Cross slide adjustment range 0–35 mm (0–1 38”) up‑down, left-right
Guide arm adjustment range 0–170 mm (0–6 11/16″)
Horizontal speed* 0–100 cm/min (0–39 3/8 in/min)
Vertical speed* 0–100 cm/min (0–39 3/8 in/min)
Weight 8.4 kg (18.5 lbs)
Welding settings storage 1 (last used)
Product Code WOZ-0805-10-00-00-0
* = with a fully charged battery
gecko battery 2 gallery 01 gecko battery 2 gallery 02 gecko battery 2 gallery 03 gecko battery 2 gallery 04 gecko battery 2 gallery 05 gecko battery 2 gallery 06 gecko battery 2 gallery 07 gecko battery 2 gallery 08 gecko battery 2 gallery 09 gecko battery 2 gallery 10 gecko battery 2 gallery 11 gecko battery 2 gallery 12 gecko battery 2 gallery 13 gecko battery 2 gallery 14 gecko battery 2 gallery 15 gecko battery 2 gallery 16 gecko battery 2 gallery 17 gecko battery 2 gallery 18 gecko battery 2 gallery 19 gecko battery 2 gallery 20 gecko battery 2 gallery 21 gecko battery 2 gallery 22 gecko battery 2 gallery 23

Batteries and chargers

  • Battery LiHD 18 V 4.0 Ah
    AKM-0738-10-00-01-0 Battery LiHD 18 V 4.0 Ah
    • LiHD battery packs
    • battery pack voltage: 18 V
    • Intelligent battery management for long-lasting battery packs
    • too low and too high voltage
    • too low and too high temperature
    • failure of the temperature sensor
    • internal battery failure
    • battery pack capacity: 4.0 Ah
    • energy: 72 Wh
    • weight: 580 g
  • Quick Charger ASC 145, "AIR COOLED"
    LDW-0738-04-00-30-0 Quick Charger ASC 145, "AIR COOLED"
    • UK plug
    • battery pack voltage: 12-36 V
    • output rating: 145 W
    • max. charging current: 8 A
    • weight: 551 g
    • the battery packs are charged up to 4x faster than with an entry level charger
    • patented “AIR COOLED” charging technology for short charging times thanks to cooling the battery pack
    • charging time:
    • ~ 30 min (4.0 Ah)
    • ~ 41 min (5.5 Ah)
    • ~ 74 min (10.0 Ah)
  • Quick Charger ASC 145, "AIR COOLED"
    LDW-0738-10-00-30-0 Quick Charger ASC 145, "AIR COOLED"
    • EU plug
    • battery pack voltage: 12-36 V
    • output rating: 145 W
    • max. charging current: 8 A
    • weight: 551 g
    • the battery packs are charged up to 4x faster than with an entry level charger
    • patented “AIR COOLED” charging technology for short charging times thanks to cooling the battery pack
    • charging time:
    • ~ 30 min (4.0 Ah)
    • ~ 41 min (5.5 Ah)
    • ~ 74 min (10.0 Ah)

Guide arms

  • Standard guide arms 15 x 15 mm (set of 2 pcs)
    ZST-0752-17-00-00-1 Standard guide arms 15 x 15 mm (set of 2 pcs)
    • cross-section: 15 mm x 15 mm
  • Edge following guide arms 15 x 15 mm (set of 2 pcs)
    PRW-0466-41-00-00-1 Edge following guide arms 15 x 15 mm (set of 2 pcs)
    • cross-section: 15 mm x 15 mm
  • Adjustable guide arms 15 x 15 mm (set of 2 pcs)
    PRW-0752-10-00-00-1 Adjustable guide arms 15 x 15 mm (set of 2 pcs)
    • cross-section: 15 mm x 15 mm
  • Magnet guide arms 15 x 15 mm (set of 2 pcs)
    PRW-0752-11-00-00-1 Magnet guide arms 15 x 15 mm (set of 2 pcs)
    • cross-section: 15 mm x 15 mm
  • Low guide arms 15 x 15 mm (set of 2 pcs)
    PRW-0752-12-00-00-1 Low guide arms 15 x 15 mm (set of 2 pcs)
    • cross-section: 15 mm x 15 mm
  • High guide arms 15 x 15 mm (set of 2 pcs)
    PRW-0752-13-00-00-1 High guide arms 15 x 15 mm (set of 2 pcs)
    • cross-section: 15 mm x 15 mm
  • Following guide arms 15 x 15 mm for 36 mm wide flexible track (set of 2 pcs)
    PRW-0752-14-00-00-1 Following guide arms 15 x 15 mm for 36 mm wide flexible track (set of 2 pcs)
    • cross-section: 15 mm x 15 mm
  • Following guide arms for 160 mm wide flexible track (set of 2 pcs)
    ZST-0466-69-00-00-0 Following guide arms for 160 mm wide flexible track (set of 2 pcs)
  • Guide arm screw short 30 mm
    SRB-0466-10-00-00-0 Guide arm screw short 30 mm
    • length: 30 mm
    • knurled nut
    • for guide arms with cross-section 15 mm x 15 mm

Cross slides

  • Cross-slide 0-35 mm both up-down and left-right
    ZSP-0466-14-00-00-0 Cross-slide 0-35 mm both up-down and left-right
    • 0-35 mm up and down adjustment
    • 0-35 mm left and right adjustment
  • Extended cross-slide 0-76 mm either up-down or left-right
    ZSP-0466-46-00-00-1 Extended cross-slide 0-76 mm either up-down or left-right
    • 0-75 mm extended adjustment in the preferred axis
    • 0-35 mm adjustment in the second axis
    • the axis setting depends on the cross-slide mounting position

Magnet blocks

  • Magnet blocks (front & back) clamping force 55 N
    BLO-0466-45-01-00-0 Magnet blocks (front & back) clamping force 55 N
    • clamping force: 55 N
    • enables mounting on both sides of the tractor
  • Magnet blocks (back) clamping force 80 N
    BLO-0466-48-01-00-0 Magnet blocks (back) clamping force 80 N
    • clamping force: 80 N
    • for mounting at the back
  • Magnet blocks (front) clamping force 80 N
    BLO-0752-22-00-00-0 Magnet blocks (front) clamping force 80 N
    • clamping force: 80 N
    • for mounting at the front

Cables

  • Start-Stop arc ignition cable 6.5 m
    KBL-0466-17-00-00-0 Start-Stop arc ignition cable 6.5 m
    • length: 6.5 m (21 ft)
    • 4-pin female connector (inlet)
    • 2 pairs of colour-coded wires with male and female connectors
    • enables connection of 2 welders
  • Start-Stop arc ignition cable 13 m
    KBL-0466-17-00-04-0 Start-Stop arc ignition cable 13 m
    • length: 13 m (42 ft)
    • 4-pin female connector (inlet)
    • 2 pairs of colour-coded wires with male and female connectors
    • enables connection of 2 welders
  • Cable anchor for GECKO Battery 2 and SCORPIO Battery
    PDT-0776-04-00-00-0 Cable anchor for GECKO Battery 2 and SCORPIO Battery
    • rod length: 230 mm
    • rod diameter: 22.2 mm

36 mm wide flexible track & accessories

  • 36 mm wide flexible track
    PRW-0466-50-01-01-0 36 mm wide flexible track
    • length: 1.85 m (6 ft)
    • min. curvature radius: 1.0 m (3.3 ft)
    • requires magnetic blocks BLO-0466-68-00-00-0
  • Magnetic block for 36 mm wide flexible track
    BLO-0466-68-00-00-0 Magnetic block for 36 mm wide flexible track
    • sold in bulk packaging of 10 pieces
  • Guide adjustment tool for 36 mm wide flexible track
    UST-0466-53-00-00-0 Guide adjustment tool for 36 mm wide flexible track
    • enables proper parallel alignment of 36 mm flexible track against an outside edge or groove
  • Following guide arms 15 x 15 mm for 36 mm wide flexible track (set of 2 pcs)
    PRW-0752-14-00-00-1 Following guide arms 15 x 15 mm for 36 mm wide flexible track (set of 2 pcs)
    • cross-section: 15 mm x 15 mm

160 mm wide flexible track & accessories

  • 160 mm wide flexible track
    PRW-0466-71-00-00-0 160 mm wide flexible track
    • length: 1.88 m (6.1 ft)
    • min. curvature radius: 1.25 m (4.1 ft)
    • enables various configurations (see suitable accessories below)
  • Magnetic unit
    ZSP-0475-92-00-00-0 Magnetic unit
    • allows clamping tracks to ferromagnetic surfaces
    • maximum holding force up to 2500 N
    • intermediate position (between OFF/ON) with partial holding force helps to adjust the right track position
    • requires bracket DYS-0482-19-00-00-0 for hi-flex track and semi-flexible track
    • requires bracket DYS-0482-21-00-00-0 for rigid track
    • requires bracket DYS-0466-71-05-00-0 for 160 mm wide flexible track
  • Heat-resistant magnetic unit
    ZSP-0475-93-00-00-0 Heat-resistant magnetic unit
    • suitable for working on more heated ferromagnetic surfaces
    • maximum holding force up to 2500 N
    • intermediate position (between OFF/ON) with partial holding force helps to adjust the right track position
    • requires bracket DYS-0482-19-00-00-0 for hi-flex track and semi-flexible track
    • requires bracket DYS-0482-21-00-00-0 for rigid track
    • requires bracket DYS-0466-71-05-00-0 for 160 mm wide flexible track
  • Pivoting magnetic unit
    ZSP-0475-85-00-00-0 Pivoting magnetic unit
    • allows clamping tracks to flat, concave or convex ferromagnetic surfaces and pipes ID of at least 800 mm (31.5″)
    • may also be fixed on surfaces that differ in height up to 80 mm (3.1’’)
    • maximum holding force up to 2500 N
    • intermediate position (between OFF/ON) with partial holding force helps to adjust the right track position
    • requires bracket DYS-0482-19-00-00-0 for hi-flex track and semi-flexible track
    • requires bracket DYS-0482-21-00-00-0 for rigid track
    • requires bracket DYS-0466-71-05-00-0 for 160 mm wide flexible track
  • Spacing-adjustable magnetic unit
    ZSP-0523-19-00-00-0 Spacing-adjustable magnetic unit
    • allows clamping tracks to ferromagnetic pipes with diameters of 25-230 mm (1-9’’) and the distance between pipe axes of 170-230 mm (6.7-9.1’’)
    • maximum holding force up to 2500 N
    • intermediate position (between OFF/ON) with partial holding force helps to adjust the right track position
    • requires bracket DYS-0482-19-00-00-0 for hi-flex track and semi-flexible track
    • requires bracket DYS-0482-21-00-00-0 for rigid track
    • requires bracket DYS-0466-71-05-00-0 for 160 mm wide flexible track
  • Bracket for magnetic units for 160 mm wide flexible track
    DYS-0466-71-05-00-0 Bracket for magnetic units for 160 mm wide flexible track
    • enables mounting of magnetic unit, heat-resistant magnetic unit, pivoting magnetic unit, spacing-adjustable magnetic unit
  • Narrow magnetic unit with hexagon
    PDS-0582-10-00-02-0 Narrow magnetic unit with hexagon
    • allows clamping tracks to ferromagnetic surfaces and very close to their edges
    • maximum holding force up to 1500 N
    • intermediate position (between OFF/ON) with partial holding force helps to adjust the right track position
    • requires bracket DYS-0582-10-00-00-0 for hi-flex track and semi-flexible track
    • requires bracket DYS-0466-71-07-00-0 for 160 mm wide flexible track
  • Bracket for narrow magnetic unit for 160 mm wide flexible track
    DYS-0466-71-07-00-0 Bracket for narrow magnetic unit for 160 mm wide flexible track
    • enables mounting of narrow magnetic unit
  • Vacuum modular unit
    MST-0541-10-02-00-0 Vacuum modular unit
    • allows clamping tracks on both non-ferrous and ferromagnetic materials
    • maximum holding force up to 1400 N
    • consists of 2 vacuum pads and manifold block
    • requires bracket DYS-0541-11-01-00-0 for hi-flex track and semi-flexible track
    • requires bracket DYS-0466-71-04-00-0 for 160 mm wide flexible track
    • depending on purpose-built configurations can function as entry, middle, extension or end vacuum unit (see Vacuum System at pages 30-31)
  • Bracket for vacuum modular unit for 160 mm wide flexible track
    DYS-0466-71-04-00-0 Bracket for vacuum modular unit for 160 mm wide flexible track
    • enables mounting of vacuum modular unit
  • Steel support for 160 mm wide flexible track
    WSP-0466-71-06-00-0 Steel support for 160 mm wide flexible track
    • suitable only for 160 mm wide flexible track when equipped with magnetic units
  • Aluminium support for 160 mm wide flexible track
    WSP-0466-71-03-00-0 Aluminium support for 160 mm wide flexible track
    • suitable only for 160 mm wide flexible track when equipped with vacuum modular units
  • Following guide arms for 160 mm wide flexible track (set of 2 pcs)
    ZST-0466-69-00-00-0 Following guide arms for 160 mm wide flexible track (set of 2 pcs)

Miscellaneous

  • Fall arrester device
    URZ-000001 Fall arrester device
    • secures a track against falling
  • Standard drive wheel for GECKO family and SCORPIO Battery
    KOL-0752-01-04-00-0 Standard drive wheel for GECKO family and SCORPIO Battery
    • diameter: 60 mm
    • increased heat-resistant silicone coating
  • Stainless steel drive wheel for GECKO family and SCORPIO Battery
    KOL-0466-72-00-00-0 Stainless steel drive wheel for GECKO family and SCORPIO Battery
    • diameter: 60 mm
    • made of stainless steel
  • OSC-8 PRO support for GECKO family
    KTW-0805-99-01-00-0 OSC-8 PRO support for GECKO family
    • enables mounting of the OSC-8 PRO oscillator with any tractor from the GECKO family
    • incl. two screws M6 x 14
  • Display cover for GECKO Battery 2
    OSL-0526-22-00-00-0 Display cover for GECKO Battery 2

Welding torch holders and matching accessories

  • Short rod torch holder with clamp 16-22 mm
    UCW-0754-07-00-00-0 Short rod torch holder with clamp 16-22 mm
    • clamp for welding torches ranged 16-22 mm OD
    • dowel pin 15 mm OD
    • rod 110 mm long/ 22.2 mm OD
    • clamping block 22.2 mm ID with lever
    • insulation tube 22.2 mm OD/15 mm ID
  • Long rod torch holder with clamp 16-22 mm
    UCW-0752-07-00-00-0 Long rod torch holder with clamp 16-22 mm
    • clamp for welding torches ranged 16-22 mm OD
    • dowel pin 15 mm OD
    • rod 230 mm long/ 22.2 mm OD
    • clamping block 22.2 mm ID with lever
    • insulation tube 22.2 mm OD/15 mm ID
  • Short rod torch holder with clip 16-22 mm
    UCW-0476-27-00-00-0 Short rod torch holder with clip 16-22 mm
    • clip for welding torches ranged 16-22 mm OD
    • dowel pin 15 mm OD
    • rod 110 mm long/ 22.2 mm OD
    • clamping block 22.2 mm ID with lever
    • insulation tube 22.2 mm OD/15 mm ID
  • Short low rod torch holder with clip 16-22 mm
    UCW-0476-06-00-00-0 Short low rod torch holder with clip 16-22 mm
    • clip for welding torches ranged 16-22 mm OD
    • dowel pin 15 mm OD
    • low rod 110 mm long/ 22.2 mm OD
    • clamping block 22.2 mm ID with lever
    • insulation tube 22.2 mm OD/15 mm ID
    • for use with, among others, a pendulum oscillator
  • Long rod torch holder with clip 16-22 mm
    UCW-0466-22-00-00-0 Long rod torch holder with clip 16-22 mm
    • clip for welding torches ranged 16-22 mm OD
    • dowel pin 15 mm OD
    • rod 230 mm long/ 22.2 mm OD
    • clamping block 22.2 mm ID with lever
    • insulation tube 22.2 mm OD/15 mm ID
  • Quick-release short rod torch holder with clip 16-22 mm
    UCW-0523-84-00-00-0 Quick-release short rod torch holder with clip 16-22 mm
    • quick-release clip for welding torches ranged 16-22 mm OD
    • swivel cube with grooves
    • spring lock
    • rod 110 mm long/ 22.2 mm OD
  • Dual torch mount
    PDT-0466-40-00-00-0 Dual torch mount
    • max web height - 370 mm
    • max web thickness - 75 mm
  • Torch clamp 16-22 mm
    ZRZ-0752-07-01-00-0 Torch clamp 16-22 mm
    • clamp for welding torches ranged 16-22 mm OD
    • dowel pin 15 mm OD
  • Torch clip 16-22 mm
    ZCS-0476-06-01-00-0 Torch clip 16-22 mm
    • clip for welding torches ranged 16-22 mm OD
    • dowel pin 15 mm OD
  • Quick-release torch clip 16-22 mm
    ZCS-0270-42-00-00-0 Quick-release torch clip 16-22 mm
    • clip for welding torches ranged 16-22 mm OD
    • quick-release mount
  • Torch clamp 22-35 mm
    ZRZ-0466-19-00-00-0 Torch clamp 22-35 mm
    • clamp for welding torches ranged 22-35 mm OD
    • dowel pin 15 mm OD
  • Short rod clamp
    WLK-0476-20-01-00-0 Short rod clamp
    • rod 110 mm long/ 22.2 mm OD
    • clamping block 22.2 mm ID with lever
    • insulation tube 22.2 mm OD/15 mm ID
  • Lower rod clamp
    TRM-0476-06-10-00-0 Lower rod clamp
    • rod 110 mm long/ 22.2 mm OD
    • low clamping block 22.2 mm ID with lever
    • insulation tube 22.2 mm OD/15 mm ID
  • Long rod clamp
    WLK-0466-04-10-00-0 Long rod clamp
    • rod 230 mm long/ 22.2 mm OD
    • clamping block 22.2 mm ID with lever
    • insulation tube 22.2 mm OD/15 mm ID
  • Torch extension arm for GECKO family and LIZARD
    PRD-0466-43-00-00-0 Torch extension arm for GECKO family and LIZARD
    • block for attaching to tractor with 4 screws M5 x 16
    • rod 380 mm long / 22.2 mm OD
    • block with two holes 22.2 mm ID
    • rod 150 mm long/ 22.2 mm OD
    • block for attaching the cross-slide
    • increases the reach of the torch
    • enables repositioning and moving the cross-slide away from the tractor
  • 150 mm long rod
    SLP-0233-13-02-00-1 150 mm long rod
    • rod 150 mm long/ 22.2 mm OD
  • 200 mm long rod
    KLM-0236-00-16-00-0 200 mm long rod
    • rod 200 mm long / 22.2 mm OD
    • together with KST-0525-11-00-00-0 enable mounting of the OSC-8 PRO oscillator with RAIL BULL, RAIL TUG and RAIL TITAN 2
  • 300 mm long rod
    WSP-0523-16-00-00-0 300 mm long rod
    • rod 300 mm long/ 22.2 mm OD
  • 400 mm long rod
    WLK-0633-22-04-00-0 400 mm long rod
    • rod 400 mm long/ 22.2 mm OD
  • 450 mm long rod
    WLK-0824-0973-00-0 450 mm long rod
    • rod 450 mm long/ 22.2 mm OD
    • standard accessory for the MANTIS Battery enables the counterweight to be fixed on any side
  • 500 mm long rod
    WLK-0633-22-02-00-0 500 mm long rod
    • rod 500 mm long/ 22.2 mm OD
    • optional accessory for the MANTIS Battery enables the counterweight to be fixed on any side
  • Double clamping block with levers
    KST-0525-11-00-00-0 Double clamping block with levers
    • two holes 22.2 mm ID
  • Isolation tube for welding torch
    TLJ-0419-04-02-03-0 Isolation tube for welding torch
    • insulation tube 22.2 mm OD/15 mm ID

Vacuum track system

  • Portable vacuum pump with safety reservoir (EU plug)
    AGR-0541-10-20-00-0 Portable vacuum pump with safety reservoir (EU plug)
    • voltage: 1~ 230 V, 50-60 Hz
    • EU plug
    • power: 400 W
    • gauge pressure obtainable: -0.8 bar (-11.5 psig) (where 0 is for atmospheric pressure, and -1 is for perfect vacuum)
    • pump capacity: 4 m³/h (141 ft³/h)
    • generates vacuum and supports up to 21 vacuum units
    • ambient temperature: 0-40°C (32-104°F)
    • safety reservoir volume: 10 l (0.35 ft³)
    • weight (with safety reservoir): 23 kg (51 lbs)
  • Portable vacuum pump with safety reservoir (UK plug)
    AGR-0541-10-10-00-0 Portable vacuum pump with safety reservoir (UK plug)
    • voltage: 1~ 115 V, 50-60 Hz
    • UK plug
    • power: 400 W
    • gauge pressure obtainable: -0.8 bar (-11.5 psig) (where 0 is for atmospheric pressure, and -1 is for perfect vacuum)
    • pump capacity: 4 m³/h (141 ft³/h)
    • generates vacuum and supports up to 21 vacuum units
    • ambient temperature: 0-40°C (32-104°F)
    • safety reservoir volume: 10 l (0.35 ft³)
    • weight (with safety reservoir): 23 kg (51 lbs)
  • Pump connection hose 10 m (32.8 ft)
    PWD-0541-06-00-00-0 Pump connection hose 10 m (32.8 ft)
    • serial connection: 1 piece for the first rail track needed
    • parallel connection: 1 piece per each rail track needed
  • 4-way manifold with connection cable 0.3 m (1ft)
    RZD-0541-04-00-00-0 4-way manifold with connection cable 0.3 m (1ft)
    • power and control for up to four separate vacuum circuits in parallel connection
    • enables separate connections of up to four rail tracks equipped with vacuum units
    • allows leapfrogging during operation
  • Vacuum modular unit
    MST-0541-10-02-00-0 Vacuum modular unit
    • allows clamping tracks on both non-ferrous and ferromagnetic materials
    • maximum holding force up to 1400 N
    • consists of 2 vacuum pads and manifold block
    • requires bracket DYS-0541-11-01-00-0 for hi-flex track and semi-flexible track
    • requires bracket DYS-0466-71-04-00-0 for 160 mm wide flexible track
    • depending on purpose-built configurations can function as entry, middle, extension or end vacuum unit (see Vacuum System at pages 30-31)
  • Entry vacuum unit
    Entry vacuum unit
    • Purpose-built configuration including:
    • - MST-0541-10-02-00-0 (Vacuum modular unit)
    • - ZWR-0541-10-01-30-0 (Cut-off valve)
    • - KRK-0541-99-00-00-0 (Threaded plug)
    • - SRB-000365 (Safety eye bolt - option to secure the suspension)
  • Middle vacuum unit
    Middle vacuum unit
    • Purpose-built configuration including:
    • - MST-0541-10-02-00-0 (Vacuum modular unit)
  • Extension vacuum unit
    Extension vacuum unit
    • Purpose-built configuration including:
    • - MST-0541-10-02-00-0 (Vacuum modular unit)
    • - PWD-0541-10-04-00-0 (Coupled hose)
    • - SRB-000365 (Safety eye bolt - option to secure the suspension)
  • End vacuum unit
    End vacuum unit
    • Purpose-built configuration including:
    • - MST-0541-10-02-00-0 (Vacuum modular unit)
    • - KRK-0541-99-00-00-0 (Threaded plug)
    • - SRB-000365 (Safety eye bolt - option to secure the suspension)
  • Hose 2 m (7 ft) for connecting vacuum units within rail track
    PWD-0541-10-07-00-0 Hose 2 m (7 ft) for connecting vacuum units within rail track
    • suitable for 1 rail track
    • to be cut to the required length between the vacuum units
  • Hose clamp
    OPS-000005 Hose clamp
    • 2 pieces needed to fix hose between two vacuum units
  • Cut-off valve for entry vacuum unit
    ZWR-0541-10-01-30-0 Cut-off valve for entry vacuum unit
    • serial connection: 1 piece for the first rail track needed
    • parallel connection: 1 piece per each rail track needed
    • seal included
  • Threaded plug for end vacuum unit
    KRK-0541-99-00-00-0 Threaded plug for end vacuum unit
    • serial connection: 1 piece for the last rail track needed
    • parallel connection: 1 piece per each rail track needed
  • Safety eye bolt
    SRB-000365 Safety eye bolt
    • option to secure the suspension
    • recommendation: 2 pieces per each rail track
  • Coupled hose for extension vacuum unit
    PWD-0541-10-04-00-0 Coupled hose for extension vacuum unit
    • for serial connection of rail tracks
    • length: 0.21 m
  • Hose extension adapter
    LCZ-0541-05-00-00-0 Hose extension adapter
    • compatible with quick coupling
  • Vacuum pad
    SSW-0541-99-01-00-0 Vacuum pad
    • spare part for modular vacuum unit
  • Hose fitting
    KRC-000013 Hose fitting
    • spare part for modular vacuum unit
  • Quick coupling
    SZB-000018 Quick coupling
    • spare part for pump connection hose and coupled hose

Case Studies

Speed and precision
machine

GECKO Battery

country

Italy

description

Welding speed up to 40 cm/min
Uniform welds along the entire length
Less heat input, less distortion
A reliable and effective solution for achieving straight, high-quality welds in a variety of applications
CAS Battery System

Vertical Up
machine

GECKO Battery 2 + OSC-8 PRO

country

Italy

description

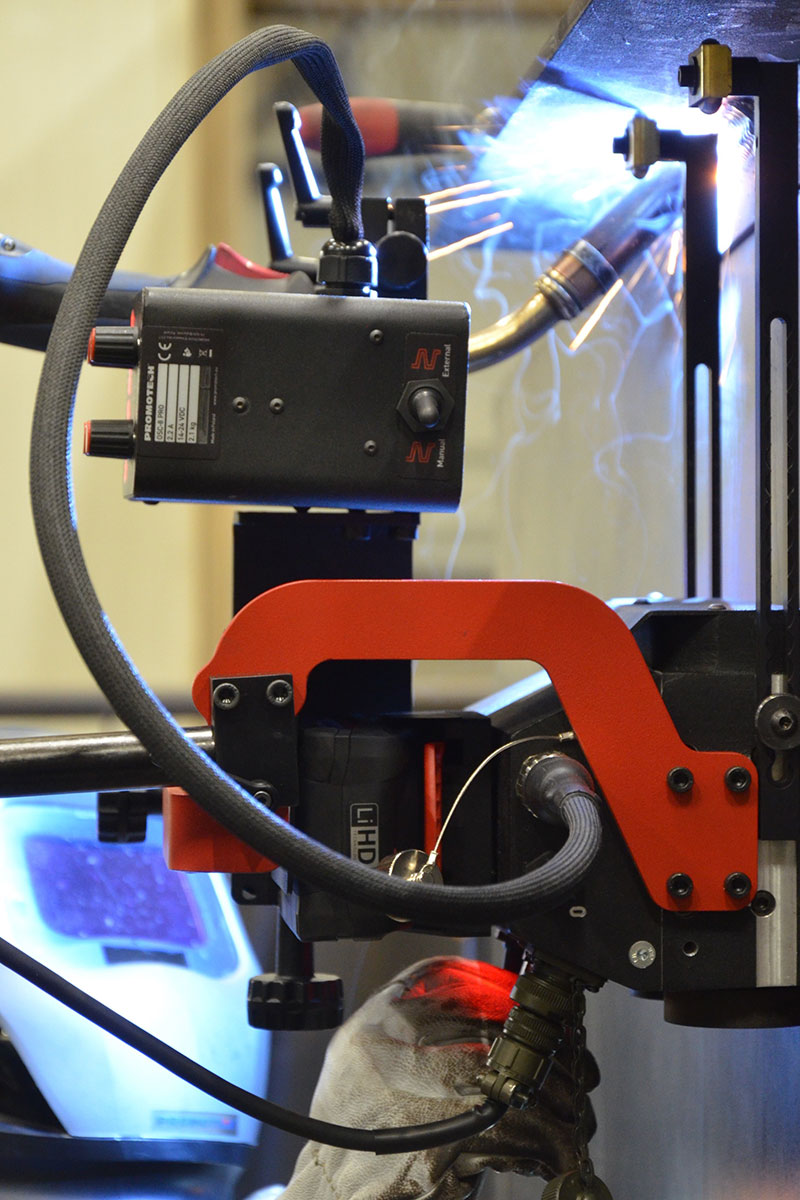

Vertical Up with GECKO Battery 2 + OSC-8 PRO Pendulum Oscillator
• Thickness 30 mm
• Chamfer 60°
• Gap 5 mm
• Steel solid wire 1.2 mm
When welding wide grooves or gaps, #oscillation enables wider weld beads with a weaving pattern, covering a larger area more effectively. Multiple layers ensure robust and high-strength joints.
A CAS battery-powered welding tractor with a built-in oscillator socket isn’t just convenient — it’s a performance booster. And at just over 8 kg, this compact, portable tractor can be carried anywhere.

2G pipe welding with OSC-8 oscillation
machine

GECKO Battery + OSC-8

country

United Arab Emirates

description

GECKO Battery welding carriage on a pipe with a diameter of 1.2 m and a wall thickness of 40 mm in the 2G position, paired with the OSC-8 weaving oscillator.
At the customer\\\'s request, we performed a welding demonstration with weaving: Root pass + 2 fill passes with weaving, Followed by multi-pass welding without weaving

The result? Reliable precision, stability, and versatility – even on thick-wall pipes.

A large 200,000-litre tank
machine

GECKO Battery 2

country

USA

description

GECKO Battery 2 welding carriage a large 200,000 litre (200 m³) tank delivering perfectly consistent welds and rock-solid reliability every single time. Lose the cord, not the power.

GECKO Battery + OSC-8
machine

GECKO Battery + OSC-8

country

Italy

industry

Shipyard

description

Gecko Battery welding tractor with Oscillator OSC-8 splendid performance in demanding shipyard environments. Oscillation enables better fusion between the base metal and the weld metal, particularly in thicker sections, so that your welds withstand the harsh marine environment.

Related Posts

The New Generation of GECKO Battery 2 Cordless Welding Tractor
CAS Battery system, Welding, Welding and cutting tractors

The New Generation of GECKO Battery 2 Cordless Welding Tractor

Read more
Why equip rail free welding tractors with tracks?
CAS Battery system, Welding and cutting tractors

Why equip rail free welding tractors with tracks?

Read more
GECKO – One Machine, Countless Applications
CAS Battery system, Welding, Welding and cutting tractors

GECKO – One Machine, Countless Applications

Read more

Product Enquiry

Need more details on our industrial solutions? Let’s talk! Fill out the form below and our team will promptly assist you. We’re here to help you find the right product for your specific needs.
