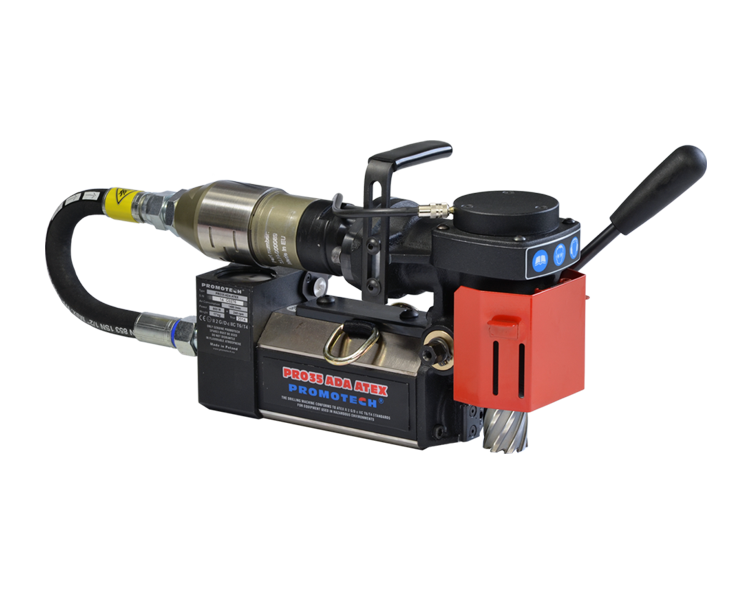

PRO-35 ADA ATEX Pneumatic Mag Drill

Important Notice

The PRO-35 ADA ATEX | Pneumatic Mag Drill has been discontinued.

We are pleased to introduce its successor, the PRO-40 AD ATEX | Pneumatic Mag Drill. The new model offers improved performance and enhanced features to better meet your needs.

——————————————————————————————————————–

PRO-35 ADA ATEX can make holes up to 35 mm in diameter by using annular cutters and drill holes up to 16 mm in diameter with twist drill bits with Weldon shank 19mm (3/4’’). The combination of a pneumatic drive and a permanent magnetic base eliminates the need for an electric power supply. An extremely small ATEX-approved, pneumatic drill is perfectly suited to space-restricted and hazardous environments such as oil drilling platforms, petrochemical plants, oil refineries, shipbuilding, and the petrochemical industry, where electric appliances are prohibited for safety reasons.

  • Conforms to Ex c IIC T6/T4 Gb and Ex c IIIB T6/T4 Dd requirements for equipment used in hazardous environments
  • ATEX-approved materials – safe use in Ex zones and where hazardous, flammable or combustible vapors, liquids, dusts or residues may be present
  • Strong permanent magnet to keep your machine fixed with no need for electric supply
  • Pneumatic motor start up is possible only when magnetic base is active
  • Protection against accidental motor activation
  • Ultra-low design perfectly suited to space restricted areas – only 185 mm high
  • Compact size and lightweight – ideal for site work
Watch video Play Download PDF Download Send Enquiry Email
atex
discontinued pro 35 ada atex

Core drill

max 35 mm

Twist drill
with Weldon Shank

max 16 mm/19mm

Depth of cut

max 25 mm

Stroke

39 mm

Motor Speed

240 rpm

Compact design for space restricted spaces

Guard against motor start-up without activated magnetic base.

Working in out of positions

Through spindle cooling system

Portable and easy for transportation

Feed lever can be fixed from either side
Motor speed (under load) 240 rpm
Motor power 800 W
Weight 17 kg (37 lbs)
Max milling capacity 35 mm (1.38’’)
Max drilling capacity 16 mm (0.63’’)
Stroke 39 mm (1.54’’)
Max depth of cut 25 mm (0.98’’)
Cutter holder 19 mm Weldon (0.75’’)
Air consumption 1400 l/min (50 CFM)
Cooling system Through spindle
Type of cooling fluid Oil or water soluble
Magnetic base holding force 663 kgf (6500 N)
Magnetic base dimensions 80 mm × 80 mm × 143 mm / 3.1’’ × 3.1’’ × 5.6’’
Overall dimensions LxWxH 460 x 134(191 with handle) x 183
Product Code WRT-0520-10-00-00-0
