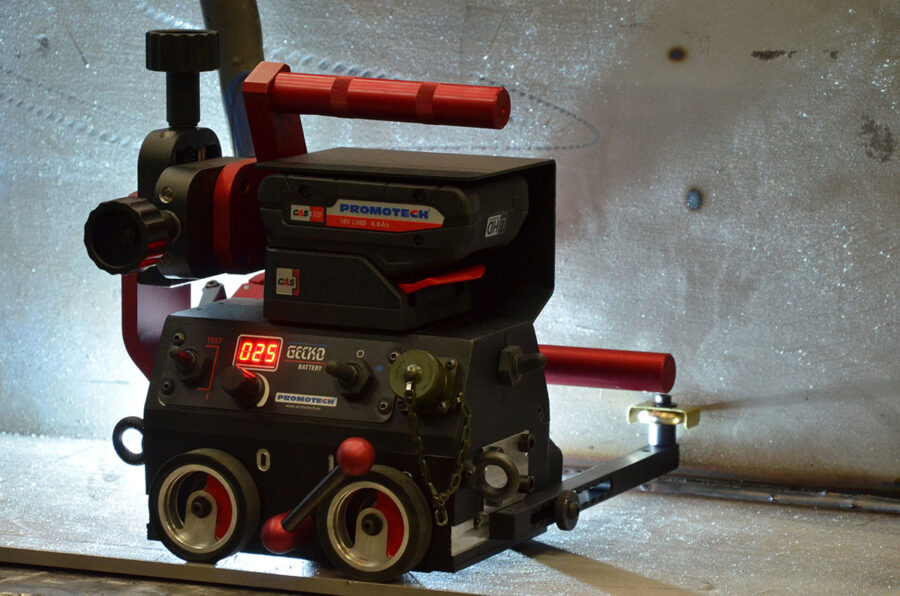

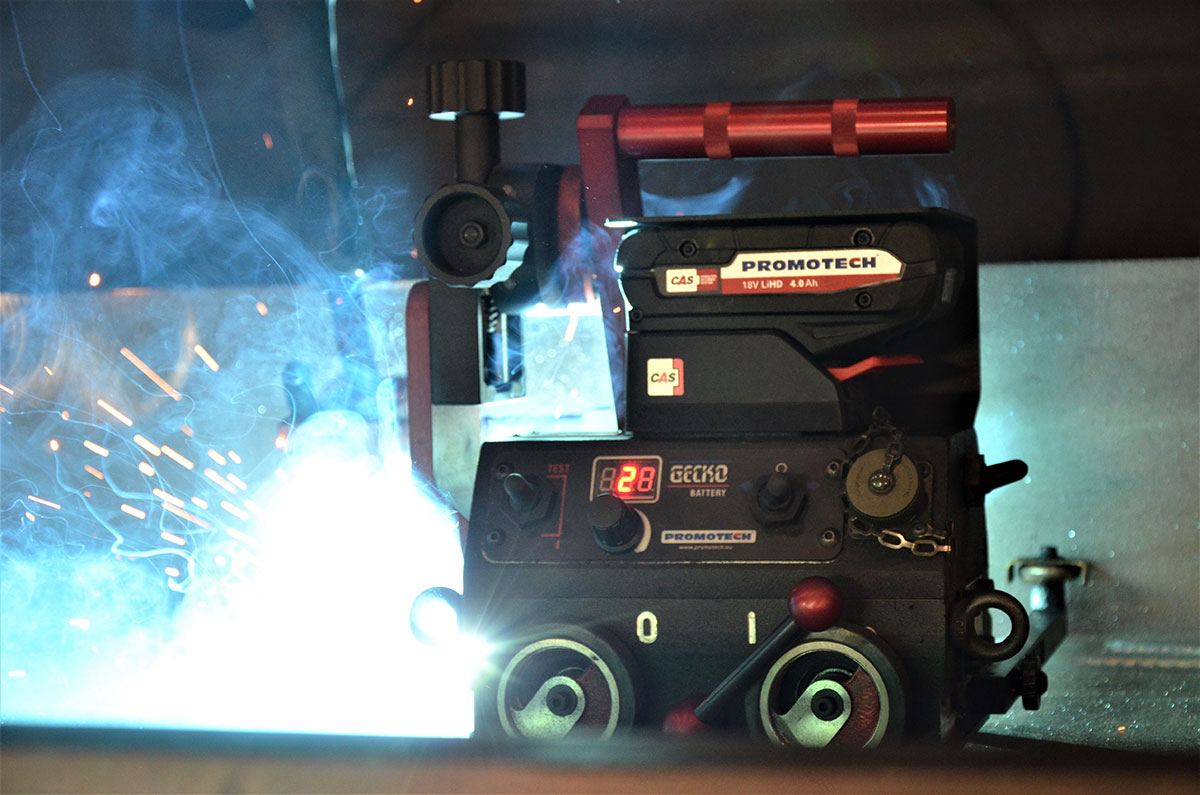

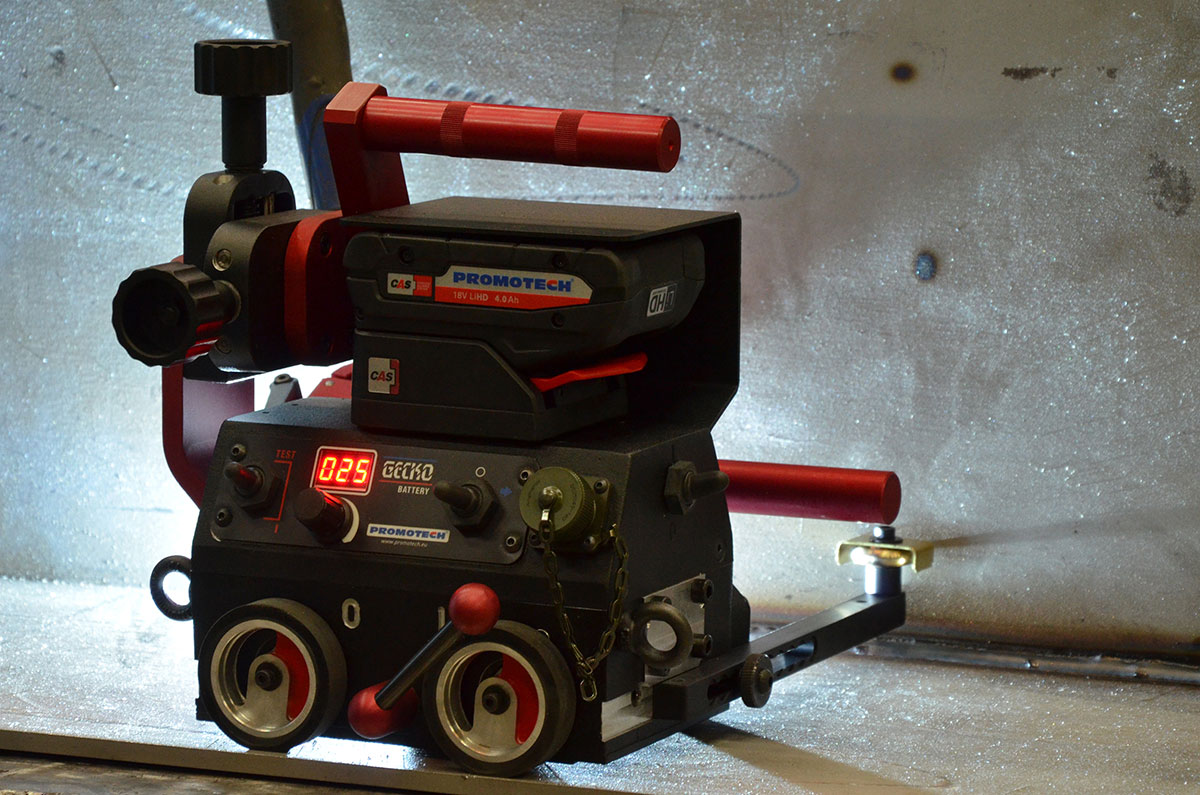

GECKO Battery Carrello per saldatura

Il GECKO BATTERY è un carrello per saldatura che non richiede l’impiego del binario; è alimentato a batteria ed è progettato per produrre saldature continue in angolo e testa – testa utilizzando torce MIG/MAG. La batteria CAS LiHD fornisce un’adeguata potenza per gestire anche le applicazioni più difficili. Il sistema a base magnetica permanente e la trazione su 4 ruote motrici permettono al sistema di controllo elettronico di mantenere una velocità costante in varie posizioni di saldatura. La velocità di avanzamento costante e ripetibile consente la realizzazione di una geometria del cordone di saldatura perfettamente in linea con le specifiche richieste, evitando costose ulteriori lavorazioni e riducendo il consumo di materiale d’apporto.

  • Pratico grazie all’alimentazione a batteria 18 V DC (la stessa batteria è utilizzata per il Mini Spider)
  • La batteria LiHD garantisce la massima disponibilità di potenza per un periodo di tempo estremamente lungo.
  • Gestione intelligente della batteria per ottimizzare la durata.
  • Controllo digitale della velocità per saldature di alta qualità
  • Display LED multifunzione per la visualizzazione della velocità di avanzamento, delle unità di misura e dei messaggi diagnostici.
  • Design compatto e leggero con robusto telaio in alluminio pressofuso.
  • Gli accessori opzionali rendono il Gecko Battery adatto a diverse applicazioni con acciaio al carbonio, acciaio inossidabile ed alluminio.
  • 3 anni di garanzia
welding-position-bottom-side battery
cessato gecko battery

Per sfruttare al meglio questo trattore per saldatura o taglio, scopri la nostra nuova

Welding & cutting accessories catalogue.
continuous-welding

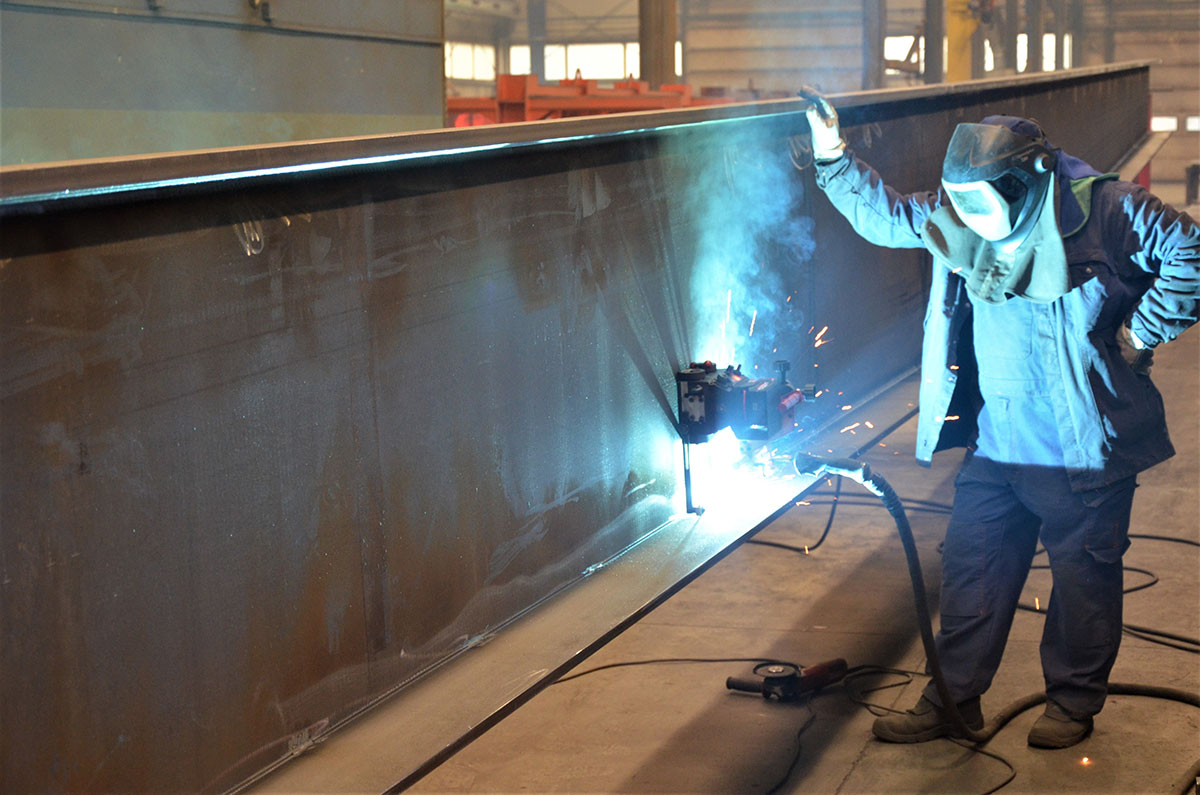

Saldatura continua

dual-torch-welding

Saldatura a doppia torcia

horizontal-speed

Velocità orizzontale

0 - 110 cm/min

dual-arc-ignition

Accensione a doppio arco

warranty-tractors

Saldatura continua

Saldatura a doppia torcia

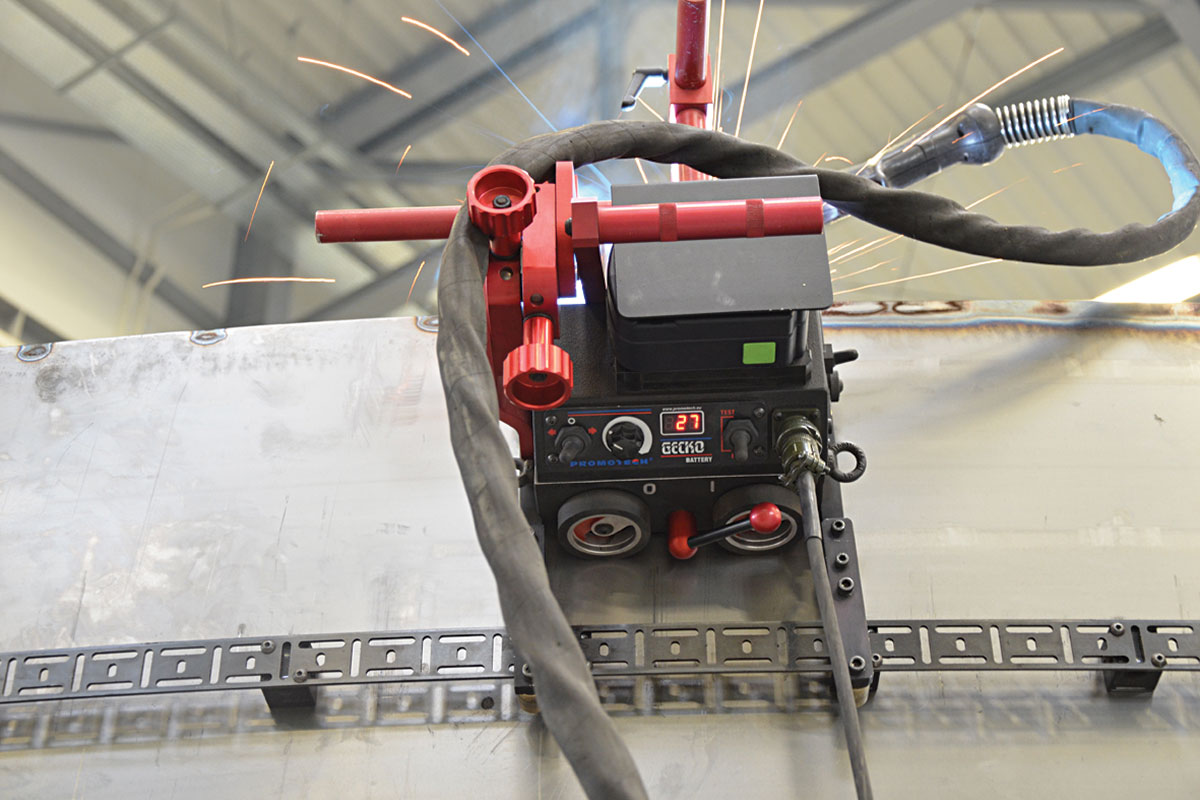

Rotaia multi-superficie con facile regolazione della posizione del carrello

Sistema di controllo della velocità a circuito chiuso che stabilizza la velocità di avanzamento per ridurre i difetti di saldatura e costose rilavorazioni

Regolazione precisa della torcia tramite slitta a croce

Saldatura di superfici concave e convesse

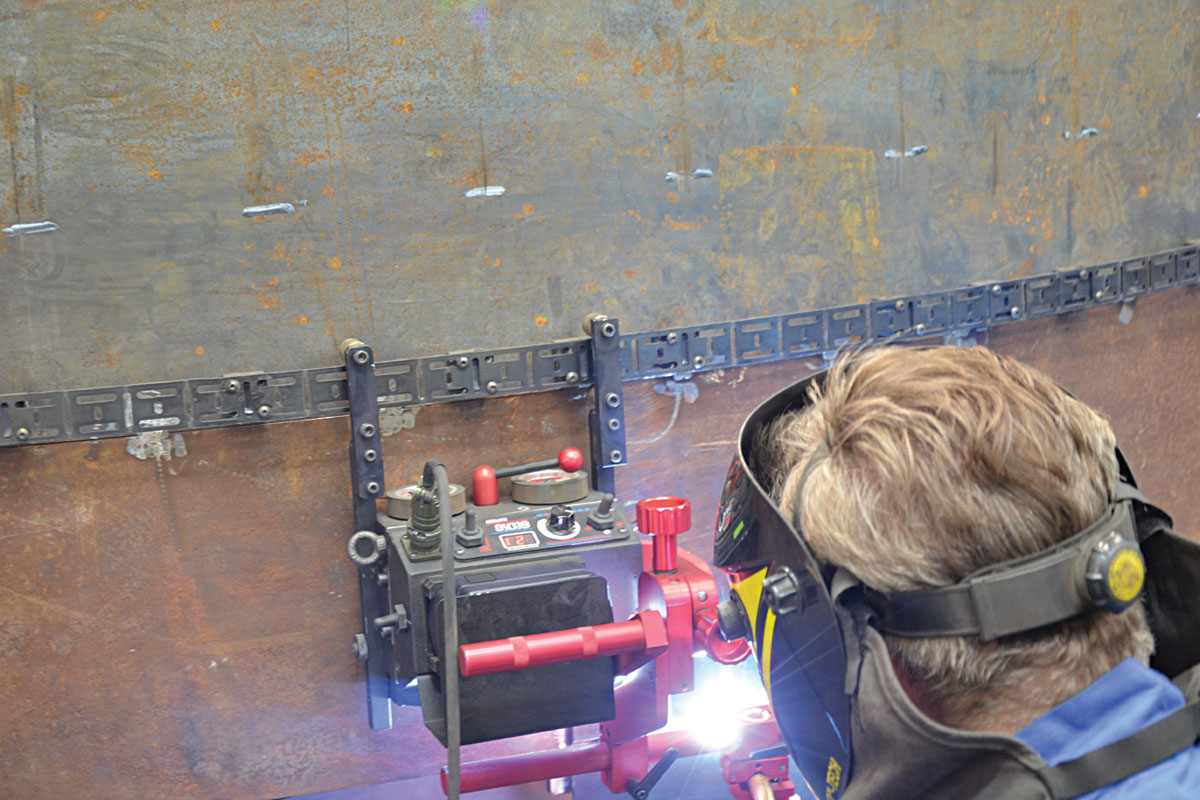

Saldature in posizioni verticali

Tensione 18 V DC, 5.2 Ah
Posizione di saldatura (secondo EN ISO 6947 e AWS/ASME) PA / 1F / 1G PB / 2F PC / 2G PD / 4F PE / 4G
Diametro della torcia 16–22 mm (0,63–0,87’’); fino a 35 mm (1,38”) opzionale16–22 mm (0,63–0,87’’)
Raggio minimo di curvatura della superficie d’appoggio 1000 mm (3.5 ft)
Spessore minimo del pezzo da lavorare 4 mm (0.16”)
Distanza tra base dell’apparecchio e superficie d’appoggio 4 mm (0.16”)
Forza di trazione orizzontale 150 N
Campo di regolazione della slitta trasversale 0–35 mm (0–1,38’’) su-giù, sinistra-destra
Velocità orizzontale* 0–110 cm/min (0–43.3 in/min)
Peso 8.6 kg (19 lbs)
Memorizzazione delle impostazioni di saldatura 1 (ultimo utilizzo)
* Con batteria completamente carica

Risultati: 49

Filtri applicati:

Nessun risultato trovato. Prova a modificare i filtri o il termine di ricerca.

  • Battery LiHD 18 V 4.0 Ah
    AKM-0738-10-00-01-0 Battery LiHD 18 V 4.0 Ah
    • LiHD battery packs
    • battery pack voltage: 18 V
    • Intelligent battery management for long-lasting battery packs
    • too low and too high voltage
    • too low and too high temperature
    • failure of the temperature sensor
    • internal battery failure
    • battery pack capacity: 4.0 Ah
    • energy: 72 Wh
    • weight: 580 g
  • Magnetic block for 36 mm wide flexible track
    BLO-0466-68-00-00-0 Magnetic block for 36 mm wide flexible track
    • sold in bulk packaging of 10 pieces
  • Bracket for vacuum modular unit for 160 mm wide flexible track
    DYS-0466-71-04-00-0 Bracket for vacuum modular unit for 160 mm wide flexible track
    • enables mounting of vacuum modular unit
  • Bracket for magnetic units for 160 mm wide flexible track
    DYS-0466-71-05-00-0 Bracket for magnetic units for 160 mm wide flexible track
    • enables mounting of magnetic unit, heat-resistant magnetic unit, pivoting magnetic unit, spacing-adjustable magnetic unit
  • Bracket for narrow magnetic unit for 160 mm wide flexible track
    DYS-0466-71-07-00-0 Bracket for narrow magnetic unit for 160 mm wide flexible track
    • enables mounting of narrow magnetic unit
  • Start-Stop arc ignition cable 6.5 m
    KBL-0466-17-00-00-0 Start-Stop arc ignition cable 6.5 m
    • length: 6.5 m (21 ft)
    • 4-pin female connector (inlet)
    • 2 pairs of colour-coded wires with male and female connectors
    • enables connection of 2 welders
  • Start-Stop arc ignition cable 13 m
    KBL-0466-17-00-04-0 Start-Stop arc ignition cable 13 m
    • length: 13 m (42 ft)
    • 4-pin female connector (inlet)
    • 2 pairs of colour-coded wires with male and female connectors
    • enables connection of 2 welders
  • Stainless steel drive wheel for GECKO family and SCORPIO Battery
    KOL-0466-72-00-00-0 Stainless steel drive wheel for GECKO family and SCORPIO Battery
    • diameter: 60 mm
    • made of stainless steel
  • Standard drive wheel for GECKO family and SCORPIO Battery
    KOL-0752-01-04-00-0 Standard drive wheel for GECKO family and SCORPIO Battery
    • diameter: 60 mm
    • increased heat-resistant silicone coating
  • OSC-8 PRO support for GECKO family
    KTW-0805-99-01-00-0 OSC-8 PRO support for GECKO family
    • enables mounting of the OSC-8 PRO oscillator with any tractor from the GECKO family
    • incl. two screws M6 x 14
  • Quick Charger ASC 145, "AIR COOLED"
    LDW-0738-10-00-30-0 Quick Charger ASC 145, "AIR COOLED"
    • EU plug
    • battery pack voltage: 12-36 V
    • output rating: 145 W
    • max. charging current: 8 A
    • weight: 551 g
    • the battery packs are charged up to 4x faster than with an entry level charger
    • patented “AIR COOLED” charging technology for short charging times thanks to cooling the battery pack
    • charging time:
    • ~ 30 min (4.0 Ah)
    • ~ 41 min (5.5 Ah)
    • ~ 74 min (10.0 Ah)

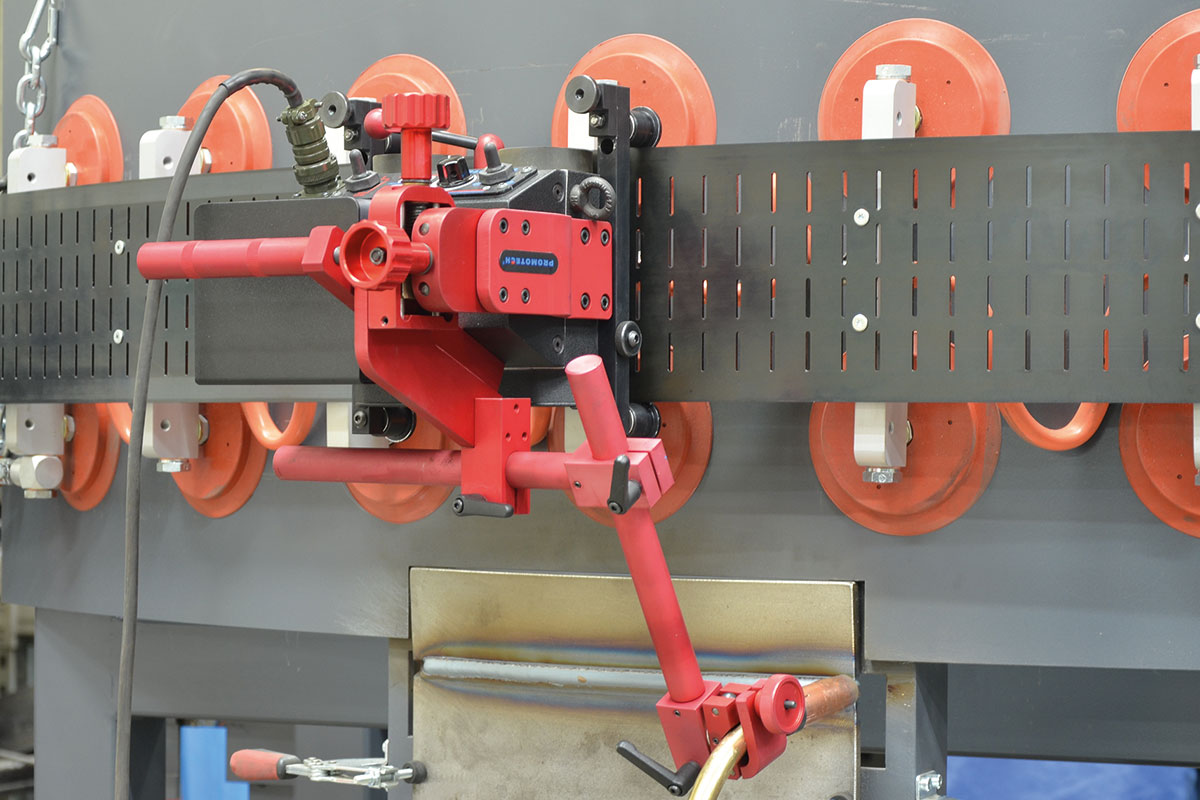

  • Vacuum modular unit
    MST-0541-10-02-00-0 Vacuum modular unit
    • allows clamping tracks on both non-ferrous and ferromagnetic materials
    • maximum holding force up to 1400 N
    • consists of 2 vacuum pads and manifold block
    • requires bracket DYS-0541-11-01-00-0 for hi-flex track and semi-flexible track
    • requires bracket DYS-0466-71-04-00-0 for 160 mm wide flexible track
    • depending on purpose-built configurations can function as entry, middle, extension or end vacuum unit (see Vacuum System at pages 30-31)
  • Narrow magnetic unit with hexagon
    PDS-0582-10-00-02-0 Narrow magnetic unit with hexagon
    • allows clamping tracks to ferromagnetic surfaces and very close to their edges
    • maximum holding force up to 1500 N
    • intermediate position (between OFF/ON) with partial holding force helps to adjust the right track position
    • requires bracket DYS-0582-10-00-00-0 for hi-flex track and semi-flexible track
    • requires bracket DYS-0466-71-07-00-0 for 160 mm wide flexible track
  • Dual torch mount
    PDT-0466-40-00-00-0 Dual torch mount
    • max web height - 370 mm
    • max web thickness - 75 mm
  • Torch extension arm for GECKO family and LIZARD
    PRD-0466-43-00-00-0 Torch extension arm for GECKO family and LIZARD
    • block for attaching to tractor with 4 screws M5 x 16
    • rod 380 mm long / 22.2 mm OD
    • block with two holes 22.2 mm ID
    • rod 150 mm long/ 22.2 mm OD
    • block for attaching the cross-slide
    • increases the reach of the torch
    • enables repositioning and moving the cross-slide away from the tractor
  • Edge following guide arms 15 x 15 mm (set of 2 pcs)
    PRW-0466-41-00-00-1 Edge following guide arms 15 x 15 mm (set of 2 pcs)
    • cross-section: 15 mm x 15 mm
  • Rotaia flessibile larga 36 mm
    PRW-0466-50-01-01-0 Rotaia flessibile larga 36 mm
    • length: 1.85 m (6 ft)
    • min. curvature radius: 1.0 m (3.3 ft)
    • requires magnetic blocks BLO-0466-68-00-00-0
  • Rotaia flessibile larga 160 mm
    PRW-0466-71-00-00-0 Rotaia flessibile larga 160 mm
    • length: 1.88 m (6.1 ft)
    • min. curvature radius: 1.25 m (4.1 ft)
    • enables various configurations (see suitable accessories below)
  • Adjustable guide arms 15 x 15 mm (set of 2 pcs)
    PRW-0752-10-00-00-1 Adjustable guide arms 15 x 15 mm (set of 2 pcs)
    • cross-section: 15 mm x 15 mm
  • Magnet guide arms 15 x 15 mm (set of 2 pcs)
    PRW-0752-11-00-00-1 Magnet guide arms 15 x 15 mm (set of 2 pcs)
    • cross-section: 15 mm x 15 mm
  • Low guide arms 15 x 15 mm (set of 2 pcs)
    PRW-0752-12-00-00-1 Low guide arms 15 x 15 mm (set of 2 pcs)
    • cross-section: 15 mm x 15 mm
  • High guide arms 15 x 15 mm (set of 2 pcs)
    PRW-0752-13-00-00-1 High guide arms 15 x 15 mm (set of 2 pcs)
    • cross-section: 15 mm x 15 mm
  • Following guide arms 15 x 15 mm for 36 mm wide flexible track (set of 2 pcs)
    PRW-0752-14-00-00-1 Following guide arms 15 x 15 mm for 36 mm wide flexible track (set of 2 pcs)
    • cross-section: 15 mm x 15 mm
  • Guide arm screw short 30 mm
    SRB-0466-10-00-00-0 Guide arm screw short 30 mm
    • length: 30 mm
    • knurled nut
    • for guide arms with cross-section 15 mm x 15 mm
  • Isolation tube for welding torch
    TLJ-0419-04-02-03-0 Isolation tube for welding torch
    • insulation tube 22.2 mm OD/15 mm ID
  • Long rod torch holder with clip 16-22 mm
    UCW-0466-22-00-00-0 Long rod torch holder with clip 16-22 mm
    • clip for welding torches ranged 16-22 mm OD
    • dowel pin 15 mm OD
    • rod 230 mm long/ 22.2 mm OD
    • clamping block 22.2 mm ID with lever
    • insulation tube 22.2 mm OD/15 mm ID
  • Short low rod torch holder with clip 16-22 mm
    UCW-0476-06-00-00-0 Short low rod torch holder with clip 16-22 mm
    • clip for welding torches ranged 16-22 mm OD
    • dowel pin 15 mm OD
    • low rod 110 mm long/ 22.2 mm OD
    • clamping block 22.2 mm ID with lever
    • insulation tube 22.2 mm OD/15 mm ID
    • for use with, among others, a pendulum oscillator
  • Short rod torch holder with clip 16-22 mm
    UCW-0476-27-00-00-0 Short rod torch holder with clip 16-22 mm
    • clip for welding torches ranged 16-22 mm OD
    • dowel pin 15 mm OD
    • rod 110 mm long/ 22.2 mm OD
    • clamping block 22.2 mm ID with lever
    • insulation tube 22.2 mm OD/15 mm ID
  • Quick-release short rod torch holder with clip 16-22 mm
    UCW-0523-84-00-00-0 Quick-release short rod torch holder with clip 16-22 mm
    • quick-release clip for welding torches ranged 16-22 mm OD
    • swivel cube with grooves
    • spring lock
    • rod 110 mm long/ 22.2 mm OD
  • Long rod torch holder with clamp 16-22 mm
    UCW-0752-07-00-00-0 Long rod torch holder with clamp 16-22 mm
    • clamp for welding torches ranged 16-22 mm OD
    • dowel pin 15 mm OD
    • rod 230 mm long/ 22.2 mm OD
    • clamping block 22.2 mm ID with lever
    • insulation tube 22.2 mm OD/15 mm ID
  • Short rod torch holder with clamp 16-22 mm
    UCW-0754-07-00-00-0 Short rod torch holder with clamp 16-22 mm
    • clamp for welding torches ranged 16-22 mm OD
    • dowel pin 15 mm OD
    • rod 110 mm long/ 22.2 mm OD
    • clamping block 22.2 mm ID with lever
    • insulation tube 22.2 mm OD/15 mm ID
  • Guide adjustment tool for 36 mm wide flexible track
    UST-0466-53-00-00-0 Guide adjustment tool for 36 mm wide flexible track
    • enables proper parallel alignment of 36 mm flexible track against an outside edge or groove
  • Long rod clamp
    WLK-0466-04-10-00-0 Long rod clamp
    • rod 230 mm long/ 22.2 mm OD
    • clamping block 22.2 mm ID with lever
    • insulation tube 22.2 mm OD/15 mm ID
  • Short rod clamp
    WLK-0476-20-01-00-0 Short rod clamp
    • rod 110 mm long/ 22.2 mm OD
    • clamping block 22.2 mm ID with lever
    • insulation tube 22.2 mm OD/15 mm ID
  • Aluminium support for 160 mm wide flexible track
    WSP-0466-71-03-00-0 Aluminium support for 160 mm wide flexible track
    • suitable only for 160 mm wide flexible track when equipped with vacuum modular units
  • Steel support for 160 mm wide flexible track
    WSP-0466-71-06-00-0 Steel support for 160 mm wide flexible track
    • suitable only for 160 mm wide flexible track when equipped with magnetic units
  • Quick-release torch clip 16-22 mm
    ZCS-0270-42-00-00-0 Quick-release torch clip 16-22 mm
    • clip for welding torches ranged 16-22 mm OD
    • quick-release mount
  • Standard torch holder incl. clamp 28-35 mm
    ZCS-0475-28-10-00-0 Standard torch holder incl. clamp 28-35 mm
    • clamp for cutting torches ranged 28-35 mm OD
    • dowel pin 22.2 mm OD
  • Torch clip 16-22 mm
    ZCS-0476-06-01-00-0 Torch clip 16-22 mm
    • clip for welding torches ranged 16-22 mm OD
    • dowel pin 15 mm OD
  • Torch clamp 22-35 mm
    ZRZ-0466-19-00-00-0 Torch clamp 22-35 mm
    • clamp for welding torches ranged 22-35 mm OD
    • dowel pin 15 mm OD
  • Torch clamp 16-22 mm
    ZRZ-0752-07-01-00-0 Torch clamp 16-22 mm
    • clamp for welding torches ranged 16-22 mm OD
    • dowel pin 15 mm OD
  • Cross-slide 0-35 mm both up-down and left-right
    ZSP-0466-14-00-00-0 Cross-slide 0-35 mm both up-down and left-right
    • 0-35 mm up and down adjustment
    • 0-35 mm left and right adjustment
  • Extended cross-slide 0-76 mm
either up-down or left-right
    ZSP-0466-46-00-00-1 Extended cross-slide 0-76 mm either up-down or left-right
    • 0-75 mm extended adjustment in the preferred axis
    • 0-35 mm adjustment in the second axis
    • the axis setting depends on the cross-slide mounting position
  • Pivoting magnetic unit
    ZSP-0475-85-00-00-0 Pivoting magnetic unit
    • allows clamping tracks to flat, concave or convex ferromagnetic surfaces and pipes ID of at least 800 mm (31.5″)
    • may also be fixed on surfaces that differ in height up to 80 mm (3.1’’)
    • maximum holding force up to 2500 N
    • intermediate position (between OFF/ON) with partial holding force helps to adjust the right track position
    • requires bracket DYS-0482-19-00-00-0 for hi-flex track and semi-flexible track
    • requires bracket DYS-0482-21-00-00-0 for rigid track
    • requires bracket DYS-0466-71-05-00-0 for 160 mm wide flexible track
  • Magnetic unit
    ZSP-0475-92-00-00-0 Magnetic unit
    • allows clamping tracks to ferromagnetic surfaces
    • maximum holding force up to 2500 N
    • intermediate position (between OFF/ON) with partial holding force helps to adjust the right track position
    • requires bracket DYS-0482-19-00-00-0 for hi-flex track and semi-flexible track
    • requires bracket DYS-0482-21-00-00-0 for rigid track
    • requires bracket DYS-0466-71-05-00-0 for 160 mm wide flexible track
  • Heat-resistant magnetic unit
    ZSP-0475-93-00-00-0 Heat-resistant magnetic unit
    • suitable for working on more heated ferromagnetic surfaces
    • maximum holding force up to 2500 N
    • intermediate position (between OFF/ON) with partial holding force helps to adjust the right track position
    • requires bracket DYS-0482-19-00-00-0 for hi-flex track and semi-flexible track
    • requires bracket DYS-0482-21-00-00-0 for rigid track
    • requires bracket DYS-0466-71-05-00-0 for 160 mm wide flexible track
  • Spacing-adjustable magnetic unit
    ZSP-0523-19-00-00-0 Spacing-adjustable magnetic unit
    • allows clamping tracks to ferromagnetic pipes with diameters of 25-230 mm (1-9’’) and the distance between pipe axes of 170-230 mm (6.7-9.1’’)
    • maximum holding force up to 2500 N
    • intermediate position (between OFF/ON) with partial holding force helps to adjust the right track position
    • requires bracket DYS-0482-19-00-00-0 for hi-flex track and semi-flexible track
    • requires bracket DYS-0482-21-00-00-0 for rigid track
    • requires bracket DYS-0466-71-05-00-0 for 160 mm wide flexible track
  • Following guide arms for 160 mm wide flexible track (set of 2 pcs)
    ZST-0466-69-00-00-0 Following guide arms for 160 mm wide flexible track (set of 2 pcs)
  • Standard guide arms 15 x 15 mm (set of 2 pcs)
    ZST-0752-17-00-00-1 Standard guide arms 15 x 15 mm (set of 2 pcs)
    • cross-section: 15 mm x 15 mm

Casi di studio

Verticale ascendente
machine

GECKO Battery 2 + OSC-8 PRO

country

Italia

description

Saldatura verticale di precisione con GECKO Battery 2 e oscillatore a pendolo OSC-8 PRO
Applicazione in verticale ascendente:
• Spessore: 30 mm
• Smusso: 60°
• Apertura del giunto: 5 mm
• Filo pieno in acciaio da 1,2 mm
When welding wide grooves or gaps, #oscillation enables wider weld beads with a weaving pattern, covering a larger area more effectively. Multiple layers ensure robust and high-strength joints.
Un carrello per saldatura a batteria con presa per oscillatore non è solo comodo — è anche ergonomico. Con un peso di poco superiore agli 8 kg, questo carrello compatto e portatile può essere facilmente trasportato ovunque.

Richiesta informazioni sul prodotto

Siete interessati a uno dei nostri prodotti? Contattateci utilizzando il modulo sottostante.
