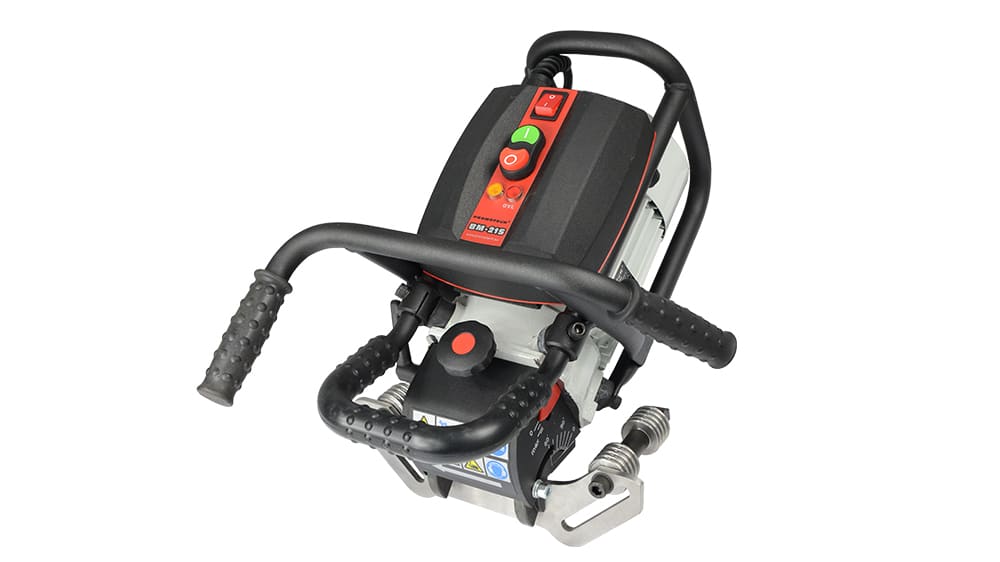

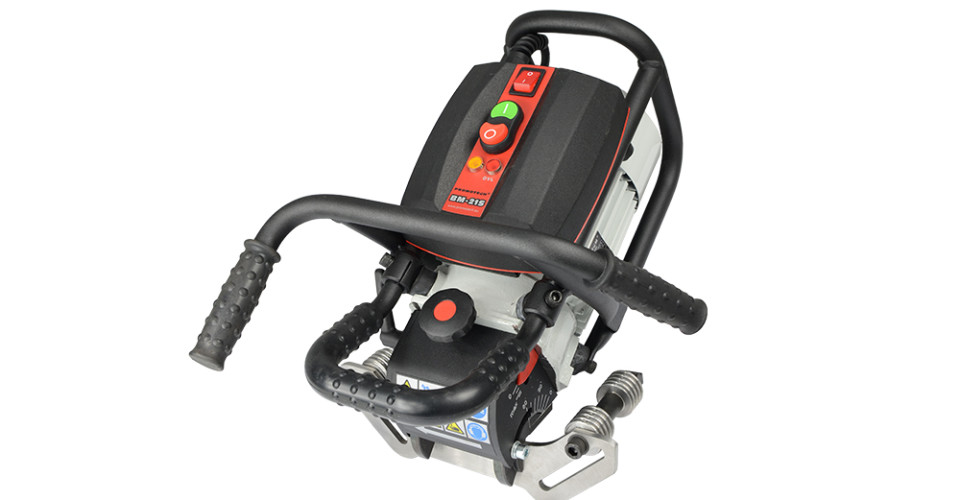

BM-21S | Stainless Steel Plate & Pipe Beveler

The BM-21S beveling machine equipped with a low-speed motor is suitable for milling stainless steel plates and pipes. It can perform bevels up to 21 mm and allows continuously adjustable bevel angles from 0° up to 60°. The BM21S can handle pipes from 150 mm (6″) to 300 mm (12″) in diameter. When equipped with an optional guide, it allows working on pipes with a diameter of more than 300 mm (12″). BM-21S contains an anti-vibration system including specially shaped gripping construction with 4 dampers, enabling more comfortable operation, and minimizing unwanted vibrations.

  • Guide plate with rolls made of stainless steel to protect the workpiece from contamination
  • Monobloc milling head equipped with 10 square inserts to make the machining process far more efficient and much less operator fatiguing
  • easy setting of bevel width up to 21 mm at 45°
  • continuous angle adjustment from 0 to 60 degrees
  • automatic motor overload protection to prevent motor damage
  • quick and simple replacement of cutting inserts
  • one universal guide plate for beveling both plates and pipes
BM-21S | Stainless Steel Plate & Pipe Beveler

Bevelling Angle

Bevel angles 0-60°

Bevelling Width

21 mm

Top Bevelling

Facing off

Pipe beveling

OD 150-300 mm OD 260-600 mm (option)

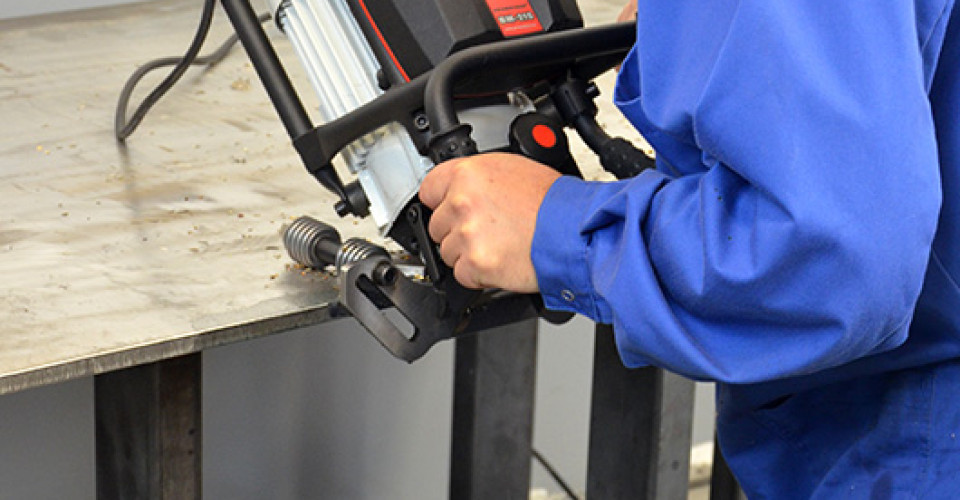

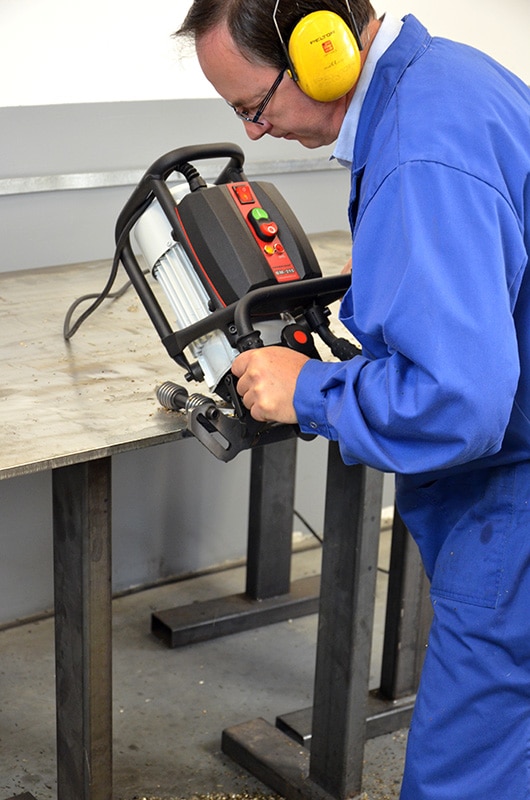

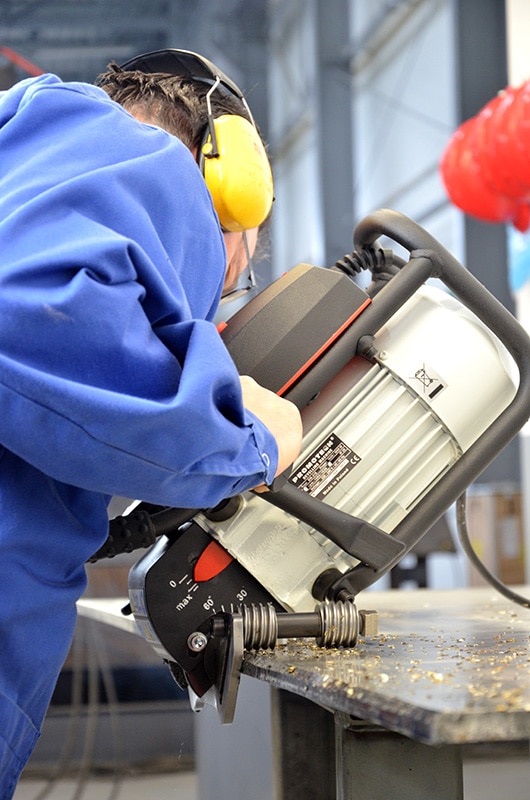

Plate bevelling

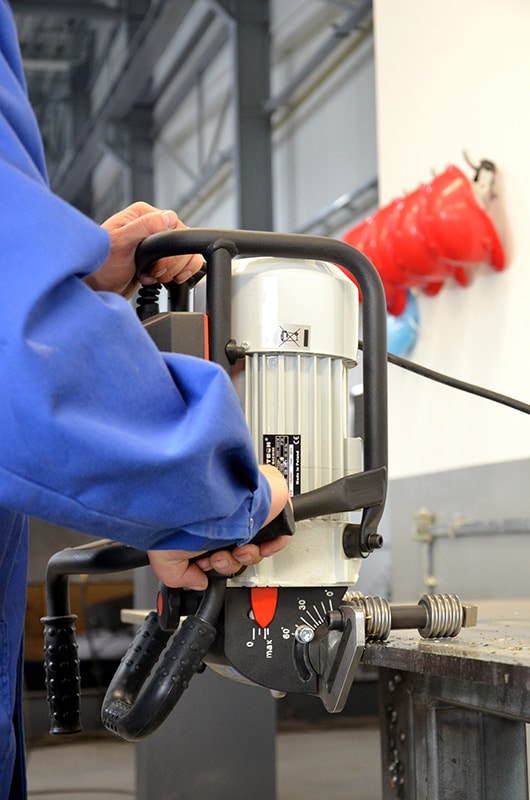

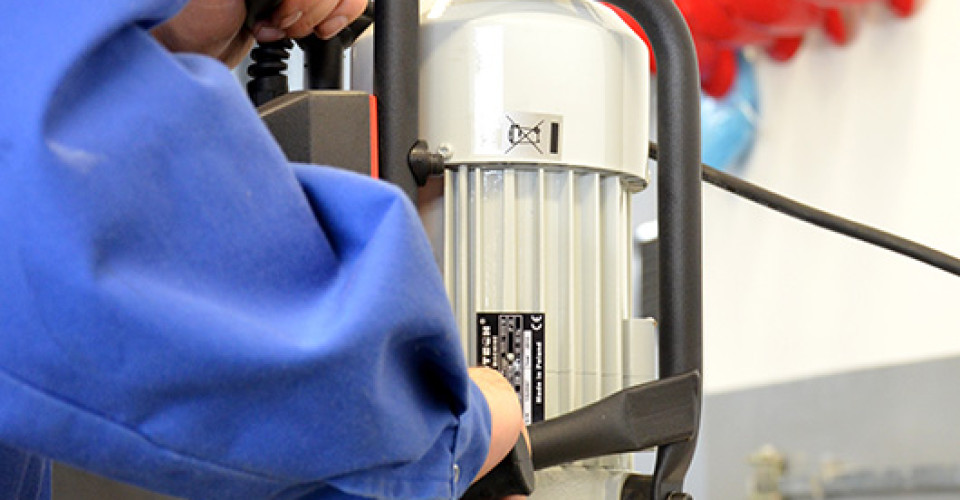

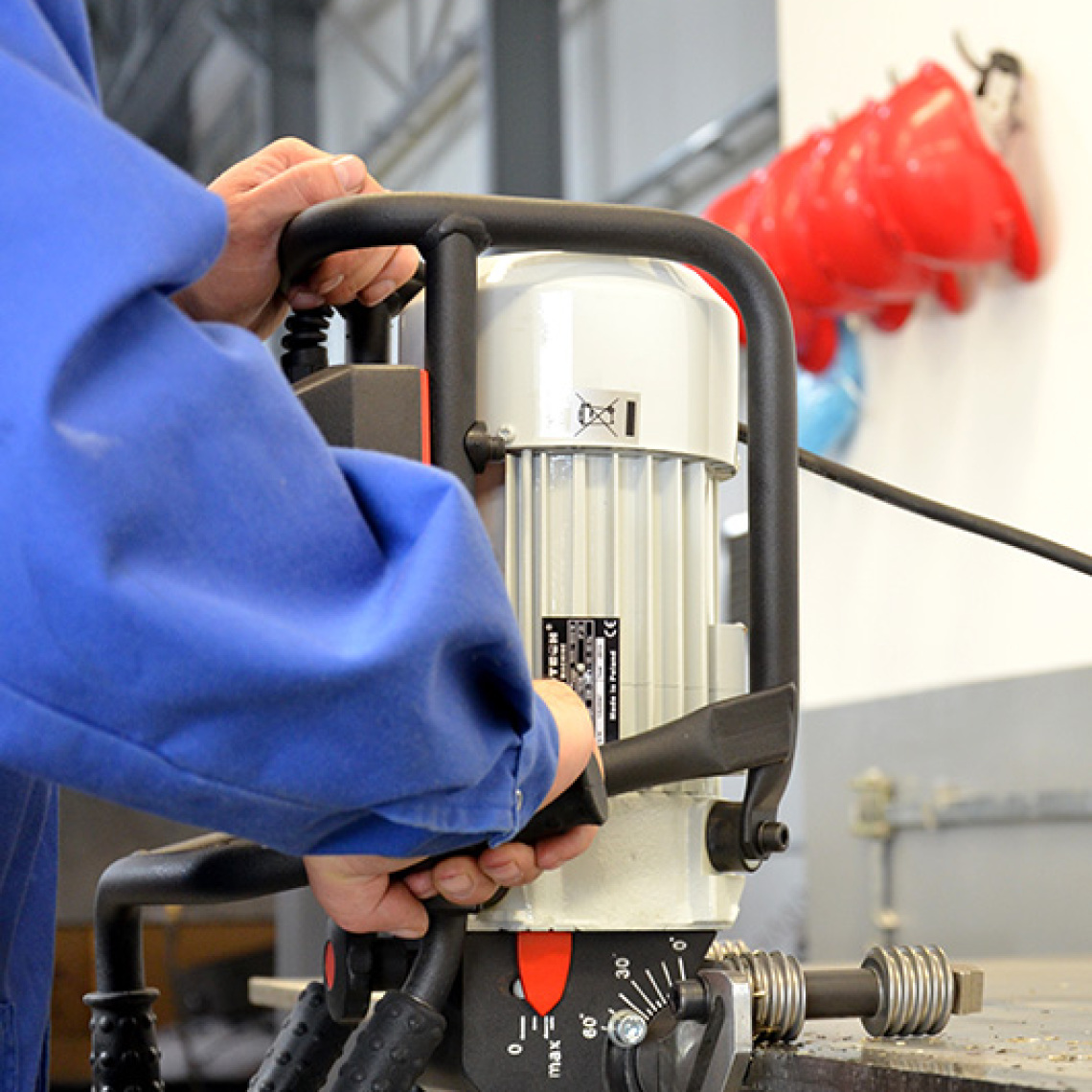

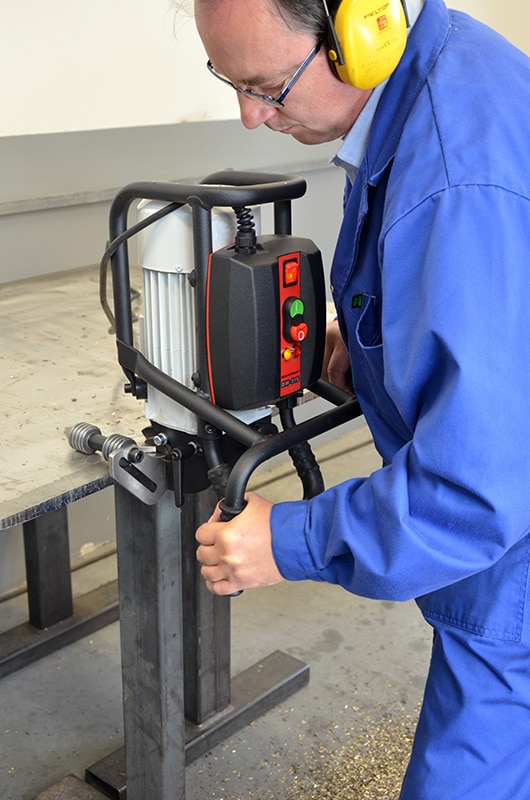

Plate facing-off

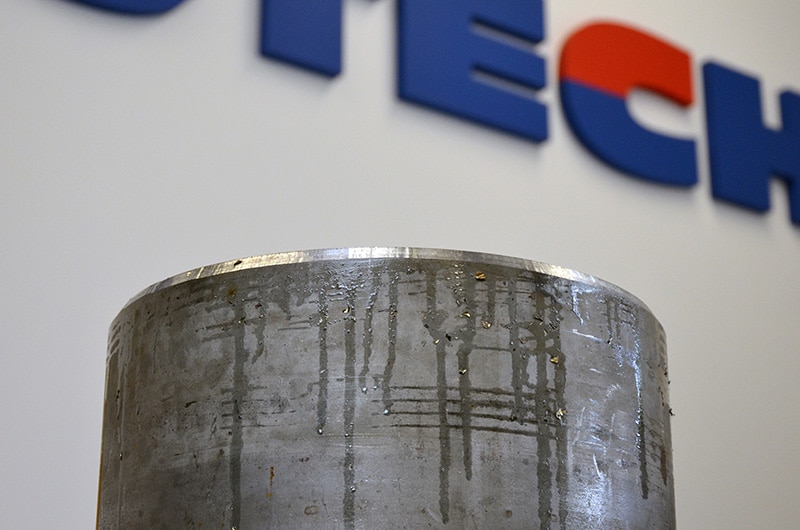

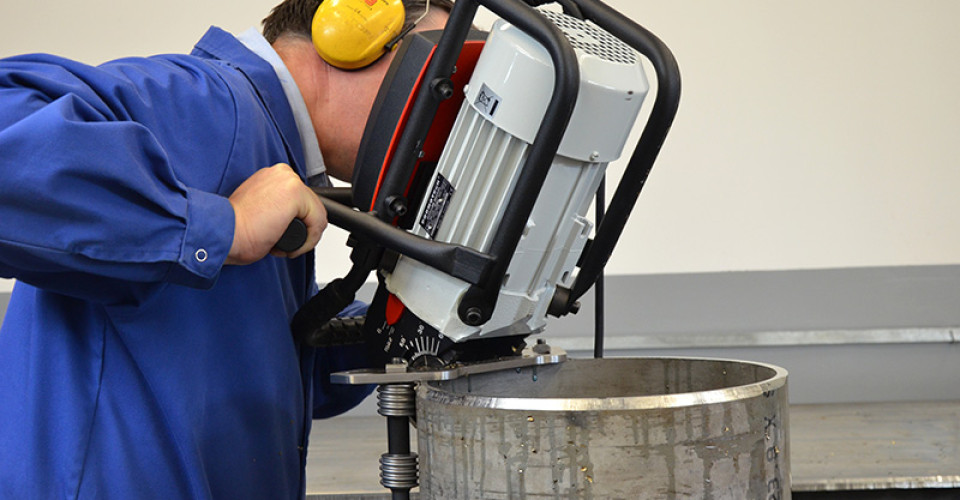

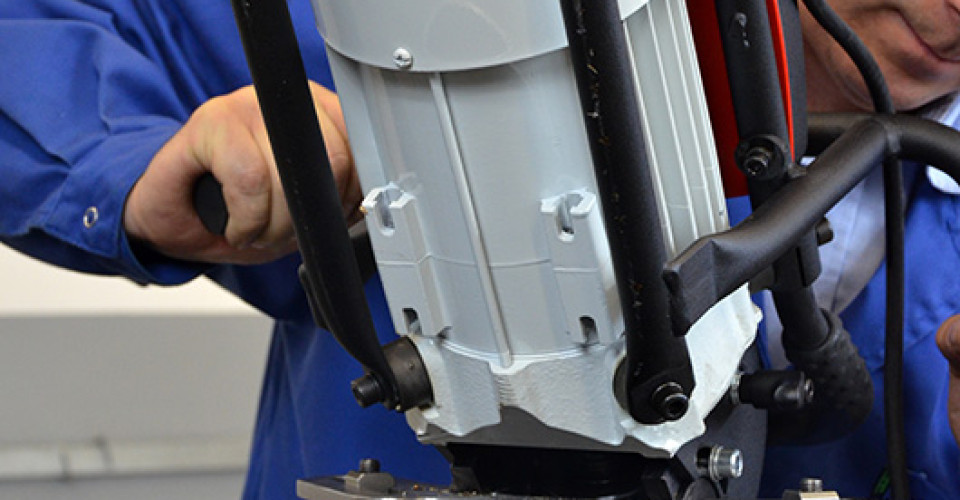

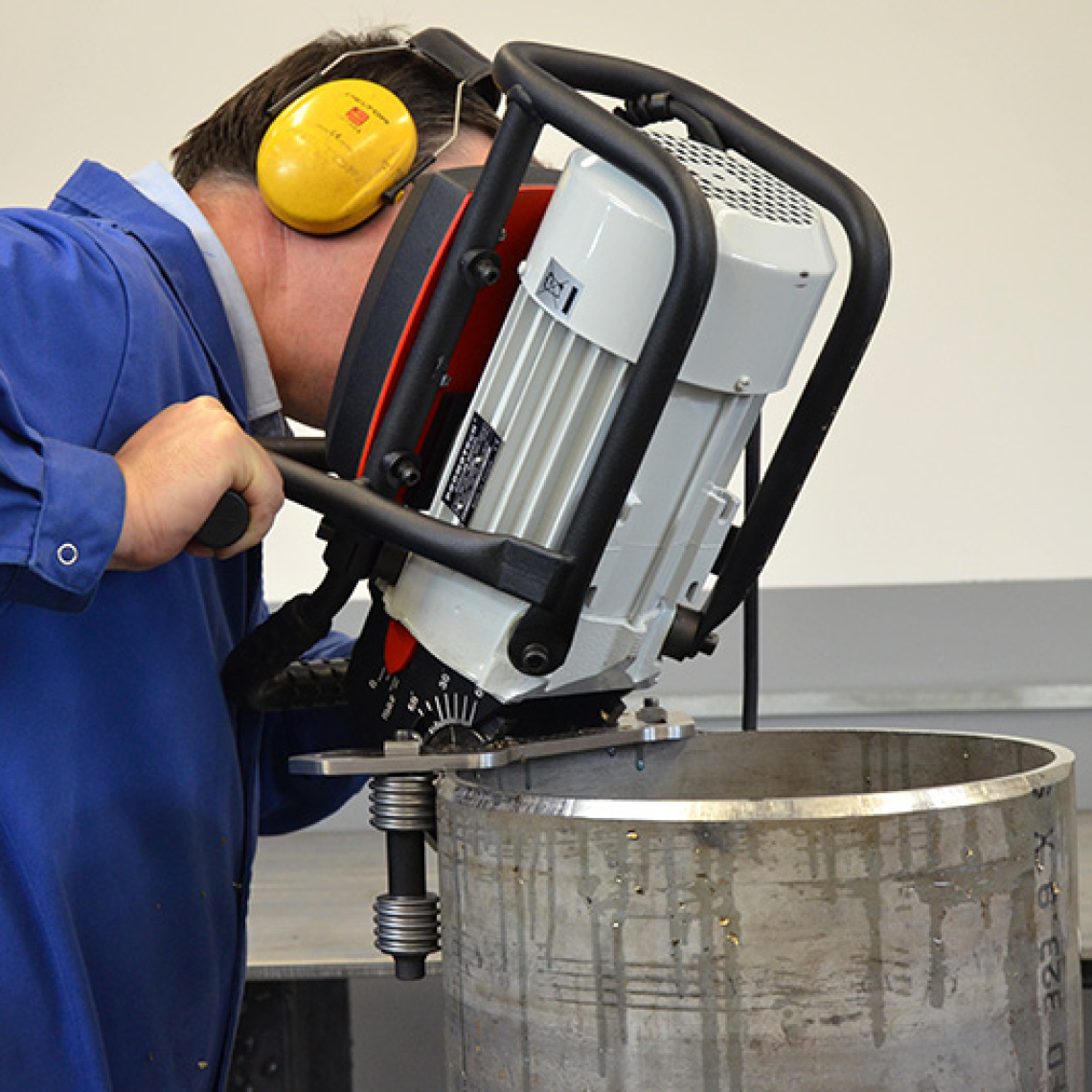

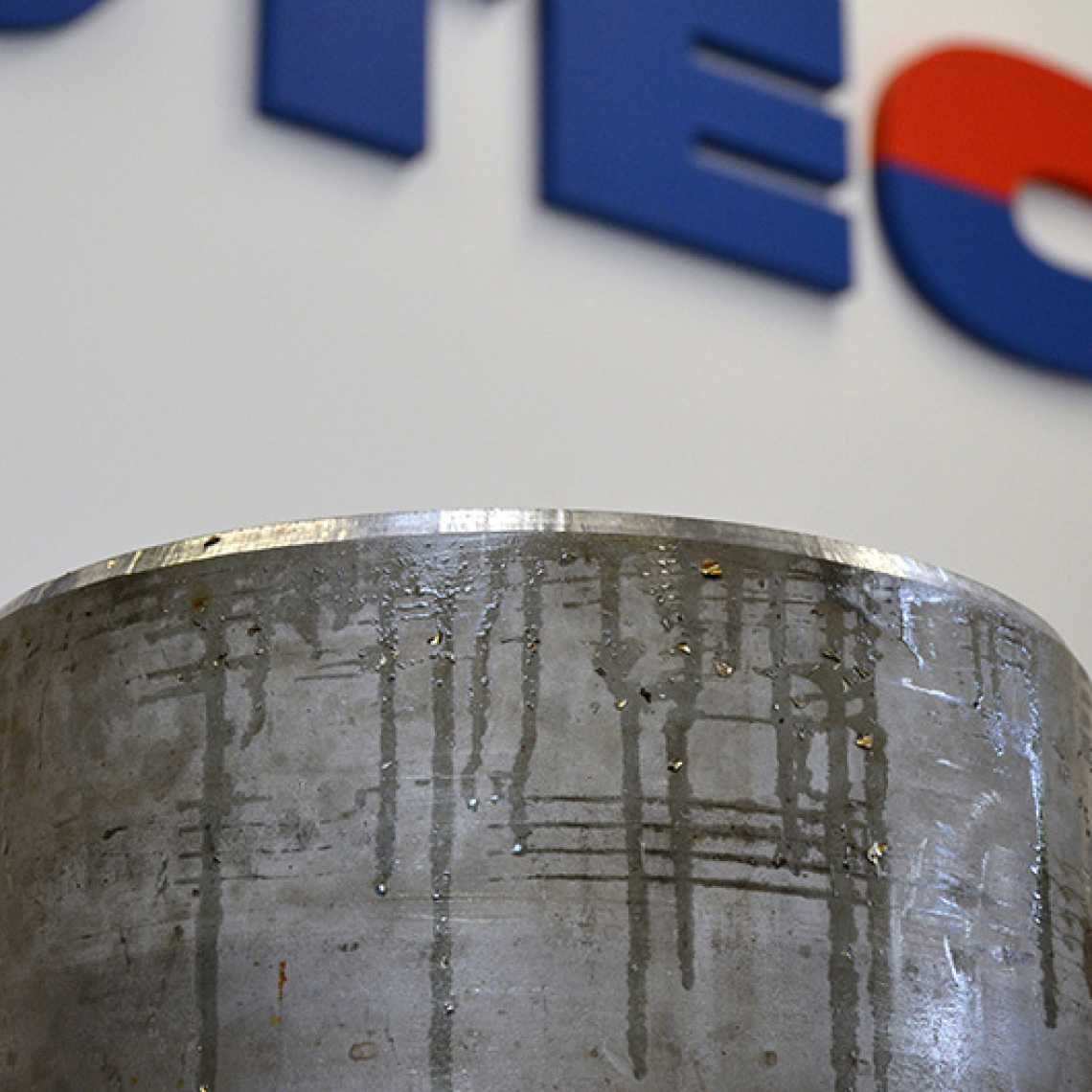

Pipe bevelling

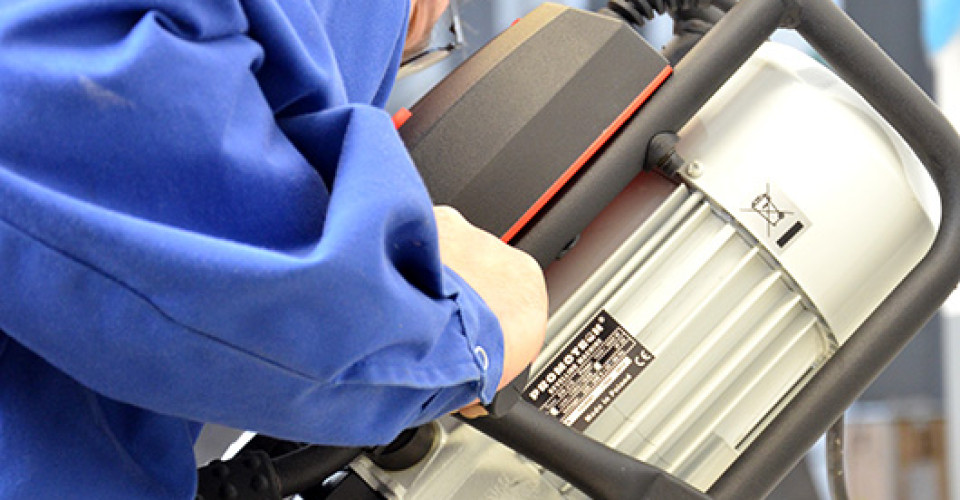

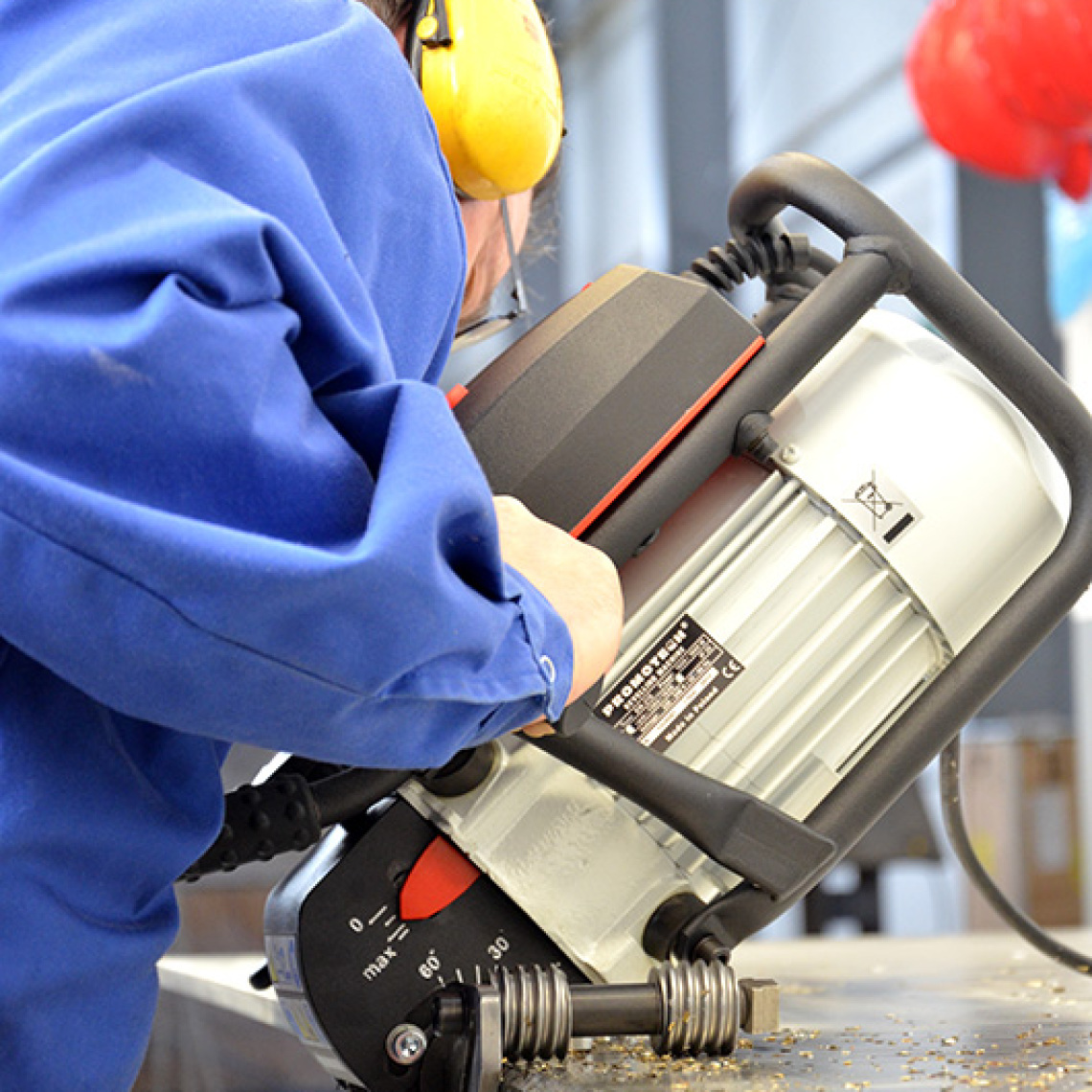

Stainless steel bevelling

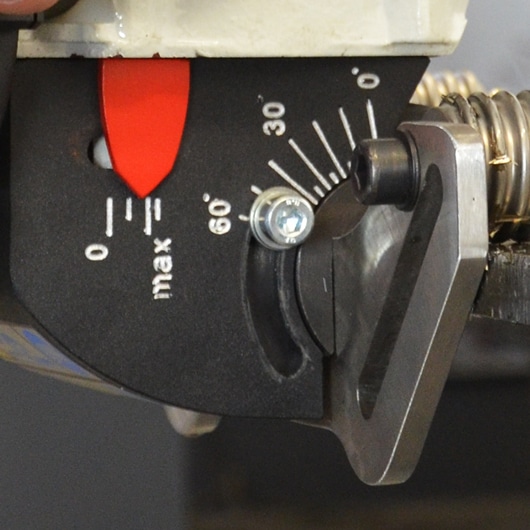

Continuous bevel angle and width adjustment

Mono block milling head

Stainless steel guides for bevelling plates and pipes

Specification

Power Supply230V AC / 50 Hz or 115 V AC / 60 Hz
Induction motorwith increased start-up current
Power1600 W (for 50 Hz); 1800 W (for 60 Hz)
Spindle speed
1360–1630 rpm (at 230 V)
1300–1560 rpm (at 115 V)
Toolingintegrated milling head with 10 square TCT inserts
Beveling angle (β)0-60° with continuous angle adjustment
Max bevel width21 mm (13/16’’)
Weight Approx. 23 kg (51 lbs)
Product Code 220–240 V, 50–60 Hz UKS-0505-10-20-00-0
Product Code 110–120 V, 50–60 HzUKS-0505-10-10-00-0

Drawing 1
Maximum bevel width depending on the angle


3932BM-21S | Stainless Steel Plate & Pipe Beveler

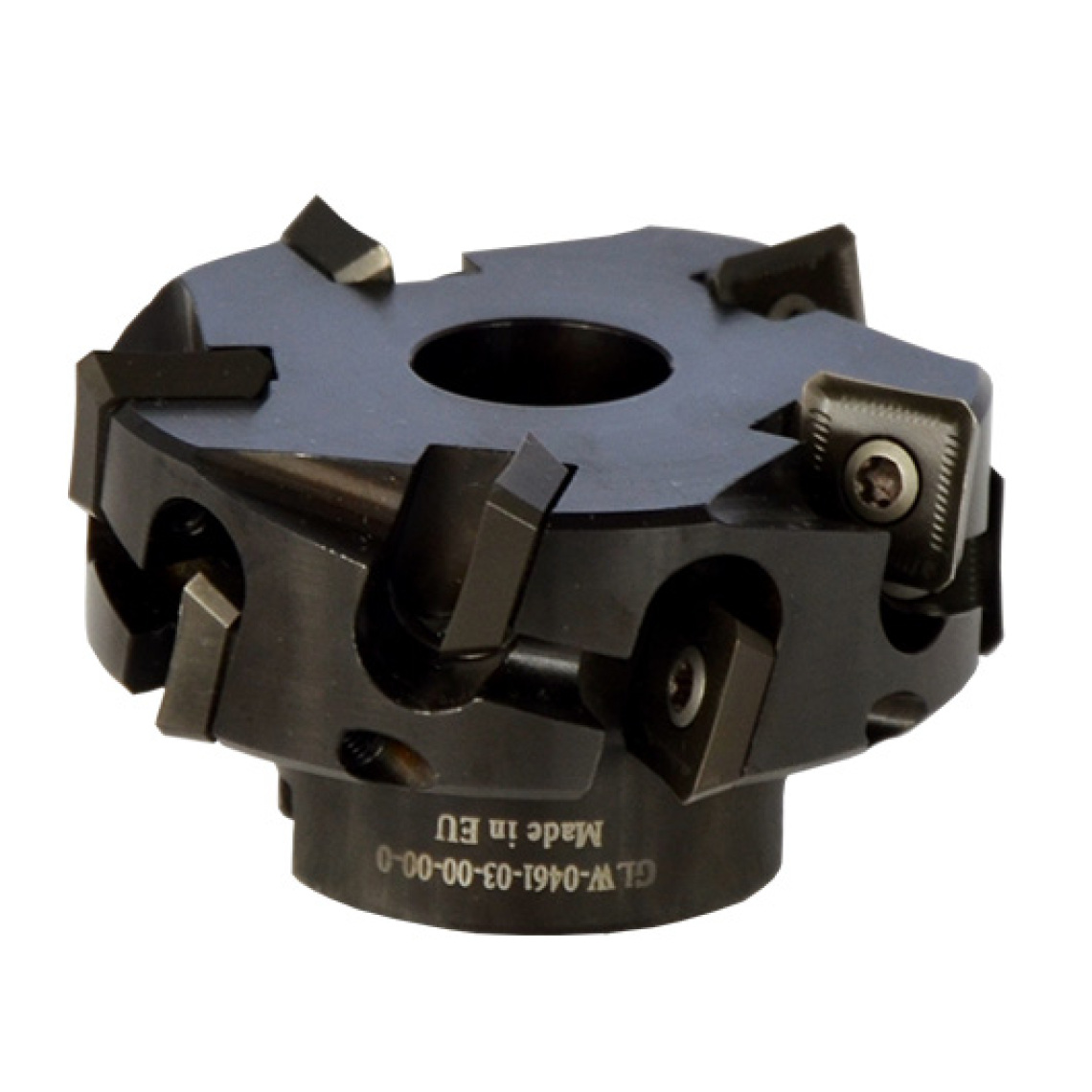

GLW-0461-03-00-00-0 Mono block milling head, with 10 indexable inserts fixed with screws.

Bevelling Accessories

3830BM-21S | Stainless Steel Plate & Pipe Beveler

PLY-000282 Cutting insert for beveling 1pc (sold 10pcs/box)

Bevelling Accessories

3831BM-21S | Stainless Steel Plate & Pipe Beveler

PLY-000591Cutting insert HD for beveling 1pc (sold 10pcs/box)

Bevelling Accessories

3938BM-21S | Stainless Steel Plate & Pipe Beveler

PRW-0505-02-00-00-0 Stainless steel universal guide for plates and pipes

Bevelling Accessories
