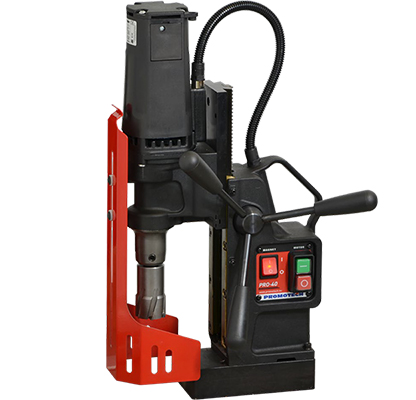

PRO-40

PRO-40 featuring purpose designed motor and 1-speed gear box 440 rpm is optimized to provide appropriate speed for work with HSS cutters up to Ф 40 mm and cylindrical twist drills up to Ф 16 mm. Rigid construction optimized by means of FEA (finite element analysis) software extends tool life.



Send an enquiry
Watch video
Brochure
Core drill
max 40 mm
Twist drill
max 16 mm
Spindle 19 mm (3/4") Weldon
Depth of cut
51 mm
Stroke
160 mm
Speed
440 rpm
Power
1100 W
Weight
12,7 kg

PRO-40 | Features and Benefits

Compact design along with innovative smart magnet with reduced weight make it a lightweight machine. PRO-40 provides maximum holding power on thin materials thanks to Magnetic Field Shape Control (MFSC).
The drill and the operator are protected from work on too thin work piece by means of Magnetic Power Adhesion Control (MPAC). PRO-40 is also equipped with Energy Saving Base (ESB) that uses only 50% of its power when motor is not running.

  • Compact design with excellent ratio weight/power
  • Purpose designed motor
  • Motor Speed 440 rpm (under load)
  • Spindle equipped with Weldon ¾”
  • Innovative smart magnet with reduced weight
  • Rigid design to extend tool life
  • Large stroke enables the use of long tools
  • Motor cable with additional protective cover
  • Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
  • Magnetic Power Adhesion Control (MPAC) detects adhesive force of electromagnetic base and protects both the machine and the operator from work on too thin work piece
  • Energy Saving Base (ESB) uses only 50% of its power when motor is not running

Possible tool configurations of PRO-40

HSS cutters up to Ф 40 mm

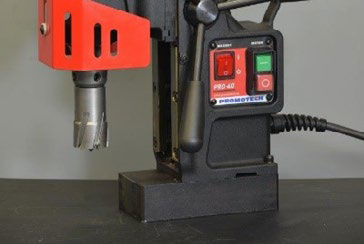

TCT cutters up to Ф 40 mm

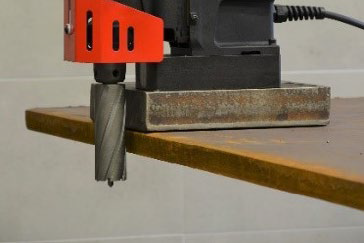

Starting point of drilling up to 50 mm below level of a drill base with 100 mm long cutter

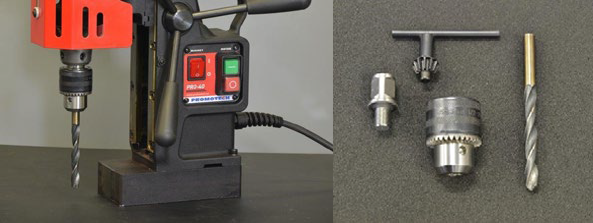

Adapter 3/4” x 1/2” 20 UNF, Drilling chuck 1/2” 20 UNF Twist drills up Ф 11.8 mm (DIN 338)

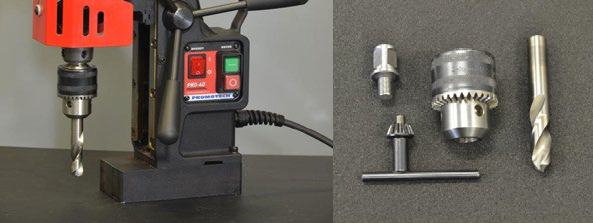

Adapter 3/4” x 1/2” 20 UNF. Drilling chuck 1/2” 20 UNF. Twist drills up to Ф 16.0 mm (DIN 1897)

Brochures

Make sure you are familiar with Promotech PRO-40 | Universal Drilling Machine brochure, including technical data and detailed information about this product. Should you have any further questions, we encourage you to send us an inquiry.

PRO-40 | Practical Mag Drill

Size: 2.1 MB Type: PDF

Drilling & Punching Machines

Size: 3.7 MB Type: PDF

Technical specification

Motor Speeds (under load)440 rpm
Power1100 W
Weight13 kg (28.7 lbs)
Max milling capacity TCT/HSS40/40 mm (1.57"/1.57")
Max drilling capacity16 mm (0.63")
Stroke160 mm (6.3")
Max depth of cut50 mm (2")
Voltage1~ 220–240 V, 50–60 Hz
1~ 110–120 V, 50–60 Hz
MFSC (Magnetic Field Shape Control)yes
MPAC (Magnetic Power Adhesion Control)yes
ESB (Energy Saving Base)yes
Magnetic clamping force1009 kgf (9900 N)
Magnet base dimensions84 × 168 × 41.5 (mm)
3.3 × 6.6 × 1.6 (")
Min. work piece thickness6 mm (1/4")
Spindle19 mm (3/4") Weldon
Tool holder19 mm (3/4") Weldon
Product Code 220–240 V, 50–60 HzWRT-0723-10-20-00-0
Product Code 110–120 V, 50–60 HzWRT-0723-10-10-00-0

Standard shipping set:

  • Drilling machine
  • Plastic box
  • Handle (3pcs)
  • Safety strap
  • Cooling system
  • 2.5 mm hex wrench
  • 5 mm hex wrench
  • 5 mm hex wrench with a handle
  • 8 mm combination wrench
  • Operator’s manual

Selected additional accessories:

  • PDS-0110-03-00-01-0 Pipe attachment DMP 251 for pipes with diameters of 80–250 mm (3–10”)
  • PDS-0111-03-00-01-0 Pipe attachment DMP 501 for pipes with diameters of 150–500 mm (6–20”)
  • TRZ-000027 Adapter Weldon 3/4” x 1/2” 20 UNF
  • UCW-000059 Drilling chuck 1/2” 20 UNF x 1.5–13 mm
  • UCW-000061 Drilling chuck 1/2” 20 UNF x 3–16 mm
  • UKL-0440-16-00-00-0 Pressure cooling system
  • PDS-0587-10-00-00-0 Vacuum pad
  • AGR-0541-10-20-00-0 (230 V CEE) Vacuum pump
  • AGR-0541-10-10-00-0 (115 V UK) Vacuum pump
  • ZSP-0587-11-00-00-0 Compressed air ejector
