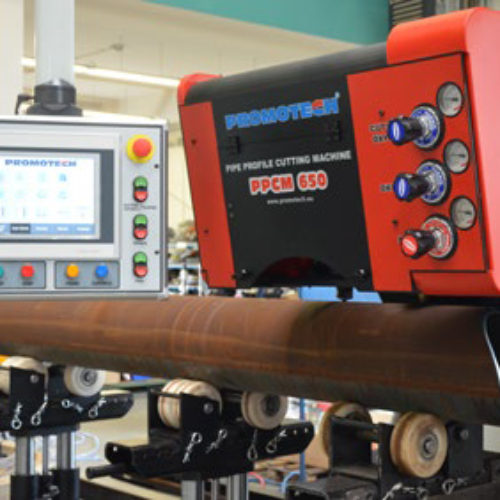

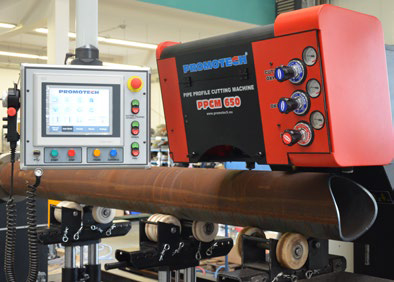

PPCM-650 | Pipe Profile Cutting Machine

PPCM-650

The CNC controlled Pipe Profile Cutting Machine allows 3D cutting/beveling using oxy-fuel or plasma. Advanced design and top quality components enable fast and efficient cutting with top quality results.



Pipe OD 50 to 650 mm (2-26")
Max. pipe length 6 or 12 m
Pipe weight up to
3 000 kg
Wall thickness: 3 – 50 mm
Max. cutting angle: 45 degree
3D Oxy-fuel cutting Acetylene (standard) Propane (option)
3D Plasma cutting (option)
CAD/CAM file transfer thru Lantek Flex 3D Tubes (option)

PPCM-650 | Pipe Profile Cutting Machine

Important Features
The most important feature and advantage of PPCM-650 is its user friendly software including a wide scope of standard macros representing the typical cutting shapes. Integrated library of macros allows for parametric definition of typical pipe joints and fast shape programming on-site directly from machines’ control panel just after a short training. Off-line programming is also possible by means of dedicated PPCM SIM PC software containing the same macros library. Pipe joints can be prepared remotely in the office to keep machine operating, increasing process efficiency and reducing downtime.

  • User friendly software including library of macros for most typical cutting shapes
  • Automatic compensation of cutting speed depending on the material thickness, torch angle and cutting direction for the best cutting quality
  • Heavy duty rigid construction
  • Well proven in most demanding environments
  • Easy access to gas valves
  • Fume exhaust system thru spindle (option)
  • Additional torch to heat up the material (option)

Machines’ software

PPCM-650 software includes a wide scope of standard macros. The macros present the typical cutting shapes and are easily programmable thanks to intuitive menu with necessary pipe parameters.

Typical cutting shapes:

Pipe – plane

Pipe – plane

Pipe–plane with holes for fins

Pipe – planes

Pipe – elbow

Pipe – joint

Rectangular pad

Reinforcement pad

Compound cut

Round hole with bevel

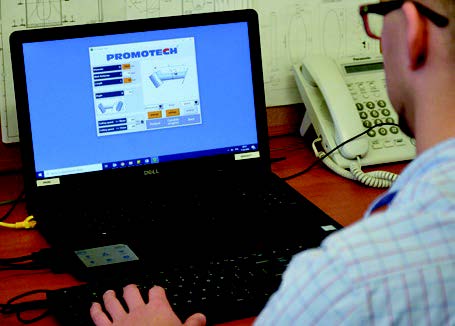

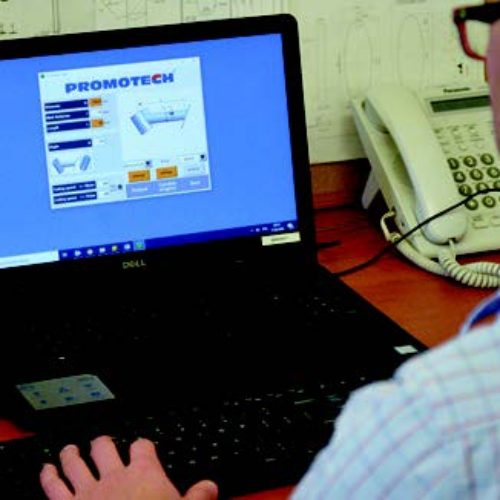

PPCM SIM PC / Off-line programming

Main features of PPCM SIM PC:

  • all the macros from the PPCM library are also available on the PC
  • time efficiency – when the PPCM machine is used for cutting, next project can be prepared on the PC in the meantime
  • easy transfer between PC and PPCM machine using USB stick
  • stand-alone application
  • simple and user-friendly software

Thanks to PPCM standard macros library you can work remotely on your projects.

Online Support

Cable connection or WiFi (option)

Cable connection or WiFi (option)

Compatible with mobile and desktop devices

On-request software updates and machine diagnostics

Lantek Flex 3D Tubes software for CAD/CAM file transfer (option)

I. Import of CAD geometry from external software and acceptance of various file types including Tekla, SAT, STEP, IFC, Excel

II. Designing of tubes and joints using a set of standard shapes or construction them from 2D outlines

III. Visualization of joints and torch path adjustment to optimize weld preparation

IV. Auto Nesting of multiple parts. Lantek automatic nesting system determines the most efficient position of elements to be cut from pipes, thus minimizing waste of material as well as facilitating managing the warehouse of pipes.

Options available upon customers’ requests

II.Oxy-fuel cutting (Propane)
Alternative cutting method that is available on request.

III.Plasma Cutting
We can integrate plasma source preferred by customer.

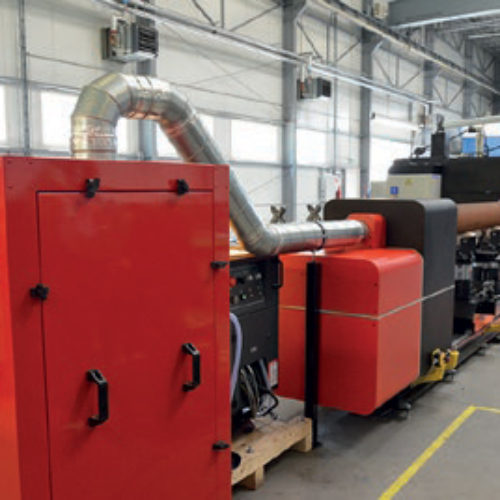

IV.Fume exhaust system
System ST5000N with electric adjustment of dirty air level, combined with PPCM-650 spindle provides customer with effective fume removal of 2200-2500 m3/h.

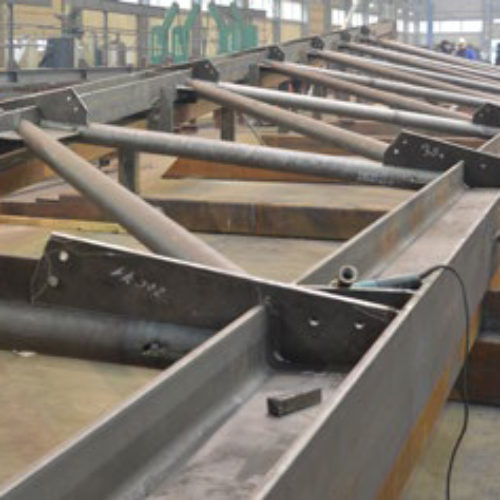

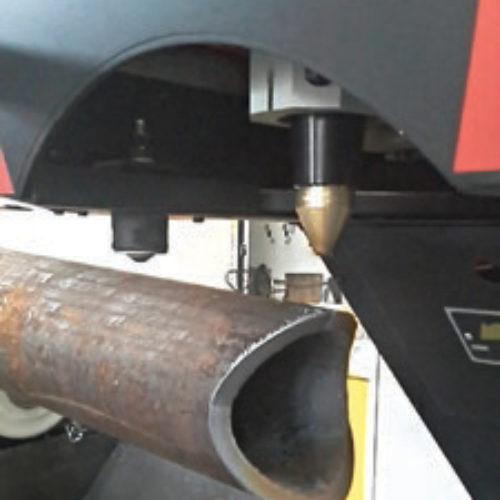

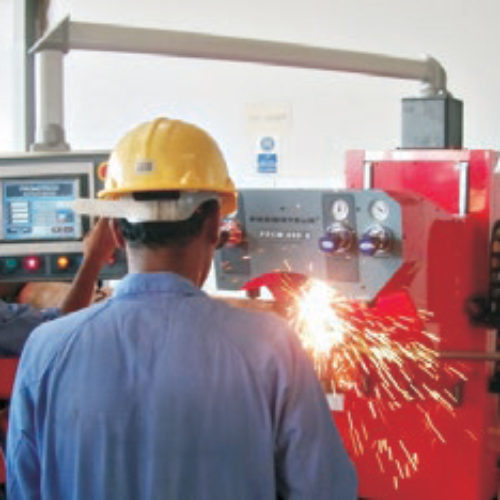

Gallery

Brochures

Make sure you are familiar with Promotech PPCM-1500 | Pipe Profile Cutting Machine brochure including technical data and detailed information about this product. Should you have any further questions we encourage you to send us an enquiry.

Video

PPCM plasma cutting

PPCM runs on Lantek Flex 3D

PPCM 3D Pipe Cutting Machine

PPCM-650 | Pipe Profile Cutting Machine Technical specification

Pipe OD diameter50 - 650 mm (2-26")
Max. pipe length6 or 12 m (19 or 39 ft.)
Pipe weightup to 3 000 kg
Wall thickness3 – 50 mm
Max. cutting angle45 degree
Cutting methodOxy-Acetylene
Oxy-Propane (Option)
Plasma (Option)
Ignition: Oxy-fuel / PlasmaManual / Automatic
Pipe support2 pcs for up to 6-meter long pipes
4 pcs for up to 12-meter long pipes
Additional supports on request
Vertical oval compensation mechanismIncluded
Airconditioning of control cabinetAvailable as Option
Menu languageEnglish, Croatian, Finnish, French, Russian, Turkish
Other languages on request
Fume exhaust systemAvailable as Option
Auto nesting of multiple partsAvailable as Option
Transfer of NC data from CAD:
Tekla files, SAT, STEP, IFC, Excel etc. files thru LANTEK flex 3D
Available as Option
