ABM 50 | Auto feed double-sided beveller

ABM 50

ABM-50 produces accurate high-quality double-sided bevels without thermal distortion or creation of heat affected zone on plate thickness range 8-80 mm (15/16” – 3 1/8”) using a purpose designed milling head with eight 4-sided indexable cutting inserts. Continuously adjustable bevel angle between 15 and 60 degrees (for both top and bottom beveling) requires no tooling to change.



Bevel width
up to 50 mm (2”) / 45°
up to 66 mm (2 5/8”) / 15°
Bevel angles
top 15° - 60°
bottom 15° - 60°
Min plate thickness 8 mm
Max plate thickness 80 mm
Top bevelling
Bottom
bevelling

Key features

  • auto-feed portable beveller
  • real-time measurement and on-screen display of exact bevel geometry and cutting parameters
  • bevel width up to 50 mm (2”) at 45 degrees
  • 180° inversion allows for creation of a double-sided bevel – no need to rotate or flip heavy material reduces material handling costs and improves shop safety
  • variable spindle speed for work on a variety of steel grades and thicknesses

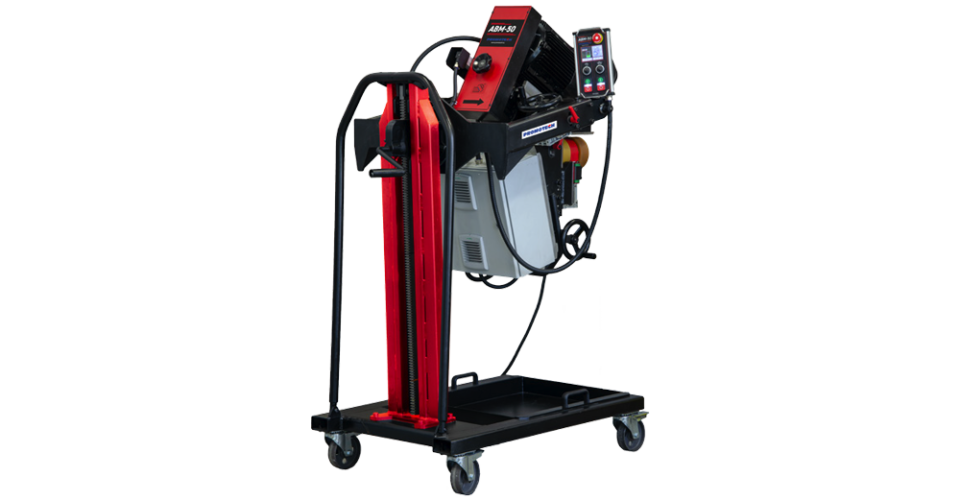

  • versatile and transportable on its own trolley
  • equipped with milling head including 8 replaceable inserts
  • feedback-controlled overload system

ABM-50 features an unique remote control panel with LCD display that shows exact bevel geometry as well as enables precise adjustment of spindle speed and feed speed to optimize them depending on material grade incl. stainless steel, aluminum etc.

The operator can easily adjust and monitor the following parameters:
• bevel angle
• bevel width
• bevel height
• depth of cut
• spindle speed
• feed rate
• spindle load

Precise bevel angle

Precise bevel width

Precise bevel land

Suitable for machining hard materials

• Hardox • Super Duplex • Nickel alloys c22 • Hastelloy c276 • Stainless steel 304,308,316L/Ti etc.

ABM-50 - Machining Hard Materials

ABM 50 - Machine Overview

Precise adjustment of spindle speed and feed rate to optimize cutting conditions depending on material grade including stainless steel, duplex, alloys, hardox and many others.

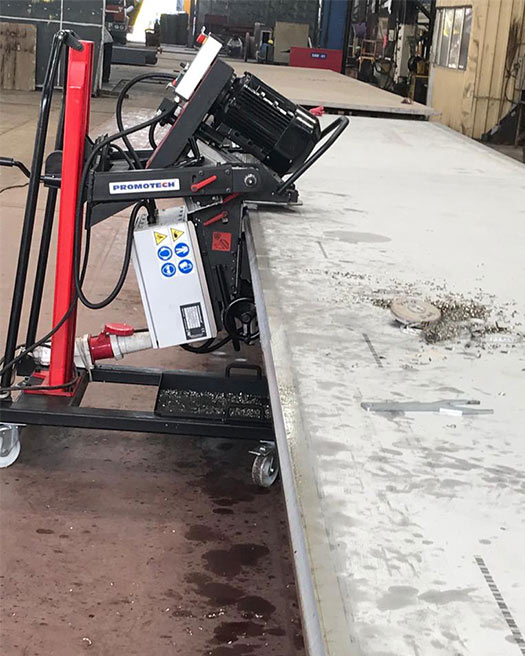

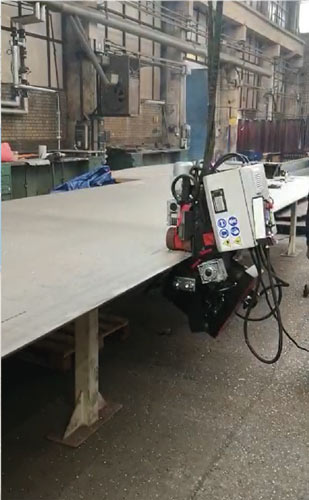

ABM-50 can perform beveling along steel plate’s edge eliminating hard physical work of the operator.

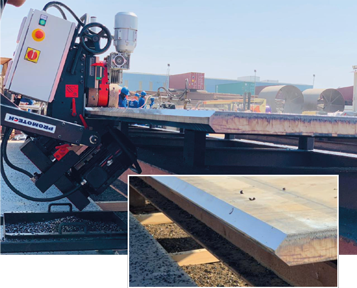

The maximum bevel at 45 degrees is up to 50 mm (2”).

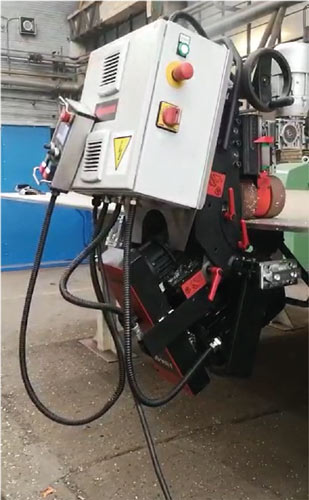

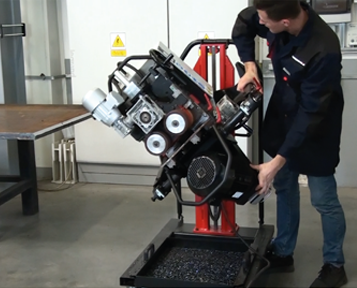

180° inversion of ABM-50 enables a double-sided bevel eliminating the need to turn over long and heavy plates.

ABM-50 can be used without a trolley if needed e.g. when floor surface is uneven significantly.

ABM-50 proved to be reliable and efficient beveller in most demanding working conditions including high temperature and humidity.

Brochures

Make sure you are familiar with Promotech ABM 50 | Auto feed double-sided beveller brochure including technical data and detailed information about this product. Should you have any further questions we encourage you to send us an enquiry.

Machines à Chanfreiner

Size: 3.7 MB Type: PDF

Technical specification

Voltage3~ 400 V + PE, 50/60 Hz
3~ 480 V + PE, 50/60 Hz
Power6.5 kW
Spindle speed ( no load )300–800 rpm
Feed speed0–1.2 m/min (47”/min)
Bevel angle (ß, Fig. 1)
15–60°
Maximum bevel width (b, Fig. 1)50 mm (2”)
Maximum depth of cut (d, Fig. 1) allowed per single pass6 mm (1/4)
Plate thickness8–80 mm (5/16–3-1/8”)
Required ambient temperature0–40 °C (34–104°F)
Weight320 kg (700 lbs)
Product Code:UKS-0627-10-40-00-0

βb
15°66 mm
30°52 mm
45°50 mm
60°
51mm

Accessories

Milling head (8 cutting inserts required)
Product code: GLW-000051

Cutting insert 1 piece (sold 10 pcs/box)
Product code: PLY-000282

Cutting insert HD for all material grades incl. hard metals 1 piece (sold 10 pcs/box)
Product code: PLY-000591

Insert screw for cutting insert
SRB-000485
