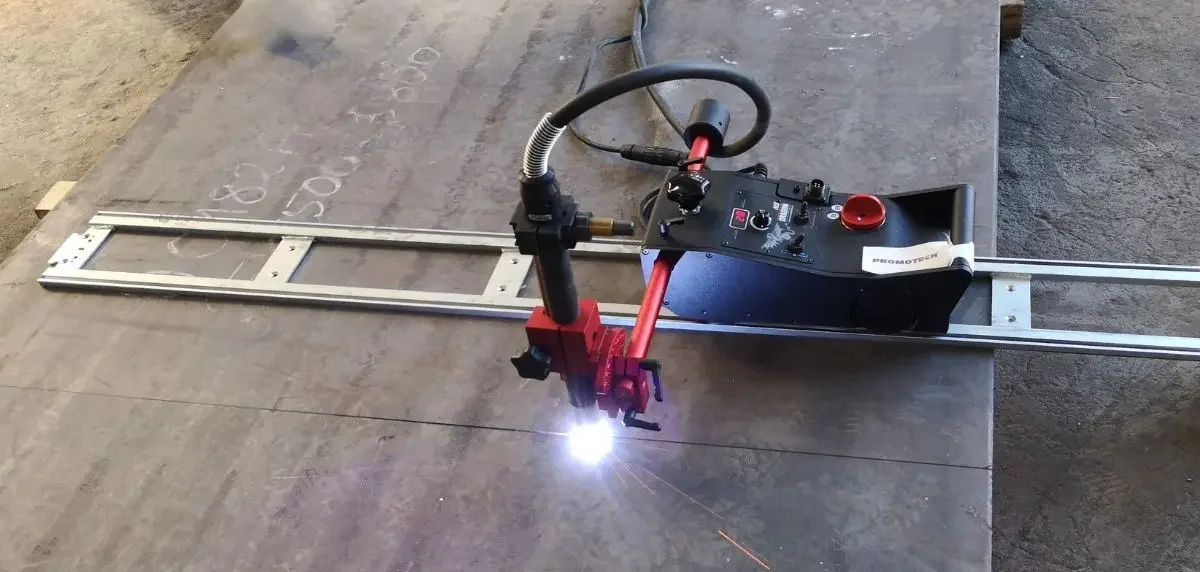

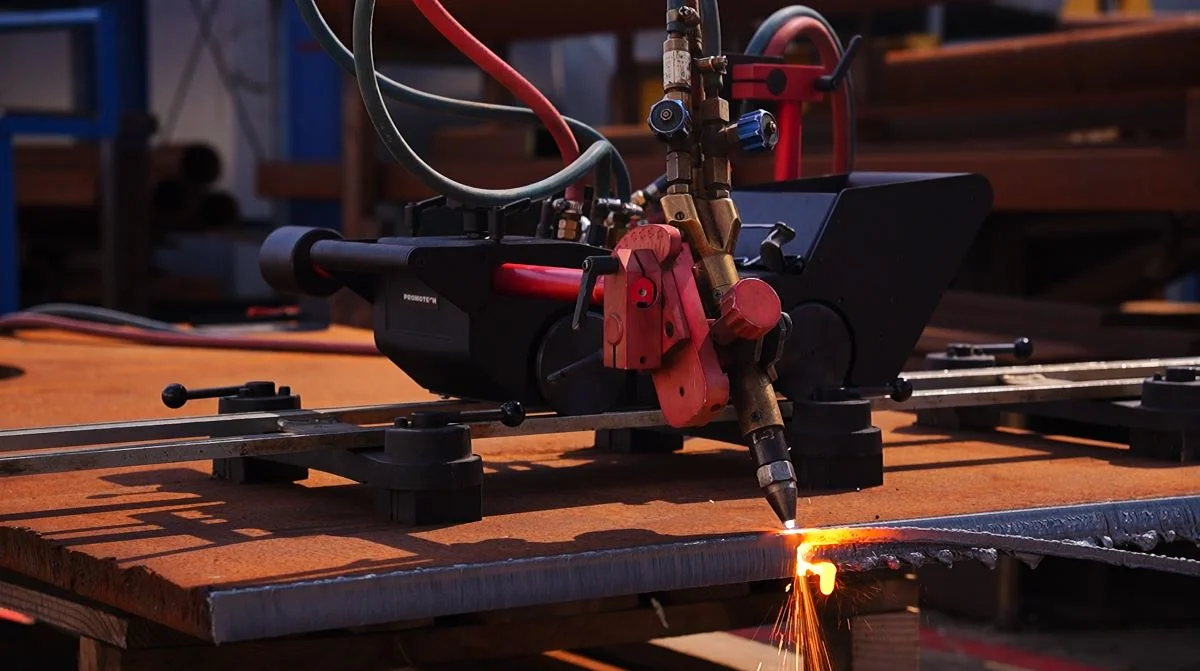

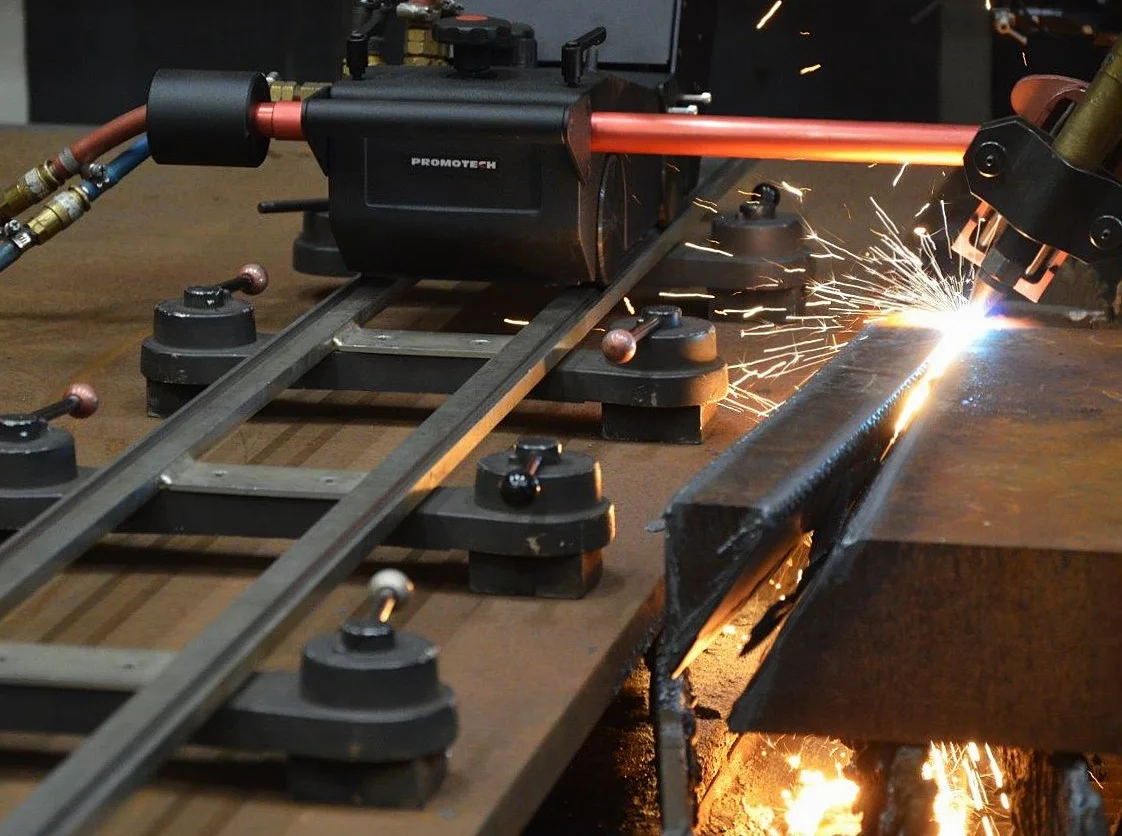

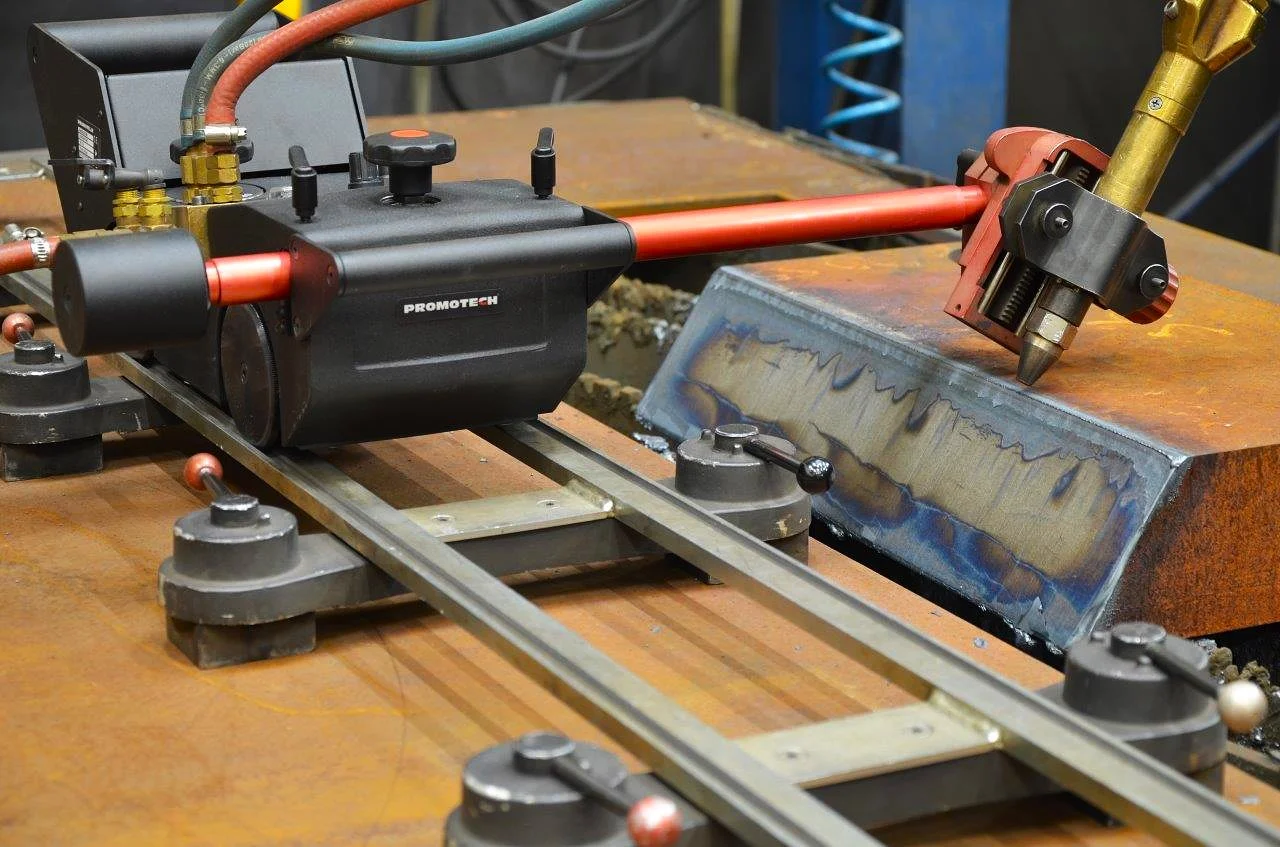

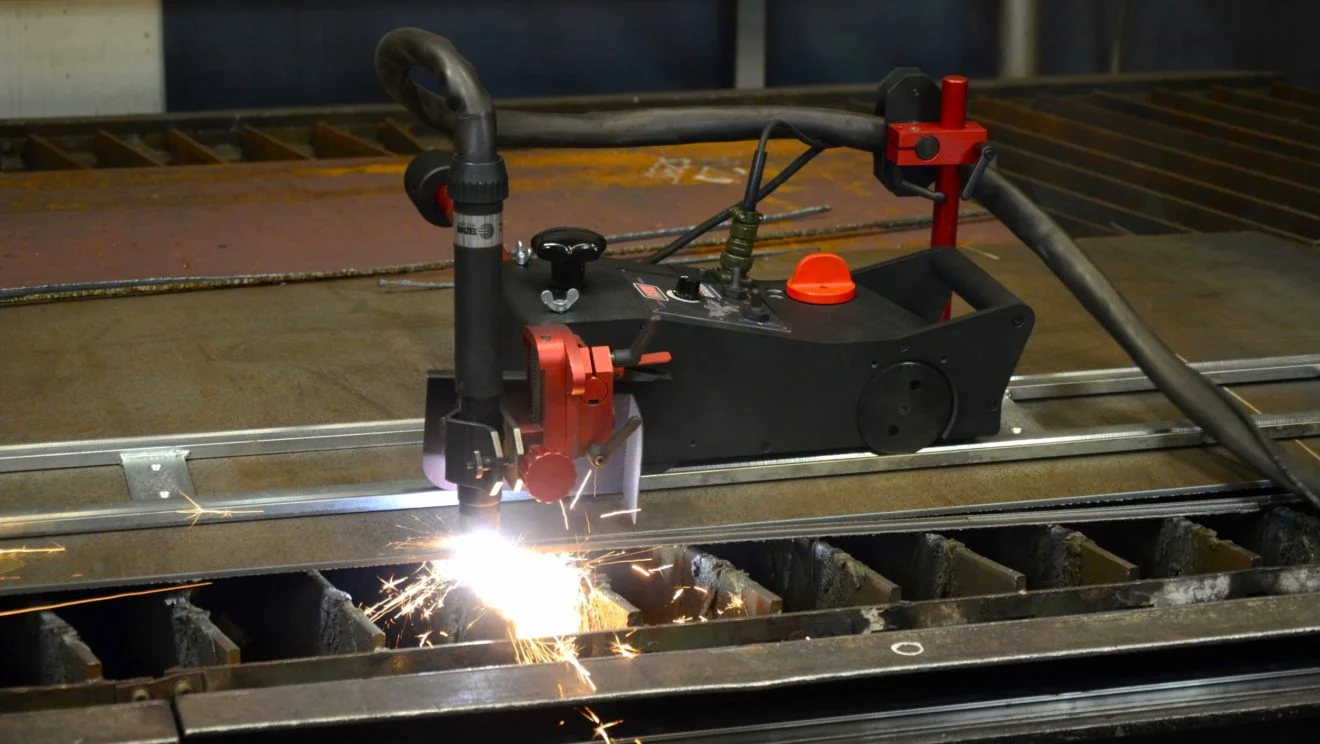

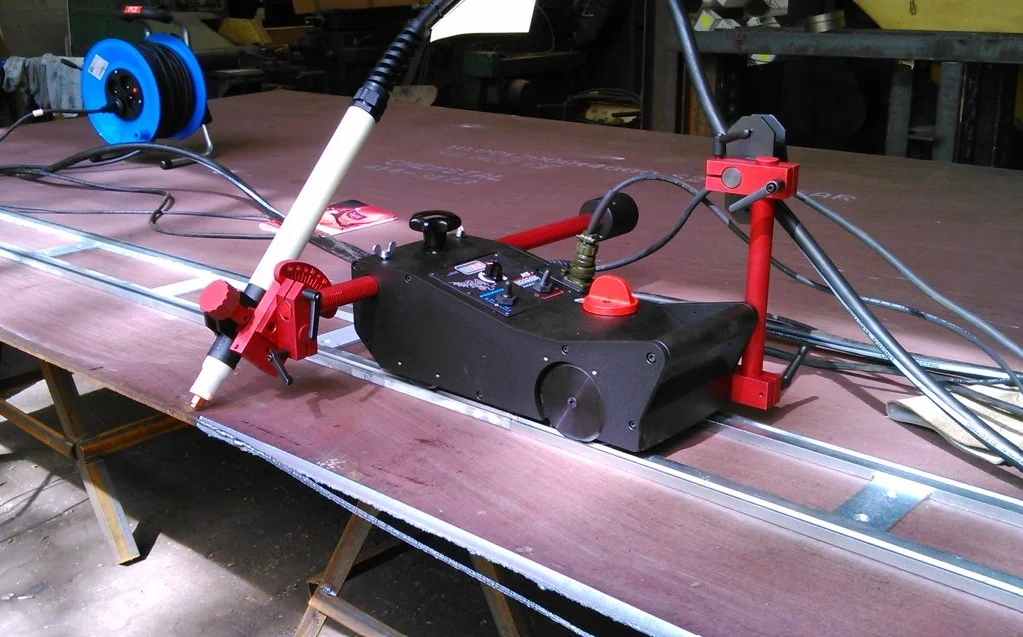

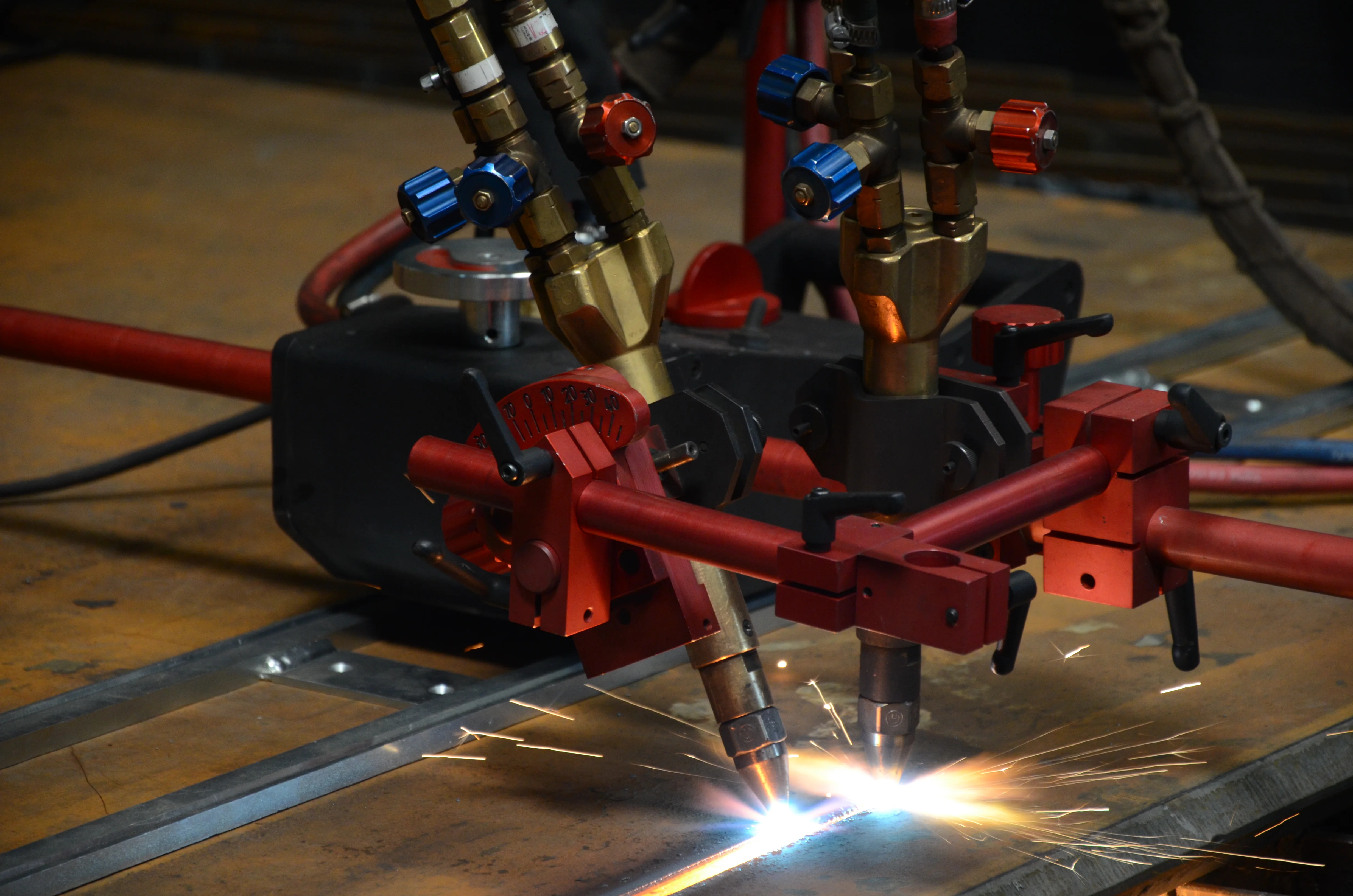

- Für geradlinige Anwendungen
- „V” Nutmittellinie 152 mm
- Länge einer einzelnen Schiene 1,8 m
- Verbindbar für unbegrenzte Lauflänge
- Befestigung auf eisenhaltigen und nicht eisenhaltigen Materialien durch Magnet- oder Vakuumeinheiten
V-Schiene
| Produkt-Code | Beschreibung |
|---|---|
| TRO-0475-13-00-00-0 | Schienenmontage 1800 mm „V” Nutmittellinie 152 mm |
| ZSP-0475-92-00-00-0 | Magneteinheit |
| MST-0677-00-00-00-0 | Leichte Magneteinheit |
| ZSP-0475-93-00-00-0 | Hitzebeständige magnetische Einheit |
| PDS-0582-10-00-02-0 | Magneteinheit schmal sechseckig |
| MST-0541-10-02-00-0 | Vakuum-Moduleinheit |
Ergebnisse: 5
Angewendete Filter:
Keine Ergebnisse gefunden. Versuche, deine Filter oder deinen Suchbegriff zu ändern.
-
MST-0541-10-02-00-0 Vacuum modular unit
- allows clamping tracks on both non-ferrous and ferromagnetic materials
- maximum holding force up to 1400 N
- consists of 2 vacuum pads and manifold block
- requires bracket DYS-0541-11-01-00-0 for hi-flex track and semi-flexible track
- requires bracket DYS-0466-71-04-00-0 for 160 mm wide flexible track
- depending on purpose-built configurations can function as entry, middle, extension or end vacuum unit (see Vacuum System at pages 30-31)
-
MST-0677-00-00-00-0 Lightweight magnetic unit
- allows clamping tracks to ferromagnetic surfaces in horizontal position
- lower weight (1.3 kg vs 2.7 kg) and smaller dimensions comparing to regular magnetic unit
- maximum holding force up to 980 N
- intermediate position (between OFF/ON) with partial holding force helps to adjust the right track position
- requires bracket DYS-0482-21-00-00-0 for rigid track
-
PDS-0582-10-00-02-0 Narrow magnetic unit with hexagon
- allows clamping tracks to ferromagnetic surfaces and very close to their edges
- maximum holding force up to 1500 N
- intermediate position (between OFF/ON) with partial holding force helps to adjust the right track position
- requires bracket DYS-0582-10-00-00-0 for hi-flex track and semi-flexible track
- requires bracket DYS-0466-71-07-00-0 for 160 mm wide flexible track
-
ZSP-0475-92-00-00-0 Magnetic unit
- allows clamping tracks to ferromagnetic surfaces
- maximum holding force up to 2500 N
- intermediate position (between OFF/ON) with partial holding force helps to adjust the right track position
- requires bracket DYS-0482-19-00-00-0 for hi-flex track and semi-flexible track
- requires bracket DYS-0482-21-00-00-0 for rigid track
- requires bracket DYS-0466-71-05-00-0 for 160 mm wide flexible track
-
ZSP-0475-93-00-00-0 Heat-resistant magnetic unit
- suitable for working on more heated ferromagnetic surfaces
- maximum holding force up to 2500 N
- intermediate position (between OFF/ON) with partial holding force helps to adjust the right track position
- requires bracket DYS-0482-19-00-00-0 for hi-flex track and semi-flexible track
- requires bracket DYS-0482-21-00-00-0 for rigid track
- requires bracket DYS-0466-71-05-00-0 for 160 mm wide flexible track
