PRO-60/110 HP | Portable Hydraulic Punchers

PRO-60/110 HP

Portable, double-action hydraulic puncher is an easy to handle, modern metal hole punch designed for punching holes with diameter up to 27mm. Intelligent control system and automatic load detection ensure safe and fast metal hole punching. Optional accessories enable customization of work place and improve punching efficiency.



Double action hydraulic movement
Oval hole
max Φ 27mm
Oblong hole
max 25 x 18 mm
Punching time
5 s (PRO-60)
8 s (PRO-110)
Max throat depth
60 mm (PRO-60)
110 mm (PRO-110)
Material thickness
13 mm (PRO-60)
16 mm (PRO-110)
Punching power
35 ton (PRO-60)
47 ton (PRO-110)
Weight
20 kg (PRO-60)
35 kg (PRO-110)

Key features

  • Double action – fully automated process of punching and return
  • Wide range of hole diameters up to 27mm
  • Modern construction
  • Intelligent control system with inching and automatic load detection
  • Mode indicator light
  • Protection against accidental start-up
  • Double action – fully automated process of punching and return
  • Wide range of hole diameters up to 27mm
  • Modern construction
  • Intelligent control system with inching and automatic load detection
  • Mode indicator light
  • Protection against accidental start-up

Ready to work with any type of standard overhead balancers
Balancer for PRO 60 HP; Product code: BLN-000004
Balancer for PRO 110 HP; Product code: BLN-000005

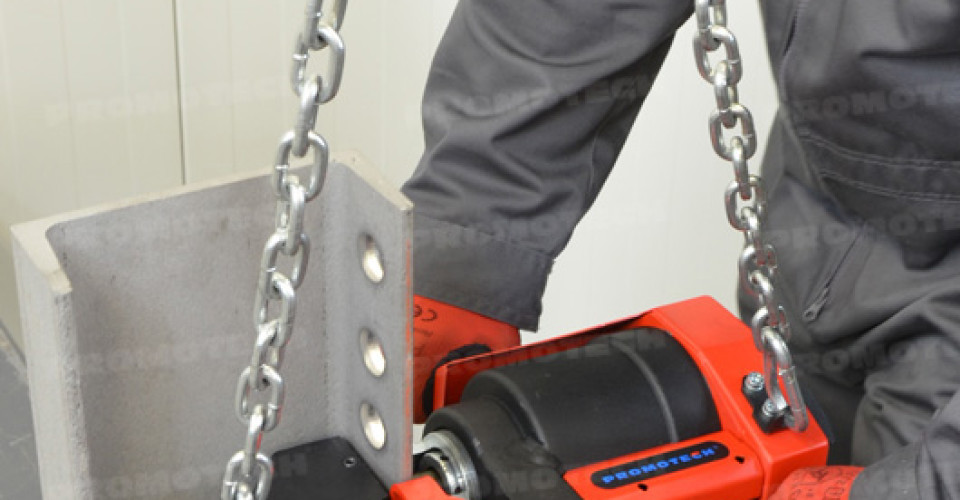

Ready to work in both vertical and horizontal positions

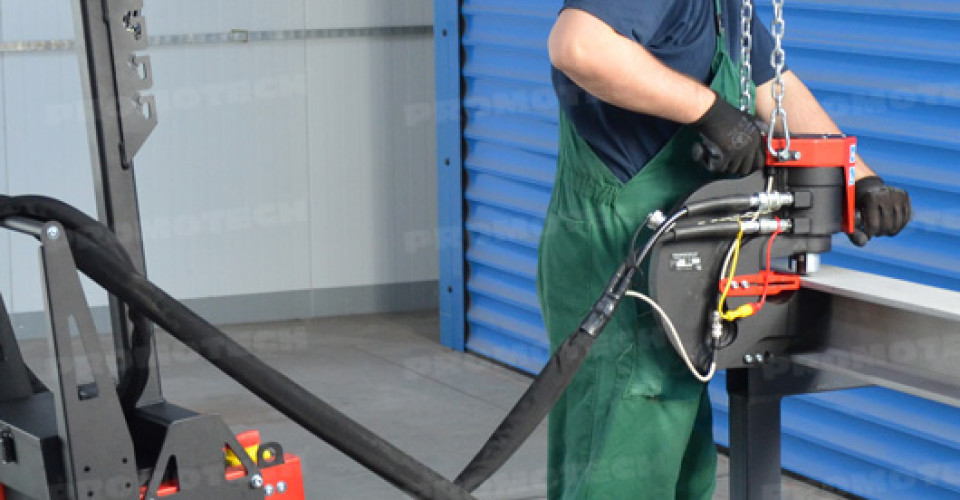

Hoist set Easy to handle in both vertical and horizontal positions
Product code: ZUR-0517-15-00-00-0

Wheel puncher slide – Permits smooth and efficient lineal movement along the workpiece.
Product code: PRW-0507-90-00-00-0

Bench top stand with foot pedal – Foot pedal machine control in hands free operation on bench top configuration.
Product code: ZST-0507-91-00-00-0

Wide range of special-shaped standard and oblong punches and dies

Portable Double-Action
Hydraulic Puncher Technical
SpecificationVoltage
model PRO 60 HPmodel PRO 110 HP
Max. throat depth60 mm
Max. holeØ 27 mmØ 27 mm
Max. oblong hole25 x 18 mm25 x 18 mm
Punching time5 sec8 sec
Max. plate thickness13 mm16 mm
Punching power35 ton47 ton
Working pressure 700 bar700 bar700 bar
Weight20 kg35 kg
Product codeGLW-0522-10-00-00-1GLW-0507-10-00-00-0

Double-Action Hydraulic Power Pack model HPP 700/1.5
Power supply*230V/50Hz; 115V/60Hz
Motor power1500 W
Working pressure700 bar
Pump output1.5 L/min
Oil capacity10 L
Product codeHydraulic Power Pack standard

110-120V/60Hz - ZSL-0517-10-10-00-0

110-120V/50Hz - ZSL-0517-10-10-01-0

220-240V/50Hz - ZSL-0517-10-20-00-0

220-240V/60Hz - ZSL-0517-10-20-01-0
* Contact Promotech for other voltage options
