ABM-14 | Plate and pipe beveler

ABM-14 plate and pipe beveler

ABM-14 is a beveling machine designed to mill plates and pipes made of carbon steel, alloy steel, stainless steel or aluminum alloys.



Bevel width up to 14 mm (9/16’’)
Top and bottom beveling
Min plate width 55 mm (2-3/16’’)
Min plate thickness 6 mm Max plate thickness 40 mm (1-9/16’’)
Pipe OD beveling Min. ID 100 mm (4”)
Bevel angles: 30° ( option) 22.5°, 25°, 35°, 37.5°, 45°

Key features

In just one single run the machine can bevel up to 2.6 m/min. (8.5 ft/min.) to a width of 12 mm (1/2’’) in workpieces with tensile strength of Rm ≤ 392 MPa (57,000 psi). Maximum bevel width is 14 mm (9/16’’). Depending on materials two or more runs are needed. Bevel angles incl. 30° (standard) and with optional angle variation devices also 22.5o, 25o, 35o, 37.5o or 45o. The machine can bevel plates from the top and bottom. In the case of the milling tool getting stuck in the material and beveling cannot be continued the direction of rotation of the tool can be reversed to release the machine from the workpiece. There is no need to wear acoustic protection equipment because the noise produced by the machine does not exceed 70 dB.

  • fast and efficient
  • bevels both small and large pieces to cover most of the common applications for its type
  • auto feed on large plates with optional trolley
  • beveling of lower edge in inverted position
  • standard shearing cutter for machining stainless/alloyed steel
  • 2 optional shearing cutters dedicated to carbon steel and to aluminum
  • reversible spindle against stuck milling tool
  • versatile and transportable on its own trolley
  • low noise

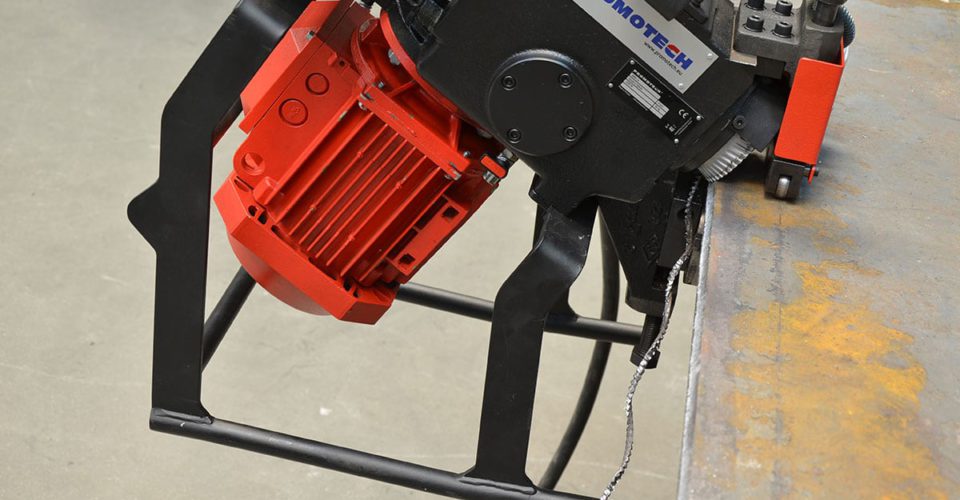

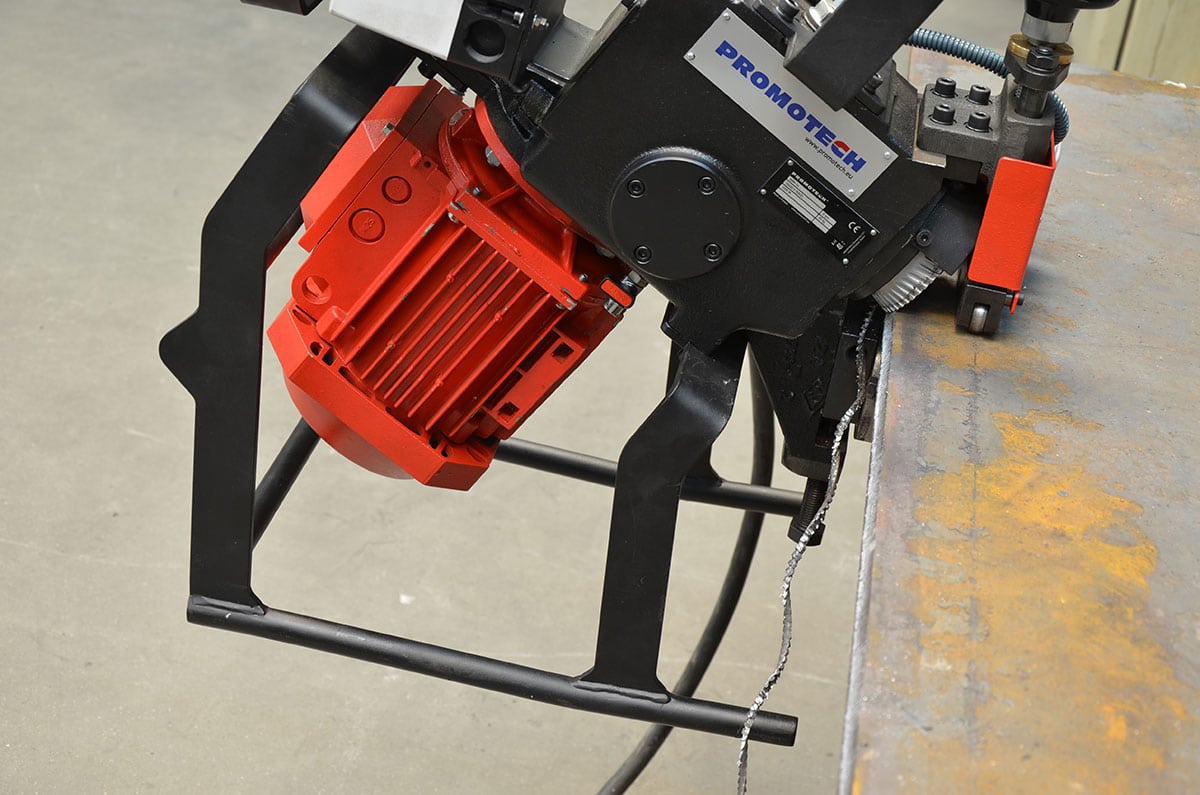

Top plate beveling

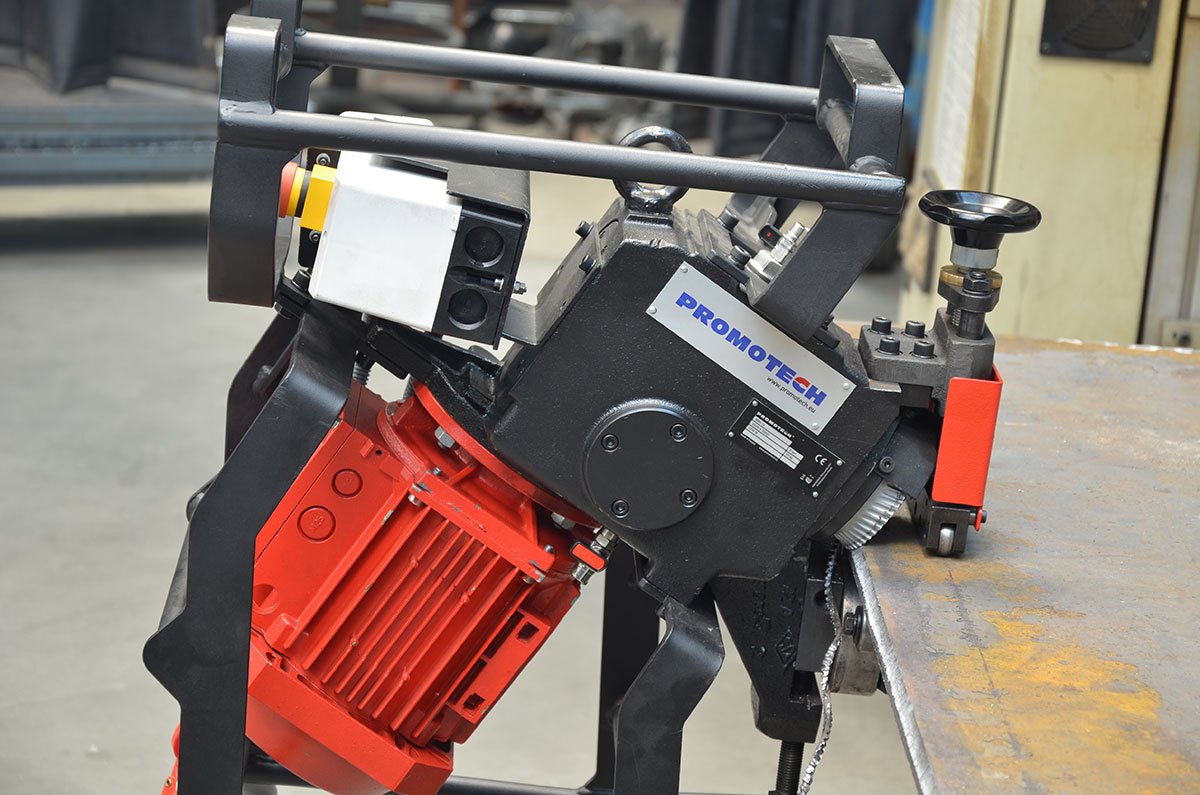

Bottom plate beveling

Oval workpiece and pipe beveling

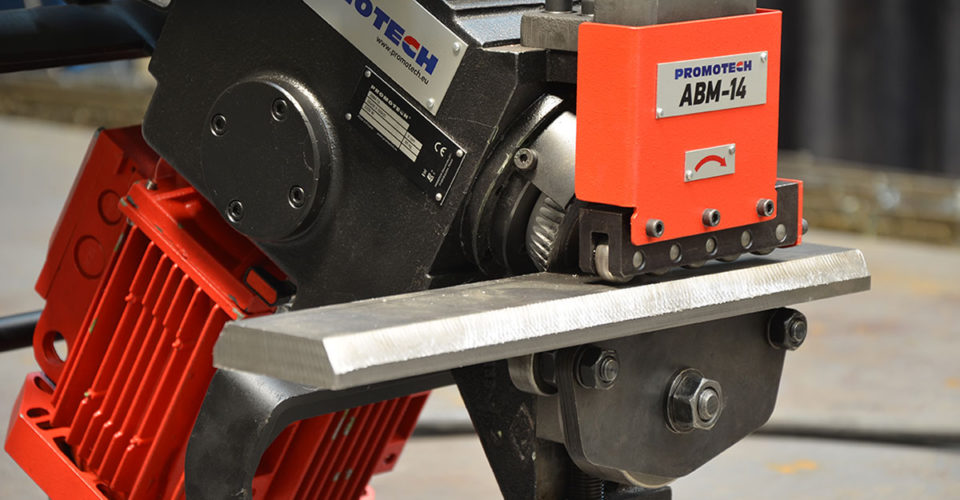

Beveling at 30o

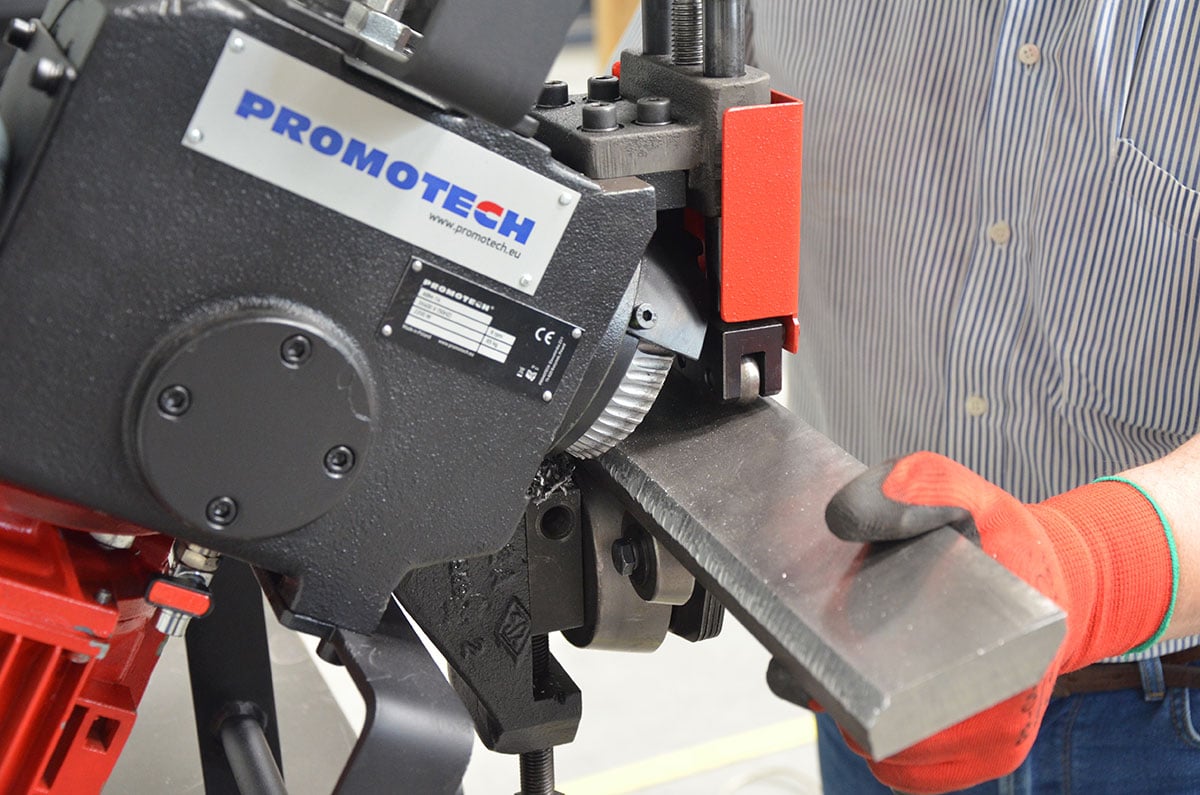

Beveling at 45o

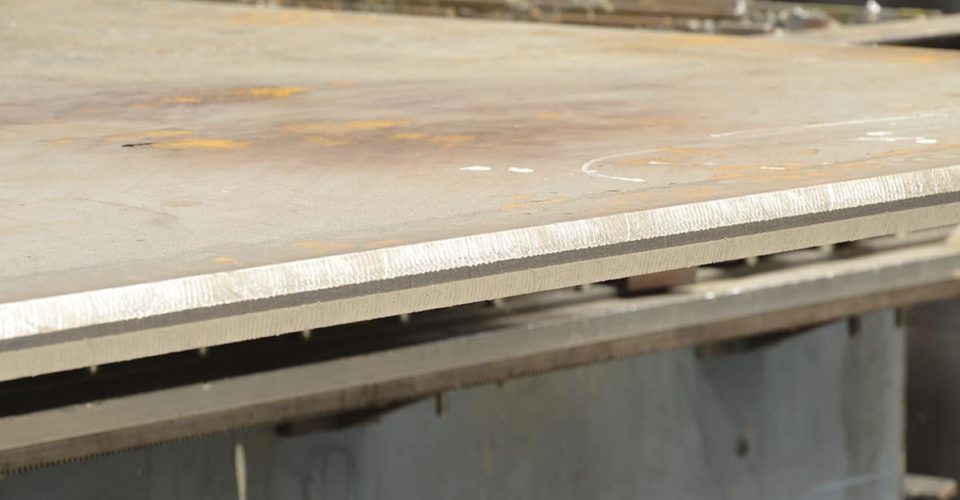

Maximum bevel width up to 14 mm

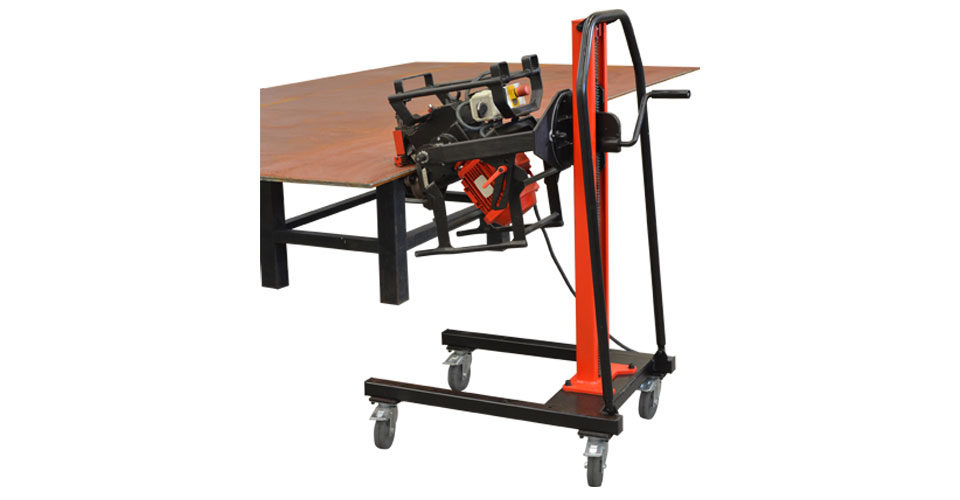

ABM-14 runs along a plate automatically

Brochures

Make sure you are familiar with Promotech ABM-14 plate and pipe beveler brochure including technical data and detailed information about this product. Should you have any further questions we encourage you to send us an enquiry.

ABM-14 plate and pipe beveler

Size: 2.1 MB Type: PDF

Plate & Pipe Bevelling Machines

Size: 3.7 MB Type: PDF

Demo video

Join our channels


Technical specification

Voltage3~ 400 V + PE, 50/60 Hz
Power2200 W
Spindle speed9 rpm
Bevel angle range
(ß – depending on angle device in use)
30°
22.5°, 25°, 35°, 37.5°, 45° (options)
Bevel width (b)up to 14 mm (9/16’’)
Maximum bevel in one single run12 mm (in 40 Kg/ 392 MPa carbon steel)
Minimum plate thickness6 mm (1/4’’)
Maximum plate thickness40 mm (1-9/16’’)
Minimum plate width55 mm (2-3/16’’)
Bevel length per minute2.6 m (8.5 ft)
Minimum pipe ID100 mm (4”)
Weight65 kg (144 lbs)
Product Code:UKS-0639-10-40-00-0

Optional accessories

FRZ-000586
FRZ-000586 Milling cutter for carbon steel

FRZ-000588
Milling cutter for stainless steel

FRZ-000587
Milling cutter for aluminum

PRW-000100 – PRW-000105
Angle Variation Device 22.5 – 45

SCG-000002
Milling cutter extraction tool

TRZ-000017
Tube beveling shaft

PDK-000240
Tube beveling washer

WOZ-000009
Adjustable trolley
